189-基于stm32单片机环境噪音检测简易音量分贝仪Proteus仿真+源程序

资料编号:189

一:功能介绍

1、采用stm32单片机+LCD1602显示屏+DHT11温湿度模块+LED+电位器,制作一个基于stm32单片机环境噪音检测简易音量分贝仪Proteus仿真;

2、通过DHT11温湿度传感器,读取当前环境的温度和湿度,数值显示到LCD1602显示屏上;

3、通过声音传感器(电位器模拟)读取当前的音量分贝,显示到LCD1602显示屏上;

4、当音量分贝小于40为低噪音,40-70为中噪音,大于70为高噪音,并且有对应的指示灯显示噪音状态;

二:仿真演示视频+程序简要讲解(程序有中文注释,新手容易看懂)

189-基于stm32单片机环境噪音检测简易音量分贝仪Proteus仿真+源程序

三:设计软件介绍

本设计使用C语言编程设计,程序代码采用keil5编写,程序有中文注释,新手容易看懂,仿真采用Proteus软件进行仿真,演示视频使用的是Proteus8.9版本;资料包里有相关软件包,可自行下载安装。

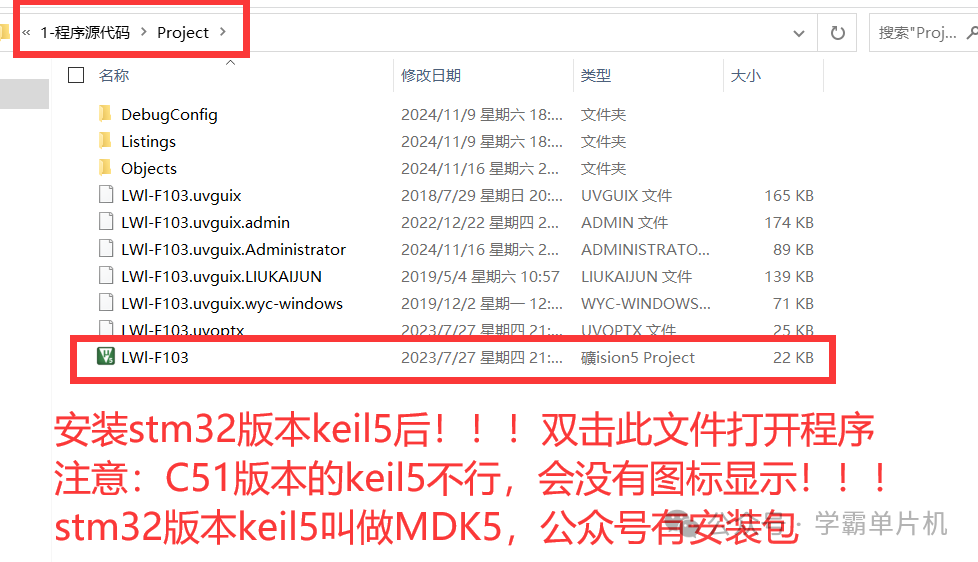

四:程序打开方法

特别注意:下载资料包以后一定要先解压! !!(建议解压到桌面上,文件路径太深会导致程序打开异常),解压后再用keil5打开。

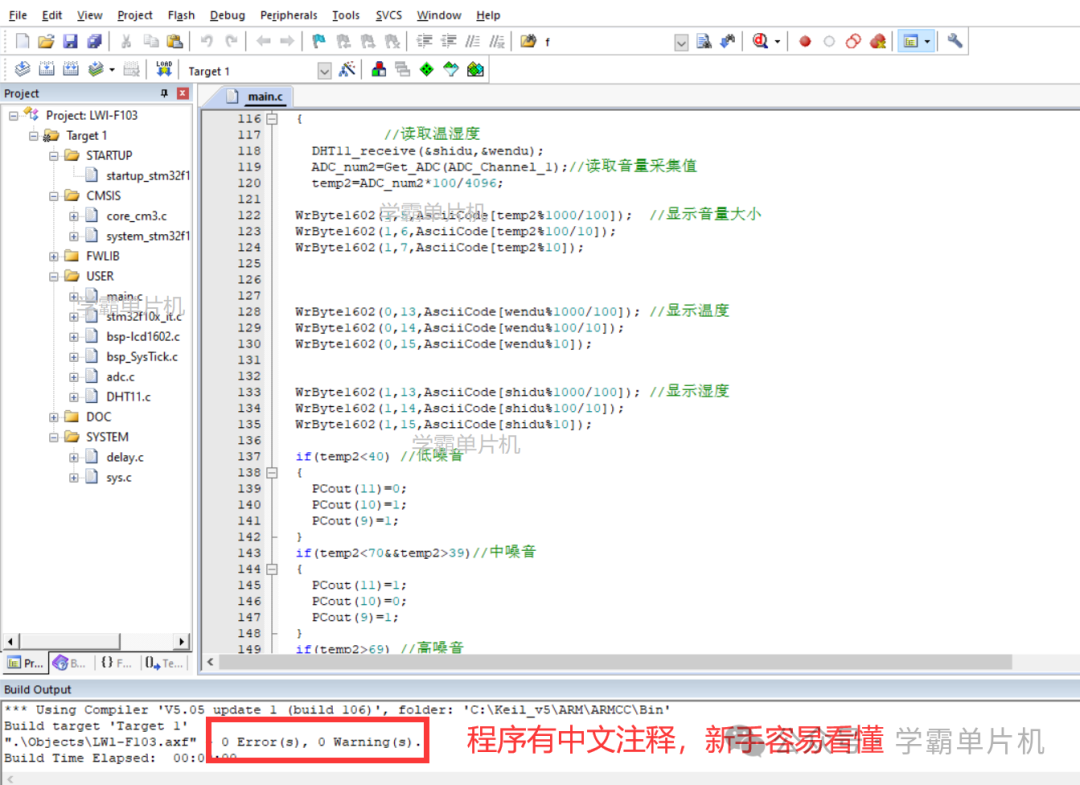

程序部分展示,有中文注释,新手容易看懂
void GPIO_Configuration(void)
{
  GPIO_InitTypeDef GPIO_InitStructure;
  RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOB,ENABLE);


  //LCD1602 管脚
  GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_8| GPIO_Pin_9| GPIO_Pin_10| GPIO_Pin_11| GPIO_Pin_12| GPIO_Pin_13| GPIO_Pin_14| GPIO_Pin_15;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_OD;
  GPIO_Init(GPIOB, &GPIO_InitStructure);
  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_7 |GPIO_Pin_6|GPIO_Pin_5;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
  GPIO_Init(GPIOB, &GPIO_InitStructure);
  //DHT11
  GPIO_InitStructure.GPIO_Pin =  GPIO_Pin_0;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_2MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_OD;
  GPIO_Init(GPIOB, &GPIO_InitStructure);
}
void IO_out( void )
{
  GPIO_InitTypeDef GPIO_InitStructure;
  RCC_APB2PeriphClockCmd(RCC_APB2Periph_GPIOA|RCC_APB2Periph_GPIOC ,ENABLE);
  RCC_APB2PeriphClockCmd(RCC_APB2Periph_AFIO, ENABLE);

  GPIO_InitStructure.GPIO_Pin = GPIO_Pin_11|GPIO_Pin_10|GPIO_Pin_9;
  GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
  GPIO_InitStructure.GPIO_Mode = GPIO_Mode_Out_PP;
  GPIO_Init(GPIOC, &GPIO_InitStructure);


}




int main(void)
{
  int ADC_num2;
  int temp2;
  GPIO_Configuration();//初始化
  ADC1_GPIO_Config();
  ADC_Config();
  Init1602();
  IO_out();
  WrByte1602(1,1,' '); //字符显示
  WrByte1602(1,2,'Y');
  WrByte1602(1,3,'L');
  WrByte1602(1,4,'=');


  WrByte1602(0,9,' ');
  WrByte1602(0,10,'W');
  WrByte1602(0,11,'D');
  WrByte1602(0,12,'=');


  WrByte1602(1,9,' ');
  WrByte1602(1,10,'S');
  WrByte1602(1,11,'D');
  WrByte1602(1,12,'=');
  delay_ms(500);
  while(1)
  {
             //读取温湿度
    DHT11_receive(&shidu,&wendu);
    ADC_num2=Get_ADC(ADC_Channel_1);//读取音量采集值
    temp2=ADC_num2*100/4096;

  WrByte1602(1,5,AsciiCode[temp2%1000/100]);  //显示音量大小
  WrByte1602(1,6,AsciiCode[temp2%100/10]);
  WrByte1602(1,7,AsciiCode[temp2%10]);



  WrByte1602(0,13,AsciiCode[wendu%1000/100]);  //显示温度
  WrByte1602(0,14,AsciiCode[wendu%100/10]);
  WrByte1602(0,15,AsciiCode[wendu%10]);



  WrByte1602(1,13,AsciiCode[shidu%1000/100]);  //显示湿度
  WrByte1602(1,14,AsciiCode[shidu%100/10]);
  WrByte1602(1,15,AsciiCode[shidu%10]);

  if(temp2<40) //低噪音
  {
    PCout(11)=0;
    PCout(10)=1;
    PCout(9)=1;
  }
  if(temp2<70&&temp2>39)//中噪音
  {
    PCout(11)=1;
    PCout(10)=0;
    PCout(9)=1;
  }
  if(temp2>69) //高噪音
  {
    PCout(11)=1;
    PCout(10)=1;
    PCout(9)=0;
  }
  }
}

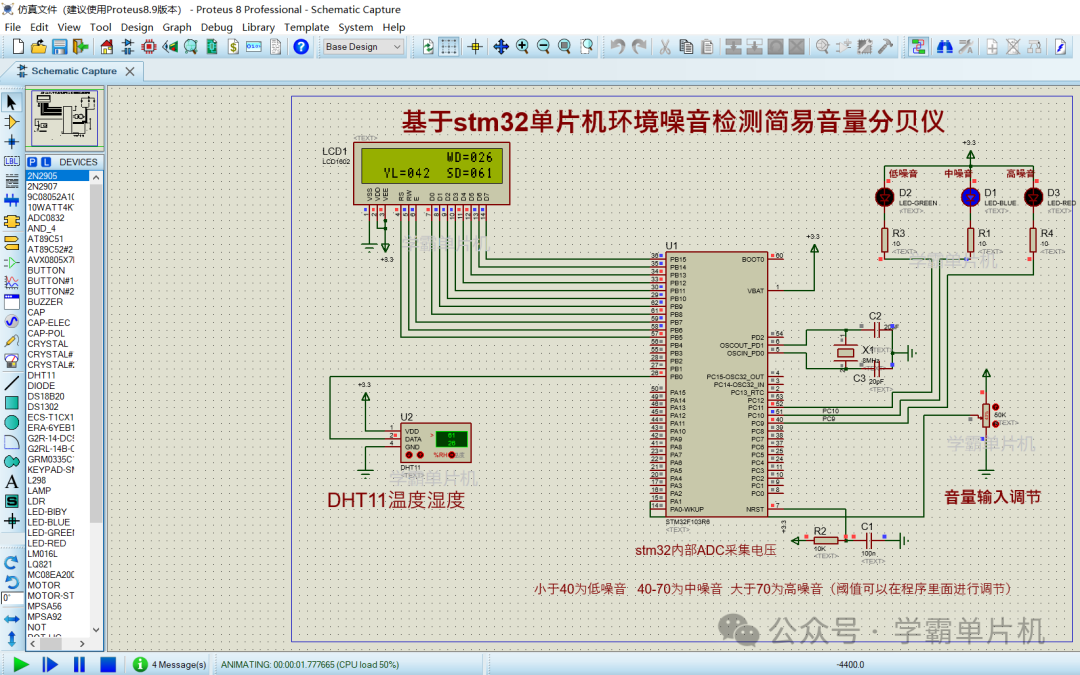

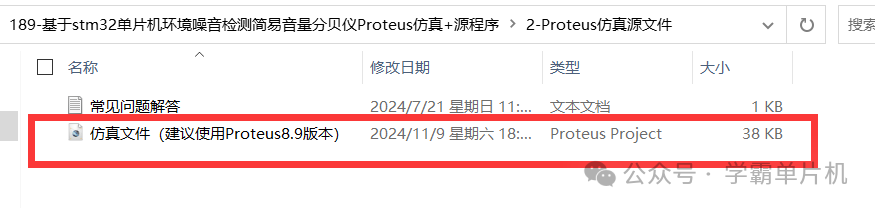

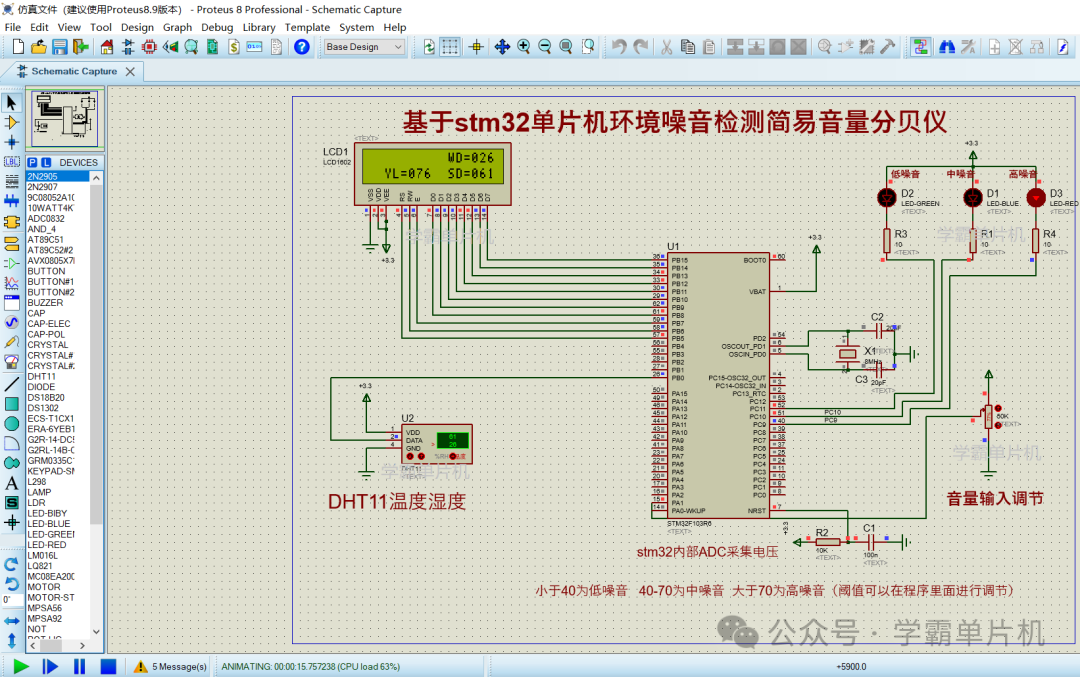

五:仿真文件(采用Proteus打开)

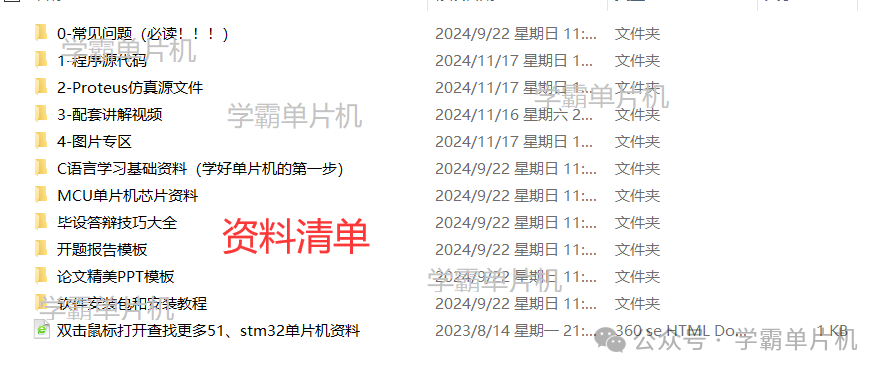

六:资料清单展示(文件中包含的相关资料)


资料包百度网盘下载链接
