视程空间（VIsion Space）推出新款迷你AI算力开发板AIR系列产品

AIR SC6N0-C NX

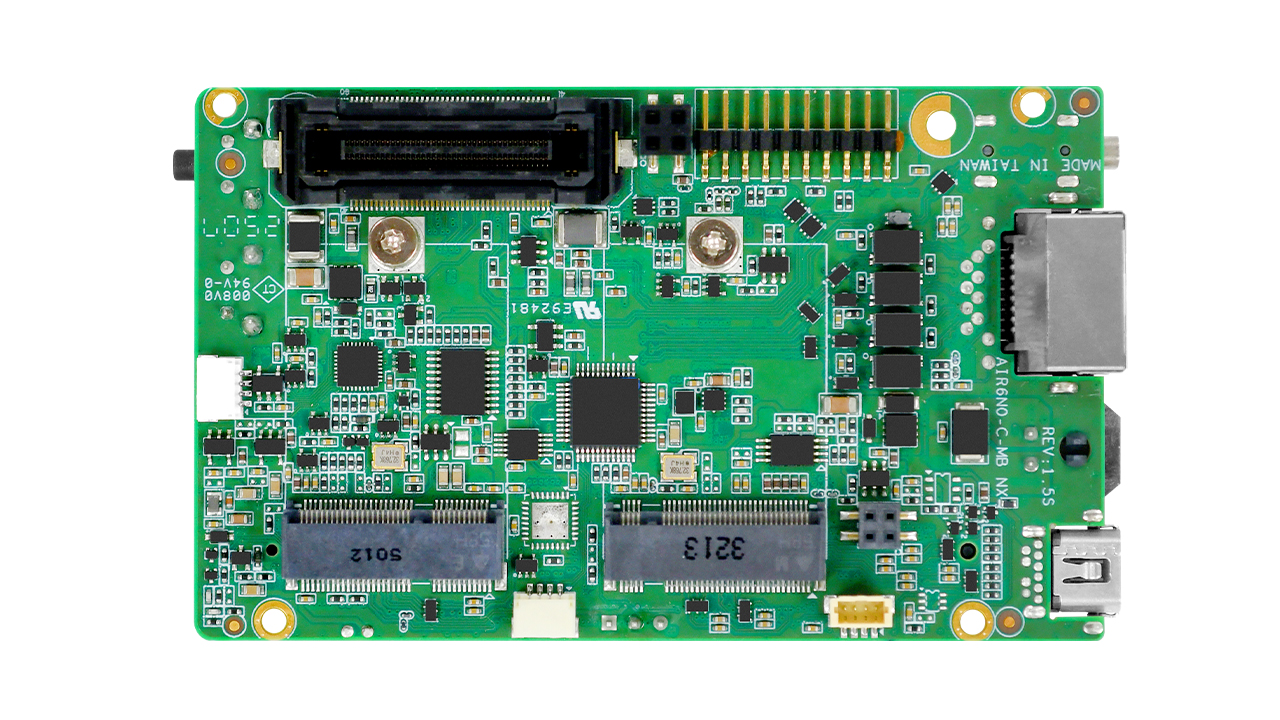

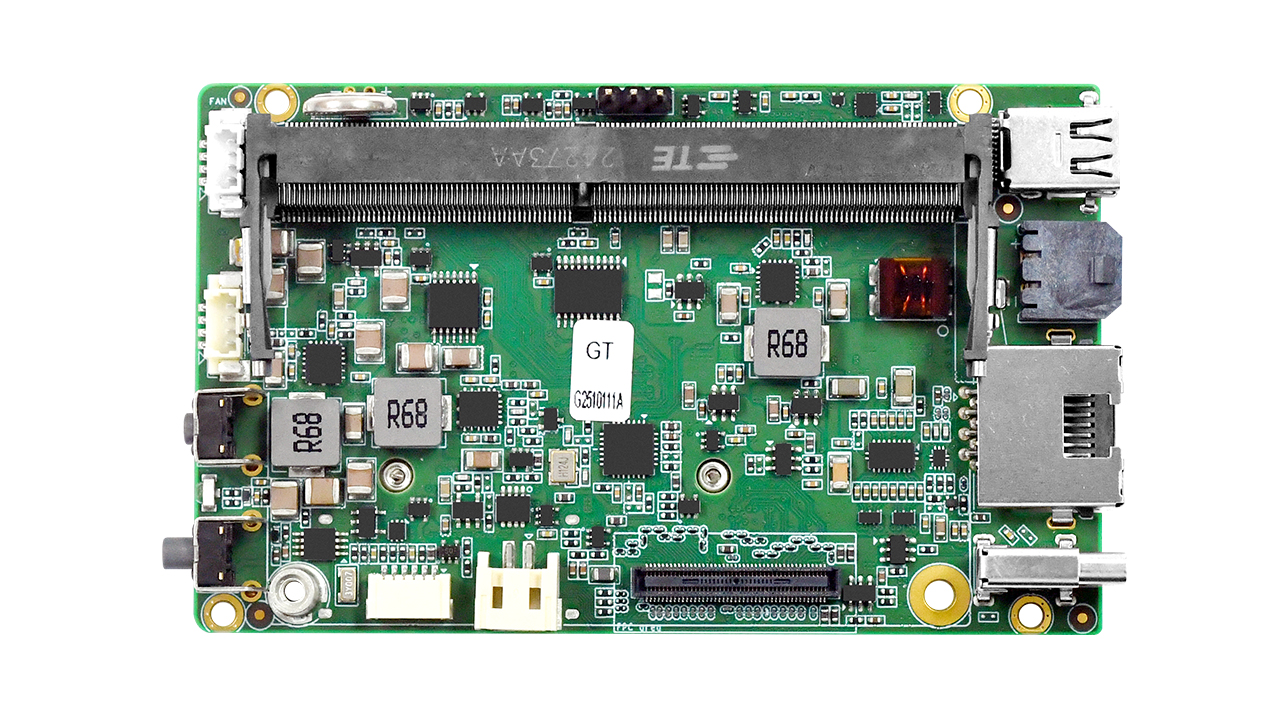

         视程空间AIR SC6N0 系统开发板搭载 NVIDIA Jetson Orin™系列，深度整合 Jetson Orin™ NX 嵌入式模组，人工智能影像处理算力强劲，AIR SC6N0开发板最高支持157 TOPS，并向下兼容 117 TOPS、100 TOPS、70 TOPS、67 TOPS、34 TOPS等不同配置模块，满足多样化计算需求。该系统突破性采用双载板设计，打破传统载板布局定式，无论是追求极致轻薄的用户，还是有多元扩展需求的客户，均可从中找到适配方案。此外，AIR SC6N0 全系列 AI 影像采集卡，与 NVIDIA Jetson Orin™实现无缝协作，释放强大性能。

      视程空间 AIR SC6N0 平台以极致轻薄与低功耗特性，突破传统 AI 平台的体积桎梏。在轻量化设计基础上，它还兼具高度灵活的扩展性，能够灵活适配多元应用场景。从智能安防到工业检测，从智慧零售到医疗影像分析，AIR SC6N0 凭借高度集成化优势，赋能各行业加速 AI 转型进程，为智能时代注入全新活力。

System
SOM	NVIDIA Jetson OrinTM NX 16GB Super	NVIDIA Jetson OrinTM NX 8GB Super
CPU	8-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 2MB L2 + 4MB L3	6-Core Arm® Cortex®-A78AE v8.2 64-Bit CPU 1.5MB L2 + 4MB L3
GPU	1024-Core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
AI Performance	157 TOPS	117 TOPS
System Memory	16GB 128-bit LPDDR5 102.4GB/s	8GB 128-bit LPDDR5 102.4GB/s
Interface
Storage	Supports External NVMe
Display Interface	1×Mini DP1.4
Ethernet	1×RJ45 for 10/100/1000Mbps Ethernet ( DHCP Client )
Expansion Slot	1×M.2 2230 M Key PCIe Gen4×2 Slot ( Nano: Gen3×2 ) 1×M.2 2230 E Key PCIe Gen4×1 Slot ( Nano: Gen3×1 )
USB	1×USB3.2 Gen2 ( Type-C )
MIPI	8 MIPI CSI-2 Lanes ( D-PHY 2.1, Support MIPI Camera, Capture Card )
Misc. Features	Firmware Upgradable
Development Environment
JetPack	6.2 or Higher
Environment
Power Supply	DC input : 12~36V
Power Consumption	TBA
Operating Temperature	0~60。C with Airflow
Storage Temperature	-20~80。C
Certification	CE, FCC

SDK/Software
SOM	NVIDIA Jetson OrinTM NX 16GB Super	NVIDIA Jetson OrinTM NX 8GB Super
Video Encode	AV1 ( UHP ) 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30
	H.265 ( UHP ) 1×4K60 | 3×4K30 | 6×1080p60 | 12×1080p30
	H.264 ( UHP ) 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
Video Decode	AV1 ( Main Profile ) 1×8K30 | 2×4K60 | 4×4K30 | 10×1080p60 | 20×1080p30
	H.265 ( Main, Main10 ) 1×8K30 | 2×4K60 | 4×4K30 | 9×1080p60 | 18×1080p30
	H.264 ( Baseline, Main, High ) 1×4K60 | 2×4K30 | 5×1080p60 | 11×1080p30
	VP9 ( Profile 0, Profile 2 ) 1×4K60 | 3×4K30 | 7×1080p60 | 15×1080p30
SDK
QCAP	Capture High Performance Renderer Image Snapshot De-interlace, Alpha Blending Engine Auto Signal Detection 2D/3D Video, Audio and VANC Streams Capture
	Record Encrypt / Sync / Clone / Recording Time-Shifting / Rewind / Pre-Event / Recording Multi-Streams ( 3D ) Recording Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine
	Stream 2D/3D Universal Stream Client 2D/3D Multi-Streams Stream Server RTSP, RTMP, HLS, SRT, TS, WebRTC. NDI-HX (*), Full NDI (*) Animation Transition Effect Video Cropping, Scaling and Alpha Blending Engine *Separate License Required
QDEEP	AI SDK Integrated Multiple Algorithms and Deep-Learning Models in Various Fields of Applications Face Recognition Objects Detection Objects Segment  Optical Character Recognition License Plate Recognition Customizable Video AI Functions Upon Request

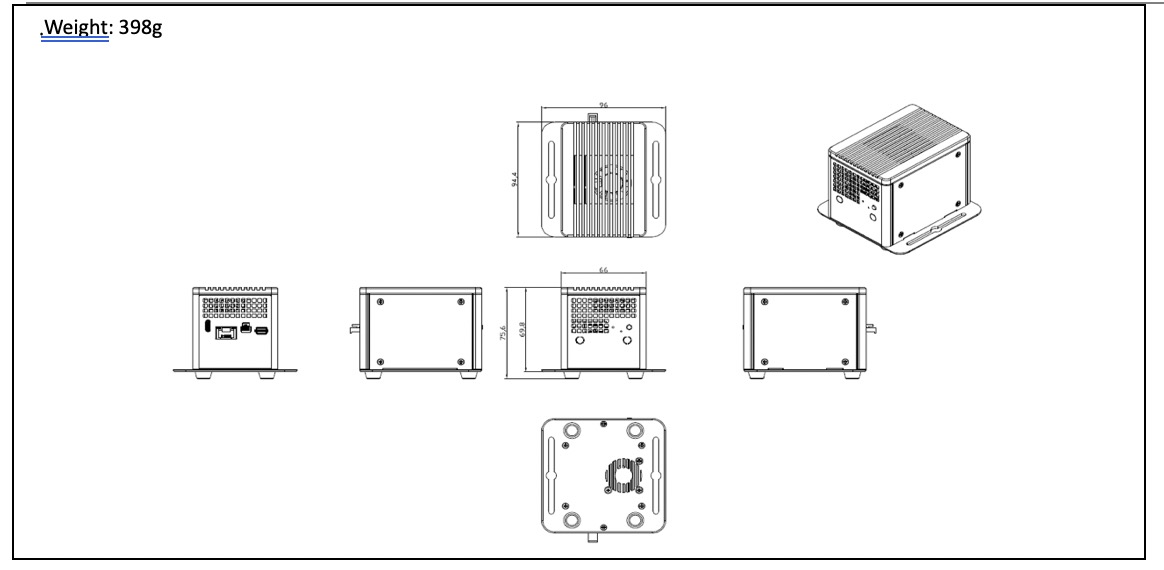

Mechanical
.Dimension: 94.4 mm × 66 mm × 69.8mm
