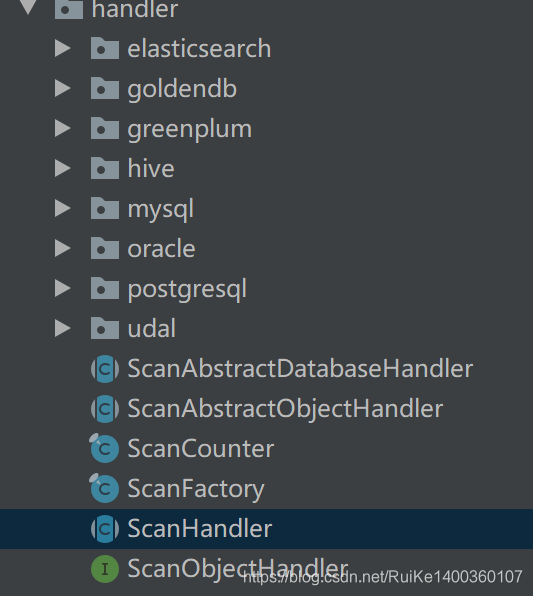

一、责任链设计模式搭建骨架图

背景说明：

责任链模式包含一份请求对象和一系列执行对象，将这些对象连成一条链，并沿着这条链传递该请求，直到有一个对象处理它为止。这里的场景是：找到某个Handler处理掉请求。

反向同步功能实现里边，需要同步多种类型的数据源到我们自己的库，例如关系型mysql、oracle,大数据hive，索引es等等。单从反向同步这个功能来说，我需要执行一个请求，能根据不同的类型处理不同的同步操作，只处理一个具体Handler的（记住这里，也可以一口气处理所有链条上的，处理完一个handler接着触发下一个handler，处理所有的类似拦截器Filter），并且处理具体同步逻辑和返回处理结果。

二、责任链具体搭建

以反向同步为例

2.1、顶层抽象处理ScanHandler

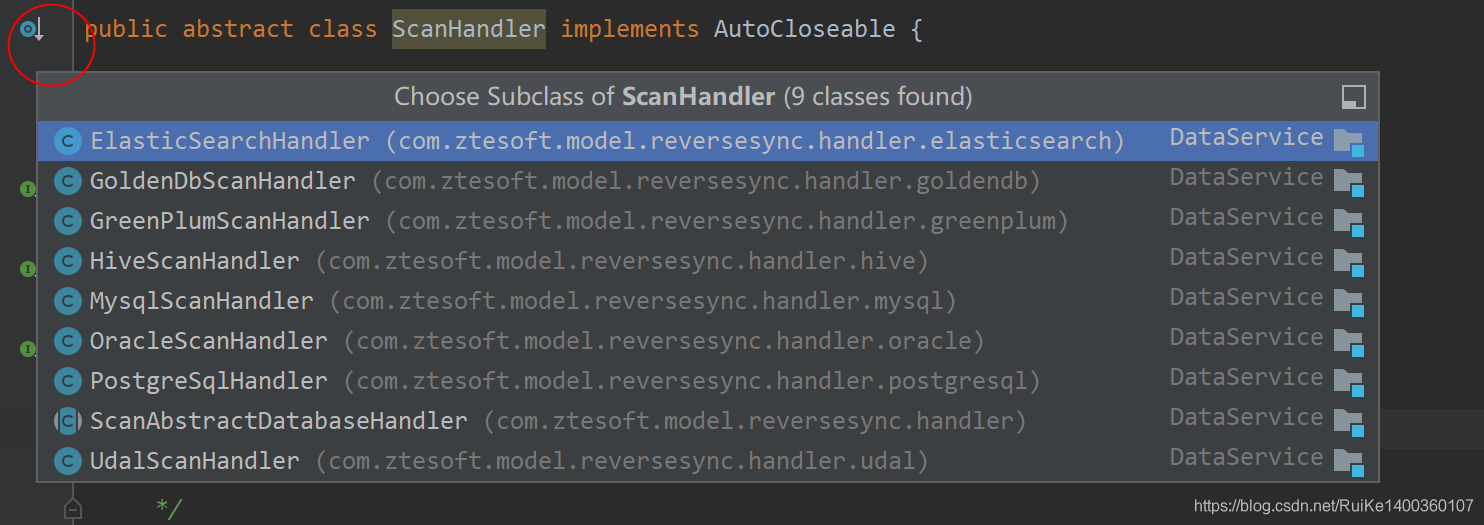

可以看到具体handler继承了他并重写了这个抽象的某些方法

例如：非关系型数据同步的ElasticSearch直接继承了该抽象并重写了方法实现功能

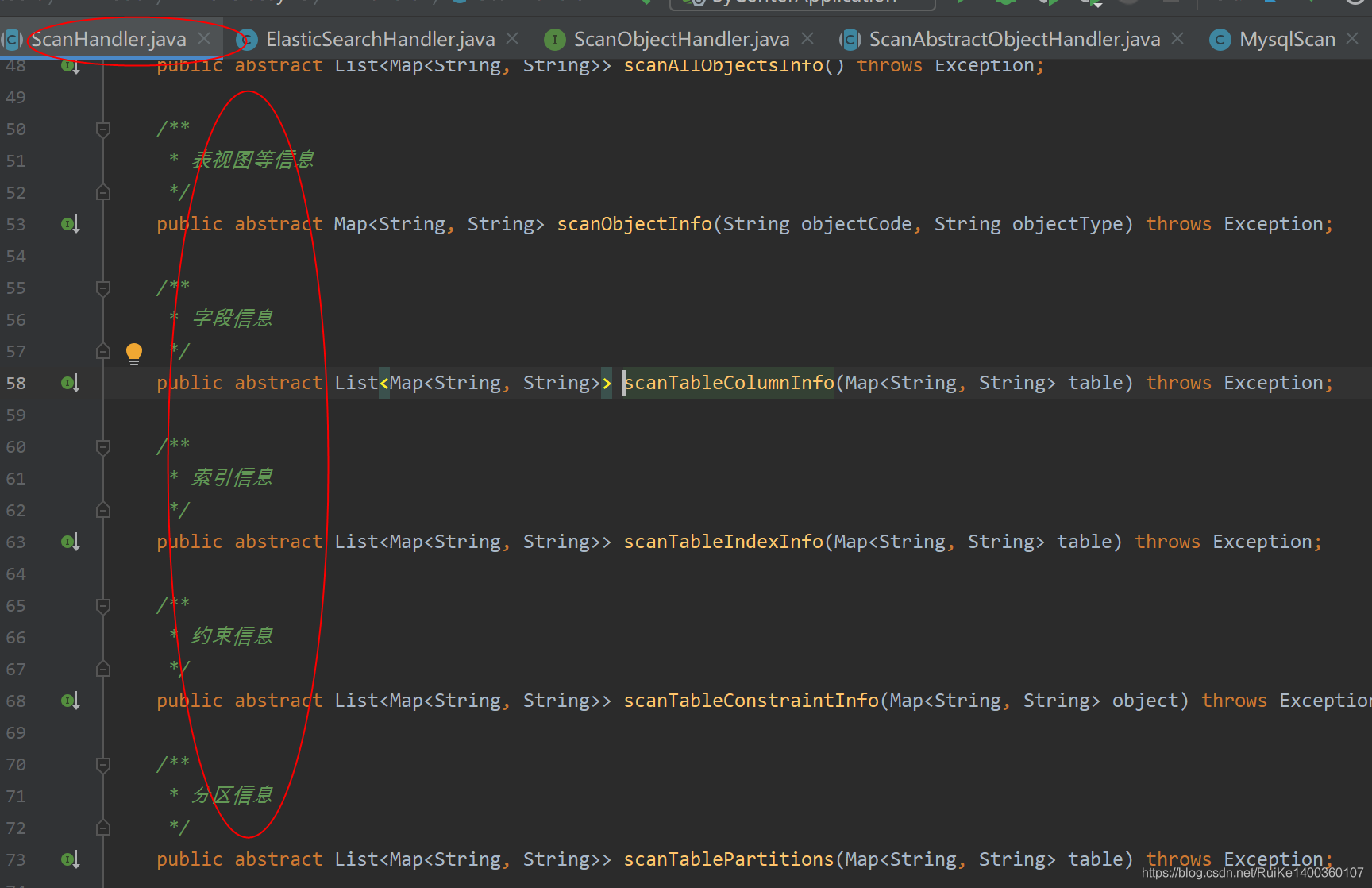

public abstract class ScanHandler implements AutoCloseable {

    public DataSource dataSource;

    public abstract ZmgrMetaInfo handle(Map<String, String> table) throws Exception;

    public abstract ScanParamVO buildScanParamVO();

    public abstract void buildConnection() throws Exception;

    /**
     * 释放资源
     */
    public abstract void closeConnection() throws Exception;

    /**
     * 查询库表列表信息
     */
    public abstract List<Map<String, String>> scanAllObjectsInfo() throws Exception;

    /**
     * 表视图等信息
     */
    public abstract Map<String, String> scanObjectInfo(String objectCode, String objectType) throws Exception;

    /**
     * 字段信息
     */
    public abstract List<Map<String, String>> scanTableColumnInfo(Map<String, String> table) throws Exception;

    /**
     * 索引信息
     */
    public abstract List<Map<String, String>> scanTableIndexInfo(Map<String, String> table) throws Exception;

    /**
     * 约束信息
     */
    public abstract List<Map<String, String>> scanTableConstraintInfo(Map<String, String> object) throws Exception;

    /**
     * 分区信息
     */
    public abstract List<Map<String, String>> scanTablePartitions(Map<String, String> table) throws Exception;

    public DataSource getDatasource() {
        return dataSource;
    }

    public void setDataSource(DataSource dataSource) {
        this.dataSource = dataSource;
    }

    public String getSchemaCode() {
        return dataSource.getParamValue(DataSource.Database.SCHEMA);
    }

    public String getUsername() {
        return dataSource.getParamValue(DataSource.Database.USERNAME);
    }

    @Override
    public void close() throws Exception {
        closeConnection();
    }

    public RepeatedAttachDTO buildCompareCollections(ZmgrMetaInfo remoteMetaInfo, ZmgrMetaData zmgrMetaData) {
        DbMetaService dbMetaService = (DbMetaService) SpringContextUtil.getBean("dbMetaService");
        RepeatedAttachDTO repeatedAttachDTO = new RepeatedAttachDTO();
        // 本地约束集合
        repeatedAttachDTO
            .setLocalConstraintList(dbMetaService.getZmgrMetaConstraintListByMetaDataId(zmgrMetaData.getMetaDataId()));
        // 索引名称约束集合
        repeatedAttachDTO.setIndexCode(remoteMetaInfo.getZmgrMetaIndexList().stream().map(ZmgrMetaIndex::getIndexCode)
            .collect(Collectors.toList()));
        // 远程约束集合
        repeatedAttachDTO.setRemoteConstraintList(remoteMetaInfo.getZmgrMetaConstraintList());
        // 远程主键集合
        repeatedAttachDTO.setRemotePkList(
            repeatedAttachDTO.getRemoteConstraintList().stream().filter(c -> "0".equals(c.getConstraintType()))
                .map(ZmgrMetaConstraint::getColumnCode).collect(Collectors.toList()));
        // 本地主键集合
        repeatedAttachDTO.setLocalPkList(
            repeatedAttachDTO.getLocalConstraintList().stream().filter(c -> "0".equals(c.getConstraintType()))
                .map(ZmgrMetaConstraint::getColumnCode).collect(Collectors.toList()));
        // 远程约束-约束编码集合
        repeatedAttachDTO.setRemoteConstraintCodeList(repeatedAttachDTO.getRemoteConstraintList().stream()
            .map(ZmgrMetaConstraint::getConstraintCode).collect(Collectors.toList()));
        // 本地约束-约束编码集合
        repeatedAttachDTO.setLocalConstraintCodeList(repeatedAttachDTO.getLocalConstraintList().stream()
            .map(ZmgrMetaConstraint::getConstraintCode).collect(Collectors.toList()));

        // 落地新增集合
        repeatedAttachDTO.setInsertConstraintList(repeatedAttachDTO.getLocalConstraintList().stream().filter(
            c -> !ArrayUtil.containsIgnoreCase(repeatedAttachDTO.getRemoteConstraintCodeList(), c.getConstraintCode()))
            .collect(Collectors.toList()));

        // 落地更新集合
        repeatedAttachDTO.setUpdateConstraintList(repeatedAttachDTO.getLocalConstraintList().stream().filter(
            c -> ArrayUtil.containsIgnoreCase(repeatedAttachDTO.getRemoteConstraintCodeList(), c.getConstraintCode()))
            .collect(Collectors.toList()));
        // 落地删除集合
        repeatedAttachDTO.setDeleteConstraintList(repeatedAttachDTO.getRemoteConstraintList().stream().filter(
            c -> !ArrayUtil.containsIgnoreCase(repeatedAttachDTO.getLocalConstraintCodeList(), c.getConstraintCode()))
            .collect(Collectors.toList()));
        return repeatedAttachDTO;
    }

    public void deleteConstraint(ZmgrMetaData zmgrMetaData, String dbType, SqlSessionFactory sqlSessionFactory,
        List<String> result, RepeatedAttachDTO repeatedAttachDTO) {
        DbMetaService dbMetaService = (DbMetaService) SpringContextUtil.getBean("dbMetaService");
        MyBatisSql myBatisSql = null;
        if (!repeatedAttachDTO.getDeleteConstraintList().isEmpty()) {
            for (ZmgrMetaConstraint constraint : repeatedAttachDTO.getDeleteConstraintList()) {
                if ("0".equals(constraint.getConstraintType())
                    || ArrayUtil.containsIgnoreCase(repeatedAttachDTO.getRemotePkList(), constraint.getColumnCode())) {
                    continue;
                }
                constraint.setMetaDataId(zmgrMetaData.getMetaDataId());
                Map<String, Object> deleteMap = dbMetaService.rebuildConstraintInfo(constraint,
                    zmgrMetaData.getMetaDataCode(), dbType);
                deleteMap.put("dbType", dbType);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableDropConstraint", deleteMap, sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
        }
    }

    public void insertConstraint(ZmgrMetaData zmgrMetaData, String dbType, SqlSessionFactory sqlSessionFactory,
        List<String> result, RepeatedAttachDTO repeatedAttachDTO) {
        MyBatisSql myBatisSql = null;
        DbMetaService dbMetaService = (DbMetaService) SpringContextUtil.getBean("dbMetaService");
        if (!repeatedAttachDTO.getInsertConstraintList().isEmpty()) {
            for (ZmgrMetaConstraint insertConstraint : repeatedAttachDTO.getInsertConstraintList()) {
                if ("0".equals(insertConstraint.getConstraintType()) || ArrayUtil
                    .containsIgnoreCase(repeatedAttachDTO.getIndexCode(), insertConstraint.getConstraintCode())) {
                    continue;
                }
                if ("2".equals(insertConstraint.getConstraintType()) && ArrayUtil
                    .containsIgnoreCase(repeatedAttachDTO.getRemotePkList(), insertConstraint.getColumnCode())) {
                    continue;
                }
                Map<String, Object> insertConstraintMap = dbMetaService.rebuildConstraintInfo(insertConstraint,
                    zmgrMetaData.getMetaDataCode(), dbType);
                insertConstraintMap.put("dbType", dbType);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableAddConstraint", insertConstraintMap,
                    sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
        }
    }

    public void updateConstraint(ZmgrMetaData zmgrMetaData, String dbType, SqlSessionFactory sqlSessionFactory,
        List<String> result, RepeatedAttachDTO repeatedAttachDTO) {
        MyBatisSql myBatisSql = null;
        DbMetaService dbMetaService = (DbMetaService) SpringContextUtil.getBean("dbMetaService");
        if (!repeatedAttachDTO.getUpdateConstraintList().isEmpty()) {
            for (ZmgrMetaConstraint updateConstraint : repeatedAttachDTO.getUpdateConstraintList()) {
                if ("0".equals(updateConstraint.getConstraintType()) || ArrayUtil
                    .containsIgnoreCase(repeatedAttachDTO.getIndexCode(), updateConstraint.getConstraintCode())) {
                    continue;
                }
                Map<String, Object> updateConstraintMap = dbMetaService.rebuildConstraintInfo(updateConstraint,
                    zmgrMetaData.getMetaDataCode(), dbType);
                updateConstraintMap.put("dbType", dbType);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableDropConstraint", updateConstraintMap,
                    sqlSessionFactory);
                result.add(myBatisSql.toString());
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableAddConstraint", updateConstraintMap,
                    sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
        }
    }

    public void extractHandler(ZmgrMetaData zmgrMetaData, String dbType, SqlSessionFactory sqlSessionFactory,
        List<String> result, RepeatedAttachDTO repeatedAttachDTO) {
        MyBatisSql myBatisSql;
        List<String> localPkList = repeatedAttachDTO.getLocalPkList();
        List<String> remotePkList = repeatedAttachDTO.getRemotePkList();
        if (localPkList.size() != remotePkList.size() || !localPkList.containsAll(remotePkList)) {
            if (!remotePkList.isEmpty()) {
                Map delParams = new HashMap();
                delParams.put("dbType", dbType);
                delParams.put("tableCode", zmgrMetaData.getMetaDataCode());
                delParams.put("constraintType", 0);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableDropConstraint", delParams, sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
            if (!localPkList.isEmpty()) {
                Map addParams = new HashMap();
                addParams.put("dbType", dbType);
                addParams.put("tableCode", zmgrMetaData.getMetaDataCode());
                addParams.put("constraintType", 0);
                addParams.put("pkList", localPkList);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableAddConstraint", addParams, sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
        }
    }

    public void addIndex(String dbType, SqlSessionFactory sqlSessionFactory, List<String> result,
        List<Map<String, Object>> insertIndexList) {
        MyBatisSql myBatisSql = null;
        if (!insertIndexList.isEmpty()) {
            for (Map<String, Object> insertIndexMap : insertIndexList) {
                insertIndexMap.put("dbType", dbType);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableCreateIndex", insertIndexMap, sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
        }
    }

    public void updateIndex(String dbType, SqlSessionFactory sqlSessionFactory, List<String> result,
        RepeatedAttachDTO repeatedAttachDTO) {
        MyBatisSql myBatisSql = null;
        if (!repeatedAttachDTO.getUpdateIndexList().isEmpty()) {
            for (Map<String, Object> updateIndex : repeatedAttachDTO.getUpdateIndexList()) {
                updateIndex.put("dbType", dbType);
                String indexCode = MapParamUtil.getStringValue(updateIndex, "indexCode");
                String indexType = MapParamUtil.getStringValue(updateIndex, "indexType");
                String colCode = MapParamUtil.getStringValue(updateIndex, "colCode");
                ZmgrMetaIndex remoteIndex = repeatedAttachDTO.getRemoteIndexMap().get(indexCode.toLowerCase());
                if ("oracle".equalsIgnoreCase(dbType)) {
                    remoteIndex.setIndexType(OracleSql.translateIndexTypeCode(remoteIndex.getIndexType()));
                }
                else {
                    remoteIndex.setIndexType(MysqlSql.translateIndexTypeCode(remoteIndex.getIndexType()));
                }
                // 修改索引要求索引名、索引字段、索引顺序、索引类型一致
                if (!StringUtils.equalsIgnoreCase(indexType, remoteIndex.getIndexType())
                    || !StringUtils.equalsIgnoreCase(colCode, remoteIndex.getColumnCode())) {
                    updateIndex.put("originIndexCode", indexCode);
                    myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableDropIndex", updateIndex, sqlSessionFactory);
                    result.add(myBatisSql.toString());
                    myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableCreateIndex", updateIndex, sqlSessionFactory);
                    result.add(myBatisSql.toString());
                }
            }
        }
    }

    public void deleteIndex(ZmgrMetaData zmgrMetaData, String dbType, SqlSessionFactory sqlSessionFactory,
        List<String> result, List<ZmgrMetaIndex> deleteIndexList) {
        MyBatisSql myBatisSql;
        if (!deleteIndexList.isEmpty()) {
            for (ZmgrMetaIndex index : deleteIndexList) {
                Map<String, Object> parameterMap = new HashMap<>();
                parameterMap.put("tableCode", zmgrMetaData.getMetaDataCode());
                parameterMap.put("originIndexCode", index.getIndexCode());
                parameterMap.put("dbType", dbType);
                myBatisSql = MyBatisSqlUtils.getMyBatisSql("alterTableDropIndex", parameterMap, sqlSessionFactory);
                result.add(myBatisSql.toString());
            }
        }
    }

    public RepeatedAttachDTO buildIndexCompareCollections(String dbType, ZmgrMetaInfo remoteMetaInfo,
        ZmgrMetaData zmgrMetaData) {
        RepeatedAttachDTO repeatedAttachDTO = new RepeatedAttachDTO();
        List<ZmgrMetaIndex> remoteIndexList = null;
        remoteIndexList = remoteMetaInfo.getZmgrMetaIndexList();
        Map<String, ZmgrMetaIndex> remoteIndexMap = new HashMap<>();
        remoteIndexList.forEach(i -> remoteIndexMap.put(i.getIndexCode().toLowerCase(), i));
        DbMetaService dbMetaService = (DbMetaService) SpringContextUtil.getBean("dbMetaService");
        List<Map<String, Object>> localIndexList = dbMetaService.rebuildIndexInfo(zmgrMetaData.getMetaDataId(),
            zmgrMetaData.getMetaDataCode(), dbType);

        List<String> remoteIndexCodeList = remoteIndexList.stream().map(ZmgrMetaIndex::getIndexCode)
            .collect(Collectors.toList());
        List<String> localIndexCodeList = localIndexList.stream().map(c -> MapParamUtil.getStringValue(c, "indexCode"))
            .collect(Collectors.toList());
        // 处理新增的索引
        repeatedAttachDTO.setInsertIndexList(localIndexList.stream()
            .filter(
                c -> !ArrayUtil.containsIgnoreCase(remoteIndexCodeList, MapParamUtil.getStringValue(c, "indexCode")))
            .collect(Collectors.toList()));
        // 处理修改的索引
        repeatedAttachDTO.setUpdateIndexList(localIndexList.stream()
            .filter(c -> ArrayUtil.containsIgnoreCase(remoteIndexCodeList, MapParamUtil.getStringValue(c, "indexCode")))
            .collect(Collectors.toList()));
        // 处理删除的索引
        repeatedAttachDTO.setDeleteIndexList(
            remoteIndexList.stream().filter(c -> !ArrayUtil.containsIgnoreCase(localIndexCodeList, c.getIndexCode()))
                .collect(Collectors.toList()));
        repeatedAttachDTO.setRemoteIndexMap(remoteIndexMap);
        return repeatedAttachDTO;
    }
}

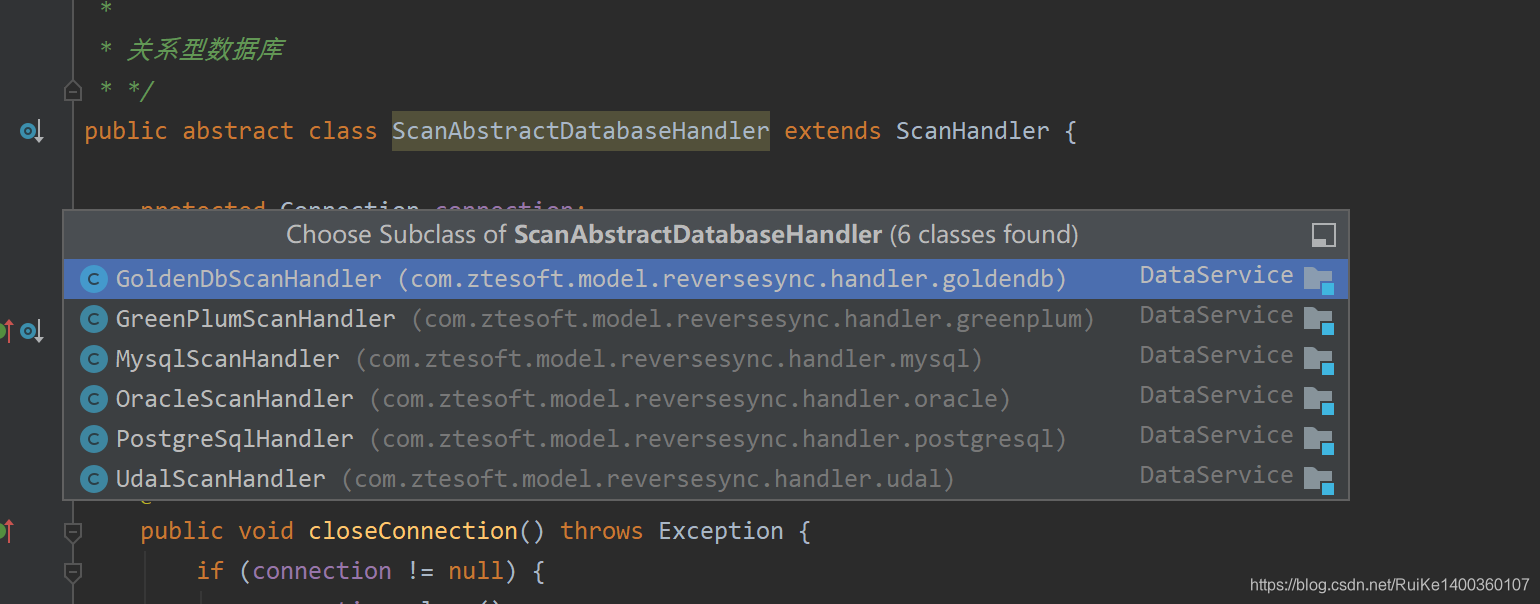

2.2、关系型的数据类型同步则在ScanHandler该抽象套了一层，实现统一的关系型同步处理逻辑，

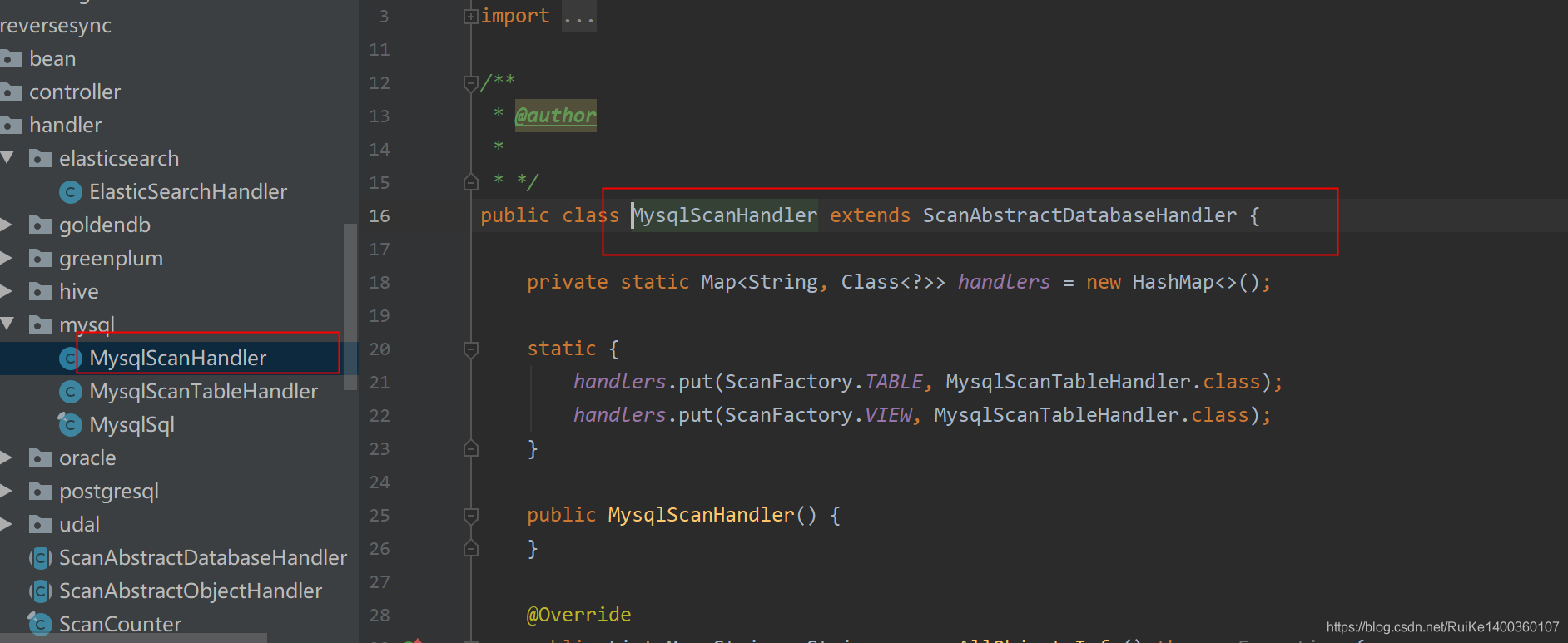

关系型的同步则直接继承ScanAbstractDatabaseHandler ，例如：

ScanAbstractDatabaseHandler

public abstract class ScanAbstractDatabaseHandler extends ScanHandler {

    protected Connection connection;

    @Override
    public void buildConnection() throws Exception {
        connection = DatabaseUtil.getConnection(getDatasource(),0);
    }

    @Override
    public void closeConnection() throws Exception {
        if (connection != null) {
            connection.close();
        }
    }

    @Override
    public ZmgrMetaInfo handle(Map<String, String> table) throws Exception {
        LoggerUtil.info("开始扫描{}对象:{}", dataSource.getDatasourceType(), table.get("OBJECT_NAME"));
        ZmgrMetaInfo metaInfo = null;
        try {
            metaInfo = buildMetaInfo(table);
            LoggerUtil.info("扫描{}对象成功:{}", dataSource.getDatasourceType(), table.get("OBJECT_NAME"));
        }
        catch (Exception e) {
            LoggerUtil.info("扫描{}对象失败:{},失败原因:{}", dataSource.getDatasourceType(),
                    table.get("OBJECT_NAME"), e.getMessage());
            throw new SyDevOpsRuntimeException(e);
        }

        return metaInfo;
    }

       @Override
    public ScanParamVO buildScanParamVO() {
        ScanParamVO params = new ScanParamVO();
        params.setComponentId(dataSource.getDatasourceId());
        params.setComponentType(dataSource.getDatasourceType());
        params.setUrl(dataSource.getParamValue(DataSource.Database.URL));
        params.setUser(dataSource.getParamValue(DataSource.Database.USERNAME));
        params.setPassword(dataSource.getParamValue(DataSource.Database.PASSCODE));
        params.setSchemaCode(getSchemaCode());
        return params;
    }

    public Connection getConnection() {
        return connection;
    }

}

具体关注： metaInfo = buildMetaInfo(table);

 public ZmgrMetaInfo buildMetaInfo(Map<String, String> table) throws Exception {
        ......

        // 字段信息
        List<Map<String, String>> realColumns = scanTableColumnInfo(table);
        List<ZmgrMetaColumnsInfo> columnsInfoList = new ArrayList<>();
        if (realColumns != null) {
            for (Map<String, String> columnMap : realColumns) {
                ZmgrMetaColumnsInfo columnsInfo = new ZmgrMetaColumnsInfo();
                ZmgrMetaColumns columns = new ZmgrMetaColumns();
                columns.setColumnName(columnMap.get("COLUMN_NAME"));
                columns.setColumnCode(columnMap.get("COLUMN_CODE"));
                if (Objects.equals(dataSource.getDatasourceType(), Common.TableType.GOLDENDB)) {
                    columns.setColumnType(columnMap.get("GOLD_COLUMN_TYPE"));
                }
                else {
                    columns.setColumnType(columnMap.get("COLUMN_TYPE"));

                }
                columns.setColumnDesc(columnMap.get("COMMENTS"));
                if (StringUtils.isNotEmpty(columnMap.get("COLUMN_SORT"))) {
                    columns.setColumnSort(Integer.parseInt(columnMap.get("COLUMN_SORT")));
                }
                columns.setDefaultValue(columnMap.get("DEFAULT_VALUE"));
                columnsInfo.setZmgrMetaColumns(columns);

                List<ZmgrMetaColumnsParams> columnsParamsList = new ArrayList<>();
                BuildBeanUtil.addColumnParams("columnLength", columnMap.get("DATA_LENGTH"),
                        "字段长度", columnsParamsList);
                BuildBeanUtil.addColumnParams("isPrimary", columnMap.get("IS_PRIMARY"),
                        "是否主键", columnsParamsList);
                BuildBeanUtil.addColumnParams("isNull", columnMap.get("IS_NULL"),
                        "是否可为空", columnsParamsList);
                BuildBeanUtil.addColumnParams("columnEmpty", "Y".equals(columnMap.get("IS_NULL")) ? "0" : "1",
                        "非空约束", columnsParamsList);
                BuildBeanUtil.addColumnParams("dataPrecision", columnMap.get("DATA_PRECISION"),
                        "数据精度", columnsParamsList);
                BuildBeanUtil.addColumnParams("dataScale", columnMap.get("DATA_SCALE"),
                        "", columnsParamsList);

                columnsInfo.setZmgrMetaColumnsParamsList(columnsParamsList);

                columnsInfoList.add(columnsInfo);
            }
        }
        metaInfo.setZmgrMetaColumnsInfoList(columnsInfoList);

        // 索引信息
        List<Map<String, String>> realIndexes = scanTableIndexInfo(table);
        List<ZmgrMetaIndex> indexList = new ArrayList<>();
        if (realIndexes != null) {
            for (Map<String, String> indexMap : realIndexes) {
                ZmgrMetaIndex index = new ZmgrMetaIndex();
                index.setIndexCode(indexMap.get("INDEX_NAME"));
                index.setIndexType(indexMap.get("TYPE"));
                index.setColumnCode(indexMap.get("COLUMN_NAME"));

                if (DataSource.GP.equals(dataSource.getDatasourceType())) {
                    String gpIndexKey = indexMap.get("INDKEY");
                    String[] columnSorts = gpIndexKey.split(" ", -1);
                    StringBuilder sb = new StringBuilder();
                    for (String columnSort : columnSorts) {
                        sb.append(columnsInfoList.get(Integer.parseInt(columnSort) - 1)
                                .getZmgrMetaColumns().getColumnCode()).append(",");
                    }
                    index.setColumnCode(sb.substring(0, sb.length() - 1));

                    index.setIndexTypeValue(indexMap.get("INDEX_TYPE_VALUE"));
                    index.setTableSpace(indexMap.get("TABLE_SPACE"));
                    if (indexMap.get("FILL_FACTOR") != null) {
                        index.setFillfactor(Integer.parseInt(indexMap.get("FILL_FACTOR")));
                    }
                }

                indexList.add(index);
            }
        }
        metaInfo.setZmgrMetaIndexList(indexList);

        if (ScanFactory.TABLE.equalsIgnoreCase(objectType)) {
            // 约束信息
            List<Map<String, String>> realConstraints = scanTableConstraintInfo(table);
            List<ZmgrMetaConstraint> constraintList = new ArrayList<>();
            if (realConstraints != null) {
                for (Map<String, String> constraintsMap : realConstraints) {
                    ZmgrMetaConstraint constraint = new ZmgrMetaConstraint();
                    constraint.setConstraintCode(constraintsMap.get("CONSTRAINT_NAME"));
                    constraint.setConstraintType(constraintsMap.get("CONSTRAINT_TYPE"));
                    constraint.setConstraintTable(constraintsMap.get("TABLE_NAME"));
                    constraint.setColumnCode(constraintsMap.get("COLUMN_NAME"));
                    constraint.setConstraintRefTable(constraintsMap.get("REFERENCED_TABLE_NAME"));
                    constraint.setConstraintRefColumn(constraintsMap.get("REFERENCED_COLUMN_NAME"));
                    constraint.setConstraintValue(constraintsMap.get("CONSTRAINT_VALUE"));
                    constraint.setConstraintTablespace(constraintsMap.get("TABLE_SPACE"));
                    if (constraintsMap.get("FILL_FACTOR") != null) {
                        constraint.setConstraintFillfactor(Integer.parseInt(constraintsMap.get("FILL_FACTOR")));
                    }

                    constraintList.add(constraint);
                }
            }
            metaInfo.setZmgrMetaConstraintList(constraintList);
        }

        // 分区信息 如果有的话
        List<Map<String, String>> realPartitions = scanTablePartitions(table);
        if (realPartitions != null && !realPartitions.isEmpty()) {
            List<ZmgrMetaPartition> partitionList = new ArrayList<>();
            for (Map<String, String> partitionMap : realPartitions) {
                ZmgrMetaPartition partition = new ZmgrMetaPartition();
                partition.setColumnCode(partitionMap.get("COLUMN_NAME"));
                partition.setPartitionCode(partitionMap.get("PARTITION_CODE"));
                partition.setPartitionName(partitionMap.get("PARTITION_NAME"));
                partition.setPartitionValue(partitionMap.get("PARTITION_VALUE"));
                partitionList.add(partition);
            }
            metaInfo.setZmgrMetaPartitionList(partitionList);
        }

        return metaInfo;
    }

说明：
