这段代码演示了如何使用Scapy库来创建一个HTTP请求报文，并将其写入到一个名为'2.pcap'的pcap文件中。首先，定义了一个HTTP请求报文的字节串，然后通过Scapy构造了以太网/IPv4/TCP/HTTP的数据包结构，并显示了该数据包。接着，通过循环遍历IP地址列表，修改数据包的源IP地址，并将每个数据包写入pcap文件。最后，关闭文件写入操作。主要涉及网络协议解析和数据包构造技术。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

from scapy.all import *
from scapy.layers.inet import *
from scapy.layers.http import *
from scapy.layers.l2 import *

写报文

# def write(fileName, packets):
#     writer = PcapWriter(fileName, append=True)
#     for p in packets:
#         writer.write(p)
#         writer.flush()
#         writer.close()

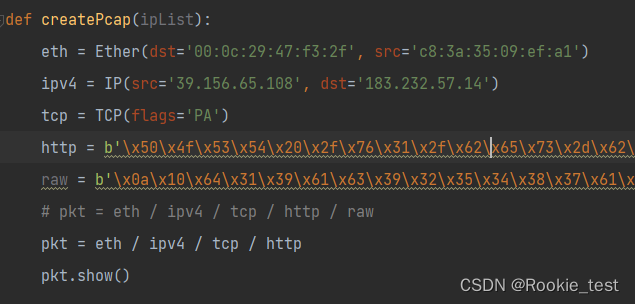

在这里插入图片描述

http = b'\x50\x4f\x53\x54\x20\x2f\x76\x31\x2f\x62\x65\x73\x2d\x62\x69\x64\x2f\x62\x69\x64\x64\x65\x72\x20\x48\x54\x54\x50\x2f\x31\x2e\x31\x0d\x0a\x43\x6f\x6e\x74\x65\x6e\x74\x2d\x4c\x65\x6e\x67\x74\x68\x3a\x20\x36\x35\x31\x0d\x0a\x41\x63\x63\x65\x70\x74\x3a\x20\x61\x70\x70\x6c\x69\x63\x61\x74\x69\x6f\x6e\x2f\x6f\x63\x74\x65\x74\x2d\x73\x74\x72\x65\x61\x6d\x0d\x0a\x55\x73\x65\x72\x2d\x41\x67\x65\x6e\x74\x3a\x20\x6c\x69\x62\x75\x62\x2d\x61\x67\x65\x6e\x74\x2f\x31\x2e\x32\x0d\x0a\x43\x6f\x6e\x6e\x65\x63\x74\x69\x6f\x6e\x3a\x20\x4b\x65\x65\x70\x2d\x41\x6c\x69\x76\x65\x0d\x0a\x48\x6f\x73\x74\x3a\x20\x67\x64\x2d\x61\x70\x69\x2e\x61\x64\x2e\x6a\x69\x67\x75\x61\x6e\x67\x2e\x63\x6e\x0d\x0a\x43\x6f\x6e\x74\x65\x6e\x74\x2d\x54\x79\x70\x65\x3a\x20\x61\x70\x70\x6c\x69\x63\x61\x74\x69\x6f\x6e\x2f\x6f\x63\x74\x65\x74\x2d\x73\x74\x72\x65\x61\x6d\x0d\x0a\x0d\x0a'
raw = b'\x0a\x10\x64\x31\x39\x61\x63\x39\x32\x35\x34\x38\x37\x61\x66\x61\x33\x64\x12\x0c\x31\x31\x37\x2e\x31\x33\x36\x2e\x34\x2e\x31\x37\x1a\x42\x44\x61\x6c\x76\x69\x6b\x2f\x32\x2e\x31\x2e\x30\x20\x28\x4c\x69\x6e\x75\x78\x3b\x20\x55\x3b\x20\x41\x6e\x64\x72\x6f\x69\x64\x20\x39\x3b\x20\x52\x65\x64\x6d\x69\x20\x36\x20\x4d\x49\x55\x49\x2f\x56\x31\x31\x2e\x30\x2e\x33\x2e\x30\x2e\x50\x43\x47\x43\x4e\x58\x4d\x29\x42\x44\x0a\x40\x37\x39\x35\x37\x37\x66\x62\x34\x38\x35\x35\x32\x33\x66\x62\x36\x38\x35\x66\x34\x38\x35\x37\x63\x62\x31\x62\x33\x39\x34\x38\x64\x65\x62\x66\x33\x38\x36\x65\x62\x63\x39\x62\x32\x38\x32\x30\x66\x30\x66\x37\x65\x66\x38\x33\x34\x31\x33\x31\x34\x62\x66\x32\x32\x10\x02\x5a\x00\x62\x00\x70\x00\x78\x00\x90\x01\x00\xa2\x01\x51\x08\x99\xfe\xb4\xd0\xfb\xaf\xbe\xd7\x21\x10\x01\x18\x0d\x20\xc0\x07\x28\x80\x05\x30\x01\x3a\x02\x01\x04\x50\x00\x58\x00\x71\x53\xa9\x03\x00\x00\x00\x00\x00\x90\x01\xc0\x07\x98\x01\x80\x05\xb0\x01\x01\xb8\x01\x00\xc2\x01\x0c\x08\x07\x2a\x06\x08\xc0\x07\x10\x80\x05\x30\x03\xc8\x01\x00\xe2\x01\x07\x36\x34\x38\x32\x33\x34\x33\xd0\x01\x00\xd8\x01\x00\xe2\x01\x18\x0a\x0c\x08\x03\x15\x00\x00\x00\x00\x1d\x00\x00\x00\x00\x12\x08\x0a\x00\x12\x00\x1a\x00\x22\x00\xea\x01\xb9\x02\x0a\x20\x61\x31\x66\x33\x39\x32\x38\x32\x31\x66\x66\x63\x37\x37\x30\x30\x63\x63\x63\x35\x65\x66\x33\x31\x31\x36\x62\x37\x36\x32\x33\x38\x10\x01\x18\x02\x22\x06\x08\x09\x10\x00\x18\x00\x2a\x06\x78\x69\x61\x6f\x6d\x69\x32\x07\x52\x65\x64\x6d\x69\x20\x36\x38\xd0\x05\x40\xa0\x0b\x48\xb0\xe7\x02\x50\x00\x5a\x20\x33\x65\x63\x34\x66\x61\x31\x32\x63\x65\x38\x33\x37\x31\x66\x63\x39\x65\x30\x32\x66\x32\x65\x63\x64\x63\x35\x38\x65\x63\x34\x37\x62\x2d\x0a\x08\x61\x65\x34\x36\x39\x39\x31\x34\x12\x1a\x63\x6f\x6d\x2e\x79\x67\x6b\x6a\x2e\x63\x68\x65\x6c\x61\x69\x6c\x65\x2e\x73\x74\x61\x6e\x64\x61\x72\x64\x18\xfe\x11\x28\x01\x28\x02\x6a\x24\x08\x01\x12\x20\x35\x30\x62\x35\x39\x64\x61\x64\x61\x30\x34\x36\x66\x31\x38\x36\x34\x35\x31\x32\x31\x36\x39\x38\x64\x65\x63\x66\x36\x36\x32\x36\x6a\x24\x08\x02\x12\x20\x61\x31\x66\x33\x39\x32\x38\x32\x31\x66\x66\x63\x37\x37\x30\x30\x63\x63\x63\x35\x65\x66\x33\x31\x31\x36\x62\x37\x36\x32\x33\x38\x6a\x24\x08\x04\x12\x20\x34\x62\x61\x62\x65\x34\x33\x64\x63\x62\x31\x31\x30\x64\x66\x35\x30\x32\x30\x33\x32\x36\x61\x32\x63\x38\x35\x35\x35\x63\x32\x66\x72\x24\x08\x04\x12\x20\x33\x65\x63\x34\x66\x61\x31\x32\x63\x65\x38\x33\x37\x31\x66\x63\x39\x65\x30\x32\x66\x32\x65\x63\x64\x63\x35\x38\x65\x63\x34\x37\x7d\x00\x00\x00\x40\xf2\x01\x04\x0a\x00\x18\x00\xfa\x01\x1a\x12\x0b\x08\xad\x9d\xfb\xe8\x95\xf5\xd2\xcb\xcc\x01\x12\x0b\x08\xd7\xc3\xb0\x83\xd0\x96\xc7\xc1\xd4\x01'
# pkt = eth / ipv4 / tcp / http / raw
pkt = eth / ipv4 / tcp / http
pkt.show()

# 输出：
#
# print(pcap_name)
writer = PcapWriter("2.pcap", append=True)
for i in range(len(ip_list)):
    pkt[IP].chksum = None
    pkt[IP].src = ip_list[i]
    # print(i)
    # print(pkt[IP].src)
    # pkt.show()
    # write(pcap_name, pkt)

    writer.write(pkt)
    writer.flush()
writer.close()

#######主程序##############################
if name == ‘main’:
# ip_list = [“82.88.37.179”, “107.74.63.105”, “27.254.194.249”, “141.53.170.198”, “246.66.199.205”, “109.183.172.173”,
# “135.37.107.155”, “110.174.223.54”]
ip_list = [“82.88.37.179”, “107.74.63.105”]
createPcap(ip_list)
