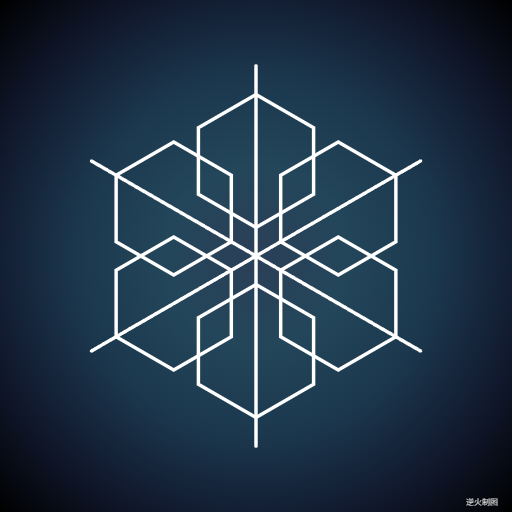

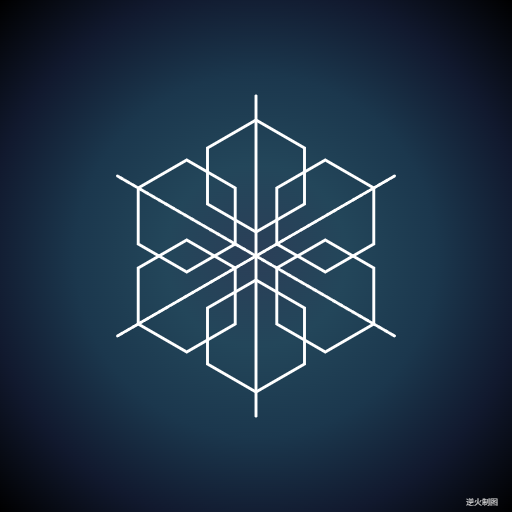

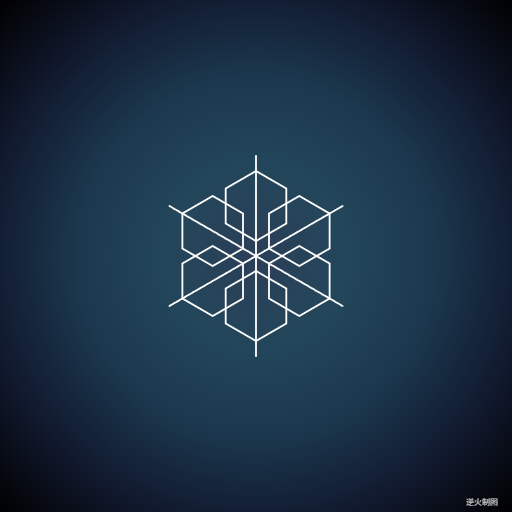

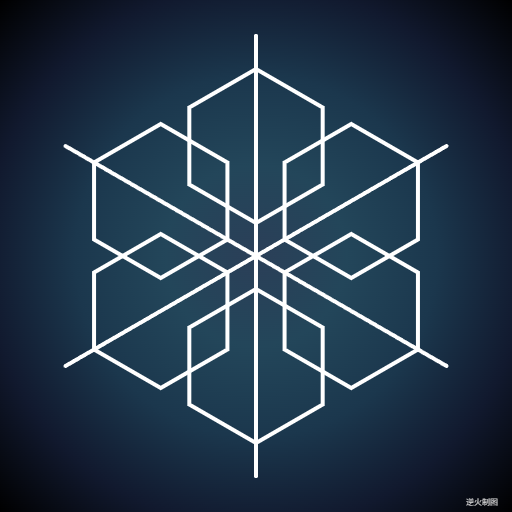

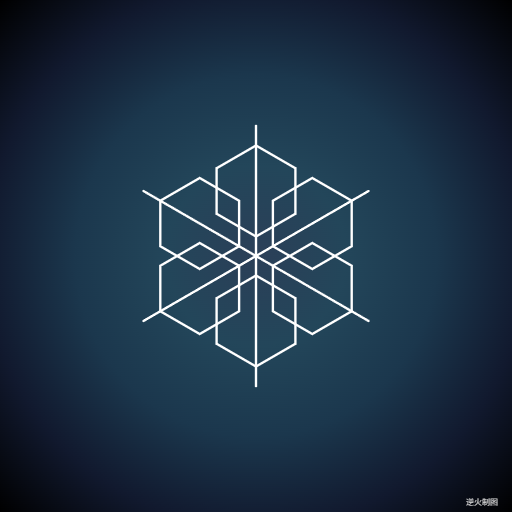

【成图】





【代码】
<!DOCTYPE html>
<html lang="utf-8">
<meta http-equiv="Content-Type" content="text/html; charset=utf-8"/>
<head>
<title>蓝底白色六角雪花 Draft1</title>
<style type="text/css">
.centerlize{
margin:0 auto;
width:1200px;
}
</style>
</head>
<body onload="init();">
<div class="centerlize">
<canvas id="myCanvas" width="12px" height="12px" style="border:1px dotted black;">
如果看到这段文字说您的浏览器尚不支持HTML5 Canvas,请更换浏览器再试.
</canvas>
</div>
</body>
</html>
<script type="text/javascript">
<!--
/*****************************************************************
* 将全体代码(从<!DOCTYPE到script>)拷贝下来,粘贴到文本编辑器中,
* 另存为.html文件,再用chrome浏览器打开,就能看到实现效果。
******************************************************************/
// canvas的绘图环境
var ctx;
// 高宽
const WIDTH=512*1;
const HEIGHT=512*1;
// 舞台对象
var stage;
//-------------------------------
// 初始化
//-------------------------------
function init(){
// 获得canvas对象
var canvas=document.getElementById('myCanvas');
canvas.width=WIDTH;
canvas.height=HEIGHT;
// 初始化canvas的绘图环境
ctx=canvas.getContext('2d');
ctx.translate(WIDTH/2,HEIGHT/2);// 原点平移
// 准备
stage=new Stage();
stage.init();
// 开幕
animate();
}
// 播放动画
function animate(){
stage.update();
stage.paintBg(ctx);
stage.paintFg(ctx);
// 循环
if(true){
//sleep(100);
window.requestAnimationFrame(animate);
}
}
// 舞台类
function Stage(){
// 初始化
this.init=function(){
}
// 更新
this.update=function(){
}
// 画背景
this.paintBg=function(ctx){
ctx.clearRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);// 清屏
}
// 画前景
this.paintFg=function(ctx){
// 底色
ctx.save();
var gnt=ctx.createRadialGradient(0,0,0,0,0,WIDTH/Math.sqrt(2));
gnt.addColorStop(0,"rgb(43,63,88)");
gnt.addColorStop(0.25,"rgb(35,70,90)");
gnt.addColorStop(0.5,"rgb(27,55,77)");
gnt.addColorStop(0.75,"rgb(17,25,46)");
gnt.addColorStop(1,"black");
ctx.fillStyle = gnt;
ctx.fillRect(-WIDTH/2,-HEIGHT/2,WIDTH,HEIGHT);
ctx.restore();
const R=220;//基准尺寸
ctx.lineWidth=R/220*4;
ctx.lineCap="round";
// #1 六枝
ctx.save();
var r=R*1.00;
for(var i=0;i<6;i++){
var theta=Math.PI/3*i+Math.PI/6;
var p=createPt2(0,0,r,theta);
ctx.strokeStyle="white";
ctx.beginPath();
ctx.moveTo(0,0);
ctx.lineTo(p.x,p.y);
ctx.stroke();
}
ctx.restore();
// #2 六个六边形
ctx.save();
var r=R*0.50;
for(var i=0;i<6;i++){
var theta=Math.PI/3*i+Math.PI/6;
var p=createPt2(0,0,r,theta);
ctx.strokeStyle="white";
drawPolygon(ctx,6,p.x,p.y,r*0.7);
ctx.stroke();
}
ctx.restore();
writeText(ctx,WIDTH/2-30,HEIGHT/2-5,"逆火制图","8px consolas","lightgrey");// 版权
}
}
/*----------------------------------------------------------
函数:绘制正多边形
n:正多边形的边数
x:正多边形中心的横坐标
y:正多边形中心的纵坐标
r:正多边形中心到顶点的距离
----------------------------------------------------------*/
function drawPolygon(ctx,n,x,y,r){
var polyArr=[];
for(var i=0;i<n;i++){
var theta=Math.PI*2/n*i+Math.PI/6;
var pt={};
pt.x=r*Math.cos(theta)+x;
pt.y=r*Math.sin(theta)+y;
polyArr.push(pt);
}
ctx.beginPath();
for(let i=0;i<polyArr.length;i++){
ctx.lineTo(polyArr[i].x,polyArr[i].y);
}
ctx.closePath();
}
/*----------------------------------------------------------
函数:用于绘制矩形
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
width:矩形宽
height:矩形高
----------------------------------------------------------*/
function drawRect(ctx,x,y,width,height){
ctx.beginPath();
ctx.moveTo(x-width/2,y-height/2);
ctx.lineTo(x+width/2,y-height/2);
ctx.lineTo(x+width/2,y+height/2);
ctx.lineTo(x-width/2,y+height/2);
ctx.closePath();
}
/*----------------------------------------------------------
函数:用于绘制实心圆
ctx:绘图上下文
x:矩形中心横坐标
y:矩形中心纵坐标
r:圆半径
style:填充圆的方案
----------------------------------------------------------*/
function drawSolidCircle(ctx,x,y,r,style){
ctx.fillStyle=style;
ctx.beginPath();
ctx.arc(x,y,r,0,Math.PI*2,false);
ctx.closePath();
ctx.fill();
}
/*----------------------------------------------------------
函数:创建一个二维坐标点
baseX:基准点横坐标
baseY:基准点纵坐标
radius:当前点到基准点的距离
theta:当前点到基准点的角度
Pt即Point
----------------------------------------------------------*/
function createPt2(baseX,baseY,radius,theta){
var retval={};
retval.x=baseX+radius*Math.cos(theta);
retval.y=baseY+radius*Math.sin(theta);
return retval;
}
/*----------------------------------------------------------
函数:创建一个二维坐标点
x:横坐标
y:纵坐标
Pt即Point
----------------------------------------------------------*/
function createPt(x,y){
var retval={};
retval.x=x;
retval.y=y;
return retval;
}
/*----------------------------------------------------------
函数:延时若干毫秒
milliseconds:毫秒数
----------------------------------------------------------*/
function sleep(milliSeconds) {
const date = Date.now();
let currDate = null;
while (currDate - date < milliSeconds) {
currDate = Date.now();
}
}
/*----------------------------------------------------------
函数:书写文字
ctx:绘图上下文
x:横坐标
y:纵坐标
text:文字
font:字体
color:颜色
----------------------------------------------------------*/
function writeText(ctx,x,y,text,font,color){
ctx.save();
ctx.textBaseline="bottom";
ctx.textAlign="center";
ctx.font = font;
ctx.fillStyle=color;
ctx.fillText(text,x,y);
ctx.restore();
}
/*-------------------------------------------------------------
世界上最好的相遇,是遇见最好的自己。
去奋斗、去突破、去拼搏、去坚持,
爱自己、爱他人、爱宇宙山河的浪漫、爱生活点滴的温暖。
给自己时间,不要着急,一步步来,一点点做,
感恩且坚定、平和而上进,
不断超越自己,才能收获更灿烂的未来,
最好的时光一定藏在沉默不语的日子里。
--------------------------------------------------------------*/
//-->
</script>
