记一次在M3上安装go-oci8并在vscode调试的过程

安装brew和相关的库

安装brew

省略一万字

安装pkg-config

brew install pkg-config

下载oracle instantclient

Oracle Instant Client Downloads

在oracle官网下载for arm64的basic和sdk，先解压basic，再把sdk解压到目标目录，例如目标目录是~/software/instantclient_23

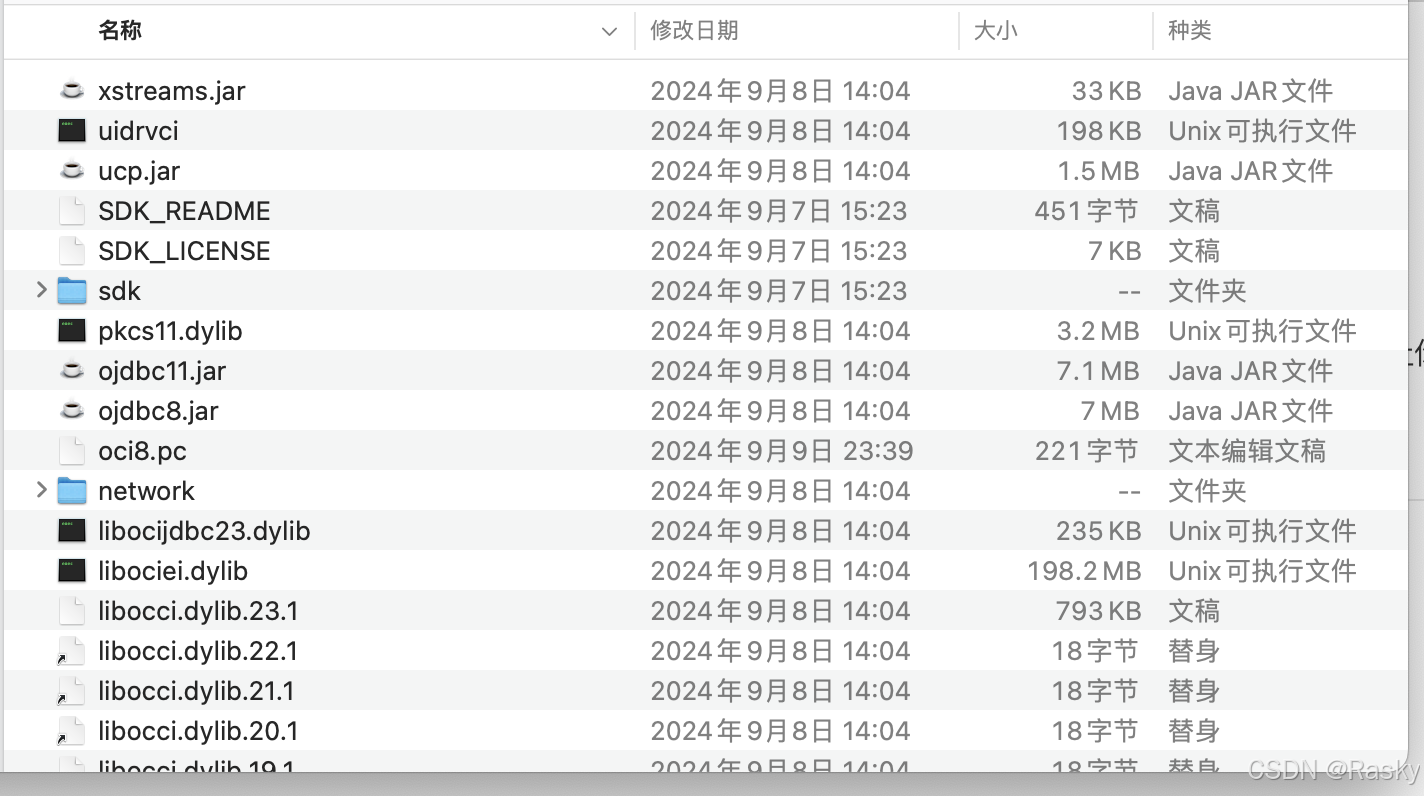

那目录结构就是

配置环境变量

vi ~/.bash_profile

export ORACLE_HOME=【改成本地文件目录】/software/instantclient_23
export LD_LIBRARY_PATH=$ORACLE_HOME:/usr/local/lib
export PKG_CONFIG_PATH=$ORACLE_HOME
export DYLD_LIBRARY_PATH=$ORACLE_HOME
export PATH=$ORACLE_HOME:$PATH

配置oci8.pc文件

mattn/go-oci8: Oracle driver for Go using database/sql (github.com)

prefixdir=【改成本地文件目录】/software/instantclient_23
libdir=${prefixdir}
includedir=${prefixdir}/sdk/include

Name: OCI
Description: Oracle database driver
Version: 23.3
Libs: -Wl,-rpath,${libdir}
Cflags: -I${includedir}

在官方文档中，Libs的配置是以下所列，但这样配置后就提示

dyld: Library not loaded: @rpath/libclntsh.dylib.12.1

# 官方的配置
Libs: -L${libdir} -lclntsh

如果配置后仍然出错，则设置go的环境变量

go env -w CGO_LDFLAGS="-Wl,-rpath,【改成本地文件目录】/software/instantclient_23"

在vscode上运行代码

用go run main.go，是能正常运行，但无法使用debug工具运行，会出现

Undefined symbols for architecture arm64: "_OCIAttrGet", referenced from:

或者

undefined: Connector

错误，但看源码都是没问题的，这个时候就修改dlv的配置，思路是先执行Task，编译成可执行文件，然后再在launch.json配置运行。

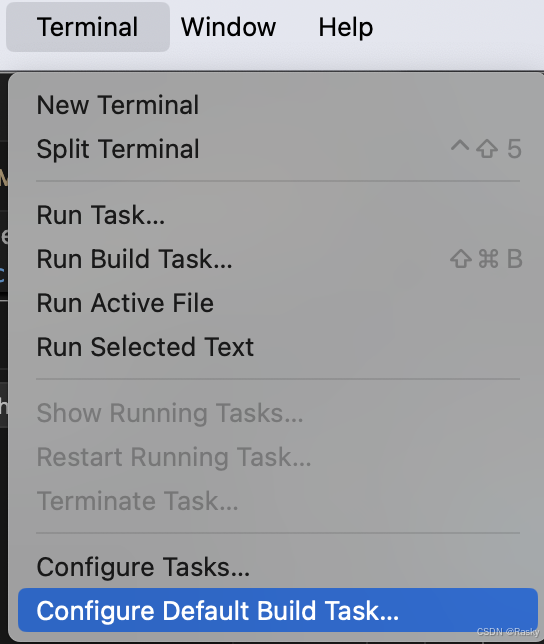

创建tasks.json文件

{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "build-darwin-arm64",
            "type": "shell",
            "command": "go",
            "args": [
                "build",
                "-o",
                "${workspaceFolder}/debug",
                "${workspaceFolder}/rest_cmd/main.go"
            ],
            "group": "build",
            "problemMatcher": []
        }
    ]
}

修改launch.json文件

{
    "version": "0.2.0",
    "configurations": [
        {
            "name": "Launch exec",
            "type": "go",
            "request": "launch",
            "mode": "exec",
            "program": "${workspaceFolder}/debug",
            "args": [],
            "preLaunchTask": "build-linux-arm64"
        },
    ]
}

and then 搞掂

其他错误

Undefined symbols for architecture arm64: "_OCIAttrGet", referenced from:

这是找不到头文件，通过go env设置都不行，最后在代码里面添加：

./github.com/mattn/go-oci8/oci8.go

// #cgo CFLAGS: -I/【改成本地文件目录】/Software/instantclient_23_3/sdk/include

在任意一个包含// #include "oci8.go.h"的代码里加都行
