使用IDEA写带swagger的webapi

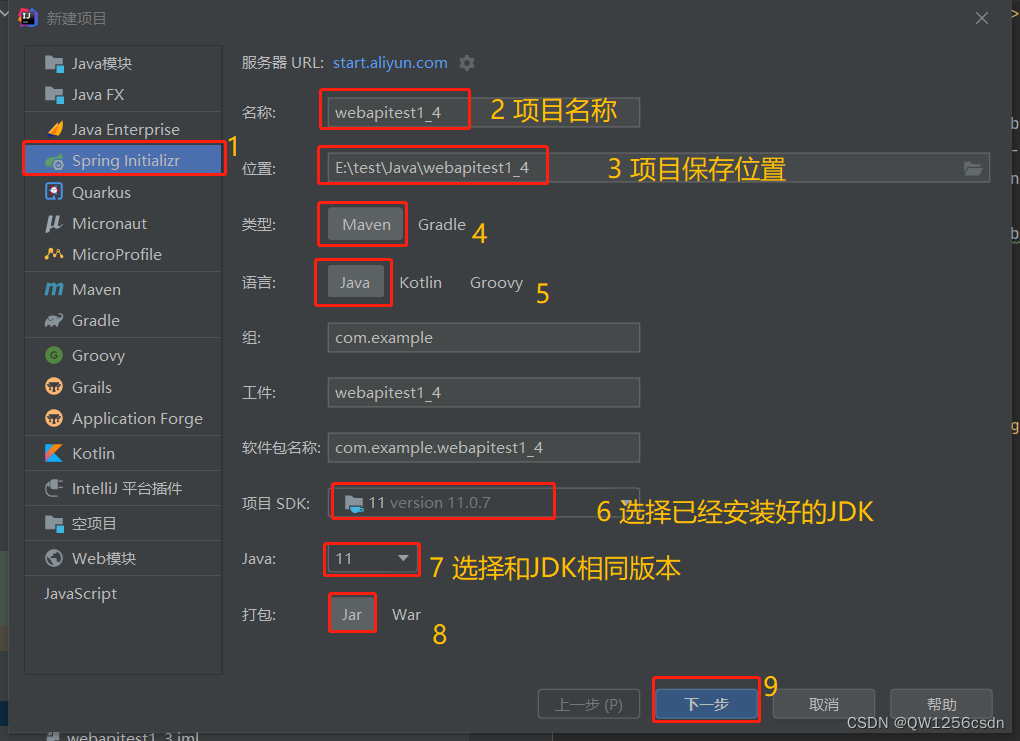

• 文件|新建|项目，弹出如下对话框

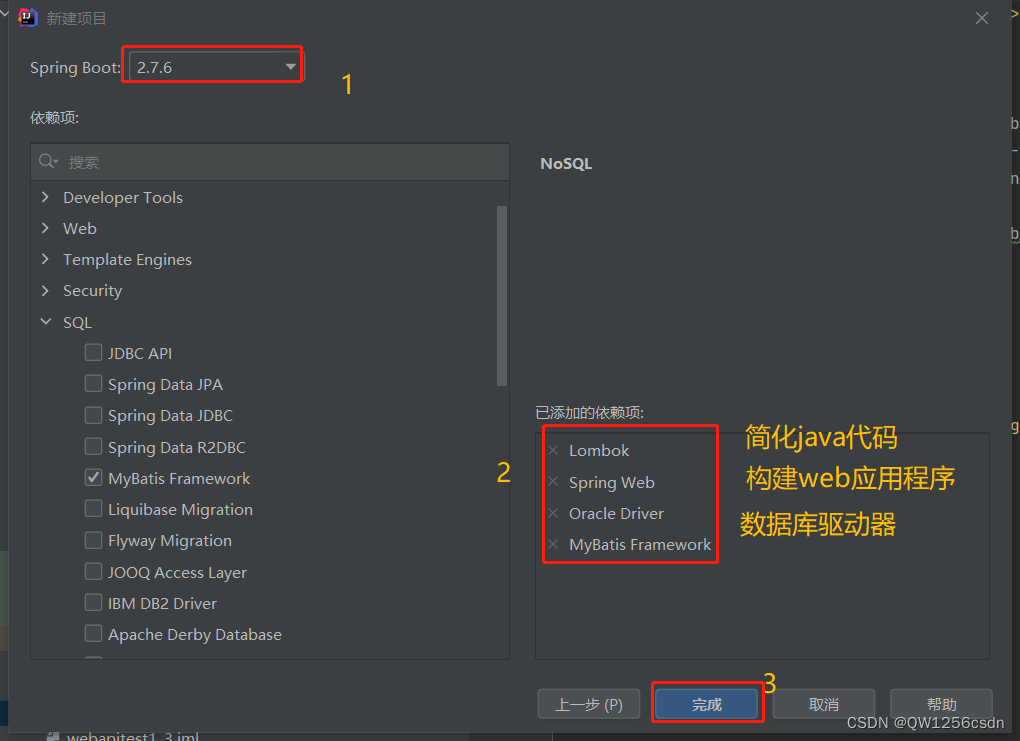

• 点击下一步后

• 点击完成后自动导包

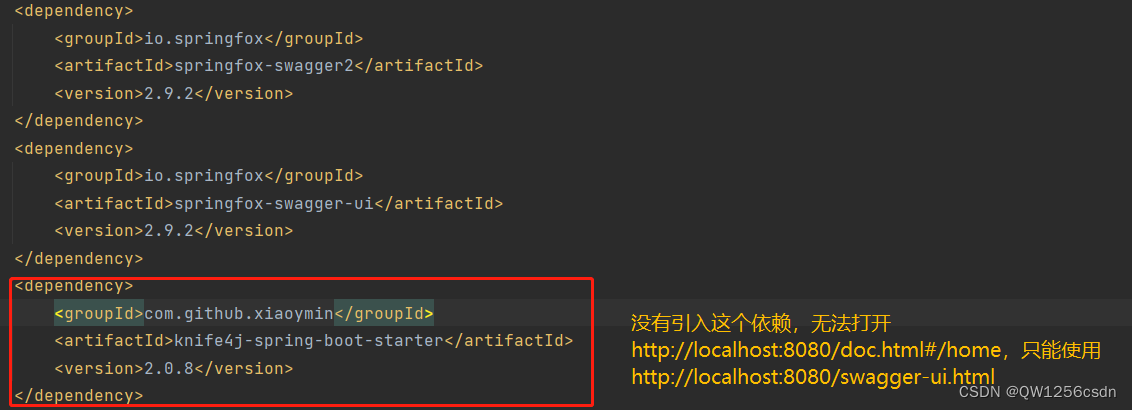

• 加入以下两个swagger依赖


完整的pom文件如下：

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>com.example</groupId>
    <artifactId>webapitest1_4</artifactId>
    <version>0.0.1-SNAPSHOT</version>
    <name>webapitest1_4</name>
    <description>Demo project for Spring Boot</description>
    <properties>
        <java.version>1.8</java.version>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <spring-boot.version>2.7.6</spring-boot.version>
    </properties>
    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.3.0</version>
        </dependency>

        <dependency>
            <groupId>com.oracle.database.jdbc</groupId>
            <artifactId>ojdbc8</artifactId>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <optional>true</optional>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger2</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>io.springfox</groupId>
            <artifactId>springfox-swagger-ui</artifactId>
            <version>2.9.2</version>
        </dependency>
        <dependency>
            <groupId>com.github.xiaoymin</groupId>
            <artifactId>knife4j-spring-boot-starter</artifactId>
            <version>2.0.8</version>
        </dependency>
    </dependencies>
    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-dependencies</artifactId>
                <version>${spring-boot.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <build>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>3.8.1</version>
                <configuration>
                    <source>1.8</source>
                    <target>1.8</target>
                    <encoding>UTF-8</encoding>
                </configuration>
            </plugin>
            <plugin>
                <groupId>org.springframework.boot</groupId>
                <artifactId>spring-boot-maven-plugin</artifactId>
                <version>${spring-boot.version}</version>
                <configuration>
                    <mainClass>com.example.webapitest1_4.Webapitest14Application</mainClass>
                    <skip>true</skip>
                </configuration>
                <executions>
                    <execution>
                        <id>repackage</id>
                        <goals>
                            <goal>repackage</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
        </plugins>
    </build>

</project>

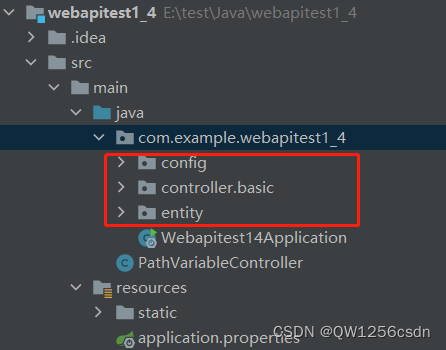

• 在com.example.webapitest1_4下新增以下文件夹 config，controller、entity三个文件夹，同时在controller创建一个basic文件夹，如下图所示

• 在config 目录下新建一个SwaggerConfig 类，内容如下

package com.example.webapitest1_4.config;

import org.springframework.context.annotation.Configuration;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

import java.util.ArrayList;

@Configuration
@EnableSwagger2
public class SwaggerConfig {

    public Docket basicDocket(){
return new Docket(DocumentationType.SWAGGER_2)
        .groupName("test")
        .enable(true)
        .apiInfo(basicApiInfo())
        .select()
        .apis(RequestHandlerSelectors.basePackage("com.example.webapitest1_4.controller.basic"))
        .paths(PathSelectors.any())
        .build();

    }

    public ApiInfo basicApiInfo(){
        Contact contact=new Contact("XXXX","https://www.baidu.com/","qq.com");
        return  new ApiInfo(
                "test",
                "测试",
                "V1.0",
                "url",
                contact,
                "",
                "",
                new ArrayList<>());
    }
}

注意：@EnableSwagger2的依赖是 springfox.documentation.swagger2.annotations

• 在entity 目录下新建 User 类，内容如下

/*
 * Copyright 2013-2018 the original author or authors.
 *
 * Licensed under the Apache License, Version 2.0 (the "License");
 * you may not use this file except in compliance with the License.
 * You may obtain a copy of the License at
 *
 *      https://www.apache.org/licenses/LICENSE-2.0
 *
 * Unless required by applicable law or agreed to in writing, software
 * distributed under the License is distributed on an "AS IS" BASIS,
 * WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
 * See the License for the specific language governing permissions and
 * limitations under the License.
 */

package com.example.webapitest1_4.entity;

import lombok.Data;

/**
 * @author <a href="mailto:chenxilzx1@gmail.com">theonefx</a>
 */
@Data
public class User {

    private String name;

    private Integer age;


}

• 在controller 目录下新增BasicController 类，内容如下

package com.example.webapitest1_4.controller.basic;

import com.example.webapitest1_4.entity.User;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.ModelAttribute;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.ResponseBody;

/**
 * @author <a href="mailto:chenxilzx1@gmail.com">theonefx</a>
 */
@Controller
public class BasicController {
 @RequestMapping("/user")
    @ResponseBody
    public User user() {
        User user = new User();
        user.setName("theonefx");
        user.setAge(666);
        return user;
    }
}

• 配置application.properties 目录，内容如下

#下面这些内容是为了让MyBatis映射
#指定Mybatis的Mapper文件
mybatis.mapper-locations=classpath:mappers/*xml
#指定Mybatis的实体目录
mybatis.type-aliases-package=com.example.webapitest1_4.mybatis.entity
# 应用服务 WEB 访问端口
server.port=8080

spring.datasource.url= oracle数据库连接信息
spring.datasource.username= 用户名
spring.datasource.password= 密码

spring.mvc.pathmatch.matching-strategy=ant_path_matcher

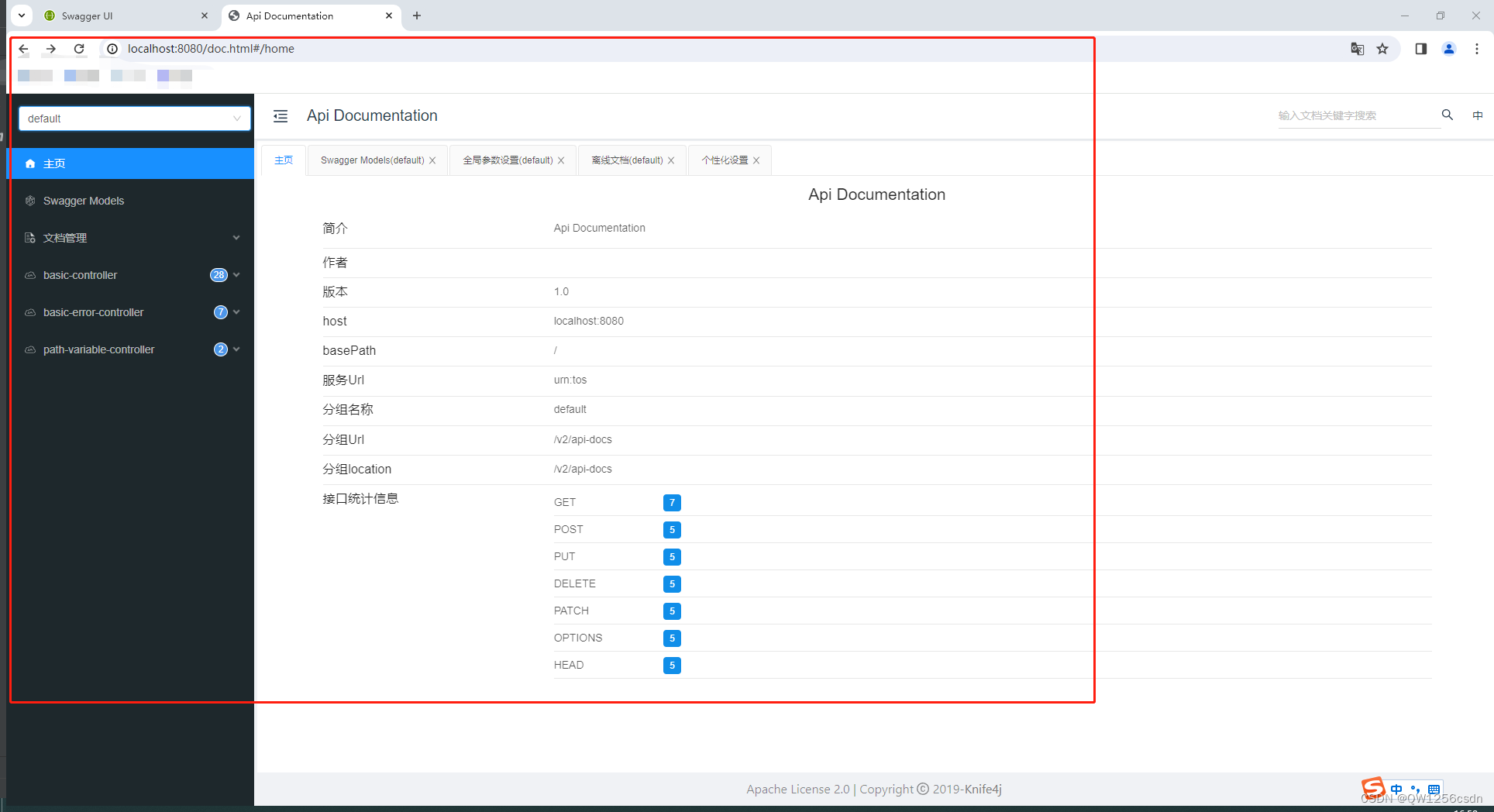

• 打开网页 swagger网页
