【简易深度学习标注软件+Python开发(PyQt6+OpenCV)】

---

前言

一款用于深度学习图像标注的软件.

---

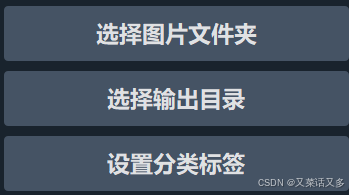

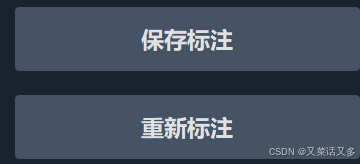

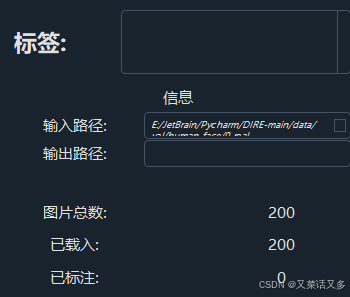

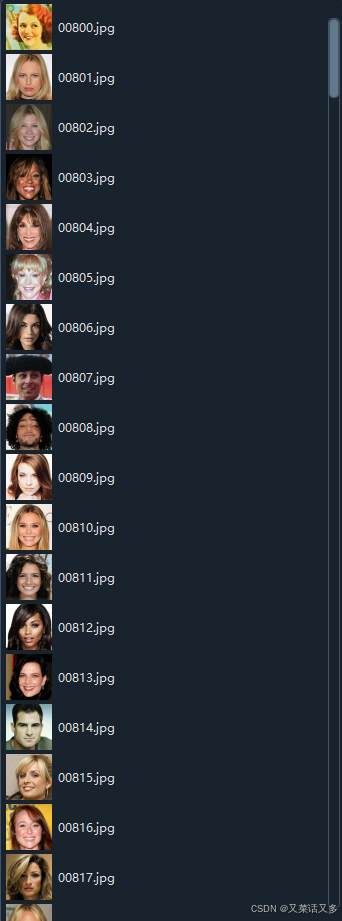

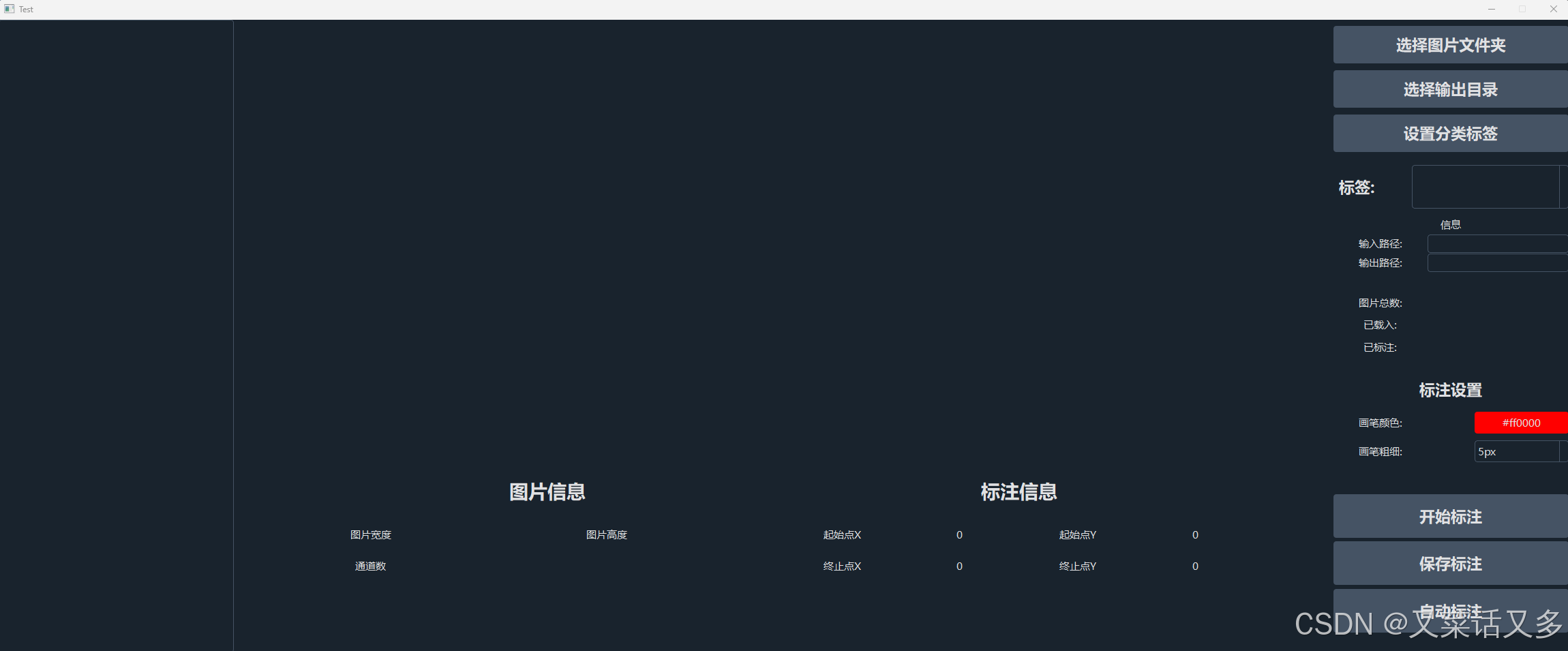

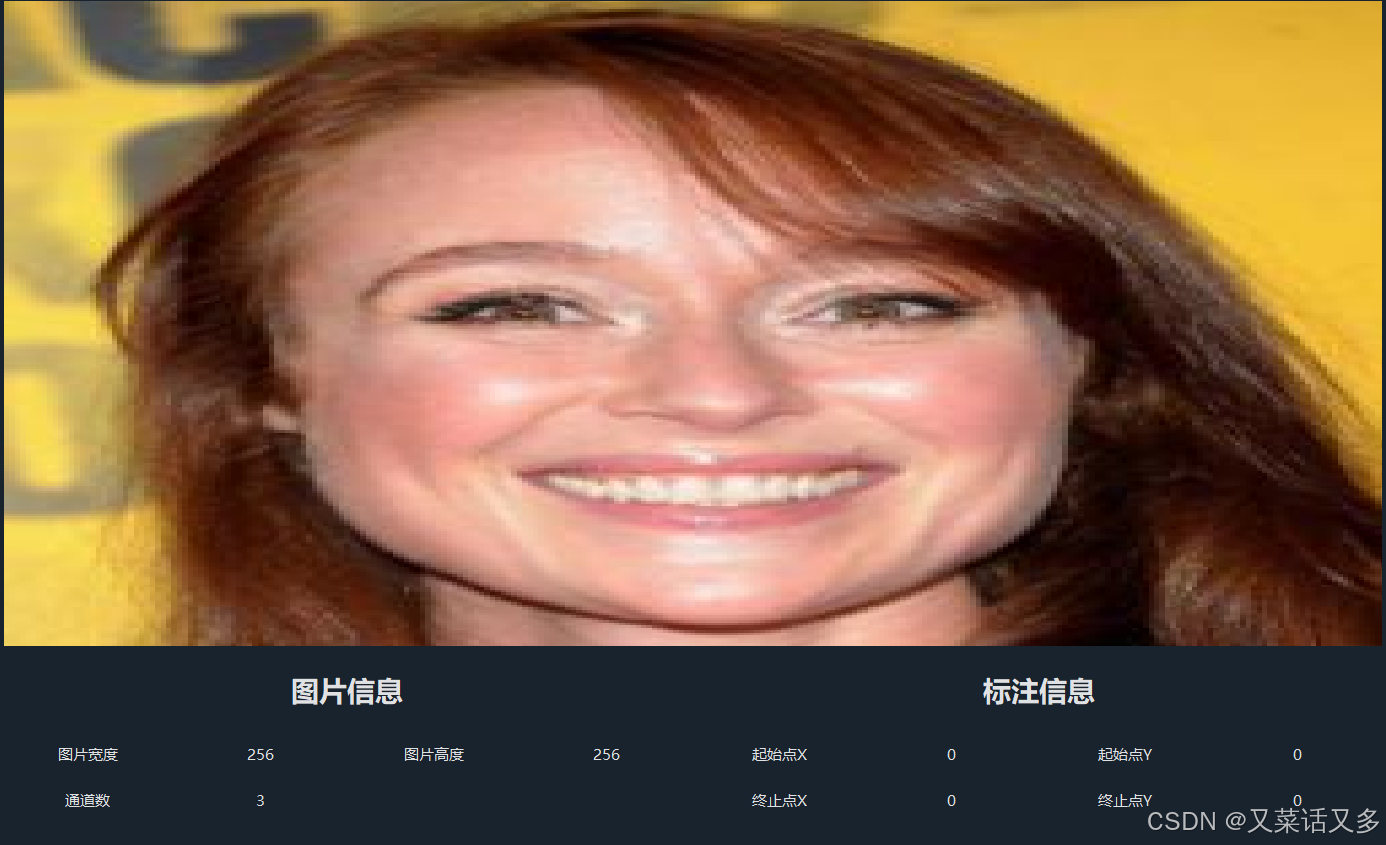

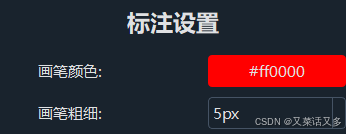

一、界面操作演示

二、代码实现

1.准备

你需要如下环境：
Python 3.10
PyQt6 6.4.2
pyqt6-plugins 6.4.2.2.3
PyQt6-Qt6 6.4.3
PyQt6-sip 13.6.0
pyqt6-tools 6.4.2.3.3
python-dotenv 1.0.1
qt6-applications 6.4.3.2.3
qt6-tools 6.4.3.1.3
opencv-python 4.9.0.80
概括来讲就是PyQt全家桶+OpenCV的Python库, 未在低版本测试, 猜测可以在几个小版本的更新前是可以运行的.

2.代码

这里不提供布局代码, 仅提供变量声明以及槽函数.

全局变量

        global isDrag # 是否处于标注框的拖拉状态
        global penColor # 画笔颜色
        global penWidth # 画笔宽度
        global startPoint # 标注框起始点
        global nowPoint # 标注框被拖拉至的位置

保存标注

    def saveAnnotation(self):
        # savePath1 = os.path.basename(self.lMessageInPath.toPlainText())
        savePath = os.path.basename(self.imagesList[self.imagesListWidget.currentIndex().row()])
        savePath = savePath[:-4]
        savePath = savePath + ".txt"
        savePath = self.outputPath + "/" + savePath
        if not os.path.exists(savePath):
            file = open(savePath, "w")
            file.close()
        with open(savePath, "a") as file:
            global startPoint
            global nowPoint
            totalWidth = float(self.lShowImage.width())
            totalHeight = float(self.lShowImage.height())

            xCenter = abs(float(startPoint.x()) / totalWidth + float(nowPoint.x()) / totalWidth) / 2.0
            yCenter = abs(float(startPoint.y()) / totalHeight + float(nowPoint.y()) / totalHeight) / 2.0
            xWidth = abs(float(startPoint.x()) / totalWidth - float(nowPoint.x()) / totalWidth)
            yWidth = abs(float(startPoint.y()) / totalHeight - float(nowPoint.y()) / totalHeight)
            global nowClass
            text = nowClass
            file.write(
