https://github.com/josdirksen/learning-threejs

本地Web服务器的不同环境：

用Python > python -m SimpleHTTPServer

用NPM > npm install -g http-server > http-server

用Mongoose -- 在Mac/Windows上可以移植

将书本代码放入Web服务根目录

本书使用Three.js r60

HTML框架

<!DOCTYPE html>
<html>
    <head>
	  	<title>Example 01.01 - Basic skeleton </title>
	  	<script type="text/javascript" src="../libs/three.js"></script>
	  	<script type="text/javascript" src="../libs/jquery-1.9.0.js"></script>
	  	<style>
	  		body{
	  			margin: 0;
	  			overflow: hidden;
	  		}
	    </style>
	    </head>
    <body>
    	<div id="WebGL-output">
    	</div>
    	<script type="text/javascript">
    		$(function () {
    			// here we'll put the Three.js stuff
    		});
    	</script>
    </body>
</html>

1.4 渲染并展示三维对象

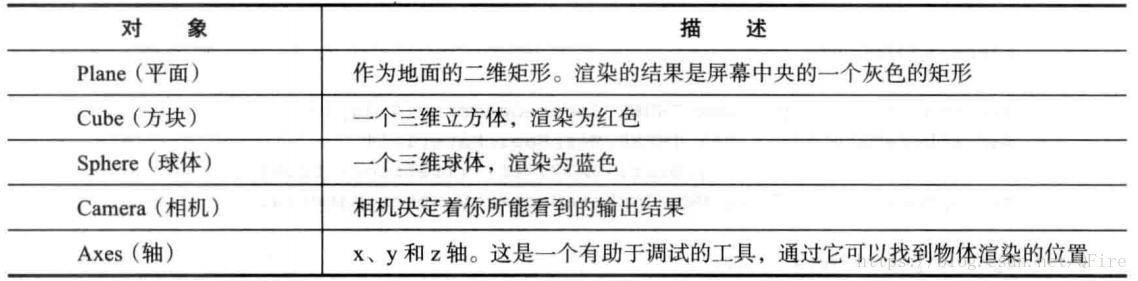

创建第一个场景，添加几个物体和一个相机

    	<script type="text/javascript">
    		$(function () {
    			// here we'll put the Three.js stuff
    			var scene = new THREE.Scene();  //场景
    			//相机
    			var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, 0.1, 1000);
    			//渲染器
    			var renderer = new THREE.WebGLRenderer();
    			renderer.setClearColorHex(0xEEEEEE);
    			renderer.setSize(window.innerWidth, window.innerHeight);
    			//坐标轴
    			var axes = new THREE.AxisHelper(20);
    			scene.add(axes);
    			//平面
    			var planeGeometry = new THREE.PlaneGeometry(60, 20, 1, 1);
    			var planeMaterial = new THREE.MeshBasicMaterial( {color: 0xcccccc} ); //材质
    			var plane = new THREE.Mesh(planeGeometry, planeMaterial);  //合并到网格对象
    			plane.rotation.x = -0.5*Math.PI;
    			plane.position.x = 15;
    			plane.position.y = 0;
    			plane.position.z = 0;
    			scene.add(plane);
    			//方块
    			var cubeGeometry = new THREE.CubeGeometry(4, 4, 4);
    			var cubeMaterial = new THREE.MeshBasicMaterial( {color: 0xff0000, wireframe: true} );
    			var cube = new THREE.Mesh(cubeGeometry, cubeMaterial);
    			cube.position.x = -4;
    			cube.position.y = 3;
    			cube.position.z = 0;
    			scene.add(cube);
    			//球体
    			var sphereGeometry = new THREE.SphereGeometry(4, 20, 20);
    			var sphereMaterial = new THREE.MeshBasicMaterial( {color: 0x7777ff, wireframe: true} );
    			var sphere = new THREE.Mesh(sphereGeometry, sphereMaterial);
    			sphere.position.x = 20;
    			sphere.position.y = 4;
    			sphere.position.z = 2;
    			scene.add(sphere);
    			//相机
    			camera.position.x = -30;
    			camera.position.y = 40;
    			camera.position.z = 30;
    			camera.lookAt(scene.position);  //指向场景的中心
                //将renderer挂接到<div>元素
    			$("#WebGL-output").append(renderer.domElement);
    			renderer.render(scene, camera);
    		});
    	</script>

1.5 添加材质、灯光和阴影

光源

//光源
var spotLight = new THREE.SpotLight( 0xffffff );
spotLight.position.set( -40, 60, -10 );
scene.add( spotLight );

1.6 用动画扩展你的首个场景

setInterval( function, interval ); 并没有跟显示器的重画同步，这可能会导致较高的CPU使用率，降低系统效率，引入requestAnimationFrame()方法

1.7 使用dat.GUI库简化试验

Google创建的dat.GUI的库

// GUI
var controls = new function() {
	this.rotationSpeed = 0.02;
	this.bouncingSpeed = 0.03;
}
var gui = new dat.GUI();
gui.add(controls, 'rotationSpeed', 0, 0.5);
gui.add(controls, 'bouncingSpeed', 0, 0.5);

1.8 使用ASCII效果

使用ASCII效果，你可以把漂亮的动画场景变成一个复古的、文本画风格的动画，而这只需要几行代码

<!DOCTYPE html>
<html>
    <head>
	  	<title>Example 01.01 - Basic skeleton </title>
	  	<script type="text/javascript" src="../libs/three.js"></script>
	  	<script type="text/javascript" src="../libs/stats.js"></script>
	  	<script type="text/javascript" src="../libs/dat.gui.js"></script>
	  	<script type="text/javascript" src="../libs/jquery-1.9.0.js"></script>
	  	<style>
	  		body{
	  			margin: 0;
	  			overflow: hidden;
	  		}
	    </style>
	    </head>
    <body>
    	<div id="Stats-output"></div>
    	<div id="WebGL-output"></div>
    	<script type="text/javascript">
    		function initStats() {
    			var stats = new Stats();
    			stats.setMode(0);
    			stats.domElement.style.position = 'absolute';
    			stats.domElement.style.left = '0px';
    			stats.domElement.style.top = '0px';
    			$("#Stats-output").append( stats.domElement );
    			return stats;
    		}
    		$(function () {
    			// 统计图
    			var stats = initStats();
    			// here we'll put the Three.js stuff
    			var scene = new THREE.Scene();  //场景
    			//相机
    			var camera = new THREE.PerspectiveCamera(45, window.innerWidth/window.innerHeight, 0.1, 1000);
    			//渲染器
    			var renderer = new THREE.WebGLRenderer();
    			renderer.setClearColorHex(0xEEEEEE);
    			renderer.setSize(window.innerWidth, window.innerHeight);
    			//坐标轴
    			var axes = new THREE.AxisHelper(20);
    			scene.add(axes);
    			//平面
    			var planeGeometry = new THREE.PlaneGeometry(60, 20, 1, 1);
    			//var planeMaterial = new THREE.MeshBasicMaterial( {color: 0xcccccc} ); //材质
    			var planeMaterial = new THREE.MeshLambertMaterial( {color: 0xffffff} ); //材质
    			var plane = new THREE.Mesh(planeGeometry, planeMaterial);  //合并到网格对象
    			plane.rotation.x = -0.5*Math.PI;
    			plane.position.x = 15;
    			plane.position.y = 0;
    			plane.position.z = 0;
    			scene.add(plane);
    			//方块
    			var cubeGeometry = new THREE.CubeGeometry(4, 4, 4);
    			//var cubeMaterial = new THREE.MeshBasicMaterial( {color: 0xff0000, wireframe: true} );
    			var cubeMaterial = new THREE.MeshLambertMaterial( {color: 0xff0000 } );
    			var cube = new THREE.Mesh(cubeGeometry, cubeMaterial);
    			cube.position.x = -4;
    			cube.position.y = 3;
    			cube.position.z = 0;
    			scene.add(cube);
    			//球体
    			var sphereGeometry = new THREE.SphereGeometry(4, 20, 20);
    			//var sphereMaterial = new THREE.MeshBasicMaterial( {color: 0x7777ff, wireframe: true} );
    			var sphereMaterial = new THREE.MeshBasicMaterial( {color: 0x7777ff} );
    			var sphere = new THREE.Mesh(sphereGeometry, sphereMaterial);
    			sphere.position.x = 20;
    			sphere.position.y = 4;
    			sphere.position.z = 2;
    			scene.add(sphere);
    			//相机
    			camera.position.x = -30;
    			camera.position.y = 40;
    			camera.position.z = 30;
    			camera.lookAt(scene.position);  //指向场景的中心
    			//光源
    			var spotLight = new THREE.SpotLight( 0xffffff );
    			spotLight.position.set( -40, 60, -10 );
    			scene.add( spotLight );
    			// 渲染
	    		function renderScene() {
	    			stats.update();
	    			requestAnimationFrame(renderScene);
	    			renderer.render(scene, camera);
	    		}
	    		// GUI
	    		var controls = new function() {
	    			this.rotationSpeed = 0.02;
	    			this.bouncingSpeed = 0.03;
	    		}
	    		var gui = new dat.GUI();
	    		gui.add(controls, 'rotationSpeed', 0, 0.5);
	    		gui.add(controls, 'bouncingSpeed', 0, 0.5);
	    		//动画
	    		var step = 0;
	    		function render() {
	    			//转动方块
	    			cube.rotation.x += controls.rotationSpeed;
	    			cube.rotation.y += controls.rotationSpeed;
	    			cube.rotation.z += controls.rotationSpeed;
	    			//弹跳球
	    			step += controls.bouncingSpeed;
	    			sphere.position.x = 20 + (10*(Math.cos(step)));   //创建一条光滑的轨迹
	    			sphere.position.y = 2 + (10*Math.abs(Math.sin(step)));
	    			requestAnimationFrame(render);
	    			renderer.render(scene, camera);
	    		}

                //将renderer挂接到<div>元素
    			$("#WebGL-output").append(renderer.domElement);
    			renderScene();
    			render();
    		});

    	</script>
    </body>
</html>
