使用TensorRT对yolov7进行加速

版本：

TensorRT：8.2.5.1

1.安装TensorRT，上一篇博客有教程https://blog.youkuaiyun.com/Power392413/article/details/126320255

2.下载yolov7和YOLOv7_Tensorrt包：

git clone https://github.com/WongKinYiu/yolov7
git clone https://github.com/Monday-Leo/YOLOv7_Tensorrt

3.生成onnx模型文件：

将YOLOv7_Tensorrt文件夹下的EfficientNMS.py和export_onnx.py复制到yolov7文件夹下后运行：

python export_onnx.py --weights ./weights/yolov7.pt

4.生成engine模型文件：

将onnx模型复制到TensorRT/bin文件夹下。

conda activate ddaction
cd TensorRT-8.2.5.1\bin
trtexec --onnx=./yolov7.onnx --saveEngine=./yolov7_fp16.engine --fp16 --workspace=200

5.测试：

修改YOLOv7_Tensorrt\infer.py文件：

import cv2
import tensorrt as trt
import torch
import numpy as np
from collections import OrderedDict,namedtuple

class TRT_engine():
    def __init__(self, weight) -> None:
        self.imgsz = [640,640]
        self.weight = weight
        self.device = torch.device('cuda:0')
        self.init_engine()

    def init_engine(self):
        # Infer TensorRT Engine
        self.Binding = namedtuple('Binding', ('name', 'dtype', 'shape', 'data', 'ptr'))
        self.logger = trt.Logger(trt.Logger.INFO)
        trt.init_libnvinfer_plugins(self.logger, namespace="")
        with open(self.weight, 'rb') as self.f, trt.Runtime(self.logger) as self.runtime:
            self.model = self.runtime.deserialize_cuda_engine(self.f.read())
        self.bindings = OrderedDict()
        self.fp16 = False
        for index in range(self.model.num_bindings):
            self.name = self.model.get_binding_name(index)
            self.dtype = trt.nptype(self.model.get_binding_dtype(index))
            # self.shape = tuple(self.model.get_binding_shape(index))
            a = self.model.get_binding_shape(index)
            # self.shape = (a[0], a[1], a[2], a[3])
            self.shape = (1, 3, 640, 640)
            self.data = torch.from_numpy(np.empty(self.shape, dtype=np.dtype(self.dtype))).to(self.device)
            self.bindings[self.name] = self.Binding(self.name, self.dtype, self.shape, self.data, int(self.data.data_ptr()))
            if self.model.binding_is_input(index) and self.dtype == np.float16:
                self.fp16 = True
        self.binding_addrs = OrderedDict((n, d.ptr) for n, d in self.bindings.items())
        self.context = self.model.create_execution_context()

    def letterbox(self,im,color=(114, 114, 114), auto=False, scaleup=True, stride=32):
        # Resize and pad image while meeting stride-multiple constraints
        shape = im.shape[:2]  # current shape [height, width]
        new_shape = self.imgsz
        if isinstance(new_shape, int):
            new_shape = (new_shape, new_shape)
        # Scale ratio (new / old)
        self.r = min(new_shape[0] / shape[0], new_shape[1] / shape[1])
        if not scaleup:  # only scale down, do not scale up (for better val mAP)
            self.r = min(self.r, 1.0)
        # Compute padding
        new_unpad = int(round(shape[1] * self.r)), int(round(shape[0] * self.r))
        self.dw, self.dh = new_shape[1] - new_unpad[0], new_shape[0] - new_unpad[1]  # wh padding
        if auto:  # minimum rectangle
            self.dw, self.dh = np.mod(self.dw, stride), np.mod(self.dh, stride)  # wh padding
        self.dw /= 2  # divide padding into 2 sides
        self.dh /= 2
        if shape[::-1] != new_unpad:  # resize
            im = cv2.resize(im, new_unpad, interpolation=cv2.INTER_LINEAR)
        top, bottom = int(round(self.dh - 0.1)), int(round(self.dh + 0.1))
        left, right = int(round(self.dw - 0.1)), int(round(self.dw + 0.1))
        self.img = cv2.copyMakeBorder(im, top, bottom, left, right, cv2.BORDER_CONSTANT, value=color)  # add border
        return self.img,self.r,self.dw,self.dh

    def preprocess(self,image):
        self.img,self.r,self.dw,self.dh = self.letterbox(image)
        self.img = self.img.transpose((2, 0, 1))
        self.img = np.expand_dims(self.img,0)
        self.img = np.ascontiguousarray(self.img)
        self.img = torch.from_numpy(self.img).to(self.device)
        self.img = self.img.float()
        return self.img

    def predict(self,img,threshold):
        img = self.preprocess(img)
        self.binding_addrs['images'] = int(img.data_ptr())
        self.context.execute_v2(list(self.binding_addrs.values()))
        nums = self.bindings['num_dets'].data[0][0][0].tolist()
        boxes = self.bindings['det_boxes'].data[0][0][0].tolist()
        scores =self.bindings['det_scores'].data[0][0][0].tolist()
        classes = self.bindings['det_classes'].data[0][0][0].tolist()
        num = int(nums[0])
        # num = nums[0][0][0]
        new_bboxes = []
        for i in range(num):
            if(scores[i] < threshold):
                continue
            xmin = (boxes[4*i] - self.dw)/self.r
            ymin = (boxes[4*i+1] - self.dh)/self.r
            xmax = (boxes[4*i+2] - self.dw)/self.r
            ymax = (boxes[4*i+3] - self.dh)/self.r
            new_bboxes.append([classes[i],scores[i],xmin,ymin,xmax,ymax])
        return new_bboxes

def visualize(img,bbox_array):
    for temp in bbox_array:
        xmin = int(temp[2])
        ymin = int(temp[3])
        xmax = int(temp[4])
        ymax = int(temp[5])
        clas = int(temp[0])
        score = temp[1]
        cv2.rectangle(img,(xmin,ymin),(xmax,ymax), (105, 237, 249), 2)
        img = cv2.putText(img, "class:"+str(clas)+" "+str(round(score,2)), (xmin,int(ymin)-5), cv2.FONT_HERSHEY_SIMPLEX, 0.5, (105, 237, 249), 1)
    return img

trt_engine = TRT_engine("./trt_model/yolov7_fp16.engine")

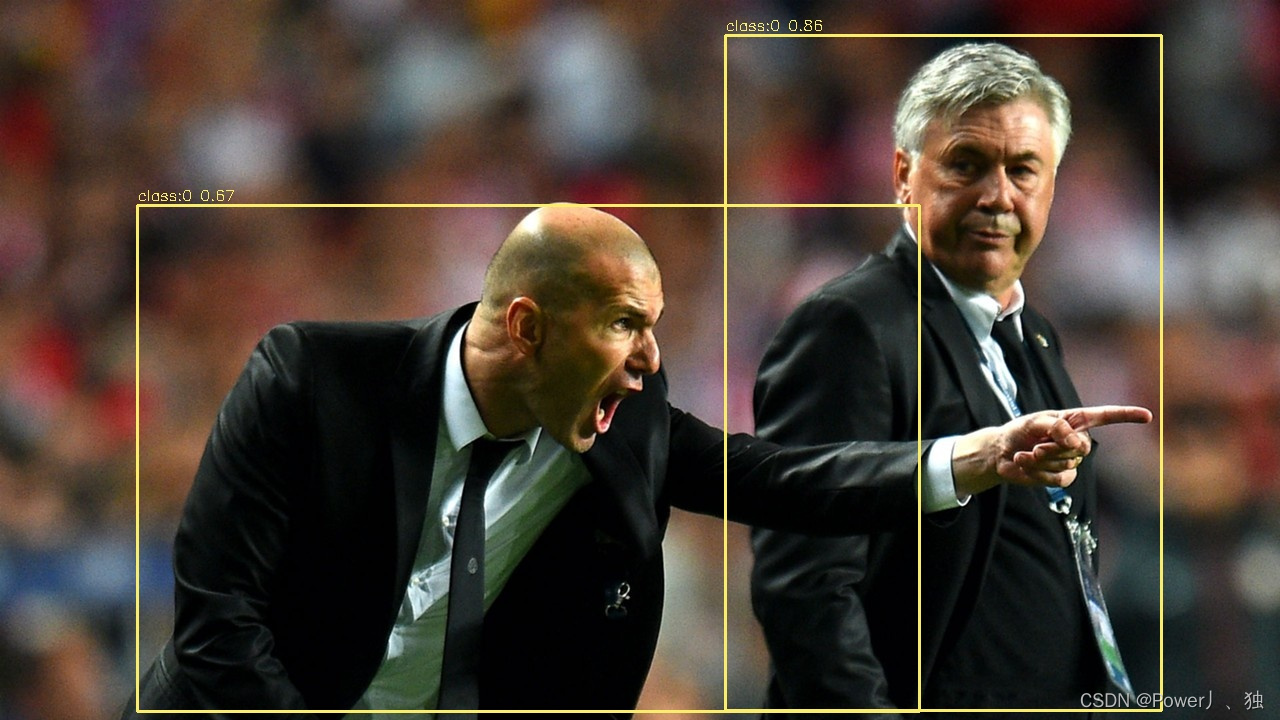

img = cv2.imread("./pictures/zidane.jpg")
results = trt_engine.predict(img,threshold=0.5)
img = visualize(img,results)
cv2.imwrite("./pictures/zidane0.jpg", img)
cv2.imshow("img",img)
cv2.waitKey(0)

运行：

python infer.py
