利用数据结构队列来实现医院挂号模拟看病系统（c++实现超详细）

如何利用简单队列实现完整的程序

文章目录

• 程序功能概览
• 一、项目要求
• 二、使用步骤
  • 1.引入库
  • 2.读入数据
• 总结完整代码

---

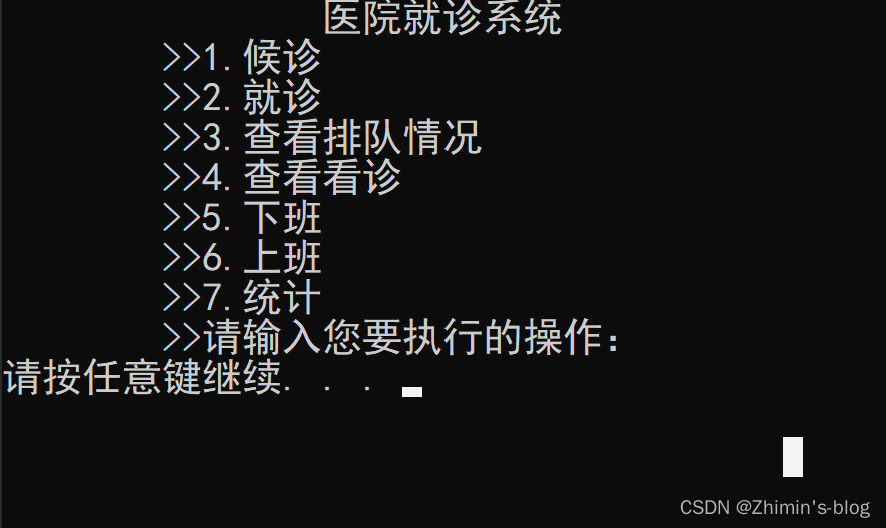

程序功能概览

---

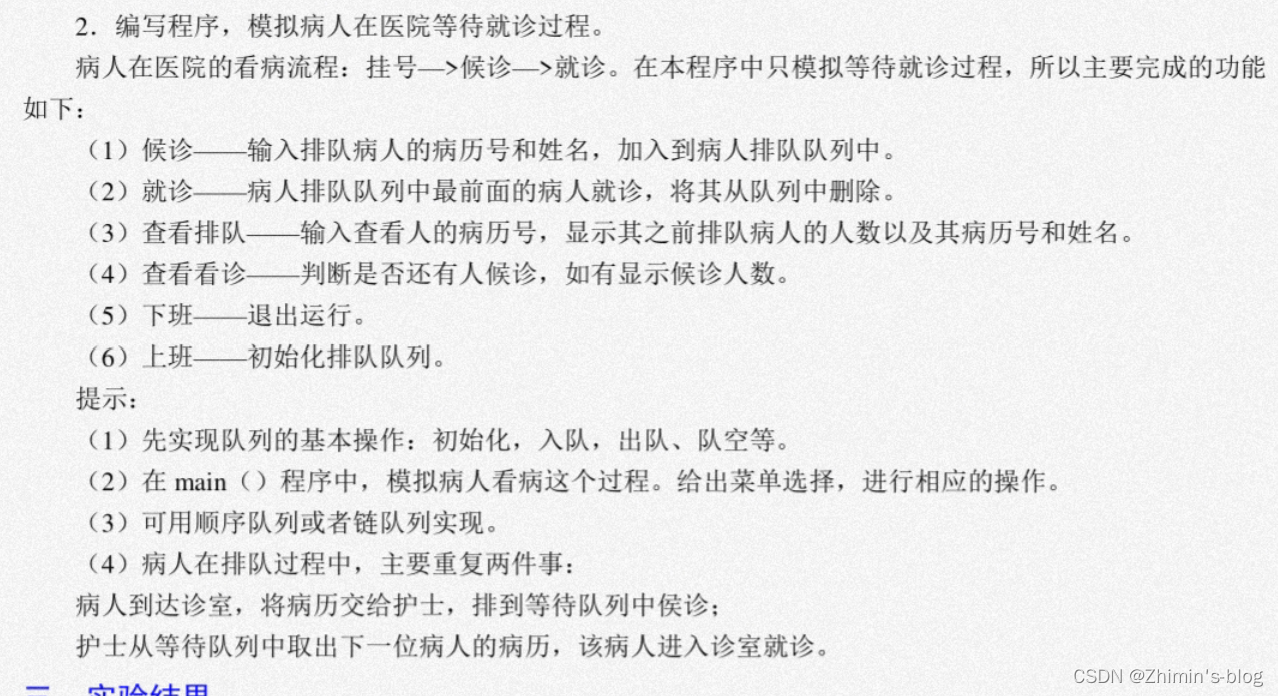

一、项目要求

二、使用步骤

1.引入库

代码如下（示例）：

#include <bits/stdc++.h>//万能库函数

2.定义结构体

代码如下（示例）：

typedef int Status;

typedef struct LNode

{

    int data;

    char name[20];

    struct LNode *next, *pre;

} LNode;

typedef struct

{

    LNode *front, *rear;

    /* data */

} LLink;

完整代码

#include <bits/stdc++.h>
using namespace std;

typedef int Status;

typedef struct LNode
{
    int data;
    char name[20];
    struct LNode *next, *pre;

} LNode;

typedef struct
{
    LNode *front, *rear;
    /* data */
} LLink;

void menu();
Status Init;

int main()
{
    int flag = 1, choice, count = 0, find, num, search, count1 = 0;
    char patient[20];
    LNode *p, *q;
    LLink *s;
    s = new LLink;
    s->front = s->rear = NULL;
    while (flag == 1)
    {
        menu();
        cin >> choice;
        switch (choice)
        {
        case 1:

            cout << "请输入病例号和病人姓名(示例：10010 张三)" << endl;
            do
            {
                cin >> num >> patient;
                find = 0;
                p = s->front;
                while (p != NULL && !find)
                {
                    if (p->data == num)
                        find = 1;
                    else
                        p = p->next;
                    /* code */
                }
                if (find)
                    cout << "输入不合法，请重新输入：" << endl;

                /* code */
            } while (find == 1);
            p = new LNode;
            p->data = num;
            strcpy(p->name, patient);
            p->next = NULL;
            p->pre = s->rear;
            if (s->rear == NULL)
            {
                s->front = s->rear = p;
            }
            else
            {
                s->rear->next = p;
                s->rear = p;
            }
            break;

        case 2:
            if (s->front == NULL)
                cout << "没有排队的病人" << endl;
            else
            {
                p = s->front;
                cout << "病人" << p->data << p->name << "就诊" << endl;

                if (s->rear == p)
                {
                    s->front = s->rear = NULL;
                }
                else
                {
                    s->front = p->next;
                }
                free(p);
            }
            break;

        case 3:
            cout << "请输入要查询的病历号" << endl;
            cin >> search;
            p = s->front;
            if (s->front == NULL)
                cout << "没有人在排队" << endl;
            else
            {
                while (search != p->data)
                {
                    p = p->next;
                }
                do
                {
                    cout << p->data << p->name << endl;
                    p = p->pre;
                    count1++;
                } while (p); //掉头发
                cout << "前面还有" << count1 - 1 << "人" << endl;
            }
            break;

        case 4:
            if (s->front == NULL)
                cout << "没有人在排队" << endl;
            else
            {
                p = s->front;
                cout << "排队病人" << endl;
                while (p != NULL)
                {
                    cout << p->data << p->name << endl;
                    p = p->next;
                    count++;
                }
                cout << "共有" << count << "人在排队" << endl;
            }
            break;
        case 5:
            if (s->front != NULL)
                cout << "请没看完的病人明天就医" << endl;
            flag = 0;
            break;

            case 6:
            s = new LLink;
            s->front = s->rear = NULL;
            if(s) cout<<"系统初始化成功"<<endl;

        }
    }
    p = s->front;
    while (p != NULL)
    {
        q = p->next;
        free(p);
        p = q;
    }
    return 0;
}
void menu()
{

    cout << "\t\t医院就诊系统" << endl;
    cout << "\t>>1.候诊" << endl;
    cout << "\t>>2.就诊" << endl;
    cout << "\t>>3.查看排队情况" << endl;
    cout << "\t>>4.查看看诊" << endl;
    cout << "\t>>5.下班" << endl;
    cout << "\t>>6.上班" << endl;
    cout << "\t>>7.统计" << endl;
    cout << "\t>>请输入您要执行的操作：" << endl;
    system("pause");
    system("cls");
}
