搭建SBM服务

文件内容

# See smb.conf.example for a more detailed config file or
# read the smb.conf manpage.
# Run 'testparm' to verify the config is correct after
# you modified it.

[global]
	workgroup = WORKGROUP
	security = user

	passdb backend = tdbsam
	disable spoolss = yes
	printing = cups
	printcap name = cups
	load printers = yes
	cups options = raw

[homes]
	comment = Home Directories
	valid users = %S, %D%w%S
	browseable = No
	read only = No
	inherit acls = Yes

[printers]
	comment = All Printers
	path = /var/tmp
	printable = Yes
	create mask = 0600
	browseable = No

[print$]
	comment = Printer Drivers
	path = /var/lib/samba/drivers
	write list = @printadmin root
	force group = @printadmin
	create mask = 0664
	directory mask = 0775
[share]
	comment = do not modify the share file
	path = /home/share
	public = No
	writable = Yes

Linux操作

# 编辑文件
[root@localhost ~]# vi /etc/samba/smb.conf

# 启动服务
[root@localhost ~]# systemctl restart smb
[root@localhost ~]# systemctl restart nmb

# 设置共享源
[root@localhost ~]# cd /data
[root@localhost data]# ls
nfsfile  share  share1
[root@localhost data]# mkdir an
[root@localhost data]# ls -la
总用量 0
drwxr-xr-x.  6 root root  58 10月 13 11:03 .
dr-xr-xr-x. 19 root root 286 10月 10 14:53 ..
drwxr-xr-x   2 root root   6 10月 13 11:03 an  #共享文件
drwxr-xr-x.  2 root root   6 10月  9 18:27 nfsfile
drw-rw-rw-.  3 root root  15 10月 11 11:42 share
drwxrwxrwx.  2 root root  20 10月  9 17:49 share1

# 创建用户
[root@localhost data]# pdbedit -a -u an
new password:
retype new password:
Unix username:        an
NT username:
Account Flags:        [U          ]
User SID:             S-1-5-21-3583617392-2483211555-2162720809-1000
Primary Group SID:    S-1-5-21-3583617392-2483211555-2162720809-513
Full Name:            an
Home Directory:       \\localhost\an
HomeDir Drive:
Logon Script:
Profile Path:         \\localhost\an\profile
Domain:               LOCALHOST
Account desc:
Workstations:
Munged dial:
Logon time:           0
Logoff time:          三, 06 2月 2036 23:06:39 CST
Kickoff time:         三, 06 2月 2036 23:06:39 CST
Password last set:    五, 13 10月 2023 11:03:48 CST
Password can change:  五, 13 10月 2023 11:03:48 CST
Password must change: never
Last bad password   : 0
Bad password count  : 0
Logon hours         : FFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFFF

#赋权限
[root@localhost data]# chmod 777 /data/an
[root@localhost data]# ls -ls
总用量 0
0 drwxrwxrwx  2 root root  6 10月 13 11:03 an
0 drwxr-xr-x. 2 root root  6 10月  9 18:27 nfsfile
0 drw-rw-rw-. 3 root root 15 10月 11 11:42 share
0 drwxrwxrwx. 2 root root 20 10月  9 17:49 share1

# 关闭防火墙
[root@localhost data]# systemctl stop firewalld.service
[root@localhost data]# setenforce 0
setenforce: SELinux is disabled

# 查看连接IP地址
[root@localhost data]# ifconfig
ens33: flags=4163<UP,BROADCAST,RUNNING,MULTICAST>  mtu 1500
        inet 192.168.85.113  netmask 255.255.255.0  broadcast 192.168.85.255
        inet6 fe80::3d50:2820:f9dd:b8a0  prefixlen 64  scopeid 0x20<link>
        ether 00:0c:29:57:40:60  txqueuelen 1000  (Ethernet)
        RX packets 15088  bytes 12754052 (12.1 MiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 2796  bytes 271033 (264.6 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

lo: flags=73<UP,LOOPBACK,RUNNING>  mtu 65536
        inet 127.0.0.1  netmask 255.0.0.0
        inet6 ::1  prefixlen 128  scopeid 0x10<host>
        loop  txqueuelen 1  (Local Loopback)
        RX packets 467  bytes 39556 (38.6 KiB)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 467  bytes 39556 (38.6 KiB)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

virbr0: flags=4099<UP,BROADCAST,MULTICAST>  mtu 1500
        inet 192.168.122.1  netmask 255.255.255.0  broadcast 192.168.122.255
        ether 52:54:00:1b:ea:d3  txqueuelen 1000  (Ethernet)
        RX packets 0  bytes 0 (0.0 B)
        RX errors 0  dropped 0  overruns 0  frame 0
        TX packets 0  bytes 0 (0.0 B)
        TX errors 0  dropped 0 overruns 0  carrier 0  collisions 0

---------------------------------

如果连接不上?

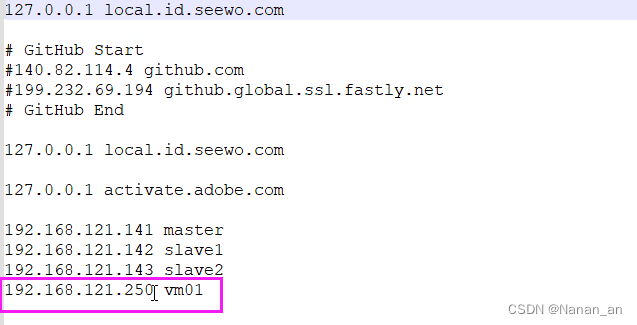

1. 修改Host 添加Linux IP等一系列

2. 配置:网络连接,这里是win下的Linux的网络配置(这个是在配置静态网络就搞定的,应该问题不是这里)

3.换成同一个工作组(win和Linux)

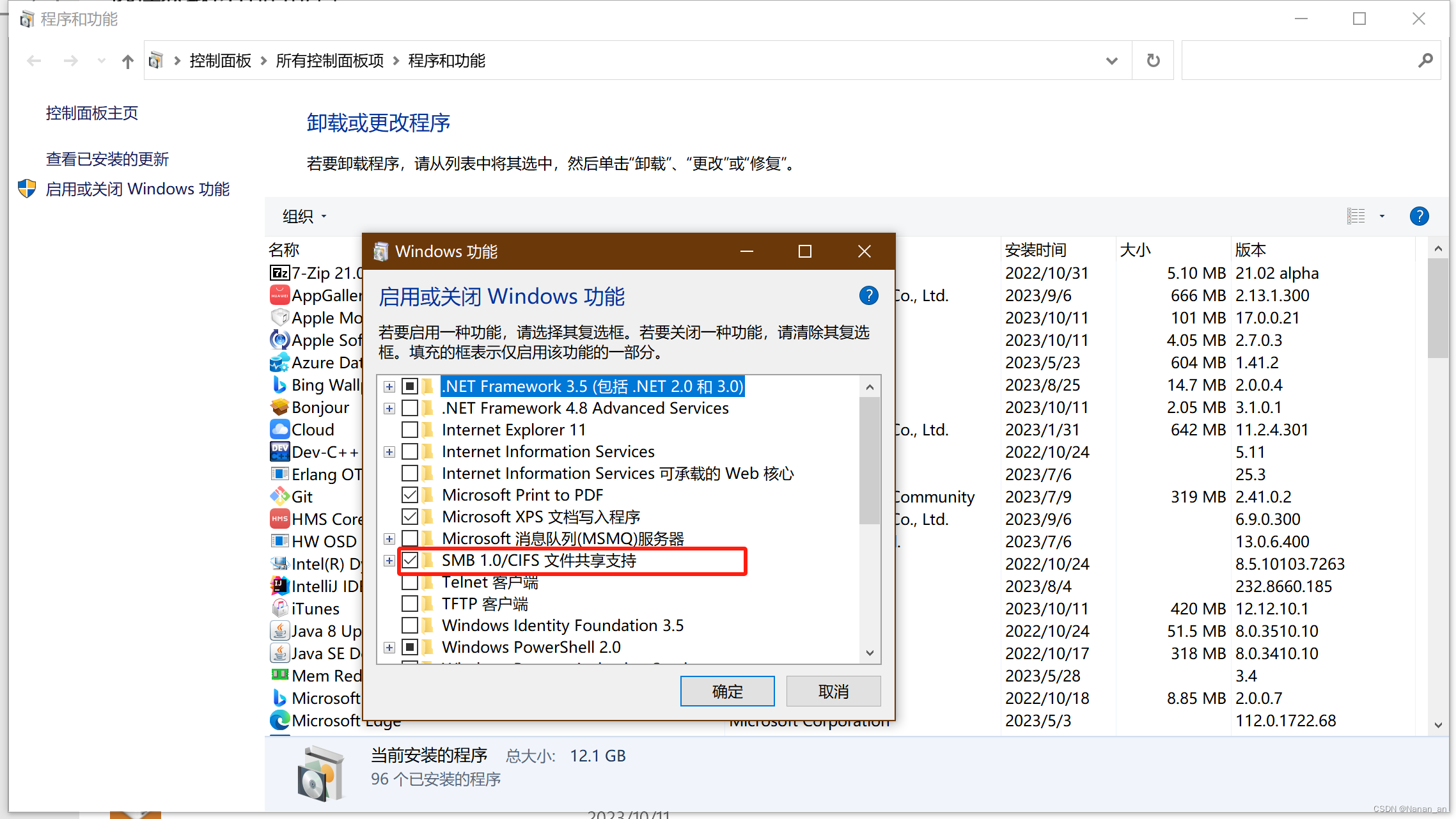

4. win中要打开SMB

5.参考已解决:Win10无法访问Samba共享文件夹_windows访问samba共享文件夹_Jyoung-Chen的博客-优快云博客

6.win10不能访问samba共享问题的解决_爱快 smb共享-优快云博客

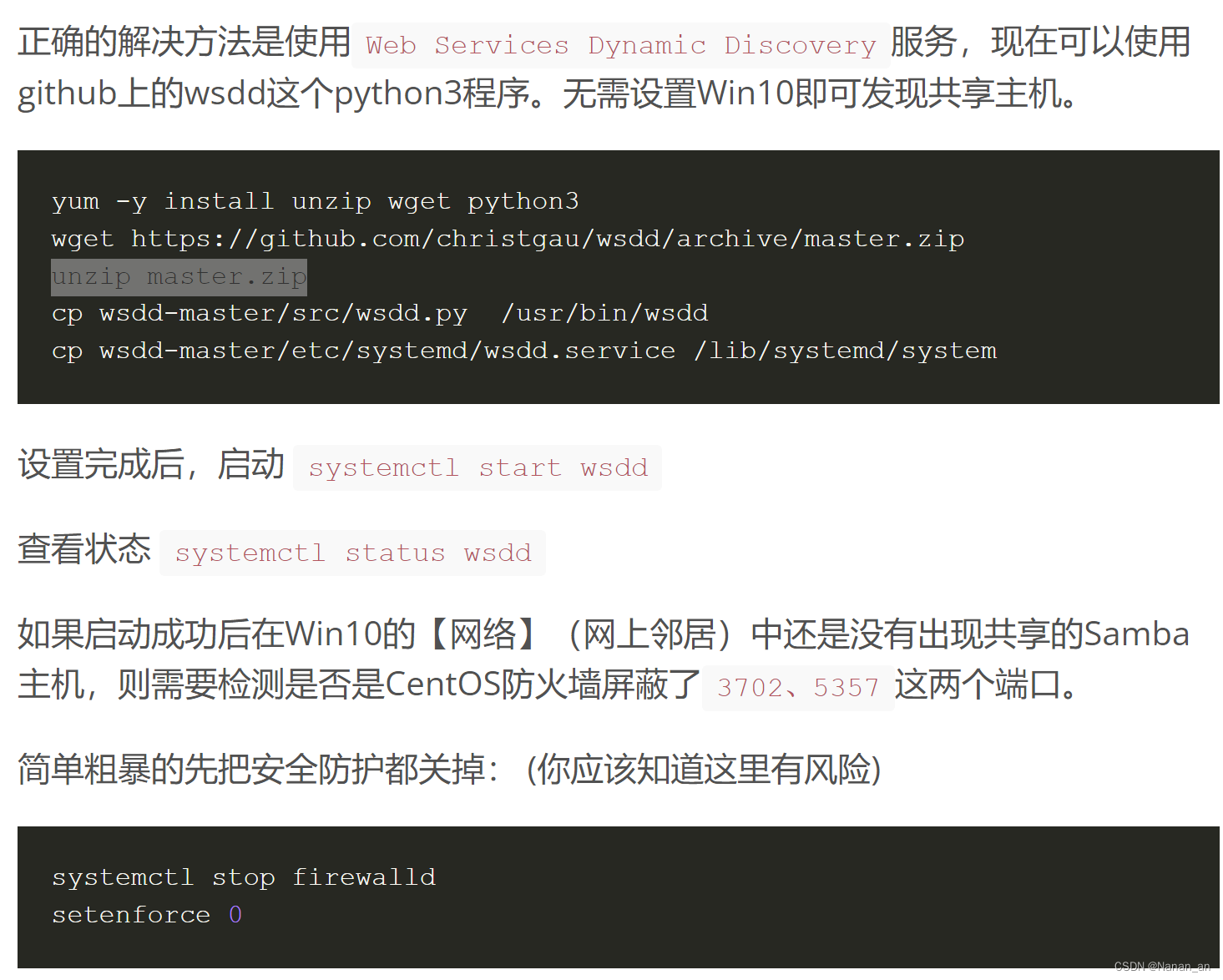

7.参考:Windows访问CentOS搭建的Samba文件共享服务 · OdinXu的博客
