neo4j查询节点关联的有等级关系的节点数据，只取最高节点的数据，简化提数逻辑

背景

使用neo4j过程遇到的一个复杂提数需求

数据类型：pin是用户，category是用户关联的类目，类目分为一二三级类目，category之间还有关联，其中还有个象征全部的WildcardCategory节点（先不用理解）

数据逻辑：需要提取pin关联的全部类目数据，如果pin对有关系的类目都进行了关联，则取有关系类目中的最高级（级别依次降低顺序，1最高：1--》2--》3）数据表示，比如：如果pin同时关联了一级类目和二级类目，那么只记录关联的一级类目数据，目的简化要提取的数据情况。

数据演示过程

初始化数据cql

//创建用户
create (:Pin{name:"pin1"});

//创建类目
create (:Category{code:"11",level:1});
create (:Category{code:"12",level:1});
create (:Category{code:"13",level:1});

create (:Category{code:"21",level:2});
create (:Category{code:"22",level:2});
create (:Category{code:"221",level:2});
create (:Category{code:"23",level:2});
create (:Category{code:"24",level:2});

create (:Category{code:"31",level:3});
create (:Category{code:"32",level:3});
create (:Category{code:"33",level:3});
create (:Category{code:"331",level:3});
create (:Category{code:"34",level:3});

//创建代表全部类目的节点
create (:WildcardCategory{name:"category"});

//创建类目之间的关系
match (c1:Category),(c2:Category) where c1.code="11" and c2.code="21" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="21" and c2.code="31" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="12" and c2.code="22" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="12" and c2.code="221" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="22" and c2.code="32" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="13" and c2.code="23" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="23" and c2.code="33" create (c1)-[:IS_PARENT_OF]->(c2);
match (c1:Category),(c2:Category) where c1.code="23" and c2.code="331" create (c1)-[:IS_PARENT_OF]->(c2);

//创建用户和类目之间的关系
match (p:Pin),(c:Category) where p.name="pin1" and c.code in ["11","21","31","12","22","23","33","34"] create (p)-[:ALLOW]->(c);

//创建用户和全量类目的关系
match (p:Pin),(w:WildcardCategory) where p.name="pin1" create (p)-[:JOIN]->(w);

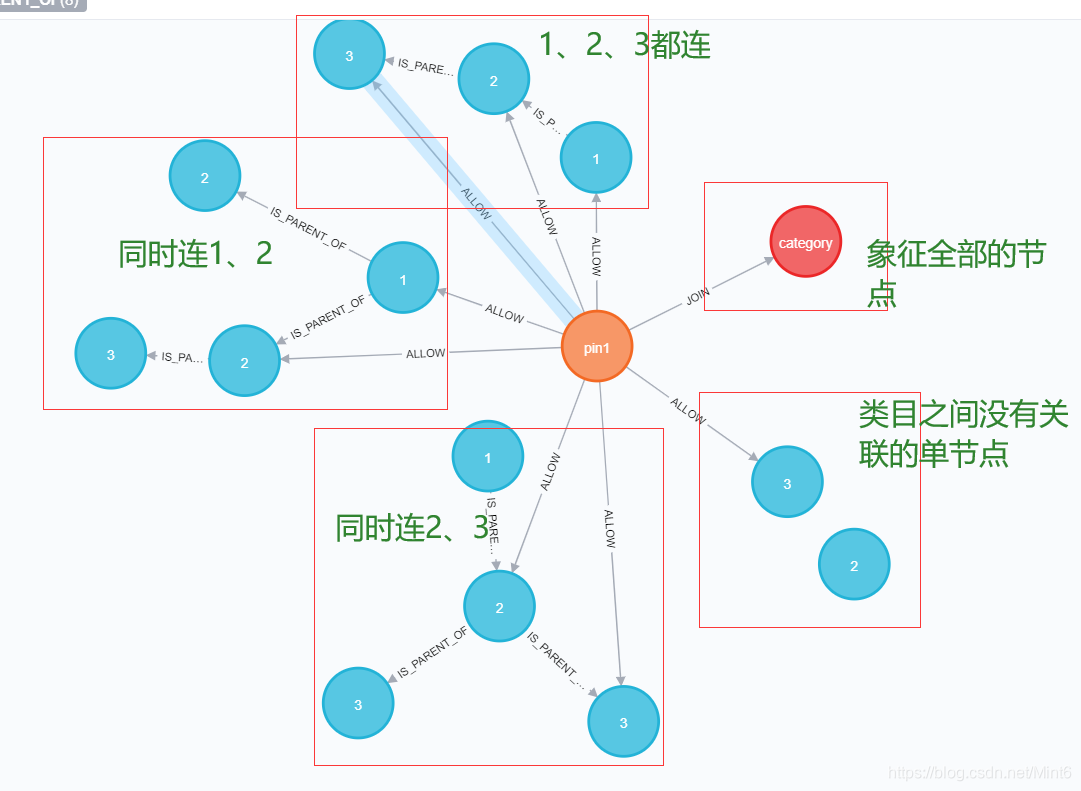

橘黄色是pin用户，蓝色是category类目，红色是全部类目节点，使用上面的语句可以初始化出来下面的数据情况

分析：不同红框内是要导出的不同数据，比如1、2、3都连的只导出1的数据，同时连1、2的只导出1，同时连2、3的只导出2，类目之间没有关联的单节点都导出，象征全部的节点也都导出。

导出cql

//查询关联一级类目的数据
match (p:Pin)-[:ALLOW]-(c:Category{level:1})
return distinct p.name as name,c.code as code,c.level as level,null as hasWildcardCategory order by p.name,c.level
union
//查询关联二级类目并且没有关联一级类目的数据
match (p:Pin)-[:ALLOW]-(c:Category{level:2})<-[:IS_PARENT_OF]-(cc:Category{level:1})
where not (p)-[:ALLOW]-(cc)
return distinct p.name as name,c.code as code,c.level as level,null as hasWildcardCategory order by p.name,c.level
union
//查询关联三级类目并且没有关联一、二级类目的数据
match (p:Pin)-[:ALLOW]-(c:Category{level:3})<-[:IS_PARENT_OF]-(cc:Category{level:2})<-[:IS_PARENT_OF]-(ccc:Category)
where not (p)-[:ALLOW]-(cc) and not (p)-[:ALLOW]-(ccc)
return distinct p.name as name,c.code as code,c.level as level,null as hasWildcardCategory order by p.name,c.level
union
//数据兼容处理：可能存在一二三类目之间关系缺少的情况，查询没有关联任何上级类目的二三级类目
match (p:Pin)-[:ALLOW]-(c:Category)
where c.level in [2,3] and not (c)-[:IS_PARENT_OF]-(:Category)
return distinct p.name as name,c.code as code,c.level as level,null as hasWildcardCategory order by p.name,c.level
union
//查询用户是否关联了全部类目，因为是另外一种label，所以也需要查询出来
match (p:Pin)-[:JOIN]->(w:WildcardCategory)
return distinct p.name as name,null as code,null as level,"关联全部类目" as hasWildcardCategory

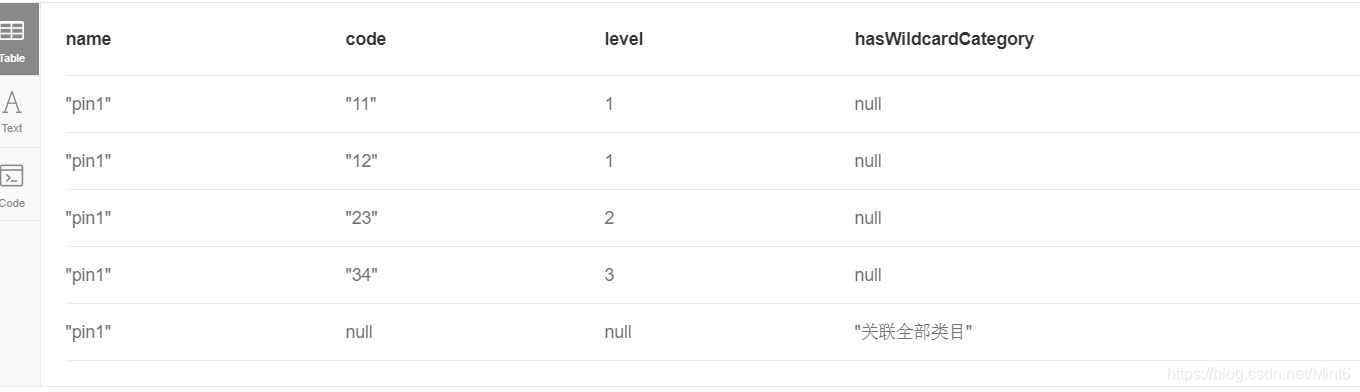

导出结果，完全正确，导出了pin关联的数据，也简化了导出的数据量
