嵌入式程序普通事件调度

嵌入式程序普通事件调度

• 背景

  在嵌入式开发过程中，通常使用中断来驱动各种事件，但是有时需要执行一些较为耗时的操作，中断时是不建议执行一些耗时操作的，比如在中断中打印字符串，在串口波特率为115200的情况下，打印一套日志正常需要5ms以上，在一些对时间反应要求情况下，等待几毫秒是不能接受的，特别是一些中断优先级较高的中断中。所以，有没有一个办法，在中断中注册一个行为，然后在main函数的while循环中捕获到这个行为，然后将它执行。

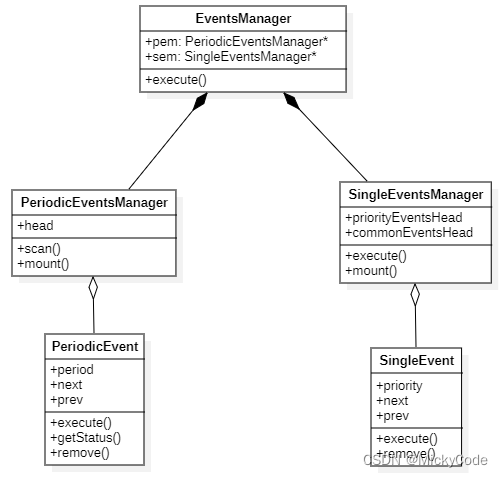

1. 设计框图

• 在上图中，可以看到有两种事件，一种是周期性事件，还有一种是单次事件。
• 周期性事件可以在while循环里循环执行，同时还提供了方法可以获取状态，可以判断事件是否结束，以及本次是否执行，可以执行一些对时间要求不高的周期性时间，如果到时间则执行，未到时间则跳过，如果获取的状态是结束事件，会将事件从链表中删除。
• 单次事件中有个属性是priority，表明此事件的优先级，事件有高优先级和低优先级，高优先级事件，每次轮询都会执行，低优先级事件，只有在高优先级事件不满10个时，和高优先级事件一起可以执行10个，剩下的等待下一轮，单次事件在执行结束后会将事件删除。
• 周期性事件管理器中有一个链表来管理周期性事件，可以执行像喂狗之类的周期性工作，单次事件管理器中，有两个链表，一个高优先级链表，一个低优先级链表，两个管理器都可以去挂载相应的事件，在单次任务挂载时，可能是在中断中进行的，可能会对执行产生影响，所以这里挂载到链表上是需要进入临界区的，周期性任务，并不会进入临界区。
• 周期性事件的删除是依靠管理器轮询看是否结束事件。

2. 代码

• 下面是核心部分的代码，完整的项目工程代码见我的gitee仓库：STM32F103: stm32 personal code repository - Gitee.com

  • MainEvents.h

    #ifndef __MAIN_EVENTS_H
    #define __MAIN_EVENTS_H

    #ifdef __cplusplus
    extern "C" {
    #endif

    #include <stdbool.h>
    #include <errno.h>

    typedef enum {
        EVENT_OK = 0x00,
        EVENT_NULL_POINTER,
    } EventStatus;

    typedef void (*EventFunc)(void *arg, size_t bufLen);
    typedef enum {
        EVENT_HIGH_PRIORITY = 0x00,
        EVENT_LOW_PRIORITY,
    } EventPriority;

    typedef struct SingleEvent_t SingleEvent;
    struct SingleEvent_t
    {
        SingleEvent *next;
        EventPriority priority;
        void *arg;
        size_t bufLen;
        void (*execute)(void *arg, size_t bufLen);
        void (*remove)(SingleEvent *pthis);
    };
    SingleEvent *SingleEventCtor(EventPriority priority, EventFunc func, void *arg, size_t bufLen);


    typedef struct SingleEventsManager_t SingleEventsManager;
    struct SingleEventsManager_t {
        SingleEvent *highPriorityHead;
        SingleEvent *highPriorityTail;
        SingleEvent *commonHead;
        SingleEvent *commonTail;
        size_t highPriorityNum;
        size_t commonNum;
        error_t (*mount)(SingleEventsManager *pthis, SingleEvent *event);
        error_t (*executeEvents)(SingleEventsManager *pthis);

        void (*remove)(SingleEventsManager *pthis);
    };

    SingleEventsManager *SingleEventsManagerCtor(void);

    typedef struct {
        bool isToExe;
        bool isOver;
    } PeriodicEventStatus;
    typedef PeriodicEventStatus (*StatusFunc)(void);
    typedef struct PeriodicEvent_t PeriodicEvent;
    struct PeriodicEvent_t {
        PeriodicEvent *next;
        PeriodicEvent *prev;
        uint32_t period;
        void *arg;
        size_t bufLen;
        void (*execute)(void *arg, size_t bufLen);
        PeriodicEventStatus (*getStatus)(void);
        void (*remove)(PeriodicEvent *pthis);
    };

    PeriodicEvent *PeriodicEventCtor(EventFunc func, StatusFunc statusFunc, void *arg, size_t bufLen);

    typedef struct PeriodicEventsManager_t PeriodicEventsManager;
    struct PeriodicEventsManager_t {
        PeriodicEvent *periodicEventHead;
        PeriodicEvent *periodicEventTail;
        error_t (*scan)(PeriodicEventsManager *pthis);
        error_t (*mount)(PeriodicEventsManager *pthis, PeriodicEvent *event);
        void (*remove)(PeriodicEventsManager *pthis);
    };

    PeriodicEventsManager *PeriodicEventsManagerCtor(void);

    typedef struct EventsManager_t EventsManager;
    struct EventsManager_t {
        PeriodicEventsManager *pem;
        SingleEventsManager *sem;
        error_t (*execute)(EventsManager *pthis);
        void (*remove)(EventsManager *pthis);
    };

    EventsManager *EventsManagerCtor(PeriodicEventsManager *pem, SingleEventsManager *sem);
    void MainEventsInit(void);
    EventsManager *GetEventManagerHandler(void);
    #ifdef __cplusplus
    }
    #endif

    #endif


  • MainEvents.c

    #include <stdlib.h>
    #include <stdint.h>
    #include <errno.h>
    #include "main.h"
    #include "MainEvents.h"

    void DeleteSingleEvent(SingleEvent *pthis)
    {
        if (pthis != NULL) {
            if (pthis->bufLen) {
                free(pthis->arg);
            }
            free(pthis);
        }
    }

    SingleEvent *SingleEventCtor(EventPriority priority, EventFunc func, void *arg, size_t bufLen)
    {
        SingleEvent *me = (SingleEvent *)malloc(sizeof(SingleEvent));
        if (me == NULL) {
            return NULL;
        }
        me->arg = NULL;
        me->bufLen = bufLen;
        if (bufLen != 0) {
            me->arg = malloc(bufLen);
        }
        memcpy(me->arg, arg, bufLen);
        me->next = NULL;
        me->priority = priority;
        me->execute =func;
        me->remove = DeleteSingleEvent;
        return me;
    }


    error_t MountEvent(SingleEventsManager *pthis, SingleEvent *event)
    {
        if (pthis == NULL || event == NULL) {
            return EVENT_NULL_POINTER;
        }
        __disable_irq();
        if (event->priority == EVENT_HIGH_PRIORITY) {
            if (pthis->highPriorityHead == NULL) {
                pthis->highPriorityHead = event;
                pthis->highPriorityTail = event;
            } else {
                pthis->highPriorityTail->next = event;
                pthis->highPriorityTail = event;
            }
            pthis->highPriorityNum++;
        } else if (event->priority == EVENT_LOW_PRIORITY) {
            if (pthis->commonHead == NULL) {
                pthis->commonHead = event;
                pthis->commonTail = event;
            } else {
                pthis->commonTail->next = event;
                pthis->commonTail = event;
            }
            pthis->commonNum++;
        }
        __enable_irq();
        return EVENT_OK;
    }

    #define MAX_SINGLE_EVENTS 10
    error_t executeEvents(SingleEventsManager *pthis)
    {
        if (pthis == NULL) {
            return EVENT_NULL_POINTER;
        }
        SingleEvent *highEventHead = NULL;
        SingleEvent *commonEventHead = NULL;
        SingleEvent *event = NULL;
        SingleEvent *temp = NULL;
        size_t highNum = 0;
        size_t commonNumMax = 0;

        __disable_irq();
        highNum = pthis->highPriorityNum;
        if (highNum) {
            highEventHead = pthis->highPriorityHead;
            pthis->highPriorityHead = NULL;
            pthis->highPriorityTail = NULL;
            pthis->highPriorityNum = 0;
        }
        if (pthis->commonNum && highNum < MAX_SINGLE_EVENTS) {
            commonNumMax = MAX_SINGLE_EVENTS - highNum;
            commonEventHead = pthis->commonHead;
            if (commonNumMax >= pthis->commonNum) {
                pthis->commonHead = NULL;
                pthis->commonTail = NULL;
                pthis->commonNum = 0;
            } else {
                event = pthis->commonHead;
                for (size_t i = 0; i < commonNumMax - 1; i++) {
                    event = event->next;
                }
                pthis->commonHead = event->next;
                event->next = NULL;
                pthis->commonNum -= commonNumMax;
            }
        }
        __enable_irq();

        // 执行
        event = highEventHead;
        while (event != NULL) {
            event->execute(event->arg, event->bufLen);
            temp = event;
            event = event->next;
            temp->remove(temp);
        }

        event = commonEventHead;
        while (event != NULL) {
            event->execute(event->arg, event->bufLen);
            temp = event;
            event = event->next;
            temp->remove(temp);
        }
        return EVENT_OK;
    }

    void DeleteSingleEventsManager(SingleEventsManager *pthis)
    {
        if (pthis != NULL) {
            free(pthis);
        }
    }

    SingleEventsManager *SingleEventsManagerCtor(void)
    {
        SingleEventsManager *me = (SingleEventsManager *)malloc(sizeof(SingleEventsManager));
        if (me == NULL) {
            return NULL;
        }
        me->commonHead = NULL;
        me->commonTail = NULL;
        me->highPriorityHead = NULL;
        me->highPriorityTail = NULL;
        me->commonNum = 0;
        me->highPriorityNum = 0;
        me->mount = MountEvent;
        me->executeEvents = executeEvents;
        me->remove = DeleteSingleEventsManager;
        return me;
    }

    PeriodicEventStatus PeriodicEventGetStatus(PeriodicEvent *pthis)
    {
        static int num = 0;
        PeriodicEventStatus status = {true, false};
        if (num >= 10) {
            status.isOver = true;
        }
        num++;
        return status;
    }

    void DeletePeriodicEvent(PeriodicEvent *pthis)
    {
        if (pthis != NULL) {
            free(pthis);
        }
    }

    PeriodicEvent *PeriodicEventCtor(EventFunc func, StatusFunc statusFunc, void *arg, size_t bufLen)
    {
        PeriodicEvent *me = (PeriodicEvent *)malloc(sizeof(PeriodicEvent));
        if (me == NULL) {
            return NULL;
        }
        me->next = NULL;
        me->prev = NULL;
        me->arg = NULL;
        me->bufLen = bufLen;
        if (bufLen != 0) {
            me->arg = malloc(bufLen);
        }
        memcpy(me->arg, arg, bufLen);
        me->period = 0;
        me->execute = func;
        me->getStatus = statusFunc;
        me->remove = DeletePeriodicEvent;
        return me;
    }

    error_t PeriodicEventsManagerScan(PeriodicEventsManager *pthis)
    {
        if (pthis == NULL) {
            return EVENT_NULL_POINTER;
        }
        PeriodicEvent *event = pthis->periodicEventHead;
        PeriodicEvent *toRemove;
        PeriodicEventStatus status;
        while (event != NULL) {
            status = event->getStatus();
            if (status.isToExe) {
                event->execute(event->arg, event->bufLen);
            }
            toRemove = event;
            event = event->next;
            if (status.isOver) {
                if (toRemove->prev == NULL) {
                    pthis->periodicEventHead = toRemove->next;
                } else {
                    toRemove->prev->next = toRemove->next;
                }
                if (toRemove->next == NULL) {
                    pthis->periodicEventTail = toRemove->prev;
                } else {
                    toRemove->next->prev = toRemove->prev;
                }
                toRemove->remove(toRemove);
            }
        }
        return EVENT_OK;
    }

    error_t PeriodicEventsManagerMount(PeriodicEventsManager *pthis, PeriodicEvent *event)
    {
        if (pthis == NULL || event == NULL) {
            return EVENT_NULL_POINTER;
        }
        if (pthis->periodicEventHead == NULL) {
            pthis->periodicEventHead = event;
            pthis->periodicEventTail = event;
            return EVENT_OK;
        }
        pthis->periodicEventTail->next = event;
        event->prev = pthis->periodicEventTail;
        pthis->periodicEventTail = event;
        return EVENT_OK;
    }

    void DeletePeriodicEventsManager(PeriodicEventsManager *pthis)
    {
        if (pthis != NULL) {
            free(pthis);
        }
    }

    PeriodicEventsManager *PeriodicEventsManagerCtor(void)
    {
        PeriodicEventsManager *me = (PeriodicEventsManager *)malloc(sizeof(PeriodicEventsManager));
        if (me == NULL) {
            return NULL;
        }
        me->periodicEventHead = NULL;
        me->periodicEventTail = NULL;
        me->mount = PeriodicEventsManagerMount;
        me->scan = PeriodicEventsManagerScan;
        me->remove = DeletePeriodicEventsManager;
        return me;
    }

    error_t EventsManagerExecute(EventsManager *pthis)
    {
        if (pthis == NULL) {
            return EVENT_NULL_POINTER;
        }
        pthis->pem->scan(pthis->pem);
        pthis->sem->executeEvents(pthis->sem);
        return EVENT_OK;
    }

    void DeleteEventsManager(EventsManager *pthis)
    {
        if (pthis != NULL) {
            free(pthis);
        }
    }

    EventsManager *EventsManagerCtor(PeriodicEventsManager *pem, SingleEventsManager *sem)
    {
        if (pem == NULL || sem == NULL) {
            return NULL;
        }
        EventsManager *me = (EventsManager *)malloc(sizeof(EventsManager));
        if (me == NULL) {
            return NULL;
        }
        me->pem = pem;
        me->sem = sem;
        me->execute = EventsManagerExecute;
        me->remove = DeleteEventsManager;
        return me;
    }

    SingleEventsManager *g_seManager = NULL;
    PeriodicEventsManager *g_peManager = NULL;
    EventsManager *g_eventManager = NULL;
    void MainEventsInit(void)
    {
        g_seManager = SingleEventsManagerCtor();
        g_peManager = PeriodicEventsManagerCtor();
        g_eventManager = EventsManagerCtor(g_peManager, g_seManager);
    }

    EventsManager *GetEventManagerHandler(void)
    {
        return g_eventManager;
    }


3. 总结

• 有时在中断里需要执行一些较为耗时的操作，我们常常是通过设置一个标志位，在main函数的while循环中检测是否需要执行，但是有些操作并不适合这样做，比如想打印一个字符串，或者数量较多的时候，这个时候使用这样的事件注册机制，执行完从链表中删除，是一个较为高效的方式，当然有时也可能会有耗费事件较长的事情，可能需要几秒中，这个时候如果喂狗操作也是在while循环里的话，就需要在事件中手动喂狗，如果在计时器中断中喂狗，那就无所谓了，但是还是会耽误其他任务的执行，这个时候建议使用周期性事件，在周期性事件中，判断事件的进展，事件结束，也会从相应的链表中删除。
• 通过这样的事件调度机制，可以使得我们在中断从容的下方一些耗时操作，甚至是耗时很久的操作（通过周期性事件），但是如果对事件精度要求很高，那么还是得需要通过定时器或者其他中断来执行相应的事件。
