一.开发板使用前的准备
1.硬件准备

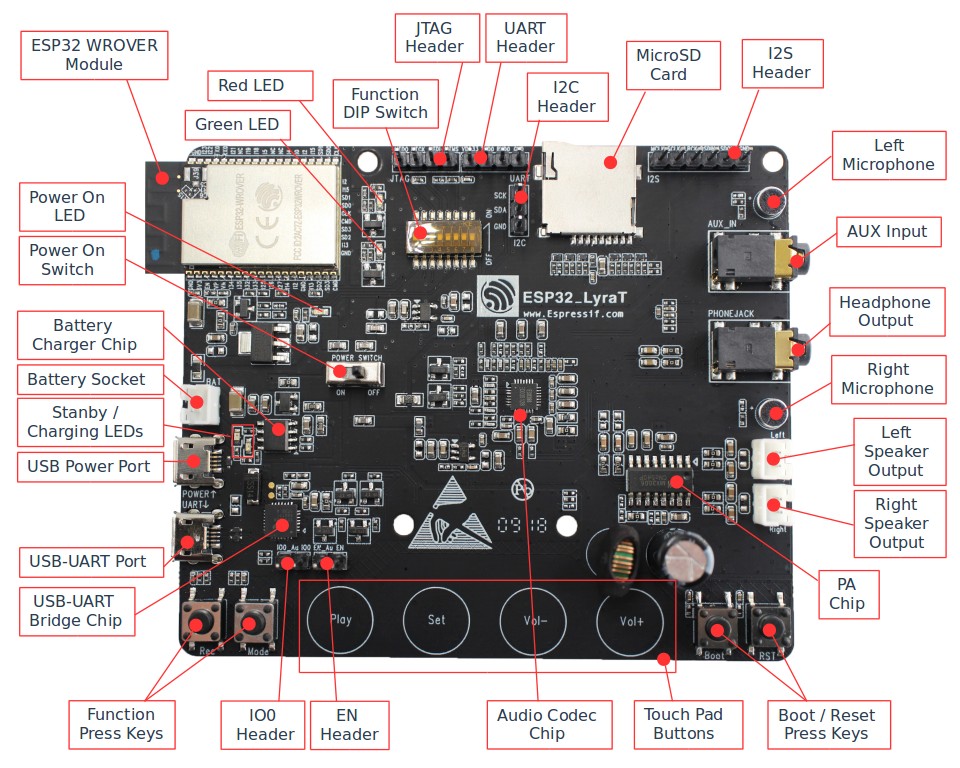

lyrat开发板要工作起来需要用一根microusb线接到供电口,而下载或者调试设备需要另一根microusb线接到串口端。另外要将电源键拨到ON的位置。该开发板的定位是智能音箱,所以要测试音频需要接一个3.5英寸接口的耳机/音箱。在烧录程序之前还需要摁着boot按键再拨开电源键,这样开发板才会进入烧录模式。
2.开发环境的准备
(1)下载开发板的sdk
git clone --recursive https://github.com/espressif/esp-adf.git
(2)安装依赖库
sudo apt-get install gcc git wget make libncurses-dev flex bison gperf python python-serial
(3)编译链、IDF和ADF的安装和配置
编译链的下载地址如下:
-
for 64-bit Linux:
https://dl.espressif.com/dl/xtensa-esp32-elf-linux64-1.22.0-80-g6c4433a-5.2.0.tar.gz
-
for 32-bit Linux:
https://dl.espressif.com/dl/xtensa-esp32-elf-linux32-1.22.0-80-g6c4433a-5.2.0.tar.gz
使用wget命令就可以下载
mkdir -p ~/esp
cd ~/esp
wget https://dl.espressif.com/dl/xtensa-esp32-elf-linux64-1.22.0-80-g6c4433a-5.2.0.tar.gz
tar -xzf
