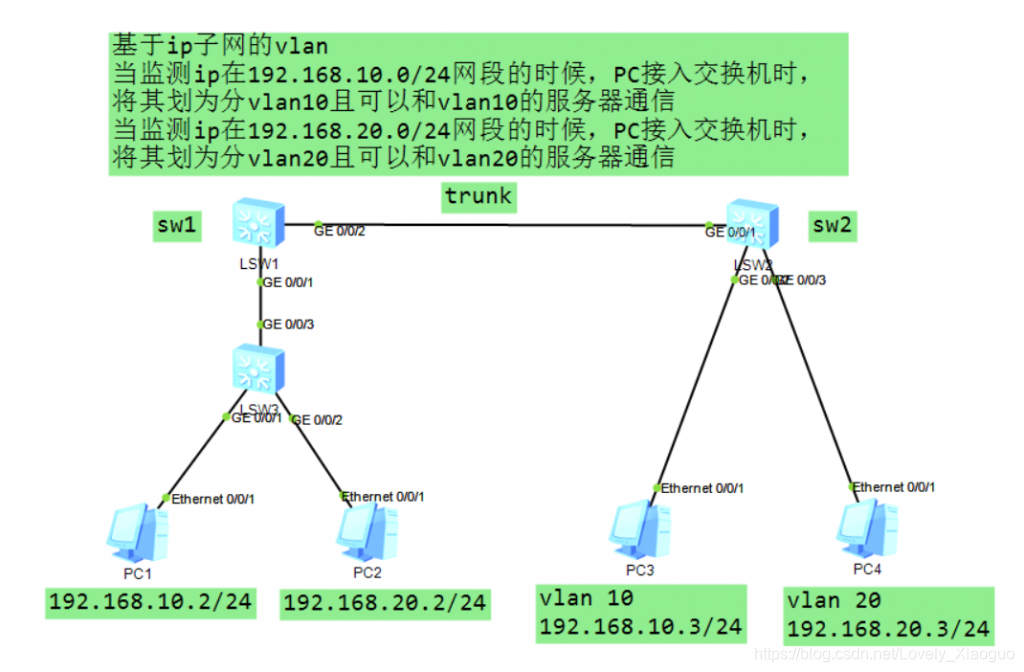

vlan高级配置之基于IP子网划分

vlan高级配置之基于IP子网划分

sw1:
<Huawei>system-view
[Huawei]un in en
[Huawei]sysname sw1
[sw1]vlan batch 10 20
[sw1]int g0/0/2
[sw1-GigabitEthernet0/0/2]port link-type trunk
[sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan 10 20
[sw1-GigabitEthernet0/0/2]int g0/0/1
[sw1-GigabitEthernet0/0/1]port hybrid untagged vlan 10 20
[sw1-GigabitEthernet0/0/1]ip-subnet-vlan enable
[sw1-GigabitEthernet0/0/1]quit
[sw1]vlan 10
[sw1-vlan10]ip-subnet-vlan ip 192.168.10.0 24
[sw1-vlan20]ip-subnet-vlan ip 192.168.20.0 24
[sw1-vlan20]
sw2:
<Huawei>system-view
[Huawei]un in en
[Huawei]sysname sw2
[sw2]vlan batch 10 20
[sw2]int g0/0/2
[sw2-GigabitEthernet0/0/2]port link-type access
[sw2-GigabitEthernet0/0/2]port default vlan 10
[sw2-GigabitEthernet0/0/2]int g0/0/3
[sw2-GigabitEthernet0/0/3]port link-type access
[sw2-GigabitEthernet0/0/3]port default vlan 20
[sw2-GigabitEthernet0/0/3]int g0/0/1
[sw2-GigabitEthernet0/0/1]port link-type trunk
[sw2-GigabitEthernet0/0/1]port trunk allow-pass vlan 10 20

测试指令：

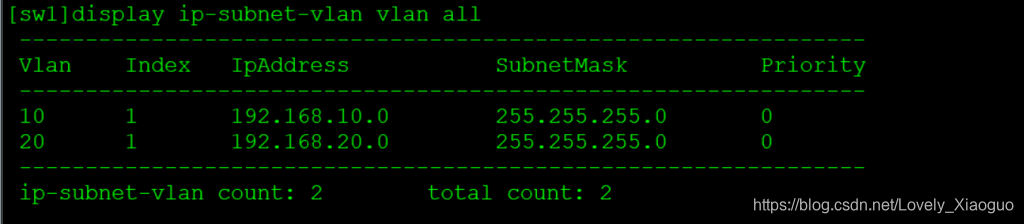

display ip-subnet-vlan all

可以查看所对应的地址段已经划分为那个vlan
