本文档详细介绍了在嵌入式系统中使用软件设计多条模拟IIC总线的方法，涉及GPIO配置、IIC通信函数如读写地址、数据和页面操作，适用于三轴传感器、温度传感器和AT24CEEPROM等设备的通信。

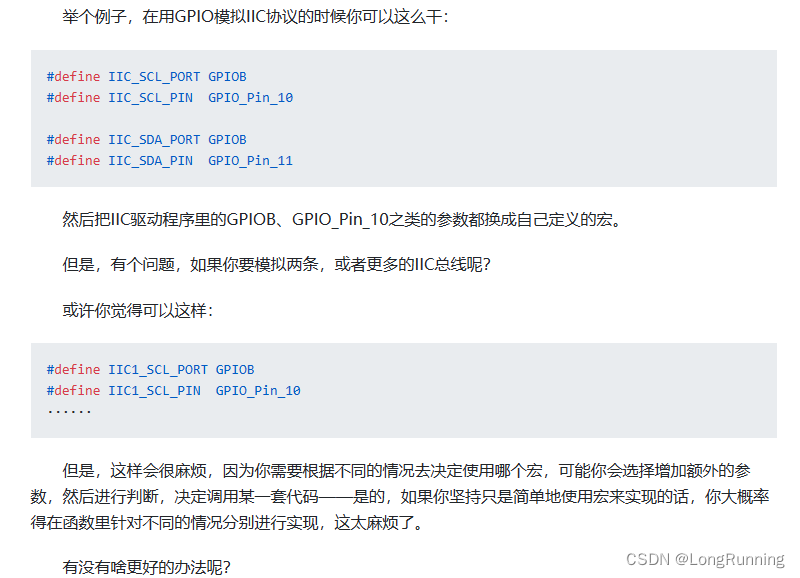

问题：当使用多条模拟IIC总线：软件如何设计

问题链接
https://segmentfault.com/a/1190000022107594

链接1

在这里插入图片描述

代码示例：

#include "bsp_iic_extend.h"


/*
 * IIC读写方式扩展版本
 * 方便扩展IO
 *   更新版本V0001
* author: lei--
 */

/*
 * 支持的设备
 */

/*
 *三轴+温度+EEPROM
 */
iic_control_t iic_ctl_triaxial = {0};
iic_control_t iic_ctl_temper = {0};
iic_control_t iic_ctl_at24c = {0};

/*
 * 初始IIC_IO
 */
void bsp_iic_object_init_extend(void)
{
    iic_ctl_triaxial.SCL_GPIOx = GPIOB;
    iic_ctl_triaxial.SCL_Pin = GPIO_PIN_6;

    iic_ctl_triaxial.SDA_GPIOx = GPIOB;
    iic_ctl_triaxial.SDA_Pin = GPIO_PIN_7;

    iic_ctl_triaxial.Speed = 1;

    iic_ctl_temper.SCL_GPIOx = GPIOC;
    iic_ctl_temper.SCL_Pin = GPIO_PIN_0;

    iic_ctl_temper.SDA_GPIOx = GPIOC;
    iic_ctl_temper.SDA_Pin = GPIO_PIN_1;

    iic_ctl_temper.Speed = 1;

    iic_ctl_at24c.SCL_GPIOx = GPIOB;
    iic_ctl_at24c.SCL_Pin  = GPIO_PIN_13;

    iic_ctl_at24c.SDA_GPIOx = GPIOB;
    iic_ctl_at24c.SDA_Pin  = GPIO_PIN_14;

    iic_ctl_at24c.Speed =1;
}
/*
 * io拉高
 */
void bsp_iic_extend_gpio_high(GPIO_TypeDef *GPIOx,uint16_t Pin)
{
    HAL_GPIO_WritePin(GPIOx, Pin, GPIO_PIN_SET);
}
/*
 * io拉低
 */
void bsp_iic_extend_gpio_low(GPIO_TypeDef *GPIOx,uint16_t Pin)
{
    HAL_GPIO_WritePin(GPIOx, Pin, GPIO_PIN_RESET);
}
/*
 * io读
 */
uint8_t bsp_iic_extend_gpio_read(GPIO_TypeDef *GPIOx,uint16_t Pin)
{
    return HAL_GPIO_ReadPin(GPIOx, Pin);
}
/*
 * 设置IO模式
 */
void bsp_iic_extend_mode(iic_control_t *io_ctl, uint8_t  mode, uint8_t high_low)
{
    GPIO_InitTypeDef GPIO_InitStruct = {0};
    if(mode == IIC_MODE_OUTPUT)
        mode = GPIO_MODE_OUTPUT_PP;
    else
        mode = GPIO_MODE_INPUT;

    GPIO_InitStruct.Pin = io_ctl->SDA_Pin;
    GPIO_InitStruct.Mode = mode;
    GPIO_InitStruct.Pull = IIC_IO_NOPULL;
    GPIO_InitStruct.Speed = GPIO_SPEED_FREQ_HIGH;
    HAL_GPIO_Init(io_ctl->SDA_GPIOx, &GPIO_InitStruct);
}
/*
 * 初始化
 */
void user_iic_init_extend(iic_control_t *io_ctl)
{
    EXTEND_SCL_HIGH(io_ctl);

    user_delay(1);

    EXTEND_SDA_HIGH(io_ctl);

    user_delay(1);
}
/*
 * 开始
 */
void user_iic_start_extend(iic_control_t *io_ctl)
{
    EXTEND_SDA_HIGH(io_ctl);
    user_delay(1);

    EXTEND_SCL_HIGH(io_ctl);
    user_delay(1);

    EXTEND_SDA_LOW(io_ctl);
    user_delay(1);

    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);
}

/*
 * 停止
 */
void user_iic_stop_extend(iic_control_t *io_ctl)
{
    EXTEND_SDA_LOW(io_ctl);
    user_delay(1);

    EXTEND_SCL_HIGH(io_ctl);
    user_delay(1);

    EXTEND_SDA_HIGH(io_ctl);
    user_delay(1);

}

/*
 * 应答
 */
void user_iic_ack_extend(iic_control_t *io_ctl,uint8_t ack)
{
    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);

    if(ack == IIC_ACK)
    {
        EXTEND_SDA_LOW(io_ctl);
    }
    else
    {
        EXTEND_SDA_HIGH(io_ctl);
    }

    user_delay(1);

    EXTEND_SCL_HIGH(io_ctl);
    user_delay(1);

    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);
}

/*
 * 等待应答
 */
uint8_t user_iic_wait_ack_extend(iic_control_t *io_ctl)
{
    uint8_t ack =0;
    uint8_t i =0;

    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);

    bsp_iic_extend_mode(io_ctl, IIC_MODE_INPUT, IIC_IO_NOPULL);

    EXTEND_SCL_HIGH(io_ctl);
    user_delay(1);

    for(i=0; i<IIC_WAIT_ACK_CNT; i++)
    {
        if( EXTEND_SDA_READ(io_ctl) == GPIO_PIN_SET)
        {
            ack = IIC_NO_ACK;
        }
        else
        {
            ack = IIC_ACK;
            break;
        }
        user_delay(1);
    }
    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);

    bsp_iic_extend_mode(io_ctl, IIC_MODE_OUTPUT, IIC_IO_NOPULL);

    return ack;
}



/*
 *读写地址
 */
void user_iic_write_address_extend(iic_control_t *io_ctl, uint8_t dev_addr, uint8_t w_r_flag)
{
    uint8_t i = 0;
    uint8_t data = 0;

    data = (dev_addr<<1) | w_r_flag;

    for(uint8_t t=0; t<8; t++)
    {
        EXTEND_SCL_LOW(io_ctl);
        user_delay(1);

        if(data & 0x80)
        {
            EXTEND_SDA_HIGH(io_ctl);
        }
        else
        {
            EXTEND_SDA_LOW(io_ctl);
        }

        user_delay(1);

        EXTEND_SCL_HIGH(io_ctl);
        user_delay(1);

        data<<=1;
    }

    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);

    user_iic_wait_ack_extend(io_ctl);

}



/*
 *写数据
 */
void user_iic_write_data_extend(iic_control_t *io_ctl, uint8_t data_t)
{
    uint8_t i = 0;
    uint8_t data = data_t;

    for(uint8_t t=0; t<8; t++)
    {
        EXTEND_SCL_LOW(io_ctl);
        user_delay(1);

        if(data & 0x80)
        {
            EXTEND_SDA_HIGH(io_ctl);
        }
        else
        {
            EXTEND_SDA_LOW(io_ctl);
        }

        user_delay(1);

        EXTEND_SCL_HIGH(io_ctl);
        user_delay(1);

        data<<=1;

    }

    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);

    user_iic_wait_ack_extend(io_ctl);
}

/*
 *读数据
 */
uint8_t user_iic_read_data_extend(iic_control_t *io_ctl, uint8_t ack)
{
    uint8_t data =0;

    bsp_iic_extend_mode(io_ctl, IIC_MODE_INPUT, IIC_IO_NOPULL);

    for(uint8_t t=0; t<8; t++)
    {
        EXTEND_SCL_LOW(io_ctl);
        user_delay(1);


        EXTEND_SCL_HIGH(io_ctl);
        user_delay(1);


        if( EXTEND_SDA_READ(io_ctl) )
        {
            data = data<<1 | 0x01;
        }
        else
        {
            data = data<<1 | 0x00;
        }
    }
    EXTEND_SCL_LOW(io_ctl);
    user_delay(1);

    bsp_iic_extend_mode(io_ctl, IIC_MODE_OUTPUT, IIC_IO_NOPULL);

    user_iic_ack_extend(io_ctl, ack);

    return data;
}


/*
 * 写一字节数据
 */
void user_write_byte_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint8_t mem_addr, uint8_t mem_data)
{
    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);
    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr);
    //内部寄存器数据
    user_iic_write_data_extend(io_ctl, mem_data);
    //停止
    user_iic_stop_extend(io_ctl);
}

/*
 * 写一字节数据_16位内存地址
 */
void user_write_byte_16bit_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t mem_data)
{
    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);

    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr>>8);
    user_iic_write_data_extend(io_ctl, mem_addr&0xFF);

    //内部寄存器数据
    user_iic_write_data_extend(io_ctl, mem_data);
    //停止
    user_iic_stop_extend(io_ctl);
}

/*
 * 读一字节数据
 */
void user_read_byte_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint8_t mem_addr, uint8_t *mem_data)
{
    uint8_t rec_data =0;
    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);
    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr);
    //开始
    user_iic_start_extend(io_ctl);
    //读地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_READ);
    //读数据
    rec_data = user_iic_read_data_extend(io_ctl, IIC_NO_ACK);
    //停止
    user_iic_stop_extend(io_ctl);

    *mem_data = rec_data;
}

/*
 * 读一字节数据_16位地址
 */
void user_read_byte_16bit_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data)
{
    uint8_t rec_data =0;
    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);
    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr>>8);
    user_iic_write_data_extend(io_ctl, mem_addr&0xFF);
    //开始
    user_iic_start_extend(io_ctl);
    //读地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_READ);
    //读数据
    rec_data = user_iic_read_data_extend(io_ctl, IIC_NO_ACK);
    //停止
    user_iic_stop_extend(io_ctl);

    *mem_data = rec_data;
}


/*
 * 读多字节数据-部分设备
 */
void user_iic_read_byte_more_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint8_t mem_addr, uint8_t *mem_data, uint8_t length)
{
    uint8_t rec_buff[8] ={0};

    if(length > 8)
        return;

    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);
    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr);
    //开始
    user_iic_start_extend(io_ctl);
    //读地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_READ);
    //读数据
    rec_buff[0] = user_iic_read_data_extend(io_ctl, IIC_ACK);
    rec_buff[1] = user_iic_read_data_extend(io_ctl, IIC_ACK);

    rec_buff[2] = user_iic_read_data_extend(io_ctl, IIC_ACK);
    rec_buff[3] = user_iic_read_data_extend(io_ctl, IIC_ACK);

    rec_buff[4] = user_iic_read_data_extend(io_ctl, IIC_ACK);
    rec_buff[5] = user_iic_read_data_extend(io_ctl, IIC_NO_ACK);

    //停止
    user_iic_stop_extend(io_ctl);

    memcpy(mem_data, rec_buff, length);
}



/*
 * 读多字节数据-16为内存地址
 */
void user_iic_read_byte_more_16bit_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data, uint8_t length)
{
    uint8_t rec_buff[8] ={0};

    if(length > 8)
        return;

    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);
    //内部寄存器地址1
    user_iic_write_data_extend(io_ctl, mem_addr>>8);
    //内部寄存器地址2
    user_iic_write_data_extend(io_ctl, mem_addr&0xFF);
	//部分设备读取等待
    rt_thread_mdelay(20);
    //开始
    user_iic_start_extend(io_ctl);
    //读地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_READ);
    //读数据
    rec_buff[0] = user_iic_read_data_extend(io_ctl, IIC_ACK);
    rec_buff[1] = user_iic_read_data_extend(io_ctl, IIC_ACK);

    rec_buff[2] = user_iic_read_data_extend(io_ctl, IIC_ACK);
    rec_buff[3] = user_iic_read_data_extend(io_ctl, IIC_ACK);

    rec_buff[4] = user_iic_read_data_extend(io_ctl, IIC_ACK);
    rec_buff[5] = user_iic_read_data_extend(io_ctl, IIC_NO_ACK);
    //停止
    user_iic_stop_extend(io_ctl);

    memcpy(mem_data, rec_buff, length);
}


/*
 * 写多字节数据_16位内存地址
 * IIC_EEPROM_at24c512
 * 页写
 */
void user_write_byte_16bit_page_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data, uint8_t len)
{
    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);

    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr>>8);
    user_iic_write_data_extend(io_ctl, mem_addr&0xFF);

    if(len >= AT24C512_PAGE_SIZE)
        len = AT24C512_PAGE_SIZE;

    if(mem_addr + len > AT24C512_ROM_SIZE)
        len = AT24C512_ROM_SIZE - mem_addr;

    if((mem_addr%AT24C512_PAGE_SIZE) + len > AT24C512_PAGE_SIZE)
        len = len - ((mem_addr+len)%AT24C512_PAGE_SIZE) ;

    for(uint8_t t=0; t<len; t++)
    {
        //内部寄存器数据
        user_iic_write_data_extend(io_ctl, *(mem_data+t));
    }
    //停止
    user_iic_stop_extend(io_ctl);
}


/*
 * 读多字节数据_16位内存地址
 * IIC_EEPROM_at24c512
 * 页读
 */
void user_read_byte_16bit_page_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data, uint8_t len)
{
    //开始
    user_iic_start_extend(io_ctl);
    //写地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_WRITE);
    //内部寄存器地址
    user_iic_write_data_extend(io_ctl, mem_addr>>8);
    user_iic_write_data_extend(io_ctl, mem_addr&0xFF);
    //开始
    user_iic_start_extend(io_ctl);
    //读地址
    user_iic_write_address_extend(io_ctl, dev_addr, IIC_READ);

    if(len >= AT24C512_PAGE_SIZE)
        len = AT24C512_PAGE_SIZE;

    if(mem_addr + len > AT24C512_ROM_SIZE)
        len = AT24C512_ROM_SIZE - mem_addr;

    if((mem_addr%AT24C512_PAGE_SIZE) + len > AT24C512_PAGE_SIZE)
        len = len - ((mem_addr+len)%AT24C512_PAGE_SIZE) ;

    for(uint8_t t=0; t<len; t++)
    {
        //内部寄存器数据
        *(mem_data+t) = user_iic_read_data_extend(io_ctl, IIC_ACK);
    }
    //停止
    user_iic_stop_extend(io_ctl);
}



#ifndef __BSP_IIC_EXTEND_H
#define __BSP_IIC_EXTEND_H

#include "app_user.h"

/*
 * IO定义
 */
#define     EXTEND_SCL_HIGH(gpio)   bsp_iic_extend_gpio_high((gpio)->SCL_GPIOx, (gpio)->SCL_Pin)
#define     EXTEND_SCL_LOW(gpio)    bsp_iic_extend_gpio_low((gpio)->SCL_GPIOx, (gpio)->SCL_Pin)

#define     EXTEND_SDA_HIGH(gpio)   bsp_iic_extend_gpio_high((gpio)->SDA_GPIOx, (gpio)->SDA_Pin)
#define     EXTEND_SDA_LOW(gpio)    bsp_iic_extend_gpio_low((gpio)->SDA_GPIOx, (gpio)->SDA_Pin)

#define     EXTEND_SDA_READ(gpio)   bsp_iic_extend_gpio_read((gpio)->SDA_GPIOx, (gpio)->SDA_Pin)


//未定义
#ifndef AT24C512_PAGE_SIZE
    #define AT24C512_PAGE_SIZE (128)
#endif

#ifndef AT24C512_ROM_SIZE
    #define AT24C512_ROM_SIZE (64*1024)
#endif

/*
 * IO定义
 */
typedef struct
{
    GPIO_TypeDef *SCL_GPIOx;
    uint16_t SCL_Pin;

    GPIO_TypeDef *SDA_GPIOx;
    uint16_t SDA_Pin;

    uint8_t Speed;

}iic_control_t;



extern void bsp_iic_object_init_extend(void);

extern void user_iic_init_extend(iic_control_t *io_ctl);
extern void user_write_byte_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint8_t mem_addr, uint8_t mem_data);
extern void user_write_byte_16bit_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t mem_data);
extern void user_read_byte_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint8_t mem_addr, uint8_t *mem_data);
extern void user_read_byte_16bit_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data);
extern void user_iic_read_byte_more_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint8_t mem_addr, uint8_t *mem_data, uint8_t length);
extern void user_iic_read_byte_more_16bit_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data, uint8_t length);
extern void user_write_byte_16bit_page_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data, uint8_t len);
extern void user_read_byte_16bit_page_extend(iic_control_t *io_ctl, uint8_t dev_addr,uint16_t mem_addr, uint8_t *mem_data, uint8_t len);

#endif
IIC通讯协议讲解，及软件模拟IIC通讯
IFLY513的博客
06-15 8026
IIC（Inter-Integrated Circuit）是一种串行通信协议，也被称为I2C（Inter-IC），它是Philips公司开发的一种多主机、多从机的协议。它可以实现在很短的距离内由多个芯片组成的系统中的彼此之间的高速串行通信，用于连接芯片和外设，如温度传感器、电子罗盘、LCD驱动器等。
超详细！新手必看！STM32基础-IIC串行通信协议-IO口模拟IIC操作BMP180
qq_1033275663的博客
09-30 4612
STM32 --IIC串行通信协议
STM32入门系列之模拟IIC协议
最新发布
Riongss的博客
11-20 624
摘要：本文系统介绍了IIC协议的发展历程、硬件与模拟实现差异及STM32模拟IIC的具体实现方法。IIC协议自1982年推出后历经多次升级，最高速率达12.5MHz。硬件IIC通过专用模块实现，效率高但灵活性低；模拟IIC通过GPIO模拟时序，适配性强但占用CPU资源。重点阐述了STM32模拟IIC的关键实现步骤：配置开漏输出GPIO（需外接4.7kΩ上拉电阻）、实现起始/停止信号时序（SCL高电平时SDA跳变）、按MSB优先发送数据字节（SCL低电平时更新SDA）。文中特别纠正了常见的IIC通信帧结构误解
【学习笔记】软件模拟I2C
qq_45631231的博客
04-27 4919
I2C是串行总线的一种，属于半双工通信（数据的发送和接收不能同时进行），由两线组成（时钟线SCL和数据线SDA），采用主从通信模式（支持多主机模式）。
模拟IIC
qq_41799562的博客
04-02 919
/初始化IO口,SCL配置为输出高。//初始化IO口，SDA配置为输出高。
IIC模拟
suyu1804849643的博客
05-14 4060
IIC 一、IIC、起始信号，终止信号 **起始条件：**当SCL为高电平的时候，SDA线上由高到低的跳变被定义为起始条件。 **结束条件：**当SCL为高电平的时候，SDA线上由低到高的跳变被定义为停止条件。 void IIC_Start(){ sda = 1; scl = 1; delay(); // 5us _nop_() sda = 0; delay(); } void IIC_Stop(){ sda = 0; scl = 1; delay(); sda = 1; delay
模拟IIC程序，C代码
06-03
详细实用的IIC模拟实现代码，适用于所有单片机。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。。
STM32F103模拟IIC程序（亲测可用）
07-31
STM32F103模拟IIC程序（亲测可用）
软件模拟IIC
weixin_45720060的博客
05-07 3304
软件模拟IIC通信
STM32之模拟IIC总线控制SHT20温湿度芯片
weixin_52483742的博客
01-07 1888
STM32之模拟IIC总线控制SHT20温湿度芯片
APM32E103系列单片机之OLED显示(仿江科大工程)
m0_65148866的博客
07-24 461
【代码】APM32E103系列单片机之OLED显示(仿江科大工程)
MCU驱动：模拟IIC
wws的博客
09-15 1064
文章目录一、Cubemx配置 一、Cubemx配置 大部分配置相同，仅时钟配置部分因芯片系列和外置晶振不同而有所不同。配置界面中的/M中的M数值与外置晶振一样。 STM32F4系列：
软件模拟IIC通信（STM32）
m0_58832575的博客
06-27 6247
最简，最细的IIC通信
模拟IIC通讯协议，IIC通讯，普通I/O模拟IIC
Wangchaojie222的博客
05-30 749
1.IIC起始与停止信号![在这里插入图片描述](https://img-blog.csdnimg.cn/20190530105302468.?x-oss-process=image/watermark,type_ZmFuZ3poZW5naGVpdGk,shadow_10,text_aHR0cH M6Ly9ibG9nLmNzZG4ubmV0L1dhbmdjaGFvamllMjIy,size_16,...
FPGA模拟IIC协议：实现总线信号仿真
综上所述，使用FPGA模拟IIC总线是一个复杂的过程，涉及对IIC协议深刻理解以及数字电路设计、状态机设计和信号仿真等多方面的知识。通过使用FPGA来模拟IIC总线，可以在硬件层面上实现高可靠性和灵活性的串行通信，...
评论 1
成就一亿技术人!
拼手气红包6.0元
还能输入1000个字符

红包 添加红包
表情包 插入表情
表情包 代码片
 条评论被折叠 查看
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
