前言

本文介绍使用WinDbg调试 DOTNET应用程序(如C#程序)的两个个小技巧。

  • DOTNET应用程序的运行时离不开CLR与即时编译器的参与。如何使用WinDbg调试程序的同时,跟踪到即时编译器的动作?
  • 调试DotNet程序时,如果遇到了clr代码,如何让WinDbg自动将源程序打开?

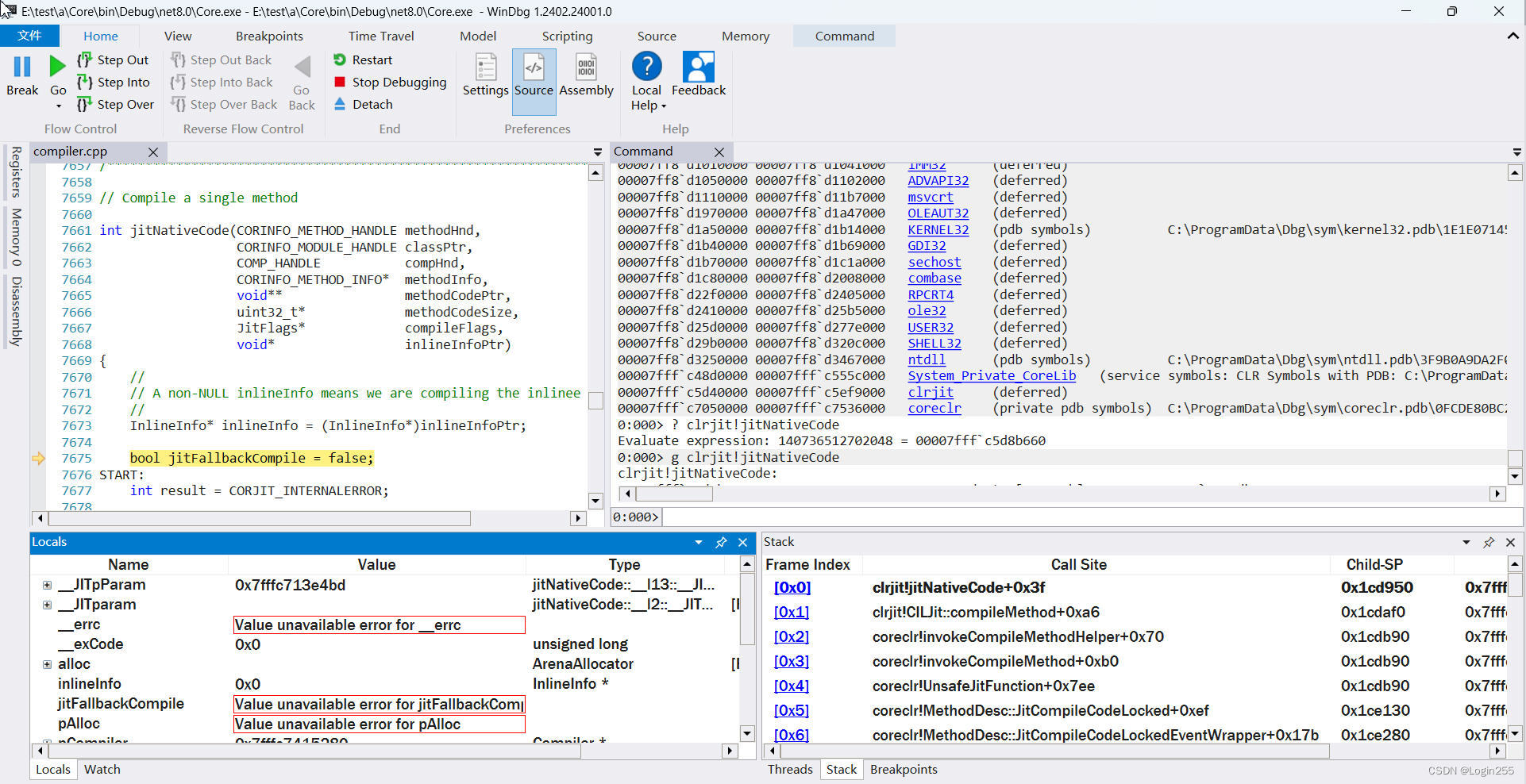

下图是我们希望实现的功能:在调试C#程序过程中,能把断点断到Clr即时编译器的某个方法中,直接调试 dotnet runtime源代码
在这里插入图片描述

源代码

C#源代码定义了一个Person类,并且定义了一个GetAge方法。显然入口Main调用person.GetAge()时一定会调用clrjit模块对GetAge方法进行即时编译。

程序使用.NET 8.0编译。

using System.Diagnostics;
namespace BasicGrammar;

class Program
{


    static void Main()
    {


        Person person = new Person();
        person.age = 20;
        int age = person.GetAge();
        Console.WriteLine(age);
        Debugger.Break();
    }

    public class Person
    {


        public int age;
        public int GetAge()
        {

    return age; }
    }
}

下面说明具体操作步骤。

让WinDbg加载clrjit.dll后暂停

第一步:使用WinDbg加载Core.exe。

第二步:使用sxe ld命令,让WinDbg加载完clrjit.dll模块后暂停:

0:000> sxe ld:clrjit

0:000> sx
  ct - Create thread - ignore
  et - Exit thread - ignore
 cpr - Create process - ignore
 epr - Exit process - ignore
  ld - Load module - break
       (only break for clrjit)
  ud - Unload module - ignore
 ser - System error - ignore
 ibp - Initial breakpoint - ignore
 iml - Initial module load - ignore
 out - Debuggee output - output

  av - Access violation - break - not handled
asrt - Assertion failure - break - not handled
 aph - Application hang - break - not handled
 bpe - Break instruction exception - break
bpec - Break instruction exception continue - handled
  eh - C++ EH exception - second-chance break - not handled
 clr - CLR exception - second-chance break - not handled
clrn - CLR notification exception - second-chance break - handled
 cce - Control-Break exception - break
  cc - Control-Break exception continue - handled
 cce - Control-C exception - break
  cc - Control-C exception continue - handled
  dm - Data misaligned - break - not handled
dbce - Debugger command exception - ignore - handled
  gp - Guard page violation - break - not handled
  ii - Illegal instruction - second-chance break - not handled
  ip - In-page I/O error - break - not handled
  dz - Integer divide-by-zero - break - not handled
 iov - Integer overflow - break - not handled
  ch - Invalid handle - break
  hc - Invalid handle continue - not handled
 lsq - Invalid lock sequence - break - not handled
 isc - Invalid system call - break - not handled
  3c - Port disconnected - second-chance break - not handled
 svh - Service hang - break - not handled
 sse - Single step exception - break
ssec - Single step exception continue - handled
 sbo - Security check failure or stack buffer overrun - break - not handled
 sov - Stack overflow - break - not handled
  vs - Verifier stop - break - not handled
vcpp - Visual C++ exception - ignore - handled
 wkd - Wake debugger - break - not handled
 rto - Windows Runtime Originate Error - second-chance break - not handled
 rtt - Windows Runtime Transform Error - second-chance break - not handled
 wob - WOW64 breakpoint - break - handled
 wos - WOW64 single step exception - break - handled

观察以上命令输出,会发现sxe命令已经起作用,将在Load clrjit这个module后break(证据就是下面两行输出):

  ld - Load module - break
       (only break</
