Mybatis整合spring原理分析，SqlSessionFactoryBean，MapperScan，MapperScannerRegistrar，MapperScannerConfigurer

一般我们在spring整合mybatis可以进行如下处理：

@Configuration
public class SqlSessionConf {
    @Bean
    public SqlSessionFactoryBean getSqlSessionFactoryBean(){
        SqlSessionFactoryBean sqlSessionFactoryBean = new SqlSessionFactoryBean();
        sqlSessionFactoryBean.setDataSource(getDataSource());
        sqlSessionFactoryBean.setMapperLocations(new ClassPathResource("com/leo/test/mybatis/spring/mapper/PersonMapper.xml"));
        sqlSessionFactoryBean.setTransactionFactory(new SpringManagedTransactionFactory());
        return sqlSessionFactoryBean;
    }
    @Bean
    public DataSource getDataSource(){
        PooledDataSource dataSource = new PooledDataSource();
        dataSource.setDriver("com.mysql.jdbc.Driver");
        dataSource.setUrl("jdbc:mysql://xxxx:3306/test");
        dataSource.setUsername("root");
        dataSource.setPassword("123456");
        return dataSource;
    }
//    @Bean
//    public MapperScannerConfigurer mapperScannerConfigurer() throws Exception {
//        MapperScannerConfigurer mapperScannerConfigurer = new MapperScannerConfigurer();
//        mapperScannerConfigurer.setBasePackage("com.leo.test.mybatis.spring");
//        mapperScannerConfigurer.setSqlSessionFactory(getSqlSessionFactoryBean().getObject());
//        return mapperScannerConfigurer;
//    }

@MapperScan("com.leo.test.mybatis.spring.mapper")
public class Bootstrap {
    private static final Logger log = LoggerFactory.getLogger(Bootstrap.class);

    public static void main(String[] args) throws Exception{

        AnnotationConfigApplicationContext context =
                new AnnotationConfigApplicationContext();
        context.register(Bootstrap.class);
        context.scan("com.leo.test.mybatis.spring");
        context.refresh();
      SqlSessionFactory sqlSessionFactoryBean = context.getBean(SqlSessionFactory.class);

        PersonMapper personMapper = (PersonMapper)context.getBean(PersonMapper.class);
        System.out.println(personMapper.selectPerson(1));
        context.close();
    }
}

这里我简化了一些配置。
首先说明，mybatis整合进spring主要是用了spring的工厂bean即FactoryBean来实现相关逻辑，整合中主要有两个比较重要的类：

• SqlSessionFactoryBean工厂bean
• MapperScan注解

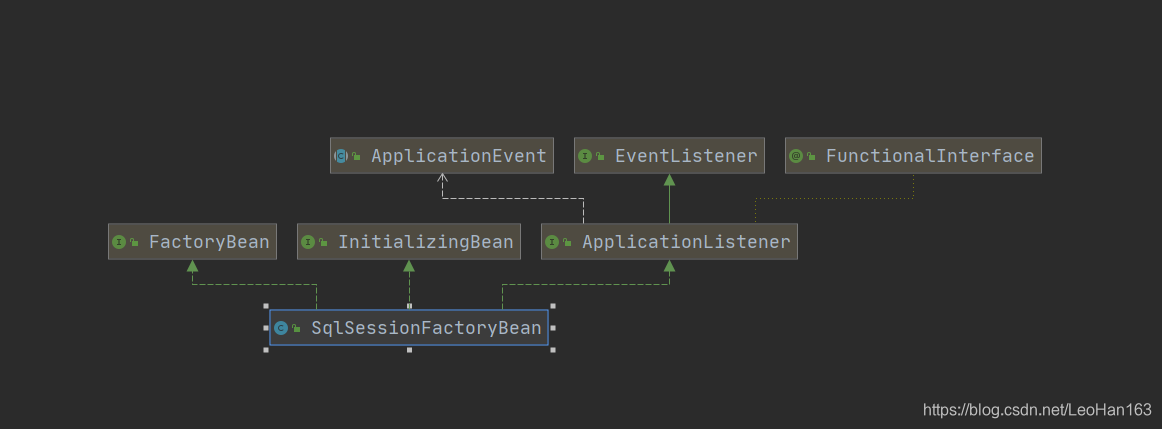

首先看SqlSessionFactoryBean，

主要看其afterPropertiesSet方法：

// SqlSessionFactoryBean.java
@Override
  public void afterPropertiesSet() throws Exception {
    this.sqlSessionFactory = buildSqlSessionFactory();
  }

protected SqlSessionFactory buildSqlSessionFactory() throws Exception {
    final Configuration targetConfiguration;
    XMLConfigBuilder xmlConfigBuilder = null;
    if (this.configuration != null) {
      targetConfiguration = this.configuration;
      if (targetConfiguration.getVariables() == null) {
        targetConfiguration.setVariables(this.configurationProperties);
      } else if (this.configurationProperties != null) {
        targetConfiguration.getVariables().putAll(this.configurationProperties);
      }
    } else if (this.configLocation != null) {
      xmlConfigBuilder = new XMLConfigBuilder(this.configLocation.getInputStream(), null, this.configurationProperties);
      targetConfiguration = xmlConfigBuilder.getConfiguration();
    } else {
      LOGGER.debug(
          () -> "Property 'configuration' or 'configLocation' not specified, using default MyBatis Configuration");
      targetConfiguration = new Configuration();
      Optional.ofNullable(this.configurationProperties).ifPresent(targetConfiguration::setVariables);
    }
    Optional.ofNullable(this.objectFactory).ifPresent(targetConfiguration::setObjectFactory);
Optional.ofNullable(this.objectWrapperFactory).ifPresent(targetConfiguration::setObjectWrapperFactory;
    Optional.ofNullable(this.vfs).ifPresent(targetConfiguration::setVfsImpl);
    if (hasLength(this.typeAliasesPackage)) {
      scanClasses(this.typeAliasesPackage, this.typeAliasesSuperType).stream()
          .filter(clazz -> !clazz.isAnonymousClass()).filter(clazz -> !clazz.isInterface())
          .filter(clazz -> !clazz.isMemberClass()).forEach(targetConfiguration.getTypeAliasRegistry()::registerAlias);
    }
    if (!isEmpty(this.typeAliases)) {
      Stream.of(this.typeAliases).forEach(typeAlias -> {
        targetConfiguration.getTypeAliasRegistry().registerAlias(typeAlias);
        LOGGER.debug(() -> "Registered type alias: '" + typeAlias + "'");
      });
    }
    if (!isEmpty(this.plugins)) {
      Stream.of(this.plugins).forEach(plugin -> {
        targetConfiguration.addInterceptor(plugin);
        LOGGER.debug(() -> "Registered plugin: '" + plugin + "'");
      });
    }

    if (hasLength(this.typeHandlersPackage)) {
      scanClasses(this.typeHandlersPackage, TypeHandler.class).stream().filter(clazz -> !clazz.isAnonymousClass())
          .filter(clazz -> !clazz.isInterface()).filter(clazz -> !Modifier.isAbstract(clazz.getModifiers()))
          .forEach(targetConfiguration.getTypeHandlerRegistry()::register);
    }
    if (!isEmpty(this.typeHandlers)) {
      Stream.of(this.typeHandlers).forEach(typeHandler -> {
        targetConfiguration.getTypeHandlerRegistry().register(typeHandler);
        LOGGER.debug(() -> "Registered type handler: '" + typeHandler + "'");
      });
    }
    targetConfiguration.setDefaultEnumTypeHandler(defaultEnumTypeHandler);
    if (!isEmpty(this.scriptingLanguageDrivers)) {
      Stream.of(this.scriptingLanguageDrivers).forEach(languageDriver -> {
        targetConfiguration.getLanguageRegistry().register(languageDriver);
        LOGGER.debug(() -> "Registered scripting language driver: '" + languageDriver + "'");
      });
    }
    Optional.ofNullable(this.defaultScriptingLanguageDriver)
        .ifPresent(targetConfiguration::setDefaultScriptingLanguage);
    if (this.databaseIdProvider != null) {// fix #64 set databaseId before parse mapper xmls
      try {
        targetConfiguration.setDatabaseId(this.databaseIdProvider.getDatabaseId(this.dataSource));
      } catch (SQLException e) {
        throw new NestedIOException("Failed getting a databaseId", e);
      }
    }
    Optional.ofNullable(this.cache).ifPresent(targetConfiguration::addCache);
    if (xmlConfigBuilder != null) {
      try {
        xmlConfigBuilder.parse();
        LOGGER.debug(() -> "Parsed configuration file: '" + this.configLocation + "'");
      } catch (Exception ex) {
        throw new NestedIOException("Failed to parse config resource: " + this.configLocation, ex);
      } finally {
        ErrorContext.instance().reset();
      }
    }
    targetConfiguration.setEnvironment(new Environment(this.environment,
        this.transactionFactory == null ? new SpringManagedTransactionFactory() : this.transactionFactory,
        this.dataSource));
    if (this.mapperLocations != null) {
      if (this.mapperLocations.length == 0) {
        LOGGER.warn(() -> "Property 'mapperLocations' was specified but matching resources are not found.");
      } else {
        for (Resource mapperLocation : this.mapperLocations) {
          if (mapperLocation == null) {
            continue;
          }
          try {
            XMLMapperBuilder xmlMapperBuilder = new XMLMapperBuilder(mapperLocation.getInputStream(),
                targetConfiguration, mapperLocation.toString(), targetConfiguration.getSqlFragments());
            xmlMapperBuilder.parse();
          } catch (Exception e) {
            throw new NestedIOException("Failed to parse mapping resource: '" + mapperLocation + "'", e);
          } finally {
            ErrorContext.instance().reset();
          }
          LOGGER.debug(() -> "Parsed mapper file: '" + mapperLocation + "'");
        }
      }
    } else {
      LOGGER.debug(() -> "Property 'mapperLocations' was not specified.");
    }
    return this.sqlSessionFactoryBuilder.build(targetConfiguration);
  }
    public SqlSessionFactory getObject() throws Exception {
    if (this.sqlSessionFactory == null) {
      afterPropertiesSet();
    }
    return this.sqlSessionFactory;
  }

可以看到，这里主要是解析出Configuration,然后通过SqlSessionFactoryBuilder来构造SqlSessionFactory,并赋值给SqlSessionFactoryBean.sqlSessionFactory，然后当spring要获取SqlSessionFactory的时候，通过SqlSessionFactoryBean.getObject工厂方法获取到SqlSessionFactoryBean.sqlSessionFactory。这样，SqlSessionFactory相当于注入到了spring的容器中。

在看另外一个MapperScan注解：

@Retention(RetentionPolicy.RUNTIME)
@Target(ElementType.TYPE)
@Documented
@Import(MapperScannerRegistrar.class)
@Repeatable(MapperScans.class)
public @interface MapperScan {
	.......
}

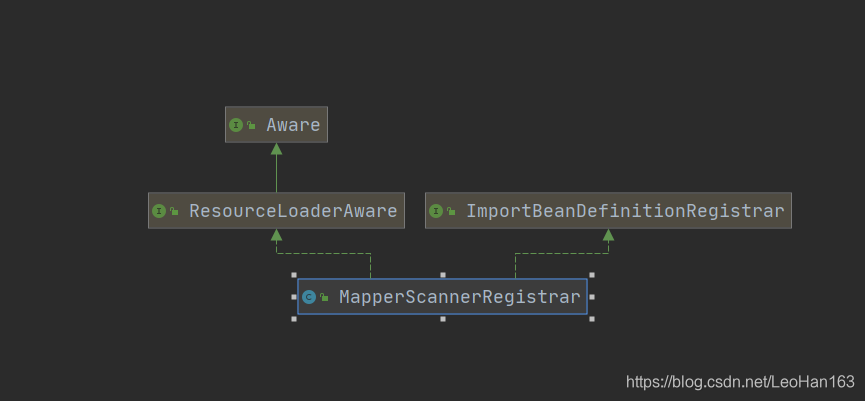

这里主要看MapperScannerRegistrar这个类：

其实现了ImportBeanDefinitionRegistrar接口：

// ImportBeanDefinitionRegistrar.java
public interface ImportBeanDefinitionRegistrar {
	default void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry,
			BeanNameGenerator importBeanNameGenerator) {
		registerBeanDefinitions(importingClassMetadata, registry);
	}
	default void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
	}

}

在MapperScannerRegistrar中实现如下：

// MapperScannerRegistrar.java
@Override
  public void registerBeanDefinitions(AnnotationMetadata importingClassMetadata, BeanDefinitionRegistry registry) {
    AnnotationAttributes mapperScanAttrs = AnnotationAttributes
        .fromMap(importingClassMetadata.getAnnotationAttributes(MapperScan.class.getName()));
    if (mapperScanAttrs != null) {
      registerBeanDefinitions(importingClassMetadata, mapperScanAttrs, registry,
          generateBaseBeanName(importingClassMetadata, 0));
    }
  }

  void registerBeanDefinitions(AnnotationMetadata annoMeta, AnnotationAttributes annoAttrs,
      BeanDefinitionRegistry registry, String beanName) {

    BeanDefinitionBuilder builder = BeanDefinitionBuilder.genericBeanDefinition(MapperScannerConfigurer.class);
    builder.addPropertyValue("processPropertyPlaceHolders", true);

    Class<? extends Annotation> annotationClass = annoAttrs.getClass("annotationClass");
    if (!Annotation.class.equals(annotationClass)) {
      builder.addPropertyValue("annotationClass", annotationClass);
    }

    Class<?> markerInterface = annoAttrs.getClass("markerInterface");
    if (!Class.class.equals(markerInterface)) {
      builder.addPropertyValue("markerInterface", markerInterface);
    }

    Class<? extends BeanNameGenerator> generatorClass = annoAttrs.getClass("nameGenerator");
    if (!BeanNameGenerator.class.equals(generatorClass)) {
      builder.addPropertyValue("nameGenerator", BeanUtils.instantiateClass(generatorClass));
    }

    Class<? extends MapperFactoryBean> mapperFactoryBeanClass = annoAttrs.getClass("factoryBean");
    if (!MapperFactoryBean.class.equals(mapperFactoryBeanClass)) {
      builder.addPropertyValue("mapperFactoryBeanClass", mapperFactoryBeanClass);
    }

    String sqlSessionTemplateRef = annoAttrs.getString("sqlSessionTemplateRef");
    if (StringUtils.hasText(sqlSessionTemplateRef)) {
      builder.addPropertyValue("sqlSessionTemplateBeanName", annoAttrs.getString("sqlSessionTemplateRef"));
    }

    String sqlSessionFactoryRef = annoAttrs.getString("sqlSessionFactoryRef");
    if (StringUtils.hasText(sqlSessionFactoryRef)) {
      builder.addPropertyValue("sqlSessionFactoryBeanName", annoAttrs.getString("sqlSessionFactoryRef"));
    }

    List<String> basePackages = new ArrayList<>();
    basePackages.addAll(
        Arrays.stream(annoAttrs.getStringArray("value")).filter(StringUtils::hasText).collect(Collectors.toList()));

    basePackages.addAll(Arrays.stream(annoAttrs.getStringArray("basePackages")).filter(StringUtils::hasText)
        .collect(Collectors.toList()));

    basePackages.addAll(Arrays.stream(annoAttrs.getClassArray("basePackageClasses")).map(ClassUtils::getPackageName)
        .collect(Collectors.toList()));

    if (basePackages.isEmpty()) {
      basePackages.add(getDefaultBasePackage(annoMeta));
    }

    String lazyInitialization = annoAttrs.getString("lazyInitialization");
    if (StringUtils.hasText(lazyInitialization)) {
      builder.addPropertyValue("lazyInitialization", lazyInitialization);
    }

    String defaultScope = annoAttrs.getString("defaultScope");
    if (!AbstractBeanDefinition.SCOPE_DEFAULT.equals(defaultScope)) {
      builder.addPropertyValue("defaultScope", defaultScope);
    }

    builder.addPropertyValue("basePackage", StringUtils.collectionToCommaDelimitedString(basePackages));

    registry.registerBeanDefinition(beanName, builder.getBeanDefinition());

  }

总结一下，这里主要干了什么，说白了主要就是干了一件事情：

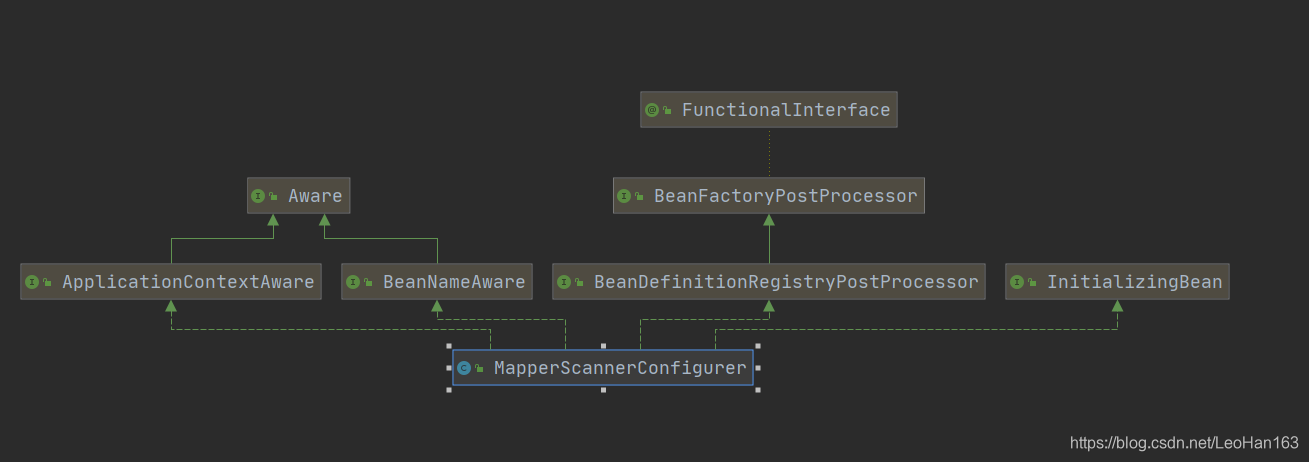

注册MapperScannerConfigurer.

其主要逻辑在：

// MapperScannerConfigurer.java
  @Override
  public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) {
    if (this.processPropertyPlaceHolders) {
      processPropertyPlaceHolders();
    }

    ClassPathMapperScanner scanner = new ClassPathMapperScanner(registry);
    scanner.setAddToConfig(this.addToConfig);
    scanner.setAnnotationClass(this.annotationClass);
    scanner.setMarkerInterface(this.markerInterface);
    scanner.setSqlSessionFactory(this.sqlSessionFactory);
    scanner.setSqlSessionTemplate(this.sqlSessionTemplate);
    scanner.setSqlSessionFactoryBeanName(this.sqlSessionFactoryBeanName);
    scanner.setSqlSessionTemplateBeanName(this.sqlSessionTemplateBeanName);
    scanner.setResourceLoader(this.applicationContext);
    scanner.setBeanNameGenerator(this.nameGenerator);
    scanner.setMapperFactoryBeanClass(this.mapperFactoryBeanClass);
    if (StringUtils.hasText(lazyInitialization)) {
      scanner.setLazyInitialization(Boolean.valueOf(lazyInitialization));
    }
    if (StringUtils.hasText(defaultScope)) {
      scanner.setDefaultScope(defaultScope);
    }
    scanner.registerFilters();
    scanner.scan(
        StringUtils.tokenizeToStringArray(this.basePackage, ConfigurableApplicationContext.CONFIG_LOCATION_DELIMITERS));
  }

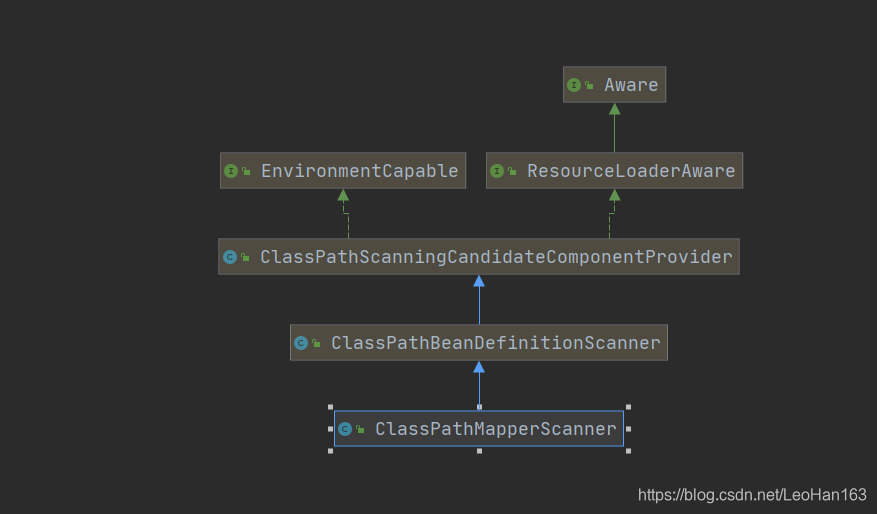

这里主要是通过ClassPathMapperScanner来对指定的mapper包进行扫描,

// ClassPathMapperScanner.java
public Set<BeanDefinitionHolder> doScan(String... basePackages) {
    Set<BeanDefinitionHolder> beanDefinitions = super.doScan(basePackages);

    if (beanDefinitions.isEmpty()) {
      LOGGER.warn(() -> "No MyBatis mapper was found in '" + Arrays.toString(basePackages)
          + "' package. Please check your configuration.");
    } else {
      processBeanDefinitions(beanDefinitions);
    }

    return beanDefinitions;
  }
  private void processBeanDefinitions(Set<BeanDefinitionHolder> beanDefinitions) {
    AbstractBeanDefinition definition;
    BeanDefinitionRegistry registry = getRegistry();
    for (BeanDefinitionHolder holder : beanDefinitions) {
      definition = (AbstractBeanDefinition) holder.getBeanDefinition();
      boolean scopedProxy = false;
      if (ScopedProxyFactoryBean.class.getName().equals(definition.getBeanClassName())) {
        definition = (AbstractBeanDefinition) Optional
            .ofNullable(((RootBeanDefinition) definition).getDecoratedDefinition())
            .map(BeanDefinitionHolder::getBeanDefinition).orElseThrow(() -> new IllegalStateException(
                "The target bean definition of scoped proxy bean not found. Root bean definition[" + holder + "]"));
        scopedProxy = true;
      }
      String beanClassName = definition.getBeanClassName();
      LOGGER.debug(() -> "Creating MapperFactoryBean with name '" + holder.getBeanName() + "' and '" + beanClassName
          + "' mapperInterface");

      // the mapper interface is the original class of the bean
      // but, the actual class of the bean is MapperFactoryBean
      definition.getConstructorArgumentValues().addGenericArgumentValue(beanClassName); // issue #59
      definition.setBeanClass(this.mapperFactoryBeanClass);

      definition.getPropertyValues().add("addToConfig", this.addToConfig);

      boolean explicitFactoryUsed = false;
      if (StringUtils.hasText(this.sqlSessionFactoryBeanName)) {
        definition.getPropertyValues().add("sqlSessionFactory",
            new RuntimeBeanReference(this.sqlSessionFactoryBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionFactory != null) {
        definition.getPropertyValues().add("sqlSessionFactory", this.sqlSessionFactory);
        explicitFactoryUsed = true;
      }

      if (StringUtils.hasText(this.sqlSessionTemplateBeanName)) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate",
            new RuntimeBeanReference(this.sqlSessionTemplateBeanName));
        explicitFactoryUsed = true;
      } else if (this.sqlSessionTemplate != null) {
        if (explicitFactoryUsed) {
          LOGGER.warn(
              () -> "Cannot use both: sqlSessionTemplate and sqlSessionFactory together. sqlSessionFactory is ignored.");
        }
        definition.getPropertyValues().add("sqlSessionTemplate", this.sqlSessionTemplate);
        explicitFactoryUsed = true;
      }

      if (!explicitFactoryUsed) {
        LOGGER.debug(() -> "Enabling autowire by type for MapperFactoryBean with name '" + holder.getBeanName() + "'.");
        definition.setAutowireMode(AbstractBeanDefinition.AUTOWIRE_BY_TYPE);
      }

      definition.setLazyInit(lazyInitialization);

      if (scopedProxy) {
        continue;
      }

      if (ConfigurableBeanFactory.SCOPE_SINGLETON.equals(definition.getScope()) && defaultScope != null) {
        definition.setScope(defaultScope);
      }

      if (!definition.isSingleton()) {
        BeanDefinitionHolder proxyHolder = ScopedProxyUtils.createScopedProxy(holder, registry, true);
        if (registry.containsBeanDefinition(proxyHolder.getBeanName())) {
          registry.removeBeanDefinition(proxyHolder.getBeanName());
        }
        registry.registerBeanDefinition(proxyHolder.getBeanName(), proxyHolder.getBeanDefinition());
      }
    }
  }

这里会解析每个Mapper接口，然后封装成BeanDefinition，但是请注意，这里BeanDefinition对应的class类型并不是Mapper接口对应的类型，而是统一都是MapperFactoryBeanl类型，即Mapper接口注册到IOC容器的都是MapperFactoryBean类型。

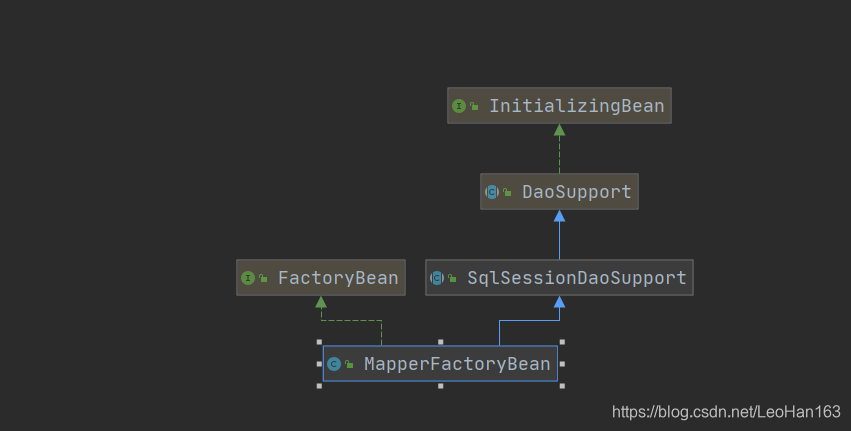

可以看到MapperFactoryBean也是一个工厂bean，当我们通过IOC容器获取一个Mpper类型的时候，会找到工厂bean为Mapper类型的bean，然后调用其getObject方法。

// MapperFactoryBean.java
  public T getObject() throws Exception {
    return getSqlSession().getMapper(this.mapperInterface);
  }

看到了吗，还记得之前讲解MyBatis原理的时候，就是通过这种方式获取Mapper的，这样通过Mybatis的特性和spring的特性将两者结合到一起了。
