Mybatis整合spring

本文详细介绍MyBatis与Spring框架的整合过程,包括配置SqlSessionFactory、管理mapper对象和dao,以及通过动态代理开发DAO。文章还介绍了整合所需的jar包、配置文件设置,并提供了具体的代码示例。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

mybatis和spring整合的思路

  • 让spring管理SqlSessionFactory
  • 让spring管理mapper对象和dao

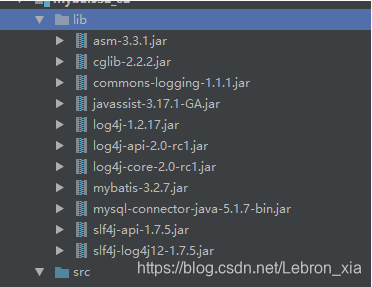

1. 整合的jar包

  1. spring的jar包
  2. Mybatis的jar包
  3. Spring+mybatis的整合包。
  4. Mysql的数据库驱动jar包。
  5. 数据库连接池的jar包。

在这里插入图片描述

2. 加入配置文件

2.1 SqlMapConfig.xml文件

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE configuration
        PUBLIC "-//mybatis.org//DTD Config 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
    <properties resource="db.properties"/>

    <typeAliases>
        <!-- 别名 包以其子包下所有类   头字母大小都行-->
        <package name="cn.raine.pojo"/>
    </typeAliases>
    <!-- 和spring整合后 environments配置将废除 -->
    <environments default="development">
        <environment id="development">
            <!-- 使用jdbc事务管理 -->
            <transactionManager type="JDBC" />
            <!-- 数据库连接池 -->
            <dataSource type="POOLED">
                <property name="driver" value="${jdbc.driverClass}" />
                <property name="url"
                          value="jdbc:mysql://localhost:3306/springdemo?characterEncoding=utf-8" />
                <property name="username" value="root" />
                <property name="password" value="123456789" />
            </dataSource>
        </environment>
    </environments>

    <!--加映射文件-->
    <mappers>
        <!--<mapper resource="cn/raine/mapper/UserMapper.xml"/>-->
        <package name="cn.raine.mapper"/>
    </mappers>

</configuration>

2.2 applicationContext.xml

SqlSessionFactoryBean属于mybatis-spring这个jar包对于spring来说,mybatis是另外一个架构,需要整合jar包

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
       xmlns:context="http://www.springframework.org/schema/context" xmlns:p="http://www.springframework.org/schema/p"
       xmlns:aop="http://www.springframework.org/schema/aop" xmlns:tx="http://www.springframework.org/schema/tx"
       xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
	http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.0.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
	http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd">


    <context:property-placeholder location="classpath:db.properties"/>

    <!--数据库连接池-->
    <bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
          destroy-method="close">
    <property name="driverClassName" value="${jdbc.driver}" />
    <property name="url" value="${jdbc.url}" />
    <property name="username" value="${jdbc.username}"/>
        <property name="password" value="${jdbc.password}" />
        <property name="maxActive" value="10" />
        <property name="maxIdle" value="5" />
    </bean>

    <!--配置SqlSessionFactory-->
    <bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
        <!--配置mybatis核心配置文件-->
        <property name="configLocation" value="classpath:SqlMapConfig.xml"/>
        <property name="dataSource" ref="dataSource"/>
    </bean>
</beans>

3. Dao的开发

3.1 传统的Dao的开发方式

3.1.1 实现Mapper.xml
<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper
        PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN"
        "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!-- namespace:命名空间,用于隔离sql -->
<!-- 还有一个很重要的作用,使用动态代理开发DAO,1. namespace必须和Mapper接口类路径一致 -->
<mapper namespace="cn.raine.mapper.UserMapper">
    <!-- 根据用户id查询用户 -->
    <!-- 2. id必须和Mapper接口方法名一致 -->
    <!-- 3. parameterType必须和接口方法参数类型一致 -->
    <!-- 4. resultType必须和接口方法返回值类型一致 -->
    <select id="queryUserById" parameterType="int"
            resultType="cn.raine.pojo.User">
        select * from s_user where id = #{id}
    </select>

    <!-- 根据用户名查询用户 -->
    <select id="queryUserByUsername" parameterType="string"
            resultType="cn.raine.pojo.User">
        select * from s_user where username like '%${value}%'
    </select>

    <insert id="saveUser" parameterType="cn.raine.pojo.User">
        <selectKey keyProperty="id" keyColumn="id" order="AFTER"
                   resultType="int">
            select last_insert_id()
        </selectKey>
        insert into s_user(username,birthday,sex,address) values
        (#{username},#{birthday},#{sex},#{address});
    </insert>

    <!--使用包装类型查询用户-->
    <select id="queryUserByQueryVo" parameterType="QueryVo"
            resultType="User">
        SELECT * FROM `s_user` WHERE username LIKE '%${user.username}%'
    </select>

    <!--根据条件查询用户-->
    <select id="queryUserByWhere" parameterType="user" resultType="user">
        SELECT <include refid="userFields"/> FROM `s_user`
        <!-- where标签可以自动添加where,同时处理sql语句中第一个and关键字 -->
       <where>
        <if test = "sex != null">
            AND sex = #{sex}
        </if>
        <if test="username != null and username != ''">
            AND username LIKE '%${username}%'
        </if>
       </where>
    </select>

</mapper>
3.1.2 之后在SqlMapConfig中加载Mapper.xml配置
<mappers>
        <mapper resource="sqlmap/User.xml"/>
    </mappers>
3.1.3 实现UserDao接口
public interface UserDao {
	/**
	 * 根据id查询用户
	 *
	 * @param id
	 * @return
 */
	User queryUserById(int id);

	/**
	 * 根据用户名模糊查询用户列表
	 *
	 * @param username
	 * @return
	 */
	List<User> queryUserByUsername(String username);

	/**
	 * 保存
	 *
	 * @param user
	 */
	void saveUser(User user);
}
3.1.4 实现UserDaoImpl实现类

实现类必须集成SqlSessionDaoSupport
SqlSessionDaoSupport提供getSqlSession()方法来获取SqlSession

public class UserDaoImpl extends SqlSessionDaoSupport implements UserDao {
	@Override
	public User queryUserById(int id) {
		// 获取SqlSession
		SqlSession sqlSession = super.getSqlSession();

		// 使用SqlSession执行操作
		User user = sqlSession.selectOne("queryUserById", id);

		// 不要关闭sqlSession

		return user;
	}

	@Override
	public List<User> queryUserByUsername(String username) {
		// 获取SqlSession
		SqlSession sqlSession = super.getSqlSession();


		// 使用SqlSession执行操作
		List<User> list = sqlSession.selectList("queryUserByUsername", username);

		// 不要关闭sqlSession

		return list;
	}

	@Override
	public void saveUser(User user) {
		// 获取SqlSession
		SqlSession sqlSession = super.getSqlSession();

		// 使用SqlSession执行操作
		sqlSession.insert("saveUser", user);

		// 不用提交,事务由spring进行管理
		// 不要关闭sqlSession
	}
}
3.1.5 配置Dao

在AplicationContext中

   <!--原始Dao-->
    <bean id="userDao" class="cn.raine.mybatis.dao.UserDaoImpl">
        <property name="sqlSessionFactory" ref="sqlSessionFactory"/>
    </bean>

3.2 Mapper代理形式开发dao

3.2.1配置mapper代理

在applicationContext.xml添加配置

 <!--Mapper动态代理-->
    <bean id="userMapper" class="org.mybatis.spring.mapper.MapperFactoryBean">
        <property name="mapperInterface" value="cn.raine.mybatis.mapper.UserMapper"></property>
        <property name="sqlSessionFactory" ref="sqlSessionFactory"></property>
    </bean>
3.2.2 扫描包形式配置mapper

在applicationContext.xml添加配置

<!--扫描方式配置代理-->
    <bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="basePackage" value="cn.raine.mybatis.mapper"/>
    </bean>

每个mapper代理对象的id就是类名,首字母小写

4.Mybatis逆向工程

http://codingxiaxw.cn/2016/11/13/41-mybatis9逆向工程/#more
