QT 实现以名片列表的形式显示 10万条数据 - 如何流畅的显示十万条数据

本文详细介绍了如何在QT中以名片形式流畅地显示10万条数据，对比了不同实现方式的性能，包括QTableWidget、QStandardItemModel、QAbstractTableModel和自定义Delegate结合Model/View的方法。通过性能分析，展示了内存占用和插入效率，特别是自定义模型和委托的优化效果。

零、附上最新版本

1、附上成果图：

2、代码位置：

一、常用实现方式 - 有多少就创建多少，就显示多少

二、Model / View 标准模型实现

1、StudentTableModel.h文件

2、StudentTableModel.cpp文件：

三、Model / View 自定义模型实现

1、StudentTableModel.h文件：

2、StudentTableModel.cpp文件：

四、Delegate + Model + View 自定义模型实现

1、QtTabelWidget.cpp - 组织界面，定义数据模型、委托、代理

2、QtModelViewTabelDelegate.cpp - 委托：用于绘制自定义名片控件

3、StudentTableModel.cpp - 创建模型类，提供数据的调用接口

4、TabelSortFilterProxyModel.cpp - 代理：用于对数据过滤、排序

零、附上最新版本

1、附上成果图：( 四代码对应的效果图)

1、使用 QTableView 显示 10万条数据

2、每一条用自定义界面(名片的形式) 来显示

3、提供搜索过滤功能

2、代码位置：

https://download.youkuaiyun.com/download/LearnLHC/15933659

一、常用实现方式 - 有多少就创建多少，就显示多少

1、MainWindow.h文件

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QWidget>
#include <QTableWidget>
#include <QVBoxLayout>
#include <QTableWidgetItem>
#include <QList>
#include <QString>

struct Student
{
    char name[16];
    char id[24];
    char sex[8];
    int age;
    char phone[16];
    char hobby[24];
    char company[16];
};

class MainWindow : public QWidget
{
    Q_OBJECT
public:
    MainWindow(QWidget *parent = 0);
    ~MainWindow();
    /**
     * @brief 生成数据
     * @param size，生成数据的规模
     */
    void generateData(int size);
private:
    /**
     * @brief 生成一行数据
     * @param item，数据项
     * @return 返回数据项链表
     */
    QList<QTableWidgetItem*> generateRow(const Student& item);
private:
    QTableWidget* m_table;
};

#endif // MAINWINDOW_H

2、MainWindow.cpp文件：

#include "MainWindow.h"
#include <QDebug>

MainWindow::MainWindow(QWidget *parent) : QWidget(parent)
{
    m_table = new QTableWidget(this);
    QVBoxLayout* layout = new QVBoxLayout;
    layout->addWidget(m_table);
    setLayout(layout);
    QStringList header;
    header << "Name" << "ID" << "Sex" << "Age" << "Phone" << "Hobby" << "Company";
    m_table->setHorizontalHeaderLabels(header);
    m_table->setColumnCount(7);
}

MainWindow::~MainWindow()
{

}
// 头部插入实现
void MainWindow::generateData(int size)
{
    Student* zhangsan = (Student*)malloc(sizeof(Student));
    memset(zhangsan, 0, sizeof(Student));
    strncpy(zhangsan->name, "zhangsan", strlen("zhangsan"));
    strncpy(zhangsan->id, "53302219861001xxxx", strlen("53302219861001xxxx"));
    strncpy(zhangsan->sex, "M", strlen("M"));
    zhangsan->age = 33;
    strncpy(zhangsan->phone, "18910108888", strlen("18910108888"));
    strncpy(zhangsan->hobby, "BasketBall, Play", strlen("BasketBall, Play"));
    strncpy(zhangsan->company, "Alibaba", strlen("Alibaba"));

    for(int i = 0; i < size; i++)
    {
        m_table->insertRow(0);
        QList<QTableWidgetItem*> items1 = generateRow(*zhangsan);
        for(int k = 0; k < items1.size(); k++)
        {
            m_table->setItem(0, k, items1.at(k));
        }
    }
    delete zhangsan;
    qDebug() << sizeof(Student);

}
// 尾部插入实现
void MainWindow::generateData(int size)
{
    Student* zhangsan = (Student*)malloc(sizeof(Student));
    memset(zhangsan, 0, sizeof(Student));
    strncpy(zhangsan->name, "zhangsan", strlen("zhangsan"));
    strncpy(zhangsan->id, "53302219861001xxxx", strlen("53302219861001xxxx"));
    strncpy(zhangsan->sex, "M", strlen("M"));
    zhangsan->age = 33;
    strncpy(zhangsan->phone, "18910108888", strlen("18910108888"));
    strncpy(zhangsan->hobby, "BasketBall, Play", strlen("BasketBall, Play"));
    strncpy(zhangsan->company, "Alibaba", strlen("Alibaba"));

    for(int i = 0; i < size; i++)
    {
        m_table->insertRow(i);
        QList<QTableWidgetItem*> items1 = generateRow(*zhangsan);
        for(int k = 0; k < items1.size(); k++)
        {
            m_table->setItem(i, k, items1.at(k));
        }
    }
    delete zhangsan;
    qDebug() << sizeof(Student);

}

QList<QTableWidgetItem*> MainWindow::generateRow(const Student &item)
{
    QList<QTableWidgetItem*> ret;
    QTableWidgetItem* name = new QTableWidgetItem();
    name->setData(Qt::DisplayRole, QString("%1").arg(item.name));
    ret.append(name);
    QTableWidgetItem* id = new QTableWidgetItem();
    id->setData(Qt::DisplayRole, QString("%1").arg(item.id));
    ret.append(id);
    QTableWidgetItem* sex = new QTableWidgetItem();
    sex->setData(Qt::DisplayRole, QString("%1").arg(item.sex));
    ret.append(sex);
    QTableWidgetItem* age = new QTableWidgetItem();
    age->setData(Qt::DisplayRole, QString("%1").arg(item.age));
    ret.append(age);
    QTableWidgetItem* phone = new QTableWidgetItem();
    phone->setData(Qt::DisplayRole, QString("%1").arg(item.phone));
    ret.append(phone);
    QTableWidgetItem* hobby = new QTableWidgetItem();
    hobby->setData(Qt::DisplayRole, QString("%1").arg(item.hobby));
    ret.append(hobby);
    QTableWidgetItem* company = new QTableWidgetItem();
    company->setData(Qt::DisplayRole, QString("%1").arg(item.company));
    ret.append(company);
    return ret;
}

3、main.cpp文件：

#include "MainWindow.h"
#include <QApplication>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    MainWindow w;
    w.generateData(500000);
    w.show();

    return a.exec();
}

4、性能分析

Student结构体如下：

struct Student
{
    char name[16];
    char id[24];
    char sex[8];
    int age;
    char phone[16];
    char hobby[24];
    char company[16];
};

Student结构体大小为108字节，根据生成的不同数量规模的数据，其程序占用的内存如下：

根据上述数据，在大规模数据量下，使用QTableWidget展示数据时，每条数据实际占用的内存是数据本身大小的15倍，数据量越大插入越耗时，头部插入耗时远远大于尾部追加插入。

二、Model / View 标准模型实现

1、StudentTableModel.h文件

#ifndef STUDENTTABLEMODEL_H
#define STUDENTTABLEMODEL_H

#include <QStandardItemModel>
#include <QStandardItem>

struct Student
{
    char name[16];
    char id[24];
    char sex[8];
    int age;
    char phone[16];
    char hobby[24];
    char company[16];
};

class StudentTableModel : public QStandardItemModel
{
    Q_OBJECT
public:
    StudentTableModel();
    /**
     * @brief 生成数据
     * @param size，数据规模
     */
    void generateData(int size);
    /**
     * @brief 生成一行数据
     * @param item，数据对象
     * @return 返回数据项链表
     */
    QList<QStandardItem*> generateRow(const Student& item);
    /**
     * @brief 追加一行
     * @param item，数据对象
     */
    void appendRow(const Student& item);

private:
    QStandardItem* m_root;//模型虚拟根节点
};

#endif // STUDENTTABLEMODEL_H

2、StudentTableModel.cpp文件：

#include "StudentTableModel.h"

StudentTableModel::StudentTableModel()
{
    m_root = invisibleRootItem();
}

void StudentTableModel::generateData(int size)
{
    Student* zhangsan = (Student*)malloc(sizeof(Student));
    memset(zhangsan, 0, sizeof(Student));
    strncpy(zhangsan->name, "zhangsan", strlen("zhangsan"));
    strncpy(zhangsan->id, "53302219861001xxxx", strlen("53302219861001xxxx"));
    strncpy(zhangsan->sex, "M", strlen("M"));
    zhangsan->age = 33;
    strncpy(zhangsan->phone, "18910108888", strlen("18910108888"));
    strncpy(zhangsan->hobby, "BasketBall, Play", strlen("BasketBall, Play"));
    strncpy(zhangsan->company, "Alibaba", strlen("Alibaba"));

    for(int i = 0; i < size; i++)
    {
        QList<QStandardItem*> items1 = generateRow(*zhangsan);
        // 尾部追加
        m_root->appendRow(items1);
        // 头部插入
        m_root->insertRow(0, items1);
    }
    delete zhangsan;
}

QList<QStandardItem*> StudentTableModel::generateRow(const Student &item)
{
    QList<QStandardItem*> ret;
    QStandardItem* name = new QStandardItem();
    name->setData(QString("%1").arg(item.name), Qt::DisplayRole);
    ret.append(name);
    QStandardItem* id = new QStandardItem();
    id->setData(QString("%1").arg(item.id), Qt::DisplayRole);
    ret.append(id);
    QStandardItem* sex = new QStandardItem();
    sex->setData(QString("%1").arg(item.sex), Qt::DisplayRole);
    ret.append(sex);
    QStandardItem* age = new QStandardItem();
    age->setData(QString("%1").arg(item.age), Qt::DisplayRole);
    ret.append(age);
    QStandardItem* phone = new QStandardItem();
    phone->setData(QString("%1").arg(item.phone), Qt::DisplayRole);
    ret.append(phone);
    QStandardItem* hobby = new QStandardItem();
    hobby->setData(QString("%1").arg(item.hobby), Qt::DisplayRole);
    ret.append(hobby);
    QStandardItem* company = new QStandardItem();
    company->setData(QString("%1").arg(item.company), Qt::DisplayRole);
    ret.append(company);
    return ret;
}

3、MainWindow.h文件：

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QWidget>
#include <QTableView>
#include <QVBoxLayout>
#include <QHeaderView>
#include "StudentTableModel.h"

class MainWindow : public QWidget
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = 0);
    ~MainWindow();
    void generateData(int size);
private:
    QTableView* m_tableView;
    StudentTableModel* m_model;
};

#endif // MAINWINDOW_H

4、MainWindow.cpp文件：

#include "MainWindow.h"

MainWindow::MainWindow(QWidget *parent): QWidget(parent)
{
    m_tableView = new QTableView(this);
    QVBoxLayout* layout = new QVBoxLayout;
    layout->addWidget(m_tableView);
    setLayout(layout);
    m_model = new StudentTableModel();
    m_tableView->setModel(m_model);
    QStringList header;
    header << "Name" << "ID" << "Sex" << "Age" << "Phone" << "Hobby" << "Company";
    m_model->setHorizontalHeaderLabels(header);
}

MainWindow::~MainWindow()
{

}

void MainWindow::generateData(int size)
{
    m_model->generateData(size);
}

5、main.cpp文件：

#include "MainWindow.h"
#include <QApplication>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    MainWindow w;
    w.show();
    w.generateData(500000);

    return a.exec();
}

6、性能分析

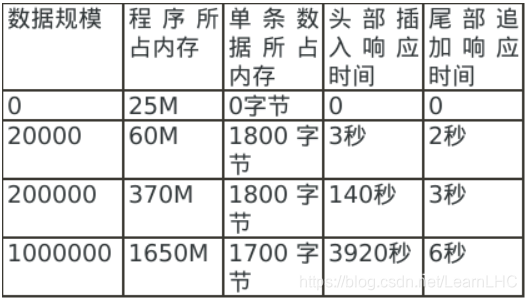

根据生成的不同数量规模的数据，其程序占用的内存如下：

使用QStandardItemModel与QTableView展示数据，每条数据实际占用内存的大小是数据本身大小的15倍，数据量越大插入越耗时，头部插入耗时远远大于尾部追加插入，其性能表现与QTableWidget相当。

三、Model / View 自定义模型实现

1、StudentTableModel.h文件：

#ifndef STUDENTTABLEMODEL_H
#define STUDENTTABLEMODEL_H

#include <QAbstractTableModel>
#include <QList>
#include <QStringList>
#include <QString>
#include <QVariant>

struct Student
{
    char name[16];
    char id[24];
    char sex[8];
    int age;
    char phone[16];
    char hobby[24];
    char company[16];
};

class StudentTableModel : public QAbstractTableModel
{
    Q_OBJECT
public:
    StudentTableModel(QObject* parent = NULL);
    virtual int rowCount(const QModelIndex &parent) const;
    virtual int columnCount(const QModelIndex &parent) const;
    virtual QVariant data(const QModelIndex &index, int role) const;
    virtual QVariant headerData(int section, Qt::Orientation orientation, int role) const;
    virtual Qt::ItemFlags flags(const QModelIndex &index) const;
    virtual bool setData(const QModelIndex &index, const QVariant &value, int role = Qt::EditRole);
    virtual bool insertRows(int position, int rows, const QModelIndex &index = QModelIndex());
    virtual bool removeRows(int position, int rows, const QModelIndex &index = QModelIndex());
    void appendRow(const Student& item);
    void setHorizontalHeaderLabels(const QStringList& header);
private:
    QStringList m_headers;
    QList<Student*> m_itemList;
};

#endif // STUDENTTABLEMODEL_H

2、StudentTableModel.cpp文件：

#include "StudentTableModel.h"

StudentTableModel::StudentTableModel(QObject *parent): QAbstractTableModel(parent)
{
}

int StudentTableModel::rowCount(const QModelIndex &parent) const
{
    Q_UNUSED(parent);
    return m_itemList.size();
}

int StudentTableModel::columnCount(const QModelIndex &parent) const
{
    Q_UNUSED(parent);
    return m_headers.size();
}

QVariant StudentTableModel::data(const QModelIndex &index, int role) const
{
    if (!index.isValid())
        return QVariant();

    if (index.row() >= m_itemList.size() || index.row() < 0)
        return QVariant();

    if (role == Qt::DisplayRole)
    {
        int row = index.row();
        Student* data = m_itemList.at(row);
        int column = index.column();
        switch(column)
        {
        case 0:
            return QString("%1").arg(data->name);
        case 1:
            return QString("%1").arg(data->id);
        case 2:
            return QString("%1").arg(data->sex);
        case 3:
            return data->age;
        case 4:
            return QString("%1").arg(data->phone);
        case 5:
            return QString("%1").arg(data->hobby);
        case 6:
            return QString("%1").arg(data->company);
        }
    }
    return QVariant();
}

QVariant StudentTableModel::headerData(int section, Qt::Orientation orientation, int role) const
{
    if (role != Qt::DisplayRole)
        return QVariant();

    if (orientation == Qt::Horizontal)
    {
        return m_headers.at(section);
    }
    return QVariant();
}

bool StudentTableModel::insertRows(int position, int rows, const QModelIndex &index)
{
    Q_UNUSED(index);
    beginInsertRows(QModelIndex(), position, position + rows - 1);

    for (int row = 0; row < rows; ++row)
    {
//        m_itemList.insert(position, );
    }

    endInsertRows();
    return true;
}

bool StudentTableModel::removeRows(int position, int rows, const QModelIndex &index)
{
    Q_UNUSED(index);
    beginRemoveRows(QModelIndex(), position, position + rows - 1);

    for (int row = 0; row < rows; ++row)
        m_itemList.removeAt(position);

    endRemoveRows();
    return true;
}

void StudentTableModel::appendRow(const Student &item)
{
    Student* data = (Student*)malloc(sizeof(Student));
    memset(data, 0, sizeof(Student));
    strncpy(data->name, item.name, strlen(item.name));
    strncpy(data->id, item.id, strlen(item.id));
    strncpy(data->sex, item.sex, strlen(item.sex));
    data->age = item.age;
    strncpy(data->phone, item.phone, strlen(item.phone));
    strncpy(data->hobby, item.hobby, strlen(item.hobby));
    strncpy(data->company, item.company, strlen(item.company));
    int row = m_itemList.size();
    insertRows(0, 1);
    m_itemList.append(data);
//    m_itemList.insert(0, data);
}

void StudentTableModel::setHorizontalHeaderLabels(const QStringList &header)
{
    m_headers = header;
}

bool StudentTableModel::setData(const QModelIndex &index, const QVariant &value, int role)
{
    if (index.isValid() && role == Qt::EditRole)
    {
        int row = index.row();
        // mpdify data

        emit(dataChanged(index, index));
        return true;
    }
    return false;
}

Qt::ItemFlags StudentTableModel::flags(const QModelIndex &index) const
{
    if (!index.isValid())
        return Qt::ItemIsEnabled;
    return QAbstractTableModel::flags(index) | Qt::ItemIsEditable;
}

3、MainWindow.h文件

#ifndef MAINWINDOW_H
#define MAINWINDOW_H

#include <QWidget>
#include <QTableView>
#include <QVBoxLayout>
#include "StudentTableModel.h"

class MainWindow : public QWidget
{
    Q_OBJECT

public:
    MainWindow(QWidget *parent = 0);
    ~MainWindow();

    void generateData(int size);
private:
    StudentTableModel* m_model;
    QTableView* m_tableView;
};

#endif // MAINWINDOW_H

4、MainWindow.cpp文件：

#include "MainWindow.h"

MainWindow::MainWindow(QWidget *parent): QWidget(parent)
{
    m_tableView = new QTableView(this);
    m_model = new StudentTableModel();
    QVBoxLayout* layout = new QVBoxLayout;
    layout->addWidget(m_tableView);
    setLayout(layout);

    QStringList header;
    header << "Name" << "ID" << "Sex" << "Age" << "Phone" << "Hobby" << "Company";
    m_model->setHorizontalHeaderLabels(header);
    m_tableView->setUpdatesEnabled(true);
    m_tableView->setModel(m_model);
}

MainWindow::~MainWindow()
{

}

void MainWindow::generateData(int size)
{
    Student* zhangsan = (Student*)malloc(sizeof(Student));
    memset(zhangsan, 0, sizeof(Student));
    strncpy(zhangsan->name, "zhangsan", strlen("zhangsan"));
    strncpy(zhangsan->id, "53302219861001xxxx", strlen("53302219861001xxxx"));
    strncpy(zhangsan->sex, "M", strlen("M"));
    zhangsan->age = 33;
    strncpy(zhangsan->phone, "18910108888", strlen("18910108888"));
    strncpy(zhangsan->hobby, "BasketBall, Play", strlen("BasketBall, Play"));
    strncpy(zhangsan->company, "Alibaba", strlen("Alibaba"));

    for(int i = 0; i < size; i++)
    {
        m_model->appendRow(*zhangsan);
    }

    delete zhangsan;
}

5、main.cpp文件：

#include "MainWindow.h"
#include <QApplication>

int main(int argc, char *argv[])
{
    QApplication a(argc, argv);
    MainWindow w;
    w.show();
    w.generateData(1000000);

    return a.exec();
}

6、性能分析

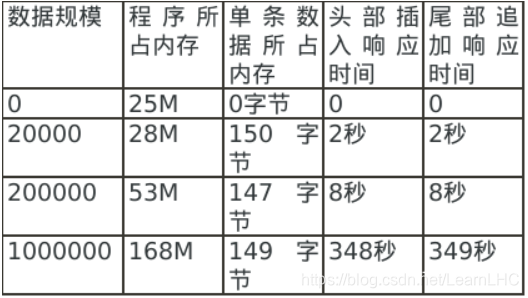

根据生成的不同数量规模的数据，其程序占用的内存如下：

使用QAbstractTableModel派生类与QTableView展示数据，每条数据实际占用内存的大小是数据本身大小的1.5倍，数据量越大插入越耗时，由于底层数据结构采用链表实现，头部插入耗时与尾部追加插入耗时相当，但内存空间占用大幅下降。
将底层数据结构换成QVector，根据生成的不同数量规模的数据，其程序占用的内存如下

使用QVector作为模型的底层数据结构存储数据，其内存占用与QList相当，尾部追加插入耗时与QList相当，但头部插入比QList耗时较多

四、Delegate + Model + View 自定义模型实现

1、QtTabelWidget.cpp - 组织界面，定义数据模型、委托、代理

#include <QTableView>
#include <QHeaderView>
#include <QVBoxLayout>
#include <QTime>
#include <qDebug>
#include <QLabel>
#include <QLineEdit>

#include "QtTabelWidget.h"

QtTabelWidget::QtTabelWidget(QWidget *parent)
	: QWidget(parent)
{
	setFixedSize(800, 800);

	QVBoxLayout * mainLayout = new QVBoxLayout();
	mainLayout->setSpacing(0);
	mainLayout->setContentsMargins(0, 10, 0, 30);

	// 创建表格显示控件;
	m_TableView = new QTableView(this);
	m_TableView->setObjectName("MemberManageTableView");
	m_TableView->setShowGrid(true);
	m_TableView->setSelectionBehavior(QAbstractItemView::SelectItems);
	m_TableView->setMouseTracking(true);
	//m_TableView->setEditTriggers(QAbstractItemView::AllEditTriggers);

	// 创建委托类，用于 绘制自定义 名片控件;
	m_TableDelegate = new QtModelViewTabelDelegate(m_TableView);
	m_TableView->setItemDelegate(m_TableDelegate);

	// 创建模型类;
	m_TableModel = new StudentTableModel(this);

	QStringList header;
	header << "Name";
	m_TableModel->setHorizontalHeaderLabels(header);

	// ① 不使用数据过滤器;
	//m_TableView->setModel(m_TableModel);

	// ② 使用数据过滤器;
	m_TSFProxyModel = new TabelSortFilterProxyModel();
	m_TSFProxyModel->setSourceModel(m_TableModel);  //将model放入代理中;
	m_TableView->setModel(m_TSFProxyModel);         //在视图中安装代理;
	m_TSFProxyModel->setFilterRegExp("zhangsan20"); //安装过滤器;

	m_TableView->setUpdatesEnabled(true);
	m_TableView->verticalHeader()->setDefaultSectionSize(600);
	m_TableView->resizeRowsToContents();
	m_TableView->horizontalHeader()->setDefaultSectionSize(290);
	m_TableView->horizontalHeader()->setVisible(true);// 水平不可见
	m_TableView->verticalHeader()->setVisible(false);// 垂直不可见
	m_TableView->setVerticalScrollMode(QAbstractItemView::ScrollPerPixel);

	// 添加 搜索框;
	QHBoxLayout* hLayout = new QHBoxLayout;
	QLabel * laber = new QLabel();
	laber->setText("Search");
	QLineEdit *lineEdit = new QLineEdit;
	connect(lineEdit, SIGNAL(textChanged(const QString &)), this, SLOT(onLineEditChangeSlot(const QString &)));

	hLayout->addWidget(laber);
	hLayout->addWidget(lineEdit);

	mainLayout->addLayout(hLayout);
	mainLayout->addWidget(m_TableView);
	setLayout(mainLayout);
}

QtTabelWidget::~QtTabelWidget()
{
}

//组织 十万条数据;
void QtTabelWidget::generateData(int size)
{
	QTime time;
	time.start();

	QList<StudentPtr> itemList;
	for (int i = 0; i < size; i++)
	{
		StudentPtr data = QSharedPointer<Student>(new Student);
		data->name = "zhangsan" + QString::number(i);
		data->id = "53302219861001xxxx";
		data->sex = "M";
		data->age = 33;
		data->phone = "18910108888";
		data->hobby = "BasketBall, Play";
		data->company = QString(":/pic/Resources/side%1.png").arg(i%3+1);
		itemList.push_back(data);

		//m_TableModel->appendRow(data);
	}

	m_TableModel->appendRows(itemList);

	//qDebug() << QStringLiteral("代码程序运行时间：") << time.elapsed();
	qDebug() << time.elapsed() / 1000.0 << "s";
}

// 搜索内容变更时，重设过滤器;
void QtTabelWidget::onLineEditChangeSlot(const QString & text)
{
	//安装过滤器;
	m_TSFProxyModel->setFilterRegExp(text);
	// 调用 invalidateFilter() 函数,使之前的过滤失效,激活当前过滤.
	//m_TSFProxyModel->invalidateFilter();
}

2、QtModelViewTabelDelegate.cpp - 委托：用于绘制自定义名片控件

#include <QAbstractItemView>
#include <QTableView>
#include <QLabel>
#include <QGridLayout>
#include <QLineEdit>

#include "QtModelViewTabelDelegate.h"
#include "StudentTableModel.h"

QtModelViewTabelDelegate::QtModelViewTabelDelegate(QAbstractItemView *itemView)
{
	m_itemView = itemView;
}

QtModelViewTabelDelegate::~QtModelViewTabelDelegate()
{
}

void QtModelViewTabelDelegate::paint(QPainter *painter, const QStyleOptionViewItem &option, const QModelIndex &index) const
{
	Q_UNUSED(painter);
	Q_UNUSED(option);

	QStyleOptionViewItem opt = option;
	QString NN = opt.widget->objectName();

	// 也可以直接用 m_itemView 代替 tV 来操作;
	QWidget * widget = const_cast<QWidget *>(opt.widget);
	QTableView * tV = dynamic_cast<QTableView *>(widget);

	if (tV)
	{
		if (tV->indexWidget(index) == nullptr)
		{
			QWidget *itemWidget = createItemWidget(index);
			if (itemWidget != nullptr)
			{
				tV->setIndexWidget(index, itemWidget);
			}
		}
		else
		{
			updateItemWidget(index);
			setRowHeight(index);
		}
	}
}

QWidget * QtModelViewTabelDelegate::createItemWidget(const QModelIndex &index) const
{
	StudentPtr adapter = index.data().value<StudentPtr>();
	if (!adapter)
		return nullptr;

	QWidget *wid = new QWidget();
	wid->setObjectName("QWidgetF");
	QGridLayout *glay = new QGridLayout();
	glay->setObjectName("QGridLayoutF");
	QLabel *nameItem = new QLabel();
	nameItem->setText(adapter->name);
	QLabel *idItem = new QLabel();
	idItem->setText(adapter->id);
	QLabel *sexItem = new QLabel();
	sexItem->setText(adapter->sex);

	QLineEdit *phoneItem = new QLineEdit();
	phoneItem->setText(adapter->phone);
	phoneItem->setObjectName("phoneItem");
	phoneItem->installEventFilter(const_cast<QtModelViewTabelDelegate*>(this));

	connect(phoneItem, SIGNAL(textChanged(const QString &)), this, SLOT(onLineEditChangeSlot(const QString &)));

	QLineEdit *hobbyItem = new QLineEdit();
	hobbyItem->setText(adapter->hobby);
	connect(hobbyItem, SIGNAL(textChanged(const QString &)), this, SLOT(onLineEditChangeSlot(const QString &)));

	QLabel *companyItem = new QLabel();
	companyItem->setText(adapter->company);
	companyItem->setPixmap(QPixmap(adapter->company).scaled(90,90));

	glay->addWidget(nameItem, 0, 0, 1, 1);
	glay->addWidget(idItem, 1, 0, 1, 1);
	glay->addWidget(sexItem, 2, 0, 1, 1);

	glay->addWidget(phoneItem, 0, 1);
	glay->addWidget(hobbyItem, 2, 1);

	glay->addWidget(companyItem, 0, 2, 3, 4);
	glay->setContentsMargins(5, 5, 5, 5);
	wid->setLayout(glay);

	return wid;
}

void QtModelViewTabelDelegate::setRowHeight(const QModelIndex &index) const
{
	StudentPtr adapter = index.data().value<StudentPtr>();
	if (!adapter)
		return;

	QTableView *tableView = dynamic_cast<QTableView*>(m_itemView);
	if (tableView == nullptr)
		return;

	int nHeight = 100;
	tableView->setRowHeight(index.row(), nHeight);
	tableView->setColumnWidth(0, 400);
}

void QtModelViewTabelDelegate::updateItemWidget(const QModelIndex &index) const
{

}

bool QtModelViewTabelDelegate::eventFilter(QObject *watched, QEvent *event)
{
	if (watched->objectName() == "phoneItem")
	{
		if (event->type() == QEvent::MouseButtonPress)
		{
			QTableView *tableView = dynamic_cast<QTableView*>(m_itemView);
			if (tableView == nullptr)
				return false;

			QModelIndex indexM = tableView->indexAt(tableView->mapFromGlobal(QCursor::pos()));
			tableView->setCurrentIndex(indexM);
		}
	}
	return false;
}

void QtModelViewTabelDelegate::onLineEditChangeSlot(const QString & text)
{
	StudentPtr adapter = m_itemView->currentIndex().data().value<StudentPtr>();
	if (!adapter)
		return;
	QString ob = adapter->name;
	int i = 0;
}

3、StudentTableModel.cpp - 创建模型类，提供数据的调用接口

#include "StudentTableModel.h"

StudentTableModel::StudentTableModel(QObject *parent) : QAbstractTableModel(parent)
{
}

int StudentTableModel::rowCount(const QModelIndex &parent) const
{
	Q_UNUSED(parent);
	return m_itemList.size();
}

int StudentTableModel::columnCount(const QModelIndex &parent) const
{
	Q_UNUSED(parent);
	return m_headers.size();
}

QVariant StudentTableModel::data(const QModelIndex &index, int role) const
{
	if (!index.isValid())
		return QVariant();

	if (index.row() >= m_itemList.size() || index.row() < 0)
		return QVariant();

	if (role == Qt::DisplayRole)
	{
		int row = index.row();
		StudentPtr data = m_itemList.at(row);
		return QVariant::fromValue(data);

		/*int column = index.column();
		switch (column)
		{
		case 0:
			return QString("%1").arg(data->name);
		case 1:
			return QString("%1").arg(data->id);
		case 2:
			return QString("%1").arg(data->sex);
		case 3:
			return data->age;
		case 4:
			return QString("%1").arg(data->phone);
		case 5:
			return QString("%1").arg(data->hobby);
		case 6:
			return QString("%1").arg(data->company);
		}*/
	}
	return QVariant();
}

QVariant StudentTableModel::headerData(int section, Qt::Orientation orientation, int role) const
{
	if (role != Qt::DisplayRole)
		return QVariant();

	if (orientation == Qt::Horizontal)
	{
		return m_headers.at(section);
	}
	return QVariant();
}

bool StudentTableModel::insertRows(int position, int rows, const QModelIndex &index)
{
	Q_UNUSED(index);
	beginInsertRows(QModelIndex(), position, position + rows - 1);

	endInsertRows();
	return true;
}

bool StudentTableModel::removeRows(int position, int rows, const QModelIndex &index)
{
	Q_UNUSED(index);
	beginRemoveRows(QModelIndex(), position, position + rows - 1);

	for (int row = 0; row < rows; ++row)
		m_itemList.removeAt(position);

	endRemoveRows();
	return true;
}

void StudentTableModel::appendRow(const StudentPtr item)
{
	beginInsertRows(QModelIndex(), m_itemList.size(), m_itemList.size() + 1);

	m_itemList.append(item);

	endInsertRows();
}

void StudentTableModel::appendRows(QList<StudentPtr> item)
{
	beginInsertRows(QModelIndex(), 0, item.size());

	m_itemList = item;

	endInsertRows();
}

void StudentTableModel::setHorizontalHeaderLabels(const QStringList &header)
{
	m_headers = header;
}

bool StudentTableModel::setData(const QModelIndex &index, const QVariant &value, int role)
{
	if (index.isValid() && role == Qt::EditRole)
	{
		int row = index.row();
		// mpdify data

		emit(dataChanged(index, index));
		return true;
	}
	return false;
}

Qt::ItemFlags StudentTableModel::flags(const QModelIndex &index) const
{
	if (!index.isValid())
		return Qt::ItemIsEnabled;
	return QAbstractTableModel::flags(index) | Qt::ItemIsEditable;
}

4、TabelSortFilterProxyModel.cpp - 代理：用于对数据过滤、排序

#include "TabelSortFilterProxyModel.h"
#include "StudentTableModel.h"

TabelSortFilterProxyModel::TabelSortFilterProxyModel(QObject *parent)
	: QSortFilterProxyModel(parent)
{
}

TabelSortFilterProxyModel::~TabelSortFilterProxyModel()
{
}

bool TabelSortFilterProxyModel::filterAcceptsRow(int source_row, const QModelIndex &source_parent) const
{
	//获取model中实际的数据;
	StudentPtr adapter = sourceModel()->index(source_row, 0, source_parent).data().value<StudentPtr>();
	if (!adapter)
		return false;

	if (adapter->name.contains(this->filterRegExp()))
	{
		return true;
	}
	return false;
}

bool TabelSortFilterProxyModel::lessThan(const QModelIndex &source_left, const QModelIndex &source_right) const
{
	//通过当前视图中的index位置获取model中实际的数据;
	QVariant leftData = sourceModel()->data(source_left);
	QVariant rightData = sourceModel()->data(source_right);
	switch (source_left.column())
	{
	case 0:     //序号,需要判断数字;
	case 3:     //信号ID,需要判断数字;
		return leftData.toInt() < rightData.toInt();
		break;
	default:    //其它,只判断字符串;
		return leftData.toString() < rightData.toString();
		break;
	}

	return true;
}
