简介:

​ 在SpringCloud框架中，我们会使用Gateway作为服务网关 Nacos作为配置中心和注册中心 ，那么如果基于Quarkus框架，这个基于Kubernetes原生的JAVA应用开发框架，我们怎么实现类似Gateway的功能，又怎么样搭建类似于SpringCloud这种体系的微服务框架呢？

个人说明：

​ 以下代码和图片仅仅由本人结合Quarkus官网和个人研究以及查阅相关资料独立研发而成，如果有对Quarkus框架初学和感兴趣的，可以支持参考，也请多多评论，指出不足，分享技术和交流。

项目技术

本项目名称:Quarkus-Gateway Quarkus版本:3.15.2 Maven版本:3.9.8 JDK版本: dragonwell-21

项目依赖（pom文件）

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 https://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>
    <groupId>pers.lys.framework</groupId>
    <artifactId>quarkus-gateway</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <compiler-plugin.version>3.13.0</compiler-plugin.version>
        <maven.compiler.release>21</maven.compiler.release>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <quarkus.platform.artifact-id>quarkus-bom</quarkus.platform.artifact-id>
        <quarkus.platform.group-id>io.quarkus.platform</quarkus.platform.group-id>
        <quarkus.platform.version>3.15.2</quarkus.platform.version>
        <jjwt.version>0.12.6</jjwt.version>
        <skipITs>true</skipITs>
        <surefire-plugin.version>3.3.1</surefire-plugin.version>
    </properties>

    <dependencyManagement>
        <dependencies>
            <dependency>
                <groupId>${quarkus.platform.group-id}</groupId>
                <artifactId>${quarkus.platform.artifact-id}</artifactId>
                <version>${quarkus.platform.version}</version>
                <type>pom</type>
                <scope>import</scope>
            </dependency>
        </dependencies>
    </dependencyManagement>

    <dependencies>
        <dependency>
            <groupId>cn.hutool</groupId>
            <artifactId>hutool-all</artifactId>
            <version>5.8.15</version>
        </dependency>
        <dependency>
            <groupId>org.jboss.logmanager</groupId>
            <artifactId>jboss-logmanager</artifactId>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-rest-client</artifactId>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-spring-core-api</artifactId>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-smallrye-stork</artifactId>
        </dependency>
        <dependency>
            <groupId>io.smallrye.stork</groupId>
            <artifactId>stork-service-discovery-consul</artifactId>
        </dependency>
        <dependency>
            <groupId>io.smallrye.reactive</groupId>
            <artifactId>smallrye-mutiny-vertx-consul-client</artifactId>
            <version>3.11.0</version>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-arc</artifactId>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-rest</artifactId>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-junit5</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.rest-assured</groupId>
            <artifactId>rest-assured</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>org.testcontainers</groupId>
            <artifactId>testcontainers</artifactId>
            <scope>test</scope>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-smallrye-health</artifactId>
            <!--            <version>3.11.0</version>-->
        </dependency>
<!-- jackson 序列化-->
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-rest-jackson</artifactId>
        </dependency>
<!--   解决java.time.LocalDateTime相关的问题-->
        <dependency>
            <groupId>com.fasterxml.jackson.datatype</groupId>
            <artifactId>jackson-datatype-jsr310</artifactId>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-rest-client-jackson</artifactId>
        </dependency>
        <dependency>
            <groupId>com.google.guava</groupId>
            <artifactId>guava</artifactId>
            <version>33.3.1-jre</version>
        </dependency>
        <dependency>
            <groupId>commons-codec</groupId>
            <artifactId>commons-codec</artifactId>
            <version>1.17.1</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-api</artifactId>
            <version>${jjwt.version}</version>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-impl</artifactId>
            <version>${jjwt.version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>io.jsonwebtoken</groupId>
            <artifactId>jjwt-jackson</artifactId>
            <version>${jjwt.version}</version>
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>io.quarkus</groupId>
            <artifactId>quarkus-redis-client</artifactId>
        </dependency>


    </dependencies>

    <build>
        <plugins>
            <plugin>
                <groupId>${quarkus.platform.group-id}</groupId>
                <artifactId>quarkus-maven-plugin</artifactId>
                <version>${quarkus.platform.version}</version>
                <extensions>true</extensions>
                <executions>
                    <execution>
                        <goals>
                            <goal>build</goal>
                            <goal>generate-code</goal>
                            <goal>generate-code-tests</goal>
                            <goal>native-image-agent</goal>
                        </goals>
                    </execution>
                </executions>
            </plugin>
            <plugin>
                <artifactId>maven-compiler-plugin</artifactId>
                <version>${compiler-plugin.version}</version>
                <configuration>
                    <parameters>true</parameters>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-surefire-plugin</artifactId>
                <version>${surefire-plugin.version}</version>
                <configuration>
                    <systemPropertyVariables>
                        <java.util.logging.manager>org.jboss.logmanager.LogManager</java.util.logging.manager>
                        <maven.home>${maven.home}</maven.home>
                    </systemPropertyVariables>
                </configuration>
            </plugin>
            <plugin>
                <artifactId>maven-failsafe-plugin</artifactId>
                <version>${surefire-plugin.version}</version>
                <executions>
                    <execution>
                        <goals>
                            <goal>integration-test</goal>
                            <goal>verify</goal>
                        </goals>
                    </execution>
                </executions>
                <configuration>
                    <systemPropertyVariables>
                        <native.image.path>${project.build.directory}/${project.build.finalName}-runner
                        </native.image.path>
                        <java.util.logging.manager>org.jboss.logmanager.LogManager</java.util.logging.manager>
                        <maven.home>${maven.home}</maven.home>
                    </systemPropertyVariables>
                </configuration>
            </plugin>
        </plugins>
    </build>

    <profiles>
        <profile>
            <id>native</id>
            <activation>
                <property>
                    <name>native</name>
                </property>
            </activation>
            <properties>
                <skipITs>false</skipITs>
                <quarkus.native.enabled>true</quarkus.native.enabled>
            </properties>
        </profile>
    </profiles>
</project>

路由转发代理

package pers.lys.gateway.router.system;

import jakarta.ws.rs.*;
import jakarta.ws.rs.core.MediaType;
import jakarta.ws.rs.core.Response;
import org.eclipse.microprofile.rest.client.inject.RegisterRestClient;

import java.io.InputStream;

/**
 * @Describe: 路由:服务名 quarkus-system
 * @Date: 2024/12/24-16:44
 * @Author: LYS
 */
@RegisterRestClient(baseUri = "stork://quarkus-system")
@Path("/api/system")//quarkus-system服务 对外暴露上下文前缀地址
public interface SystemRouter {
    /**
     * @Describe: GET请求
     * @Date: 2024/12/24-17:02
     * @Author: LYS
     */
    @GET
    @Path("/{path:.*}")
    @Consumes(MediaType.MEDIA_TYPE_WILDCARD)
    @Produces(MediaType.MEDIA_TYPE_WILDCARD)
    Response getRout(@PathParam("path") String path, @QueryParam("queryParam") String queryParam, @HeaderParam("X-User-Info") String baseAcUserDOStr);
    /**
     * @Describe: DELETE请求
     * @Date: 2024/12/24-17:02
     * @Author: LYS
     */
    @DELETE
    @Path("/{path:.*}")
    @Consumes(MediaType.MEDIA_TYPE_WILDCARD)
    @Produces(MediaType.MEDIA_TYPE_WILDCARD)
    Response deleteRout(@PathParam("path") String path, @QueryParam("queryParam") String queryParam, @HeaderParam("X-User-Info") String baseAcUserDOStr);
    /**
     * @Describe: POST请求
     * @Date: 2024/12/24-17:02
     * @Author: LYS
     */
    @POST
    @Path("/{path:.*}")
    @Consumes(MediaType.MEDIA_TYPE_WILDCARD)
    @Produces(MediaType.MEDIA_TYPE_WILDCARD)
    Response  postRout(@PathParam("path") String path, InputStream inputStream,@HeaderParam("X-User-Info") String baseAcUserDOStr);
    /**
     * @Describe: PUT请求:整体更新
     * @Date: 2024/12/24-16:47
     * @Author: LYS
     */
    @PUT
    @Path("/{path:.*}")
    @Consumes(MediaType.MEDIA_TYPE_WILDCARD)
    @Produces(MediaType.MEDIA_TYPE_WILDCARD)
    Response putRout(@PathParam("path") String path, InputStream inputStream, @HeaderParam("X-User-Info") String baseAcUserDOStr);

    /**
     * @Describe: PATCH请求:部分更新
     * @Date: 2024/12/24-16:47
     * @Author: LYS
     */
    @PATCH
    @Path("/{path:.*}")
    @Consumes(MediaType.MEDIA_TYPE_WILDCARD)
    @Produces(MediaType.MEDIA_TYPE_WILDCARD)
    Response patchRout(@PathParam("path") String path, InputStream inputStream, @HeaderParam("X-User-Info") String baseAcUserDOStr);

}

路由转发实际地址

package pers.lys.gateway.router.system;

import jakarta.ws.rs.Path;
import jakarta.ws.rs.core.Response;
import org.eclipse.microprofile.rest.client.inject.RestClient;

import java.io.InputStream;

/**
 * @Describe: 路由服务发现:
 * @Date: 2024/12/24-16:56
 * @Author: LYS
 */
@Path("/quarkus/system") //quarkus-system服务 实际服务地址
public class SystemRouterFound implements SystemRouter {
    @RestClient
    SystemRouter systemRouter;

    @Override
    public Response getRout(String path, String queryParam, String baseAcUserDOStr) {
        return systemRouter.getRout(path, queryParam, baseAcUserDOStr);
    }
    @Override
    public Response deleteRout(String path, String queryParam, String baseAcUserDOStr) {
        return systemRouter.deleteRout(path, queryParam, baseAcUserDOStr);
    }

    @Override
    public Response postRout(String path, InputStream inputStream, String baseAcUserDOStr) {
        return systemRouter.postRout(path, inputStream,baseAcUserDOStr);
    }

    @Override
    public Response putRout(String path, InputStream inputStream, String baseAcUserDOStr) {
        return systemRouter.putRout(path, inputStream, baseAcUserDOStr);
    }

    @Override
    public Response patchRout(String path, InputStream inputStream, String baseAcUserDOStr) {
        return systemRouter.patchRout(path, inputStream, baseAcUserDOStr);
    }
}

演示转发效果

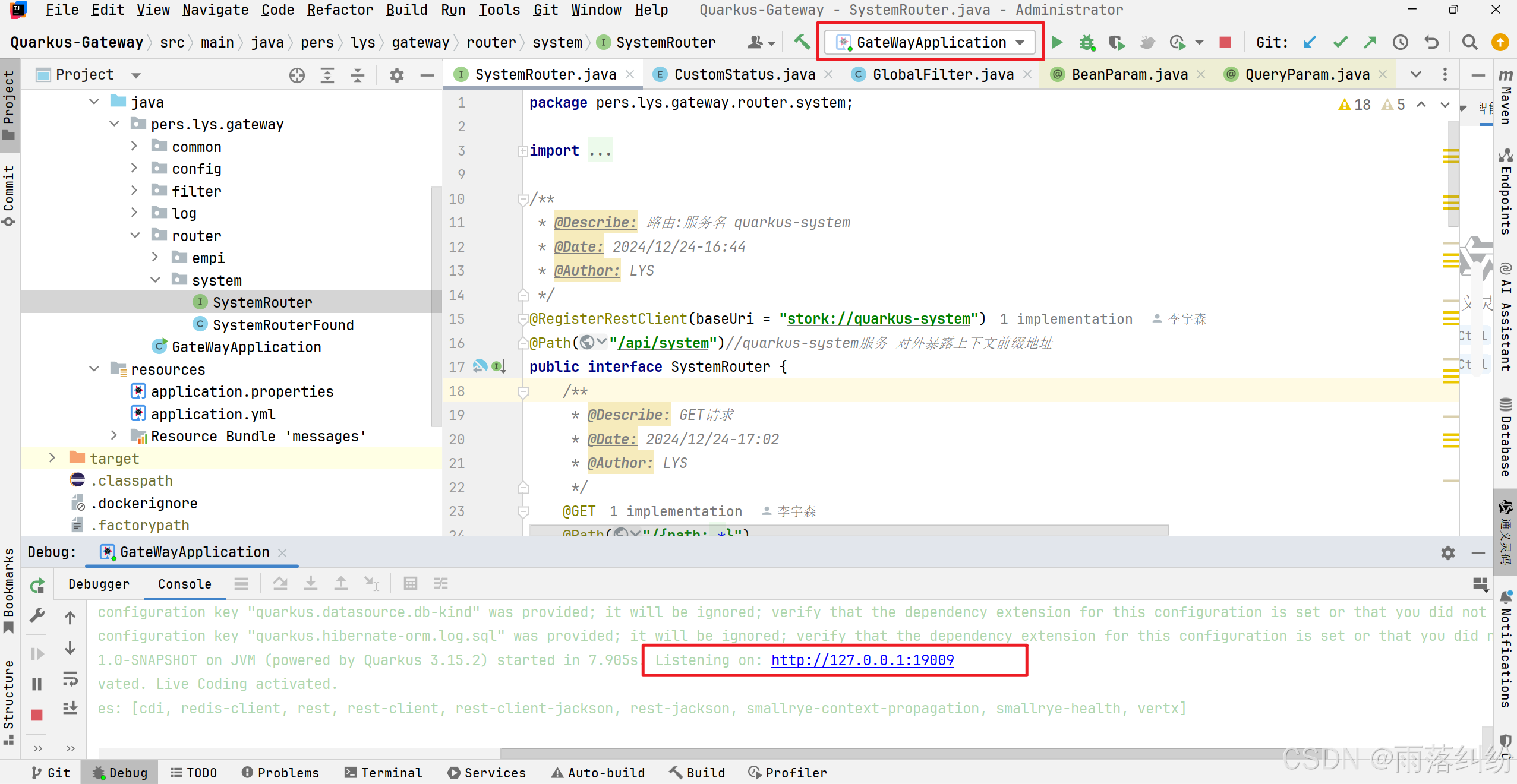

1.启动Quarkus-Gateway项目

项目Quarkus-Gateway 端口：19009

项目注册中心使用的Consul ，在网关项目中，我们使用stork自动注册发现功能来实现网关转发功能

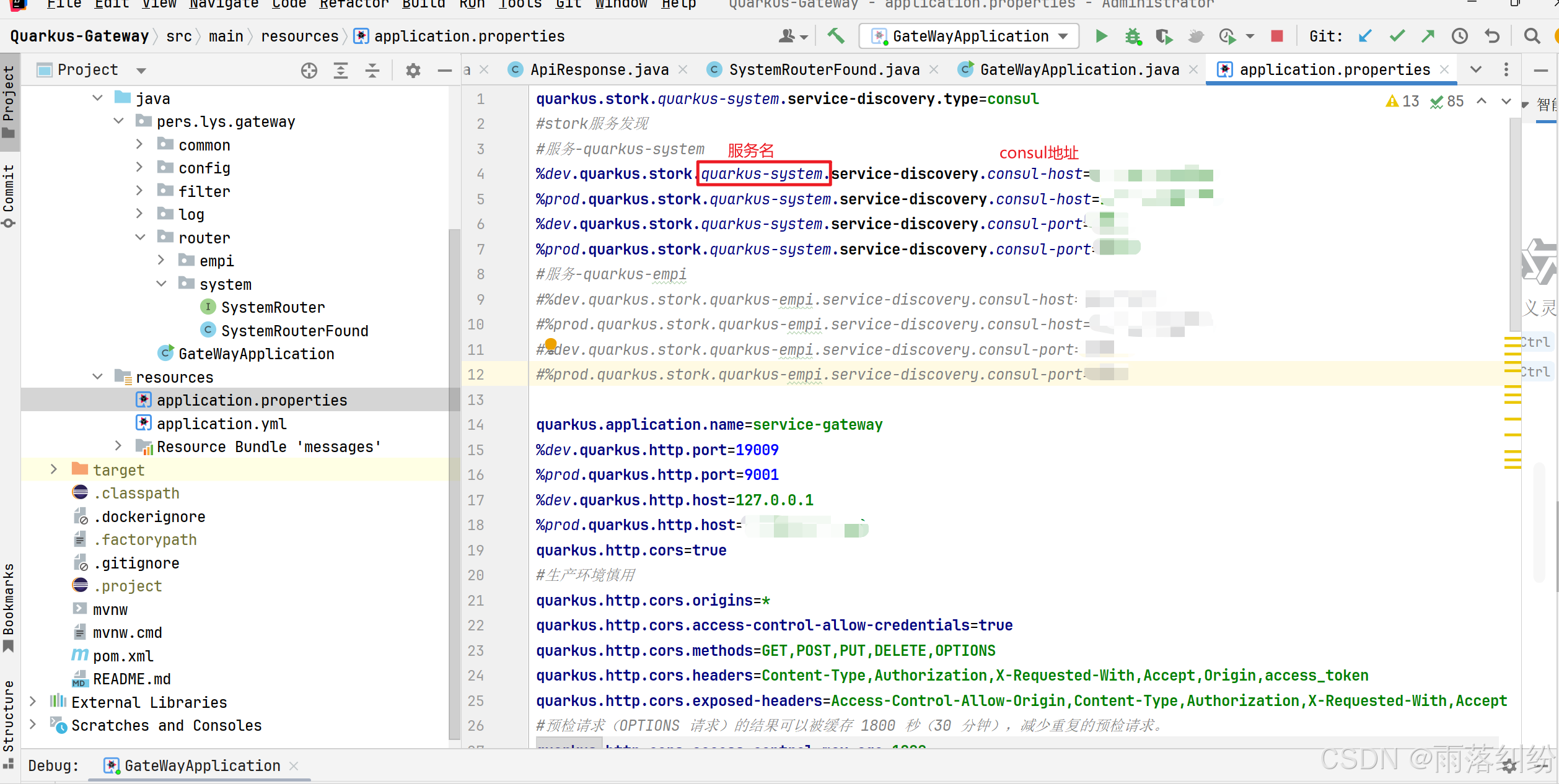

其中在application.properties文件中配置如下

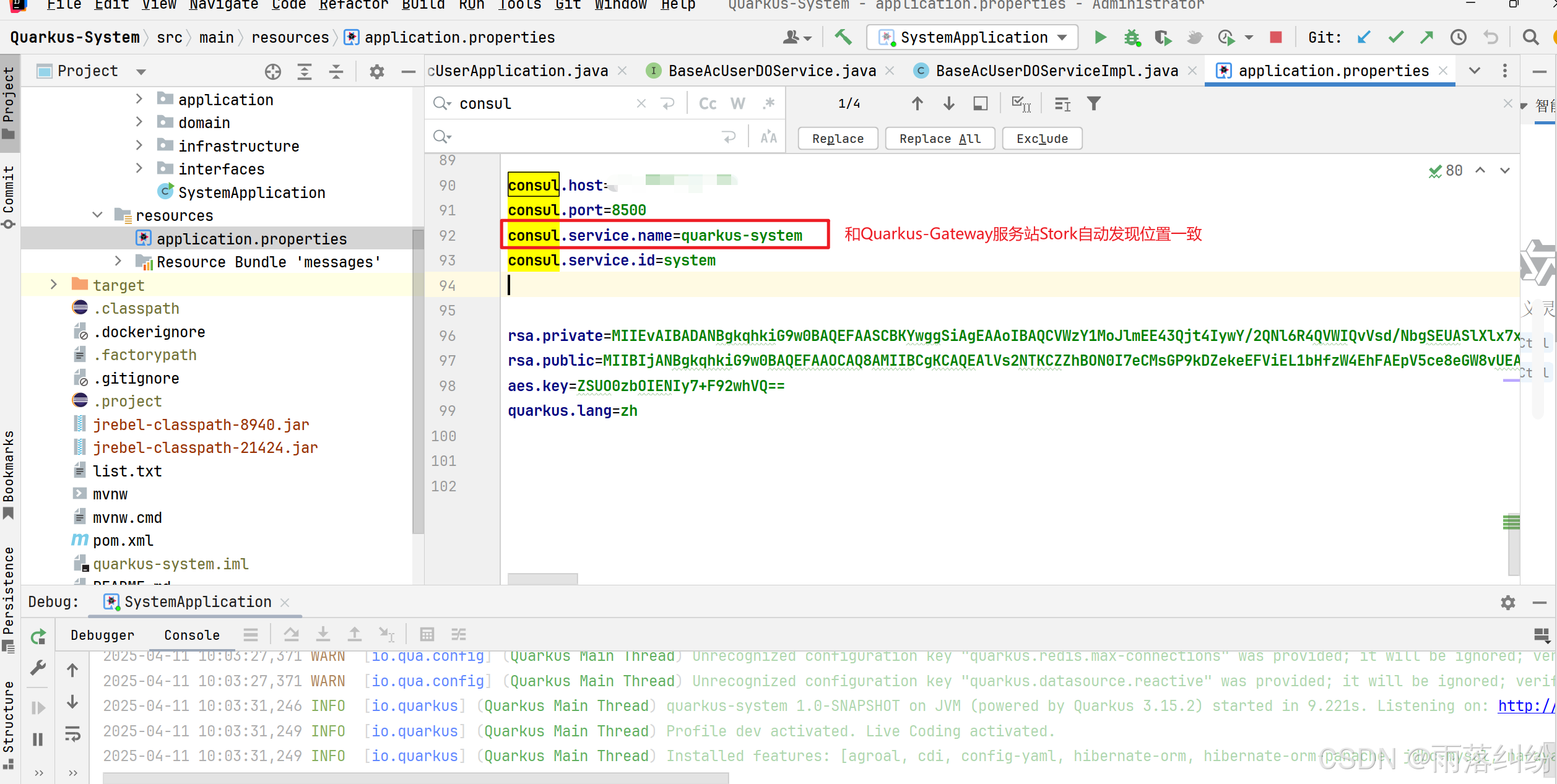

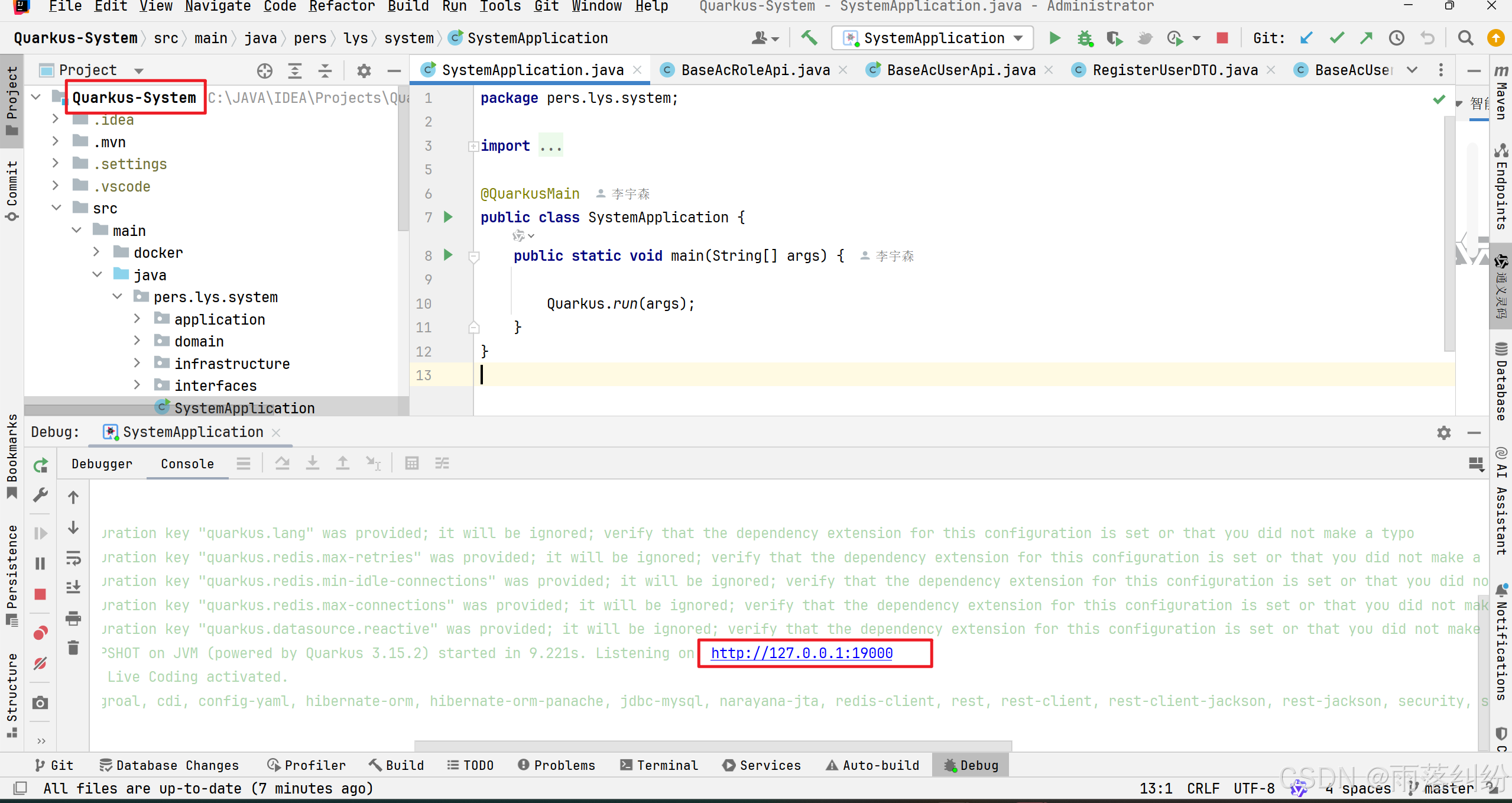

我这边还有一个目标服务:Quarkus-System项目，端口是9000，启动如下:

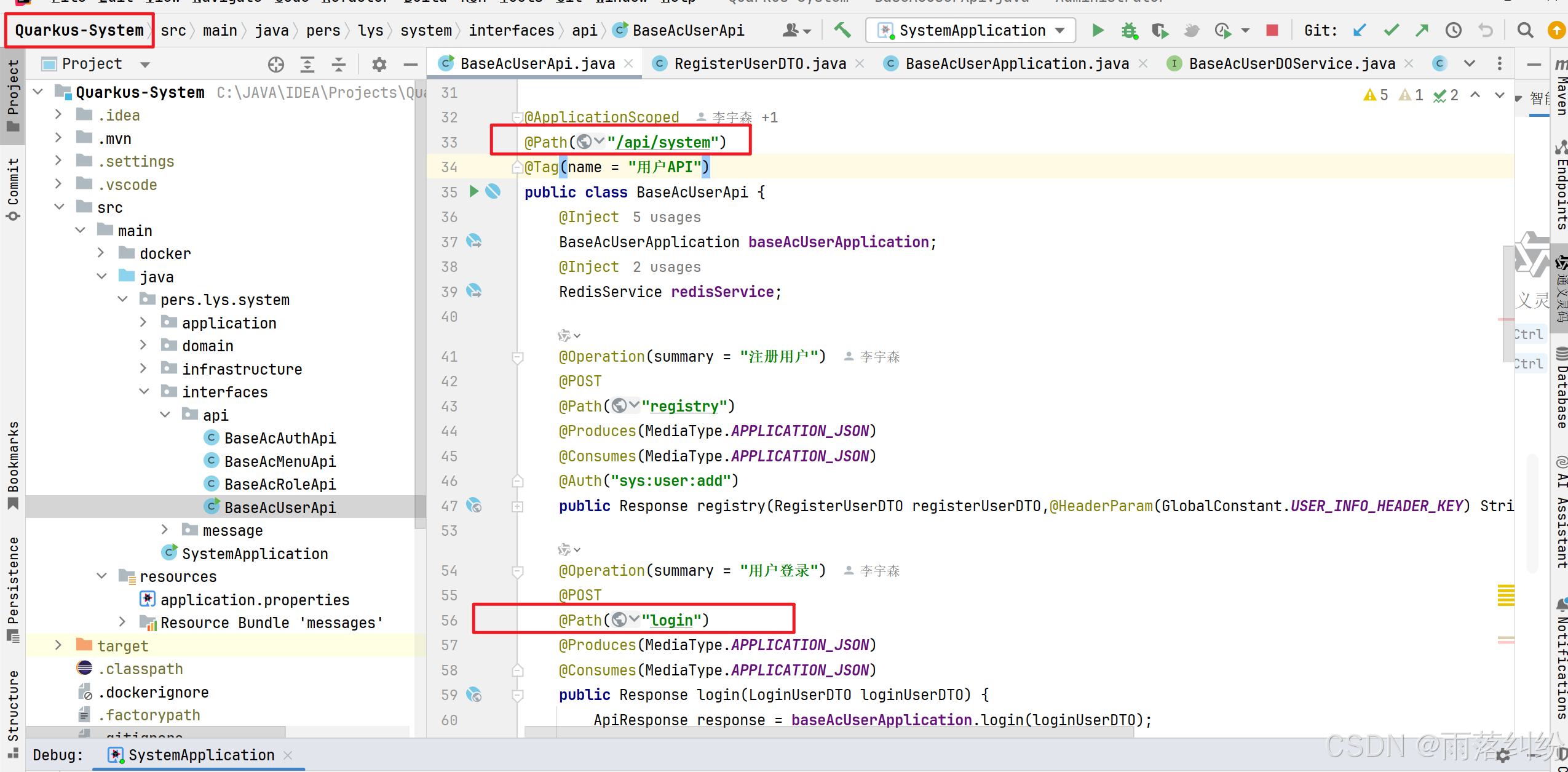

此时我们看Quarkus-System服务中 提供了一个接口名为单点登录，其中上下文路径是/api/system/login

这个api/system和“路由转发代理”标题下的Path是一致的 ，@RegisterRestClient(baseUri = “stork://quarkus-system”) 这个就是目标服务注册到Consul的服务名

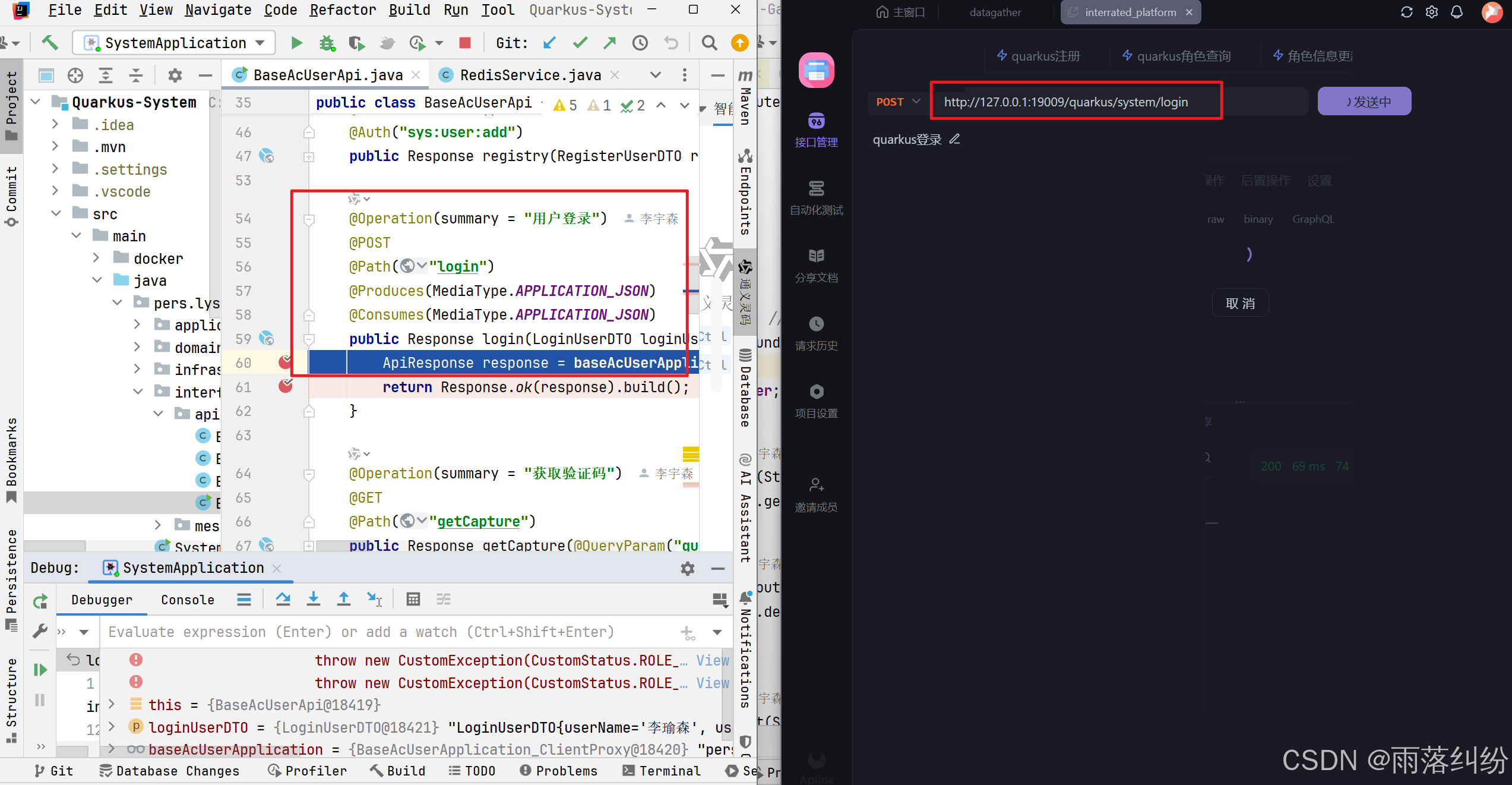

这样我们本来访问 http://127.0.0.1:19000/api/system/login的地址，经过网关转发只需要访问 http://127.0.0.1:19009/quarkus/system/login ，我们测试验证下，转发成功。
