一、实验拓扑

二、实验要求

三、实验配置

1、规划IP地址

2、动态路由协议配置

3、配置MPLS和路由重发布

4、合并

         5、R6-R7之间的私有IP地址通信优先使用MPLS(sham-link)

四、测试

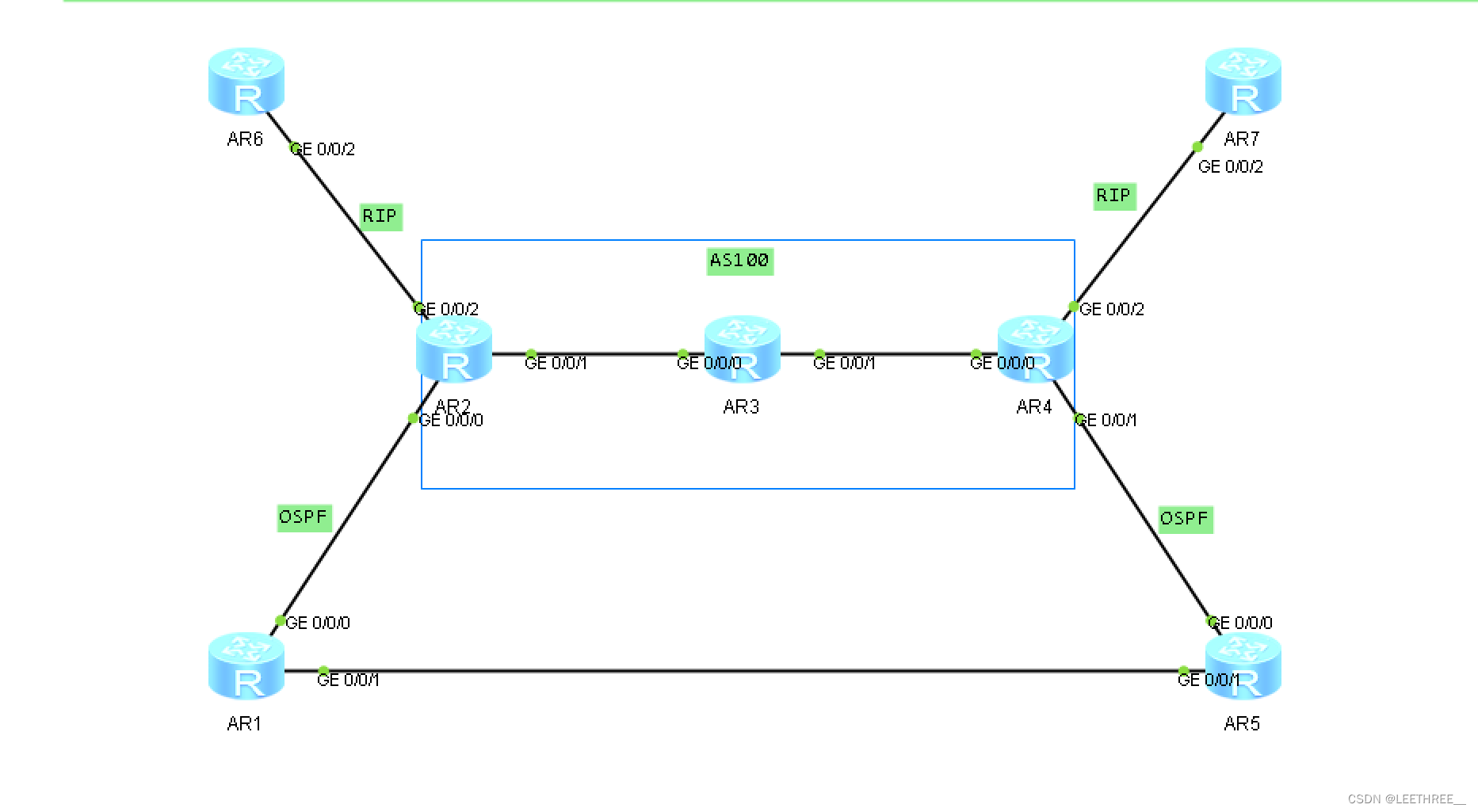

一、实验拓扑

二、实验要求

1.如图连接拓扑，合理规划IP地址，R1、R5、R6、R7各种创建一个环回，IP地址分别为192.168.1.0 、192.168.2.0、192.168.3.0、192.168.4.0
2.AS 100内使用IGP协议为OSPF ，如图运行动态路由协议
3.要求R1-R5之间启用MPLS Virtual Private Network； R6-R7之间启用MPLS Virtual Private Network；
4.将两条Virtual Private Network进行合并
5.R6-R7之间使用OSPF协议，要求R6-R7之间的私有IP地址通信优先使用MPLS

三、实验配置

1、规划IP地址

R1:

#
interface GigabitEthernet0/0/0
 ip address 12.0.0.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 15.0.0.1 255.255.255.0
#
interface LoopBack0
 ip address 192.168.1.1 255.255.255.0
#

R2:

#
interface GigabitEthernet0/0/0
 ip address 12.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 23.0.0.1 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 26.0.0.2 255.255.255.0
#
interface LoopBack0
 ip address 2.2.2.2 255.255.255.255
#

R3:

#
interface GigabitEthernet0/0/0
 ip address 23.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 34.0.0.1 255.255.255.0
#
interface LoopBack0
 ip address 3.3.3.3 255.255.255.255
#

R4:

#
interface GigabitEthernet0/0/0
 ip address 34.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 45.0.0.2 255.255.255.0
#
interface GigabitEthernet0/0/2
 ip address 47.0.0.2 255.255.255.0
#
interface LoopBack0
 ip address 4.4.4.4 255.255.255.255
#

R5:

#
interface GigabitEthernet0/0/0
 ip address 45.0.0.1 255.255.255.0
#
interface GigabitEthernet0/0/1
 ip address 15.0.0.2 255.255.255.0
#
interface LoopBack0
 ip address 192.168.2.5 255.255.255.0
#

R6:

#
interface GigabitEthernet0/0/2
 ip address 26.0.0.1 255.255.255.0
#
interface LoopBack0
 ip address 192.168.3.6 255.255.255.0
#

R7:

#
interface GigabitEthernet0/0/2
 ip address 47.0.0.1 255.255.255.0
#
interface LoopBack0
 ip address 192.168.4.7 255.255.255.0
#

2、动态路由协议配置

R1:

#
ospf 200 router-id 1.1.1.1
 area 0.0.0.0
  network 12.0.0.0 0.0.0.255
  network 192.168.1.1 0.0.0.0
#

R2:

#
ospf 100 router-id 2.2.2.2
 area 0.0.0.0
  network 2.2.2.2 0.0.0.0
  network 23.0.0.0 0.0.0.255
#
ospf 200 router-id 2.2.2.2 vpn-instance ia
 area 0.0.0.0
  network 12.0.0.0 0.0.0.255
#
rip 100 vpn-instance ip
 version 2
 network 26.0.0.0
#
bgp 100
 router-id 2.2.2.2
 peer 4.4.4.4 as-number 100
 peer 4.4.4.4 connect-interface LoopBack0
#

R3:

#
ospf 100 router-id 3.3.3.3
 area 0.0.0.0
  network 3.3.3.3 0.0.0.0
  network 23.0.0.0 0.0.0.255
  network 34.0.0.0 0.0.0.255
#

R4:

#
ospf 100 router-id 4.4.4.4
 area 0.0.0.0
  network 4.4.4.4 0.0.0.0
  network 34.0.0.0 0.0.0.255
#
ospf 200 router-id 4.4.4.4 vpn-instance ia
 import-route bgp
 area 0.0.0.0
  network 45.0.0.0 0.0.0.255
#
rip 100 vpn-instance ip
 version 2
 network 47.0.0.0
 import-route bgp
#
#
bgp 100
 router-id 4.4.4.4
 peer 2.2.2.2 as-number 100
 peer 2.2.2.2 connect-interface LoopBack0
#

R5:

#
ospf 200 router-id 5.5.5.5
 area 0.0.0.0
  network 45.0.0.0 0.0.0.255
  network 192.168.2.5 0.0.0.0
#

R6:

#
rip 100
 version 2
 network 192.168.3.0
 network 26.0.0.0
#

R7:

#
rip 100
 version 2
 network 47.0.0.0
 network 192.168.4.0
#

3、配置MPLS和路由重发布

R2:

#
ip vpn-instance ia
 ipv4-family
  route-distinguisher 200:1
  vpn-target 200:1 export-extcommunity
  vpn-target 200:1 import-extcommunity
#
ip vpn-instance ip
 ipv4-family
  route-distinguisher 100:1
  vpn-target 100:1 export-extcommunity
  vpn-target 100:1 import-extcommunity
#
mpls lsr-id 2.2.2.2
mpls
 lsp-trigger all
#
mpls ldp
#
interface GigabitEthernet0/0/0
 ip binding vpn-instance ia
#
interface GigabitEthernet0/0/1
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/2
 ip binding vpn-instance ip
#
#
bgp 100
 ipv4-family unicast
  undo synchronization
  peer 4.4.4.4 enable
  peer 4.4.4.4 next-hop-local
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 4.4.4.4 enable
 #
 ipv4-family vpn-instance ia
  import-route ospf 200
 #
 ipv4-family vpn-instance ip
  import-route rip 100
#
ospf 200 router-id 2.2.2.2 vpn-instance ia
 import-route bgp
#
rip 100 vpn-instance ip
 import-route bgp
#

R4:

#
ip vpn-instance ia
 ipv4-family
  route-distinguisher 200:1
  vpn-target 200:1 export-extcommunity
  vpn-target 200:1 import-extcommunity
#
ip vpn-instance ip
 ipv4-family
  route-distinguisher 100:1
  vpn-target 100:1 export-extcommunity
  vpn-target 100:1 import-extcommunity
#
mpls lsr-id 4.4.4.4
mpls
 lsp-trigger all
#
mpls ldp
#
interface GigabitEthernet0/0/0
 ip address 34.0.0.2 255.255.255.0
 mpls
 mpls ldp
#
interface GigabitEthernet0/0/1
 ip binding vpn-instance ia
#
interface GigabitEthernet0/0/2
 ip binding vpn-instance ip
#
#
bgp 100
 ipv4-family unicast
  undo synchronization
  peer 2.2.2.2 enable
  peer 2.2.2.2 next-hop-local
 #
 ipv4-family vpnv4
  policy vpn-target
  peer 2.2.2.2 enable
 #
 ipv4-family vpn-instance ia
  import-route ospf 200
 #
 ipv4-family vpn-instance ip
  import-route rip 100
#
ospf 200 router-id 4.4.4.4 vpn-instance ia
 import-route bgp
#
rip 100 vpn-instance ip
 import-route bgp
#

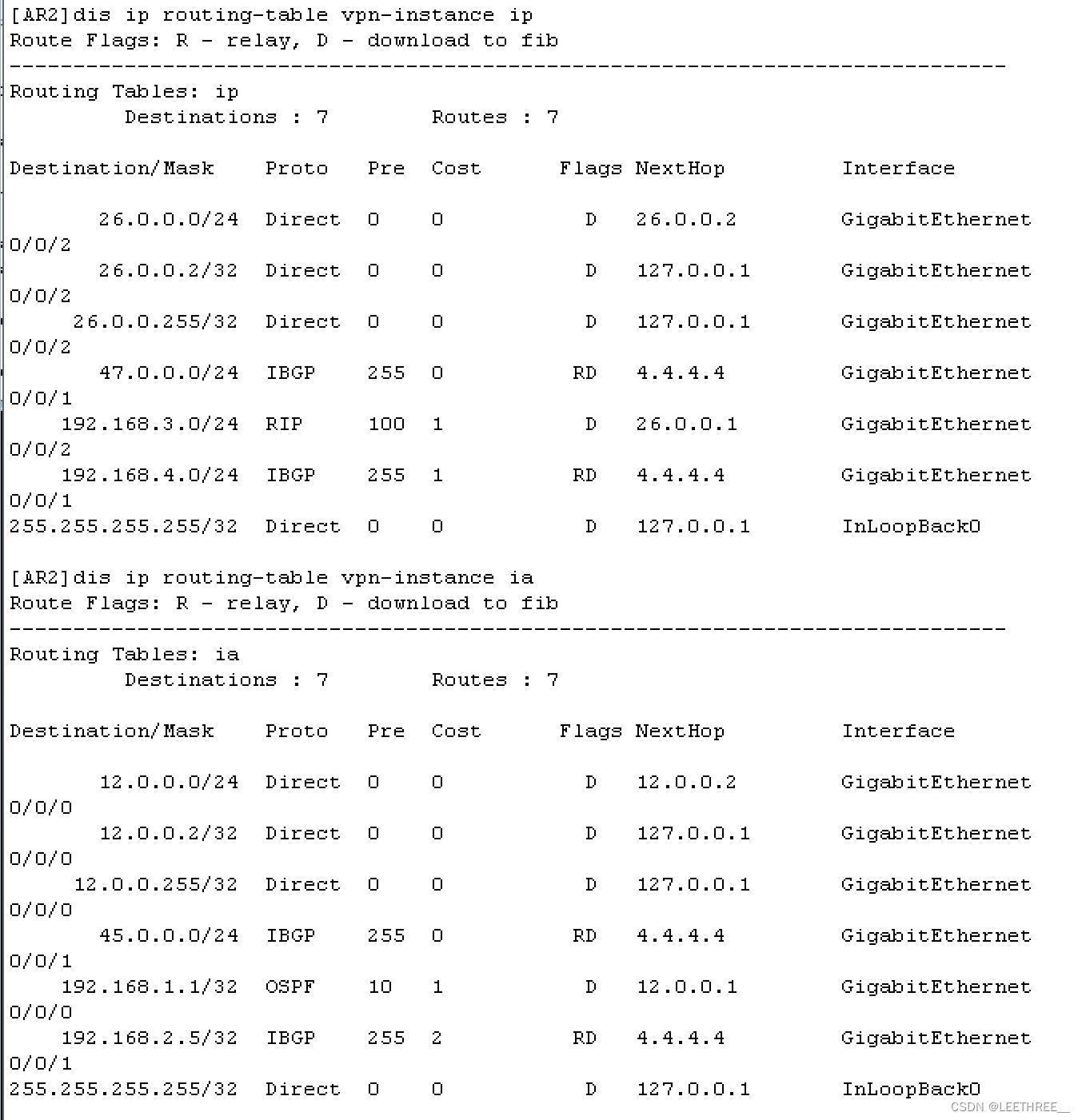

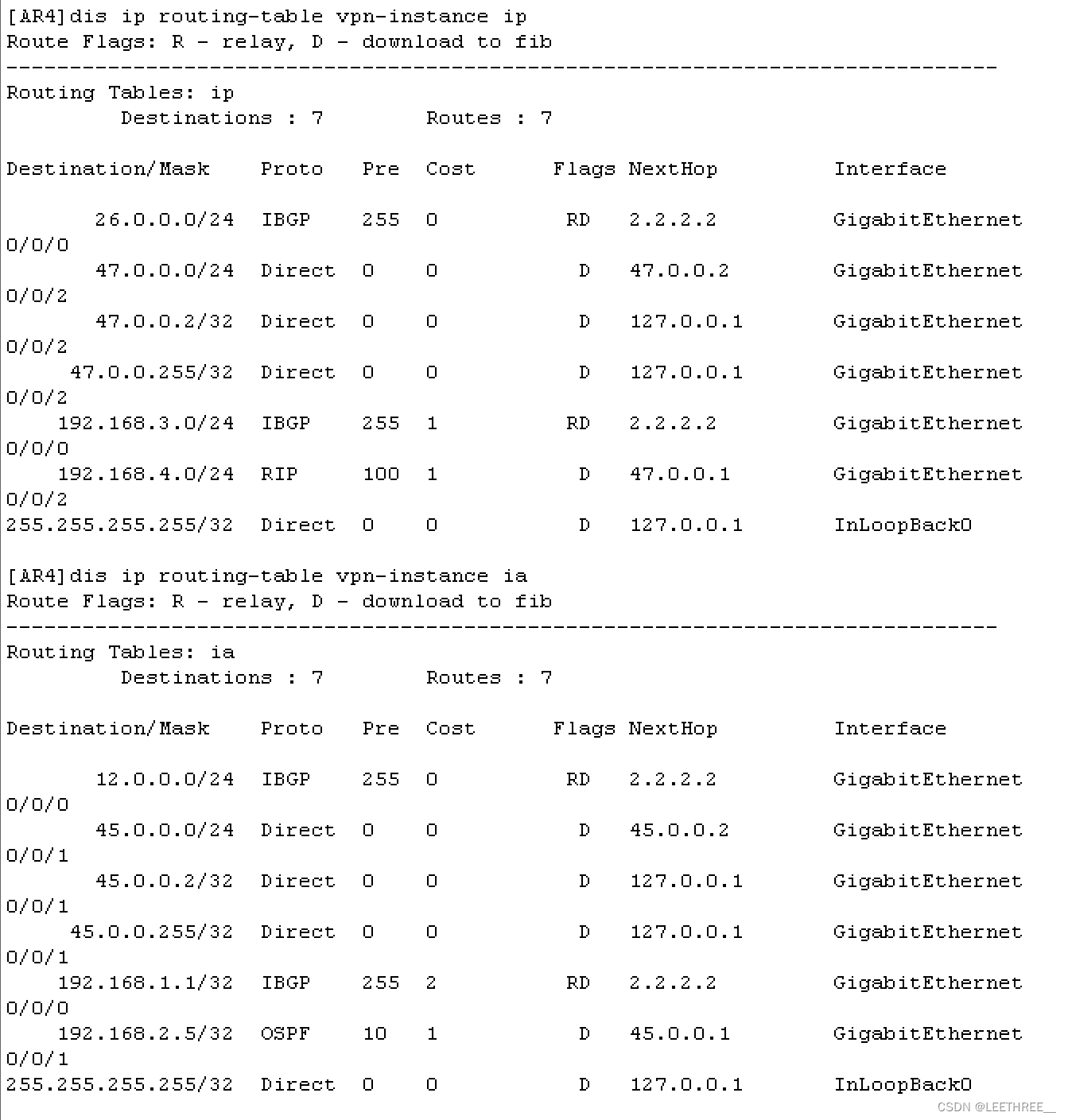

查看PE端的路由表

R2:

 R4:

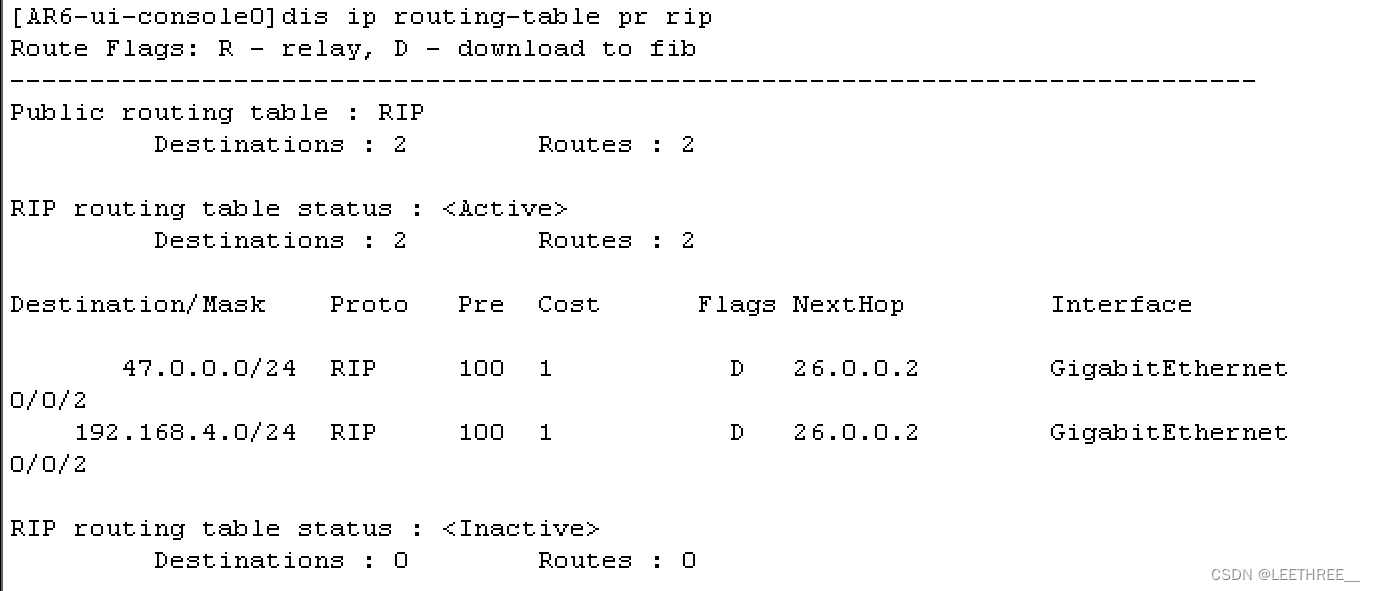

 查看CE端学习到的路由

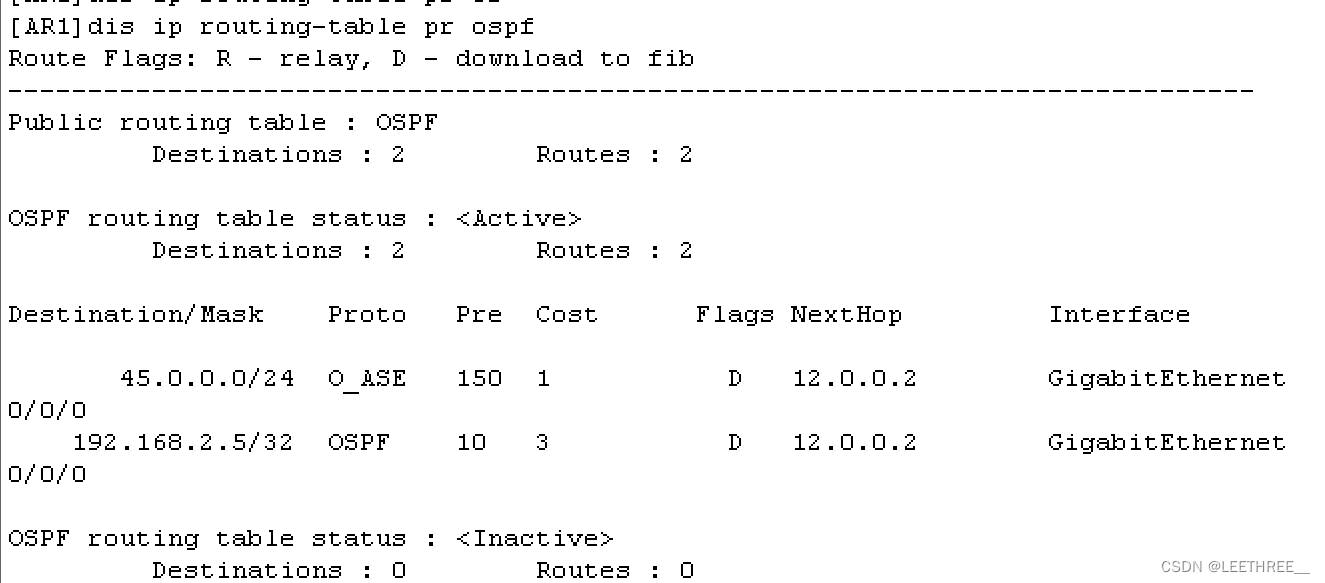

R1:

R5:

R6:

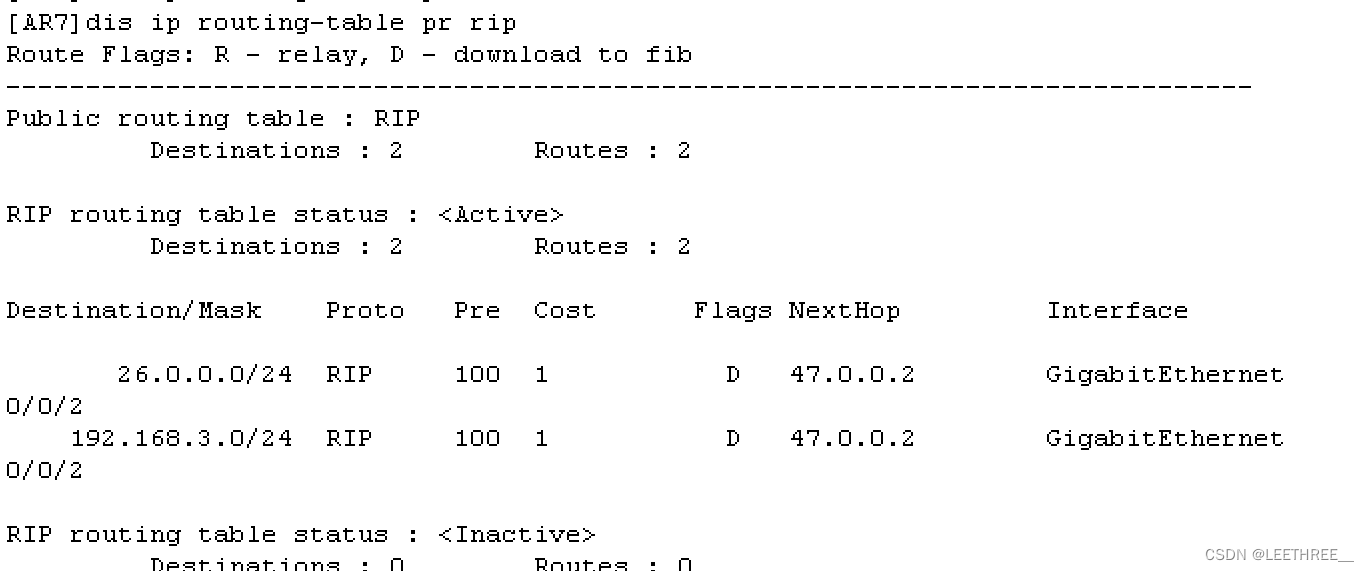

R7:

 4、合并

R2/R4:

#
ip vpn-instance ia
 ipv4-family
  vpn-target 200:1 100:1 export-extcommunity
  vpn-target 200:1 100:1 import-extcommunity
#

​​​​​​​5、R6-R7之间的私有IP地址通信优先使用MPLS(sham-link)

创建环回接口并划入VRF中

R2/4

#
interface LoopBack1
 ip binding vpn-instance ia
 ip address 100.1.1.1 255.255.255.255
#
#
interface LoopBack1
 ip binding vpn-instance ia
 ip address 100.1.1.2 255.255.255.255
#

将环回接口路由通告进入VPNV4 BGP 协议中

R2/4

 #
 ipv4-family vpn-instance ia
  network 100.1.1.1 255.255.255.255
  import-route ospf 200
 #
 #
 ipv4-family vpn-instance ia
  network 0.0.0.0
  network 100.1.1.2 255.255.255.255
  import-route ospf 200
 #

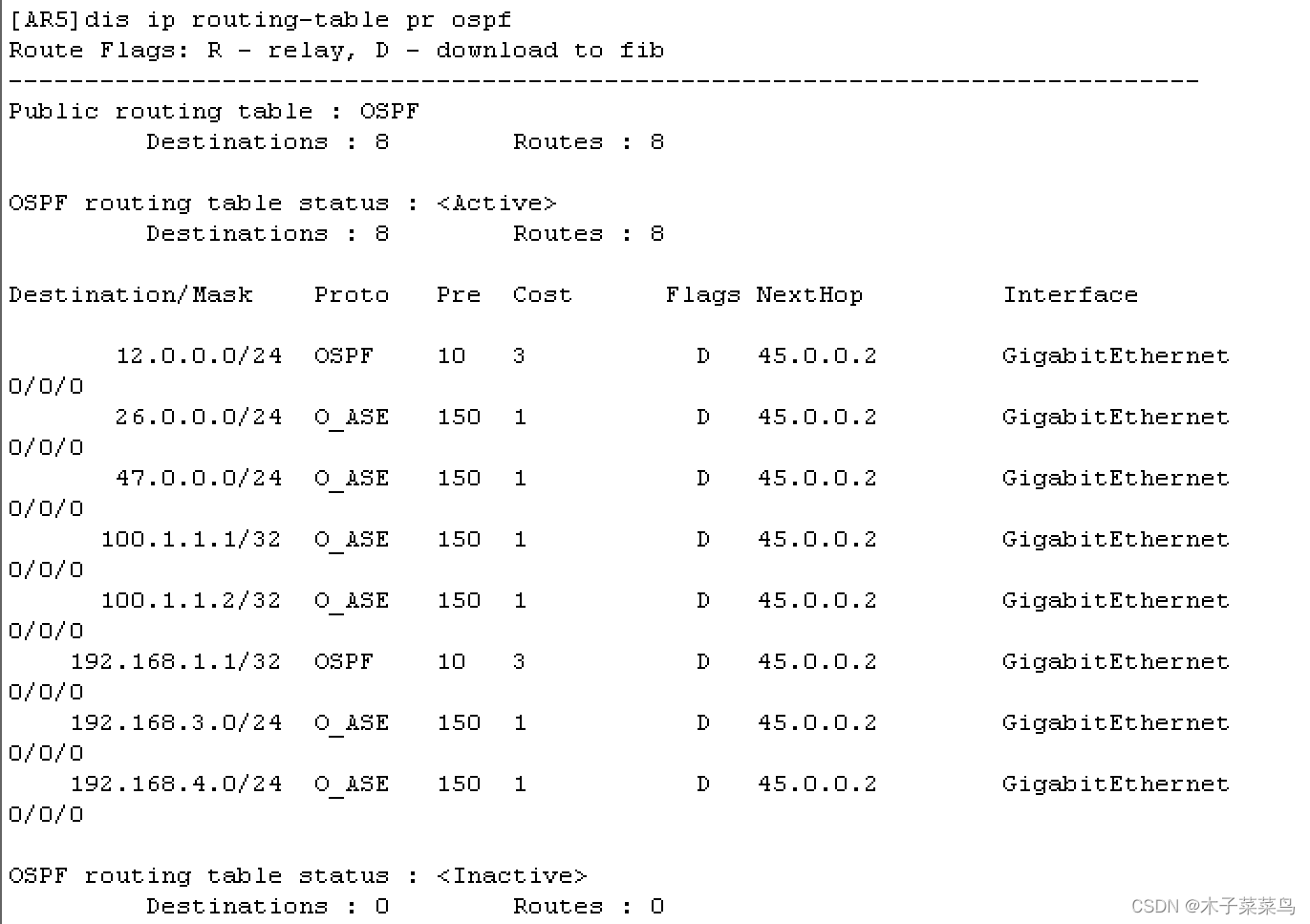

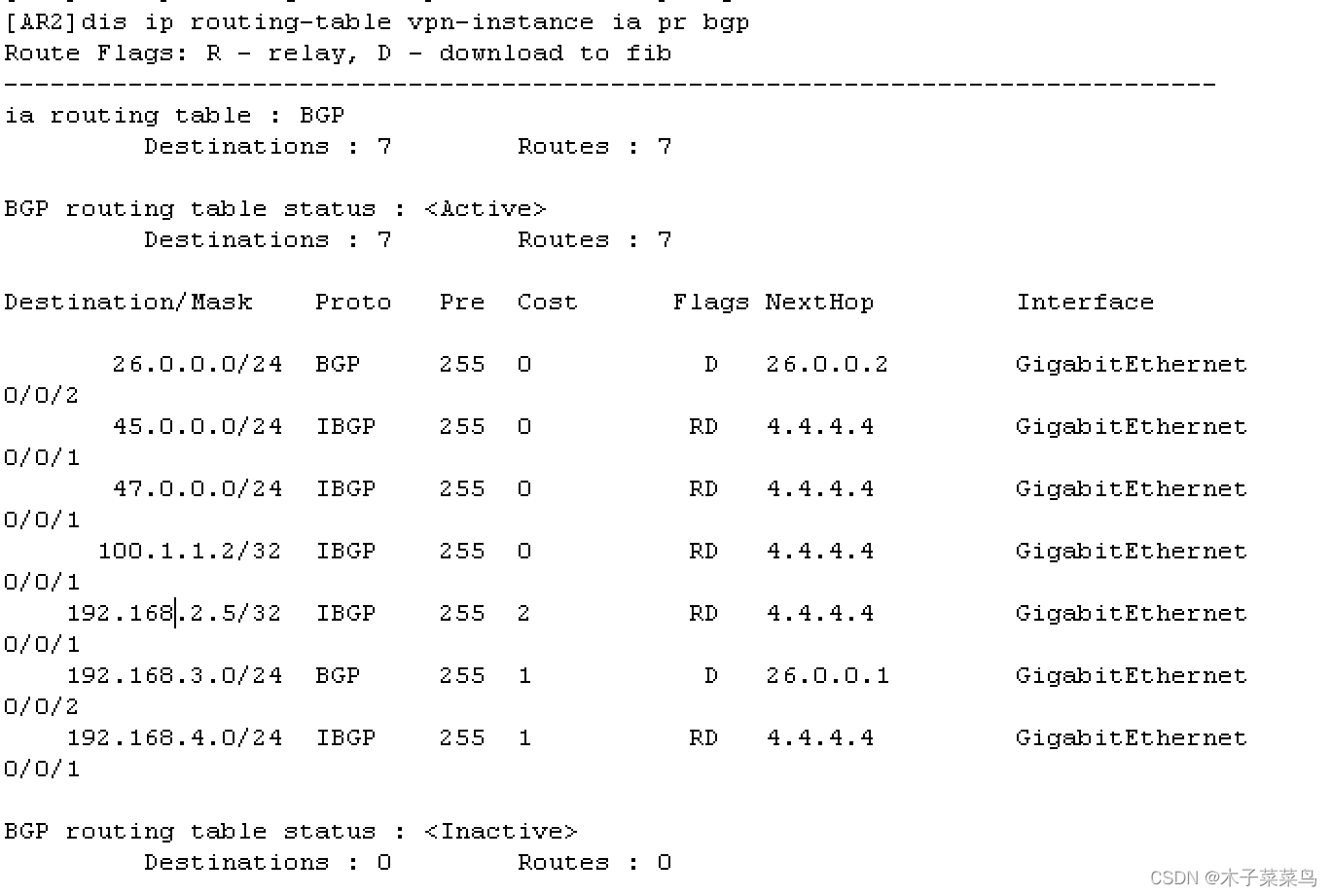

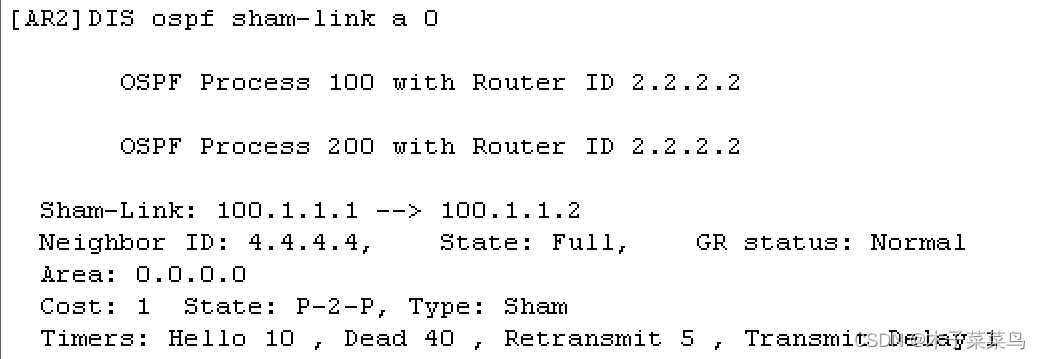

查看学习到路由

R2/4

#
ospf 200 router-id 2.2.2.2 vpn-instance ia
 area 0.0.0.0
  sham-link 100.1.1.1 100.1.1.2
#
#
ospf 200 router-id 4.4.4.4 vpn-instance ia
 area 0.0.0.0
  sham-link 100.1.1.2 100.1.1.1
#



修改备份链路之间的开销值

R1/R5

#
interface GigabitEthernet0/0/1
 ospf cost 33
#
#
interface GigabitEthernet0/0/1
 ospf cost 33
#

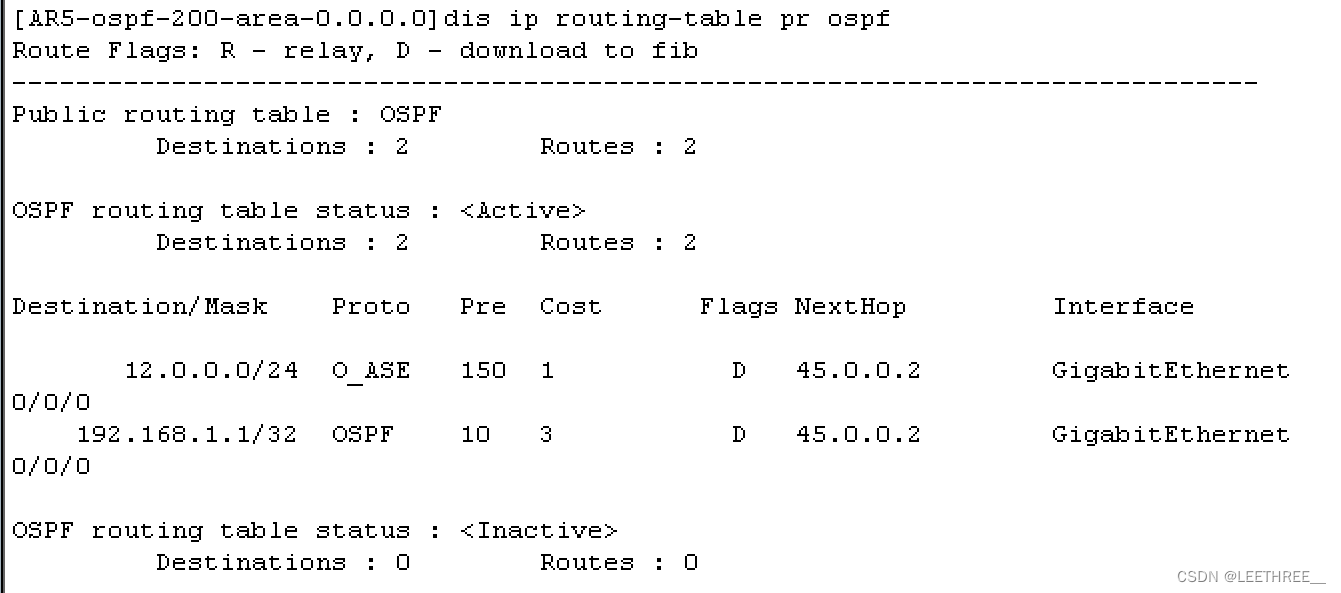

查看

四、测试

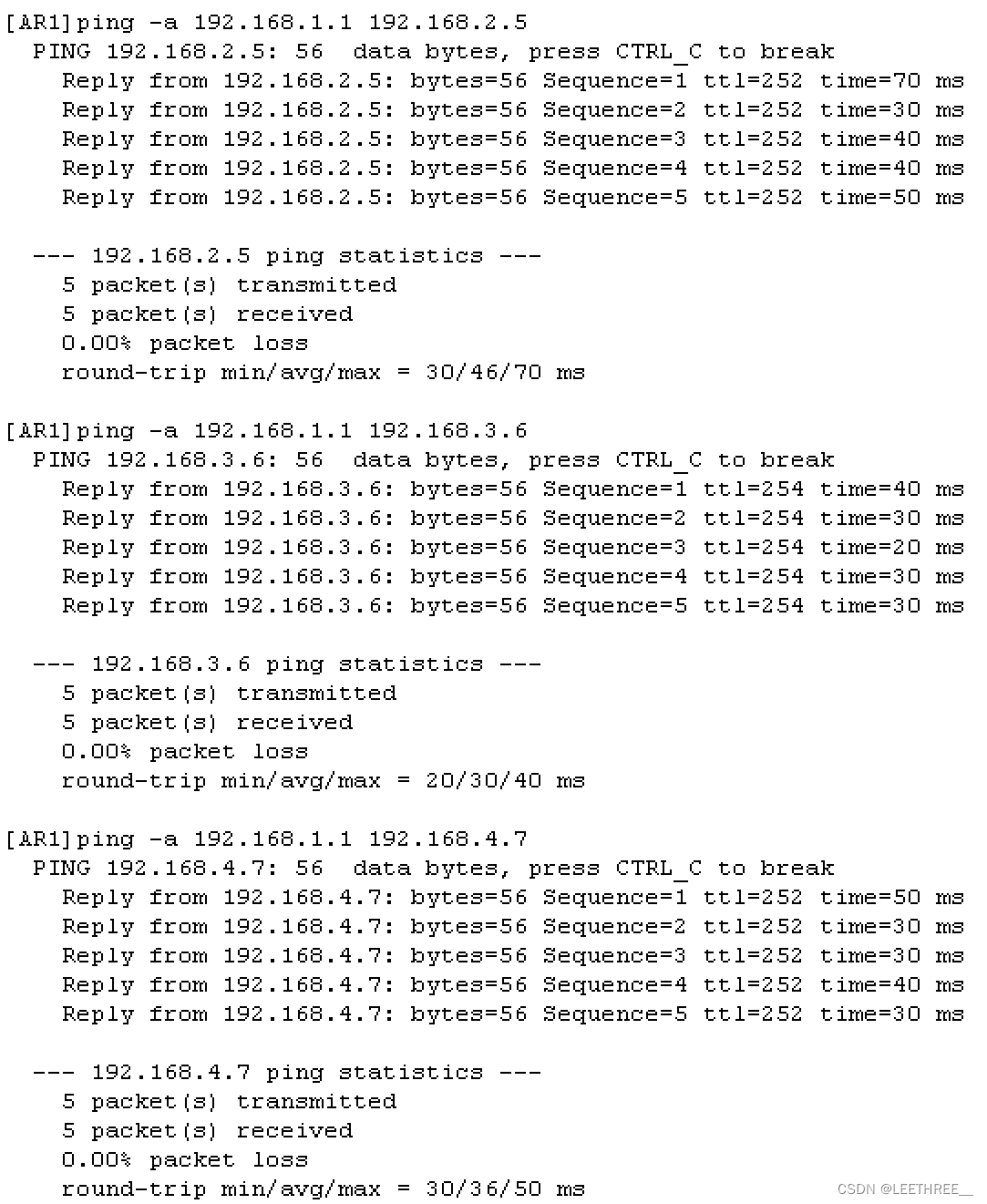

R1与各个私网的连通性

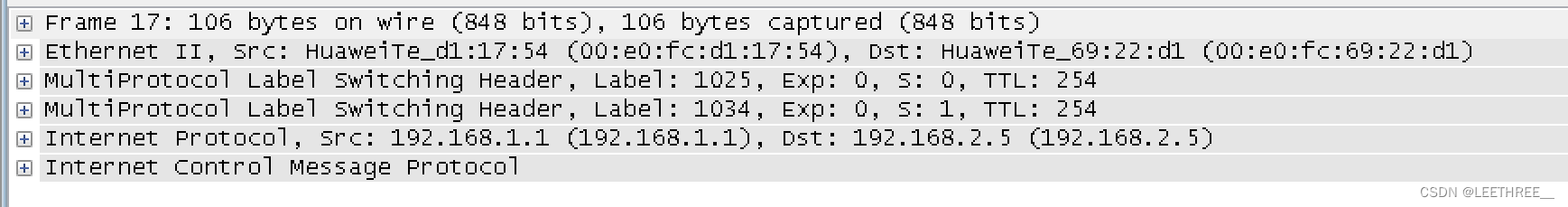

 抓包查看标签数据
