SpringCloud阿里云实现OSS

阿里云Github地址

在启动示例进行演示之前，我们先了解一下如何接入 OSS。

接入相关操作只需修改 accessKey、secretKey、endpoint 即可。

修改 pom.xml 文件，引入 aliyun-oss-spring-boot-starter。

<dependency>
   <groupId>com.alibaba.cloud</groupId>
   <artifactId>aliyun-oss-spring-boot-starter</artifactId>
</dependency>

SpringCloud整合的start为下面的

<-- 应该为下面的-->
    <dependency>
            <groupId>com.alibaba.cloud</groupId>
            <artifactId>spring-cloud-starter-alicloud-oss</artifactId>
            <version>2.2.0.RELEASE</version>
        </dependency>

在配置文件中配置 OSS 服务对应的 accessKey、secretKey 和 endpoint。

// application.properties
alibaba.cloud.access-key=your-ak
alibaba.cloud.secret-key=your-sk
alibaba.cloud.oss.endpoint=***

以阿里云 accessKey、secretKey 为例，获取方式如下。

i. 在阿里云控制台界面，单击右上角头像，选择 accesskeys，或者直接登录用户信息管理界面：获取相关key信息填入

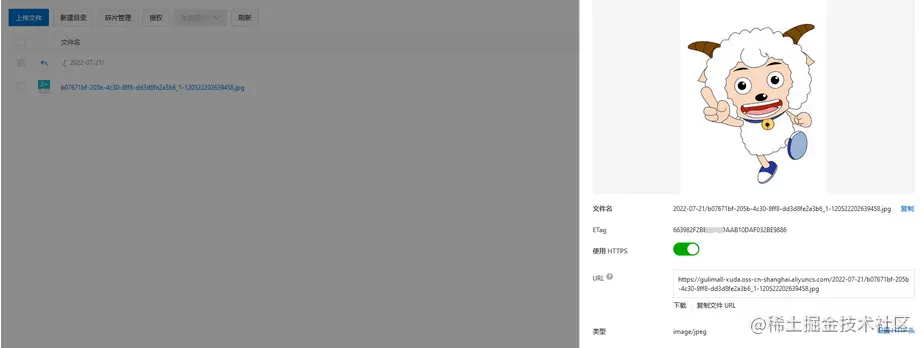

使用SpringCloud阿里云封装好的OSSClient直接进行上传

测试用例

@SpringBootTest
public class TestFor {
    @Resource
    OSSClient ossClient;
    @Test
    public void te() throws FileNotFoundException {
        FileInputStream inputStream = new FileInputStream("C:\\Users\\Pictures\\903d28ab0e2f4bb59bdf8f7c6fd22fe4.jpg");
        ossClient.putObject("gulimall-xuda","903d28ab0e2f4bb59bdf8f7c6fd22fe4.jpg",inputStream);
        ossClient.shutdown();
        System.out.println("上传完成");
    }
}

注意：如果您使用了阿里云 STS服务 进行短期访问权限管理，则除了 accessKey、secretKey、endpoint 以外，还需配置 securityToken。

注入 OSSClient 并进行文件下载操作。

 @Service
 public class YourService {
    @Autowired
    private OSSClient ossClient;

    public void saveFile() {
        // download file to local
        ossClient.getObject(new GetObjectRequest(bucketName, objectName), new File("pathOfYourLocalFile"));
    }
 }

说明：直接注入OSSClient 方式通常用于大量文件对象操作的场景。如果仅仅是需要读取文件对象内容，OSS Starter 也支持以 Resource 方式读取文件， 前后端整合进行阿里云OSS

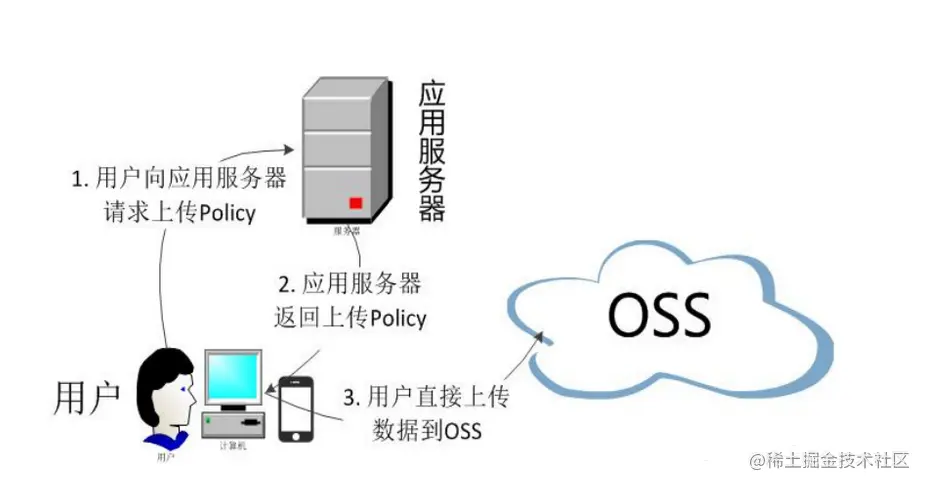

上传流程阿里云对象存储-服务端签名后直传

通常我们是前端将图片数据上传到后端再通过后端上传到OSS的，但这样直接使用服务器进行交互会使我们的服务器压力很大，

因为上传到OSS需要带上key的账户和密码，所以我们可以向服务器上传我们的请求，服务器将OSSkey生成一个签名数据返回给前端，前端将图片与签名数据进行携带直接与阿里云OSS进行交互上传，这样可以更快更节省服务器压力 可以参考下列文档 阿里云OSS服务端签名直传地址 在这里插入图片描述 网关设置

使用到nacos作为服务注册，gateway网关作为服务分发

spring:
  cloud:
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
    gateway:
      routes:
        - id: test_route
          uri: https://www.baidu.com
          predicates:
            - Query=url,baidu

        - id: third_party_route
          uri: lb://gulimall-third-party
          predicates:
            - Path=/api/thirdparty/**
          filters:
            - RewritePath=/api/thirdparty/(?<segment>.*),/$\{segment}

  application:
    name: gulimall-gateway

server:
  port: 89

网关配置跨域请求权限

package com.xuda.gateway.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.web.cors.CorsConfiguration;
import org.springframework.web.cors.reactive.CorsWebFilter;
import org.springframework.web.cors.reactive.UrlBasedCorsConfigurationSource;

/**
 * @author ：程序员徐大大
 * @description：统一配置跨域请求
 * @date ：2022-07-19 22:21
 */
@Configuration
public class CoresConfigur {
        @Bean
        public CorsWebFilter corsWebFilter() {
            UrlBasedCorsConfigurationSource urlBasedCorsConfigurationSource = new UrlBasedCorsConfigurationSource();
            CorsConfiguration coresConfiguration = new CorsConfiguration();
            //配置跨域
            coresConfiguration.addAllowedHeader("*");
            coresConfiguration.addAllowedMethod("*");
         // coresConfiguration.addAllowedOrigin("*");
            //allowedOriginPatterns
            coresConfiguration.addAllowedOriginPattern("*");
            coresConfiguration.setAllowCredentials(true);
            urlBasedCorsConfigurationSource.registerCorsConfiguration("/**",coresConfiguration);
            return new CorsWebFilter(urlBasedCorsConfigurationSource);
        }
    }

创建第三方OSS项目

创建yml相关配置

spring:
  cloud:
    alicloud:
      access-key: your-key
      secret-key: your-key
      oss:
        endpoint: oss-cn-shanghai.aliyuncs.com
    nacos:
      discovery:
        server-addr: 127.0.0.1:8848
  application:
    name: third-party
server:
  port: 8900

编写回调OSS签名密钥代码

package com.xuda.thirdparty.controller;

import com.alibaba.fastjson.JSONObject;
import com.aliyun.oss.OSSClient;
import com.aliyun.oss.common.utils.BinaryUtil;
import com.aliyun.oss.model.MatchMode;
import com.aliyun.oss.model.PolicyConditions;
import com.xuda.common.utils.R;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RestController;

import javax.annotation.Resource;
import java.text.SimpleDateFormat;
import java.util.Date;
import java.util.LinkedHashMap;
import java.util.Map;

/**
 * @author ：程序员徐大大
 * @description：TODO
 * @date ：2022-07-21 21:35
 */
@RestController
public class OssController {

    @Resource
    private OSSClient ossClient;

    @Value("${spring.cloud.alicloud.oss.endpoint}")
    private String endpoint;

    @Value("${spring.cloud.alicloud.access-key}")
    private String accessId;

    @RequestMapping("/oss/policy")
    public R policy() {
        // 阿里云账号AccessKey拥有所有API的访问权限，风险很高。强烈建议您创建并使用RAM用户进行API访问或日常运维，请登录RAM控制台创建RAM用户。

        // 填写Bucket名称，例如examplebucket。
        String bucket = "gulimall-xuda";
        // 填写Host地址，格式为https://bucketname.endpoint。
        String host = "https://" + bucket + "."+ endpoint;
        // 设置上传回调URL，即回调服务器地址，用于处理应用服务器与OSS之间的通信。OSS会在文件上传完成后，把文件上传信息通过此回调URL发送给应用服务器。
      //  String callbackUrl = "https://192.168.0.0:8888";
        // 设置上传到OSS文件的前缀，可置空此项。置空后，文件将上传至Bucket的根目录下。
        //将日期作为上传的文件夹目录
        String format = new SimpleDateFormat("yyyy-MM-dd").format(new Date());
        String dir = format+"/";
        Map<String, String> respMap = null;
        try {
            long expireTime = 30;
            long expireEndTime = System.currentTimeMillis() + expireTime * 1000;
            Date expiration = new Date(expireEndTime);
            PolicyConditions policyConds = new PolicyConditions();
            policyConds.addConditionItem(PolicyConditions.COND_CONTENT_LENGTH_RANGE, 0, 1048576000);
            policyConds.addConditionItem(MatchMode.StartWith, PolicyConditions.COND_KEY, dir);

            String postPolicy = ossClient.generatePostPolicy(expiration, policyConds);
            byte[] binaryData = postPolicy.getBytes("utf-8");
            String encodedPolicy = BinaryUtil.toBase64String(binaryData);
            String postSignature = ossClient.calculatePostSignature(postPolicy);

            respMap = new LinkedHashMap<String, String>();
            respMap.put("accessid", accessId);
            respMap.put("policy", encodedPolicy);
            respMap.put("signature", postSignature);
            respMap.put("dir", dir);
            respMap.put("host", host);
            respMap.put("expire", String.valueOf(expireEndTime / 1000));
            // respMap.put("expire", formatISO8601Date(expiration));

        } catch (Exception e) {
            // Assert.fail(e.getMessage());
            System.out.println(e.getMessage());
        }
        return  R.ok().put("data",respMap); //创建返回JSON数据封装
    }
}

JSON返回代码

package com.xuda.common.utils;

import org.apache.http.HttpStatus;

import java.util.HashMap;
import java.util.Map;

/**
 * 返回数据
 *
 */
public class R extends HashMap<String, Object> {
    private static final long serialVersionUID = 1L;

    public R() {
        put("code", 0);
        put("msg", "success");
    }

    public static R error() {
        return error(HttpStatus.SC_INTERNAL_SERVER_ERROR, "未知异常，请联系管理员");
    }

    public static R error(String msg) {
        return error(HttpStatus.SC_INTERNAL_SERVER_ERROR, msg);
    }

    public static R error(int code, String msg) {
        R r = new R();
        r.put("code", code);
        r.put("msg", msg);
        return r;
    }

    public static R ok(String msg) {
        R r = new R();
        r.put("msg", msg);
        return r;
    }

    public static R ok(Map<String, Object> map) {
        R r = new R();
        r.putAll(map);
        return r;
    }

    public static R ok() {
        return new R();
    }

    public R put(String key, Object value) {
        super.put(key, value);
        return this;
    }
}

前端VUE代码示例

<template>
  <el-dialog
    :title="!dataForm.brandId ? '新增' : '修改'"
    :close-on-click-modal="false"
    :visible.sync="visible"
  >
    <el-form
      :model="dataForm"
      :rules="dataRule"
      ref="dataForm"
      @keyup.enter.native="dataFormSubmit()"
      label-width="140px"
    >
      <el-form-item label="品牌名" prop="name">
        <el-input v-model="dataForm.name" placeholder="品牌名"></el-input>
      </el-form-item>
      <el-form-item label="品牌logo地址" prop="logo">
        <single-upload v-model="dataForm.logo"></single-upload>
      </el-form-item>
    </el-form>
    <span slot="footer" class="dialog-footer">
      <el-button @click="visible = false">取消</el-button>
      <el-button type="primary" @click="dataFormSubmit()">确定</el-button>
    </span>
  </el-dialog>
</template>

<script>

import SingleUpload from "@/components/upload/singleUpload";
export default {
  components: { SingleUpload },
  data() {
    return {
      visible: false,
      dataForm: {
        brandId: 0,
        name: "",
        logo: "",
      },
      dataRule: {
        name: [{ required: true, message: "品牌名不能为空", trigger: "blur" }],
        logo: [
          { required: true, message: "品牌logo地址不能为空", trigger: "blur" },
        ],
      },
    };
  },
  methods: {
    init(id) {
      this.dataForm.brandId = id || 0;
      this.visible = true;
      this.$nextTick(() => {
        this.$refs["dataForm"].resetFields();
        if (this.dataForm.brandId) {
          this.$http({
            url: this.$http.adornUrl(
              `/product/brand/info/${this.dataForm.brandId}`
            ),
            method: "get",
            params: this.$http.adornParams(),
          }).then(({ data }) => {
            if (data && data.code === 0) {
              this.dataForm.name = data.brand.name;
              this.dataForm.logo = data.brand.logo;
            }
          });
        }
      });
    },
    // 表单提交
    dataFormSubmit() {
      this.$refs["dataForm"].validate((valid) => {
        if (valid) {
          this.$http({
            url: this.$http.adornUrl(
              `/product/brand/${!this.dataForm.brandId ? "save" : "update"}`
            ),
            method: "post",
            data: this.$http.adornData({
              brandId: this.dataForm.brandId || undefined,
              name: this.dataForm.name,
              logo: this.dataForm.logo,
            }),
          }).then(({ data }) => {
            if (data && data.code === 0) {
              this.$message({
                message: "操作成功",
                type: "success",
                duration: 1500,
                onClose: () => {
                  this.visible = false;
                  this.$emit("refreshDataList");
                },
              });
            } else {
              this.$message.error(data.msg);
            }
          });
        }
      });
    },
  },
};
</script>

<template>
  <div>
    <el-upload
      action="http://gulimall-xuda.oss-cn-shanghai.aliyuncs.com"
      :data="dataObj"
      list-type="picture"
      :multiple="false" :show-file-list="showFileList"
      :file-list="fileList"
      :before-upload="beforeUpload"
      :on-remove="handleRemove"
      :on-success="handleUploadSuccess"
      :on-preview="handlePreview">
      <el-button size="small" type="primary">点击上传</el-button>
      <div slot="tip" class="el-upload__tip">只能上传jpg/png文件，且不超过10MB</div>
    </el-upload>
    <el-dialog :visible.sync="dialogVisible">
      <img width="100%" :src="fileList[0].url" alt="">
    </el-dialog>
  </div>
</template>
<script>
   import {policy} from './policy'  //导入封装的请求地址 ,下面的可以直接加上
   /**
   import http from '@/utils/httpRequest.js'
export function policy() {
   return  new Promise((resolve,reject)=>{
        http({
            url: http.adornUrl("/thirdparty/oss/policy"),
            method: "get",
            params: http.adornParams({})
        }).then(({ data }) => {
            resolve(data);
        })
    });
}
   */
   import { getUUID } from '@/utils'   //为了使用工具导入UUID
/**
//获取uuid,需要的可以加上进行更改
export function getUUID () {
  return 'xxxxxxxx-xxxx-4xxx-yxxx-xxxxxxxxxxxx'.replace(/[xy]/g, c => {
    return (c === 'x' ? (Math.random() * 16 | 0) : ('r&0x3' | '0x8')).toString(16)
  })
}

*/
  export default {
    name: 'singleUpload',
    props: {
      value: String
    },
    computed: {
      imageUrl() {
        return this.value;
      },
      imageName() {
        if (this.value != null && this.value !== '') {
          return this.value.substr(this.value.lastIndexOf("/") + 1);
        } else {
          return null;
        }
      },
      fileList() {
        return [{
          name: this.imageName,
          url: this.imageUrl
        }]
      },
      showFileList: {
        get: function () {
          return this.value !== null && this.value !== ''&& this.value!==undefined;
        },
        set: function (newValue) {
        }
      }
    },
    data() {
      return {
        dataObj: {
          policy: '',
          signature: '',
          key: '',
          ossaccessKeyId: '',
          dir: '',
          host: '',
          // callback:'',
        },
        dialogVisible: false
      };
    },
    methods: {
      emitInput(val) {
        this.$emit('input', val)
      },
      handleRemove(file, fileList) {
        this.emitInput('');
      },
      handlePreview(file) {
        this.dialogVisible = true;
      },
      beforeUpload(file) {
        let _self = this;
        return new Promise((resolve, reject) => {
          policy().then(response => {
            console.log("响应的数据",response);
            _self.dataObj.policy = response.data.policy;
            _self.dataObj.signature = response.data.signature;
            _self.dataObj.ossaccessKeyId = response.data.accessid;
            _self.dataObj.key = response.data.dir +getUUID()+'_${filename}'; //上传所加的目录
            _self.dataObj.dir = response.data.dir;
            _self.dataObj.host = response.data.host;
            resolve(true)
          }).catch(err => {
            reject(false)
          })
        })
      },
      handleUploadSuccess(res, file) {
        console.log("上传成功...")
        this.showFileList = true;
        this.fileList.pop();
        this.fileList.push({name: file.name, url: this.dataObj.host + '/' + this.dataObj.key.replace("${filename}",file.name) });
        this.emitInput(this.fileList[0].url);
      }
    }
  }
</script>
<style>

</style>
