TensorFlow中的ResNet残差网络实战（1）

1.导入相应的库

import os
import tensorflow as tf
import numpy as np
import matplotlib.pyplot as plt
from tensorflow.keras import datasets,losses,Sequential,optimizers

2.加载MNIST数据集：

(x_train,y_train),(x_test,y_test)=tf.keras.datasets.mnist.load_data()
x_train,x_test=x_train.astype('float')/255.0,x_test.astype('float32')/255.0

Batch_Size=32
x_train=tf.reshape(x_train,[-1,28,28,1])
x_test=tf.reshape(x_test,[-1,28,28,1])

3.转one_hot编码：

y_train=tf.one_hot(y_train,depth=10).numpy()
y_test=tf.one_hot(y_test,depth=10).numpy()

4.设置全局参数：

EPOCHES=1
batch_Size=32
learning_rate=0.001

5.定义ResNet模型：

#定义每一个ResNetBlock，其中一组中包含多个ResNetBlock,每一个ResNetBlock又包含几层卷积层
class ResNetBlock(tf.keras.Model):
    def __init__(self,filter_num,stride=1):
        super(ResNetBlock,self).__init__()
        self.conv1=tf.keras.layers.Conv2D(filter_num,kernel_size=[3,3],strides=stride,padding='same')
        self.bn1=tf.keras.layers.BatchNormalization()
        self.relu=tf.keras.layers.Activation('relu')

        self.conv2=tf.keras.layers.Conv2D(filter_num,kernel_size=[3,3],strides=1,padding='same')
        self.bn2=tf.keras.layers.BatchNormalization()

        #当经过卷积层之后，发现经过卷积层之前的shape和经过卷积之后的shape不相同，
        #可以通过1*1的卷积层将它们的shape转换为一样的，再叠加。相当于当前的X通过乘以一个W，转换为相同的shape
        if stride!=1:
            self.downSample=Sequential([
                tf.keras.layers.Conv2D(filter_num,kernel_size=[1,1],strides=stride)
            ])
        #如果相同的话就直接叠加，不需要转换
        else:
            self.downSample=lambda x:x
    def call(self,inputs,training=None):
        #通过当前的第一层卷积层
        out=self.conv1(inputs)
        out=self.bn1(out)
        out=self.relu(out)

        #通过当前的第二层卷积层
        out=self.conv2(out)
        out=self.bn2(out)

        #最后经过一个f(x)+x
        identity=self.downSample(inputs)

        output=tf.keras.layers.add([identity,out])
        output=tf.nn.relu(output)
        return output

class ResNet(tf.keras.Model):
    def __init__(self,layers_num,num_classes=10):
        super(ResNet,self).__init__()
        #开始的输入层经过一个3*3，步长为1的卷积层和最大池化层
        self.stem=Sequential([
            tf.keras.layers.Conv2D(64,kernel_size=[3,3],strides=[1,1]),
            tf.keras.layers.BatchNormalization(),
            tf.keras.layers.Activation('relu'),

            tf.keras.layers.MaxPool2D(pool_size=[2,2],strides=[1,1],padding='same')
        ])
        #通过第一个组
        self.layer1=self.build_resblock(64,layers_num[0])
        #通过第二个组
        self.layer2=self.build_resblock(128,layers_num[1],stride=2)
        #通过第三个组
        self.layer3=self.build_resblock(256,layers_num[2],stride=2)
        #通过第四个组
        self.layer4=self.build_resblock(512,layers_num[3],stride=2)

        #经过全局平均池化层
        self.avgPool=tf.keras.layers.GlobalAveragePooling2D()

        #经过最后的全连接层
        self.fc=tf.keras.layers.Dense(num_classes)

    #这个函数是在构建一个组中的ResNetBlock
    def build_resblock(self,filter_num,blocks,stride=1):
        res_block=Sequential([
            ResNetBlock(filter_num,stride)
        ])
        for i in range(1,blocks):
            res_block.add(ResNetBlock(filter_num,stride=1))
        return res_block

    def call(self,inputs,training=None):
        x=self.stem(inputs)

        x=self.layer1(x)
        x=self.layer2(x)
        x=self.layer3(x)
        x=self.layer4(x)

        out=self.avgPool(x)

        output=self.fc(out)
        return output

6.调用模型：

def resnet18():
    return ResNet([2,2,2,2])
def resnet34():
    return ResNet([3,4,6,3])

7.模型编译和优化器选择

model=resnet18()
optimizer=optimizers.Adam(learning_rate=learning_rate)
model.compile(optimizer=optimizer,loss=losses.CategoricalCrossentropy(from_logits=True),metrics=['accuracy'])

model.build(input_shape=(None,28,28,1))

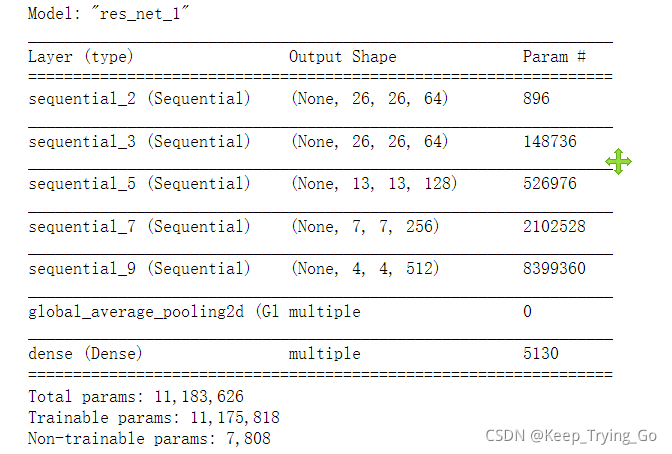

model.summary()

8.模型训练

model.fit(x_train,y_train,epochs=EPOCHES,validation_data=(x_test,y_test),verbose=1,batch_size=batch_Size)
model.save_weights('ResNet_34.h5')

9. 使用测试集数据评估误差和准确率

loss,accuracy=model.evaluate(x_test,y_test,batch_size=batch_Size,verbose=1)
