BFS/ DFS

BFS/DFS 代码实现

Graph

Undirected Graph 无向图

G = （V, E）
Graph is defined by the nodes and edges. n = |V|, m = |E|.

Representations of Graph

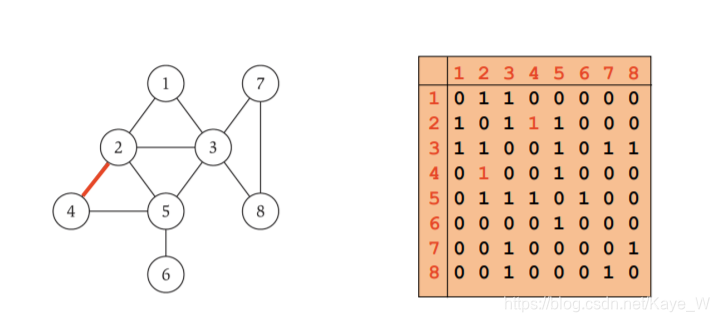

1. Adjancency Matrix


• Space Complexity: O(n^2)
• Check if the edge (u, v) exist: O(1)
• Identifying all edges: O(n^2)

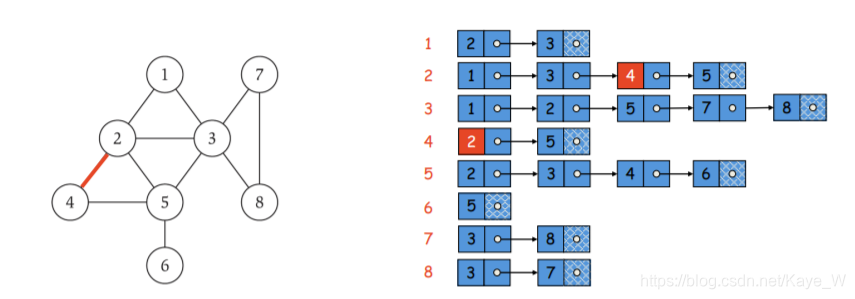

2. Adjacency List


• Space Complexity: O(m+n)
• Check if an edge(u, v) exist: O(deg(u)) - the degree of u denotes the neighbors of node u
• Identifying all the edges: O(m+n)

Connectivity

An undirected graph is connected if for every pairs of nodes u and v, there is a path between u and v.

• Paths
• Circles
• Trees: 任意两个条件可以推出第三个

1. The graph is connected
2. No circle in the graph
3. n-1 edges

• Rooted Trees
  All nodes are derived from the root node. parent/ child of a node.

Graph Traversal

• Connectivity problem. If there is a path between node u and v.
• Shortest path problem. What is the shortest path beween u and v.

BFS - Breadth First Search - 广度优先搜索

Connecticity in BFS

def BFS(G, s):
	layers = []
	current_layer = [s]
	next_layer = []
	"make every vertex except s as not seen"
	while "current layer not empty:"
		layers.append(current_layer)
		for u in current_layer:
			for v in the neighborhood of u:
				if v not seen:
					next_layer.append(v)
					"mark v as seen"
		current_layer = next_Layer //当一层遍历结束，开始下一层遍历
		next_layer = [] //清除
	return layers

• Porperty
  Let T be a BFS tree of G = (V, E), and let (u, v) be an edge of G. Then the level of u and v differ by at most 1.
• Theorem
  The above implementation of BFS runs in O(m + n) time if the graph is given by its adjacency list representation.
  • Proof
    当考虑node u，和它可能的边(u,v)，检测u所有的neighbors需要deg(u)，对v来说是deg(u)。一共算两遍。Generally, 就是O(2m)。为啥是(m+n)不是(mn)呢？
• Summary
  1. Running time of BFS depends on the graph represetation.
  2. Traverse all neighbors of a node u:
     • Adajacency List: O(deg(u))
     • Adajacency Matrix: O(n)
  3. Check if u and v are connected by an edge:
     • Adajacency List: O(deg(u)) or O(deg(v))
     • Adajacency Matrix: O(1)
  4. Space:
     • Adajacency List: O(|V|+|E|) = O(m+n)
     • Adajacency Matrix: O(|V|^2) = O(n^2)

Shortest Path in BFS

find the path with minimum edges.
Let dist[u] = shortest pat hdistance(hop distance) from s to u

def BFS(G,s):
	layers = []
	current_layer = [s]
	next_layer = []
	for all u set dist[u] = infinity
	dist[s] = 0
	"mark all the vertex except s as not seen"
	// 这里应该要把s的neighbor加入current_layer，dist[u] = dist[s] + 1
	while "current_layer not empty":
		layers.append(current_layer)
		for u in current_layer:
			for v in the neighborhood of u:
				if "v not seen":
					next_layer.append(v)
					"mark v as seen"
					dist[v] = dist[u] + 1
			current_layer = next_layer
			next_layer = []
		return dist //最小值就是最短路径

Transitive Closure of a graph

图里每两个node之间都有path。

def BFS_closure(G,s):
	layers = []
	current_layer = [s]
	next_layer = []
	"mark each vertex except s as not seen"
	while "current_layer not empty":
		layers.append(current_layer)
		for u in current_layer:
			for v in the neighborhood of u:
				if v not seen:
					next_layer.append(v)
					"add edge (s,v) in the graph"
		current_layer = next_layer
		next_layer = []
	return layers

但只增加了初始node到其他vertex之间的edge。
如果想要按层加，需要

for s inV:
	BFS_closure(G,s)

但显然这样代价太高了啊？

DFS - Depth First Search - 深度优先搜索

选一个开始的节点，跟着outgoing edge一直走新的vertex，每次struck就backtrack。

def DFS(G,s):
	mark vertices as unvisited
	set vertices's parent as None
	for u in V:
		if haven't seen u:
			DFS_visit(u)
	return parent

def DFS_visit(u):
	mark u as visited
	for v in the neighborhood of u:
		if haven't seen v yet:
			parent[v] = u
			DFS_visit(v)

• Properties

1. Running time: O(m+n)
2. If the graph is connected, then the DFS edges form a tree
3. A graph is connected if and only if DFS results in a single tree
