系统分析与设计Lesson7

领域建模

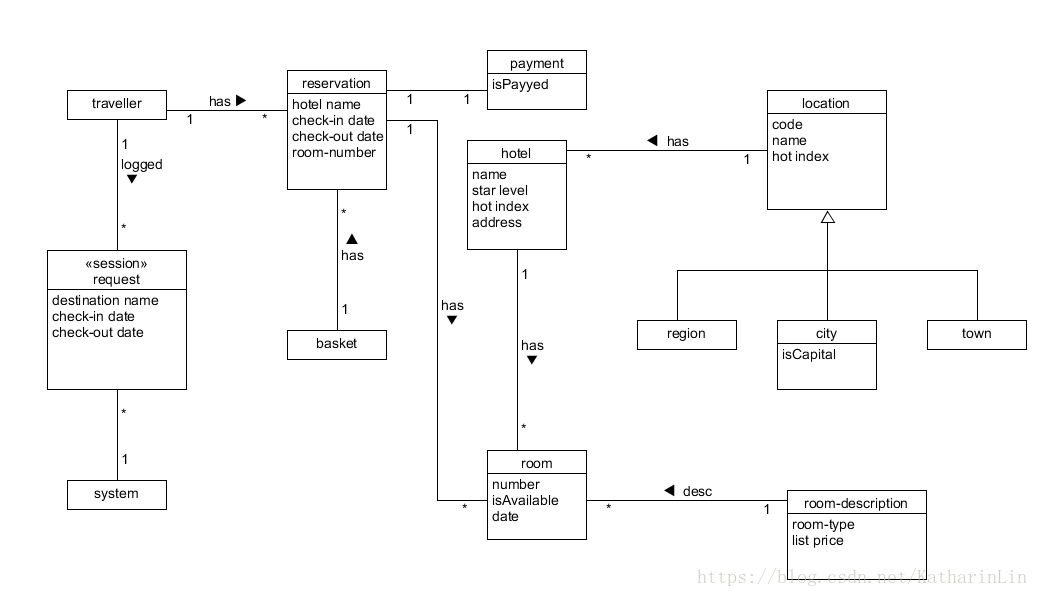

a. 阅读 Asg_RH 文档，按用例构建领域模型。
按 Task2 要求，请使用工具 UMLet，截图格式务必是 png 并控制尺寸

数据库建模(E-R 模型)

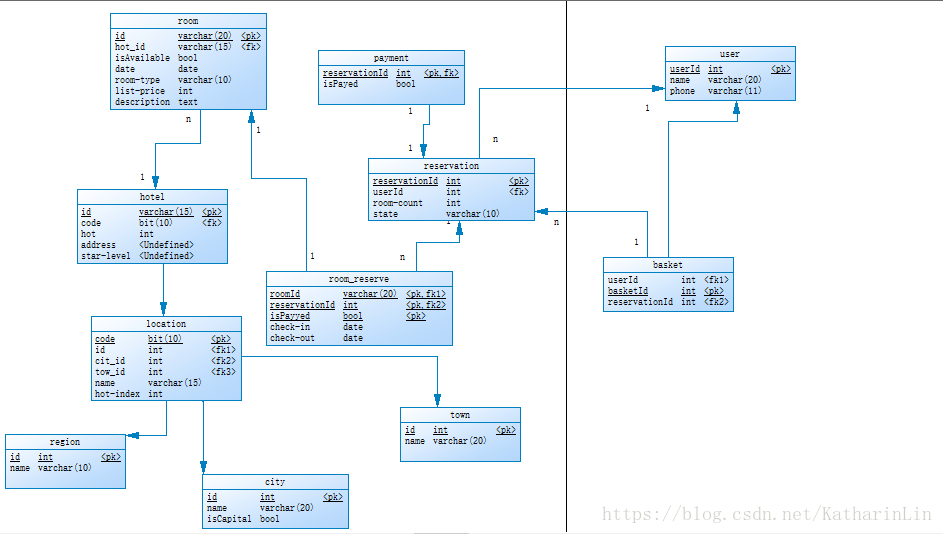

按 Task 3 要求，给出系统的 E-R 模型（数据逻辑模型）。
使用的是PowerDesigner。

导出SQL代码：

/*==============================================================*/
/* DBMS name:      MySQL 5.0                                    */
/* Created on:     2018-04-29 20:23:21                          */
/*==============================================================*/


drop table if exists basket;

drop table if exists city;

drop table if exists hotel;

drop table if exists location;

drop table if exists payment;

drop table if exists region;

drop table if exists reservation;

drop table if exists room;

drop table if exists room_reserve;

drop table if exists town;

drop table if exists user;

/*==============================================================*/
/* Table: basket                                                */
/*==============================================================*/
create table basket
(
   userId               int not null,
   basketId             int not null,
   reservationId        int,
   primary key (basketId)
);

/*==============================================================*/
/* Table: city                                                  */
/*==============================================================*/
create table city
(
   id                   int not null,
   name                 varchar(20) not null,
   isCapital            bool not null,
   primary key (id)
);

/*==============================================================*/
/* Table: hotel                                                 */
/*==============================================================*/
create table hotel
(
   id                   varchar(15) not null,
   code                 bit(10),
   hot                  int,
   address              char(10),
   "star-level"         char(10),
   primary key (id)
);

/*==============================================================*/
/* Table: location                                              */
/*==============================================================*/
create table location
(
   code                 bit(10) not null,
   id                   int,
   cit_id               int,
   tow_id               int,
   name                 varchar(15) not null,
   "hot-index"          int,
   primary key (code)
);

/*==============================================================*/
/* Table: payment                                               */
/*==============================================================*/
create table payment
(
   reservationId        int not null,
   isPayed              bool not null,
   primary key (reservationId)
);

/*==============================================================*/
/* Table: region                                                */
/*==============================================================*/
create table region
(
   id                   int not null,
   name                 varchar(10) not null,
   primary key (id)
);

/*==============================================================*/
/* Table: reservation                                           */
/*==============================================================*/
create table reservation
(
   reservationId        int not null,
   userId               int,
   "room-count"         int not null,
   state                varchar(10),
   primary key (reservationId)
);

/*==============================================================*/
/* Table: room                                                  */
/*==============================================================*/
create table room
(
   id                   varchar(20) not null,
   hot_id               varchar(15),
   isAvailable          bool not null,
   date                 date not null,
   "room-type"          varchar(10) not null,
   "list-price"         int not null,
   description          text,
   primary key (id)
);

/*==============================================================*/
/* Table: room_reserve                                          */
/*==============================================================*/
create table room_reserve
(
   roomId               varchar(20) not null,
   reservationId        int not null,
   isPayyed             bool not null,
   "check-in"           date,
   "check-out"          date,
   primary key (roomId, reservationId, isPayyed)
);

/*==============================================================*/
/* Table: town                                                  */
/*==============================================================*/
create table town
(
   id                   int not null,
   name                 varchar(20) not null,
   primary key (id)
);

/*==============================================================*/
/* Table: user                                                  */
/*==============================================================*/
create table user
(
   userId               int not null,
   name                 varchar(20) not null,
   phone                varchar(11) not null,
   primary key (userId)
);

alter table basket add constraint FK_Reference_2 foreign key (userId)
      references user (userId) on delete restrict on update restrict;

alter table basket add constraint FK_Reference_3 foreign key (reservationId)
      references reservation (reservationId) on delete restrict on update restrict;

alter table hotel add constraint FK_Reference_4 foreign key (code)
      references location (code) on delete restrict on update restrict;

alter table location add constraint FK_Reference_10 foreign key (tow_id)
      references town (id) on delete restrict on update restrict;

alter table location add constraint FK_Reference_8 foreign key (id)
      references region (id) on delete restrict on update restrict;

alter table location add constraint FK_Reference_9 foreign key (cit_id)
      references city (id) on delete restrict on update restrict;

alter table payment add constraint FK_Reference_11 foreign key (reservationId)
      references reservation (reservationId) on delete restrict on update restrict;

alter table reservation add constraint FK_Reference_5 foreign key (userId)
      references user (userId) on delete restrict on update restrict;

alter table room add constraint FK_Reference_1 foreign key (hot_id)
      references hotel (id) on delete restrict on update restrict;

alter table room_reserve add constraint FK_Reference_6 foreign key (roomId)
      references room (id) on delete restrict on update restrict;

alter table room_reserve add constraint FK_Reference_7 foreign key (reservationId)
      references reservation (reservationId) on delete restrict on update restrict;

简单叙说 数据库逻辑模型 与 领域模型 的异同
领域模型是对领域内的概念类或现实世界中对象的可视化表示。又称概念模型、领域对象模型、分析对象模型。它专注于分析问题领域本身，发掘重要的业务领域概念，并建立业务领域概念之间的关系。
数据库建模：在设计数据库时，对现实世界进行分析、抽象、并从中找出内在联系，进而确定数据库的结构，这一过程就称为数据库建模。它主要包括两部分内容：确定最基本的数据结构；对约束建模。
不同之处：领域模型更注重的是业务领域的内容，而数据库建模更注重实体和实体之间的关系。
相同之处：都是人们用来分析问题解决问题借助的工具。
