【云原生】k8s 一键部署（ansible）

一、概述
前面我写了关于k8s环境部署的几篇文章，k8s部署还是比较麻烦的，所以是有必要考虑一键部署的方案，这里借助ansible playbook来实现k8s环境的一键部署，实现快速部署的目的。

节点信息

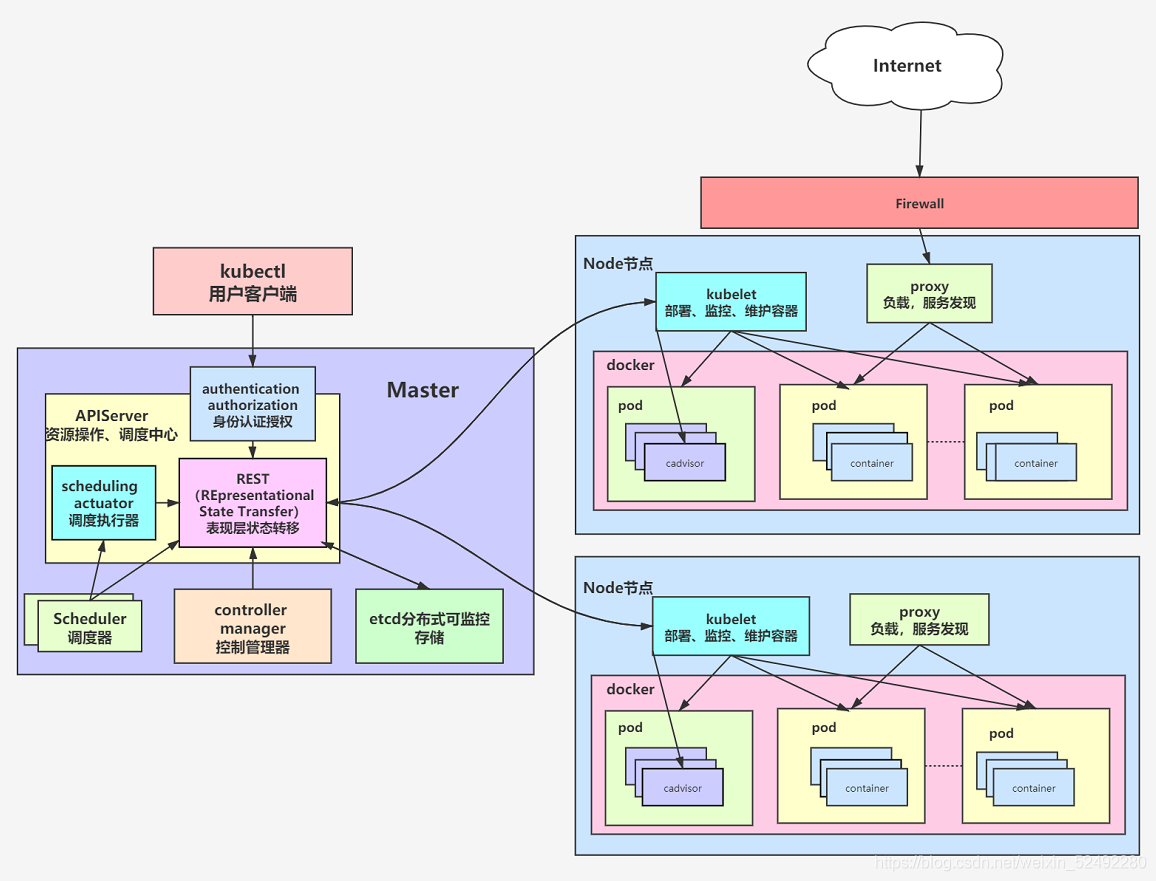

k8s 架构图：

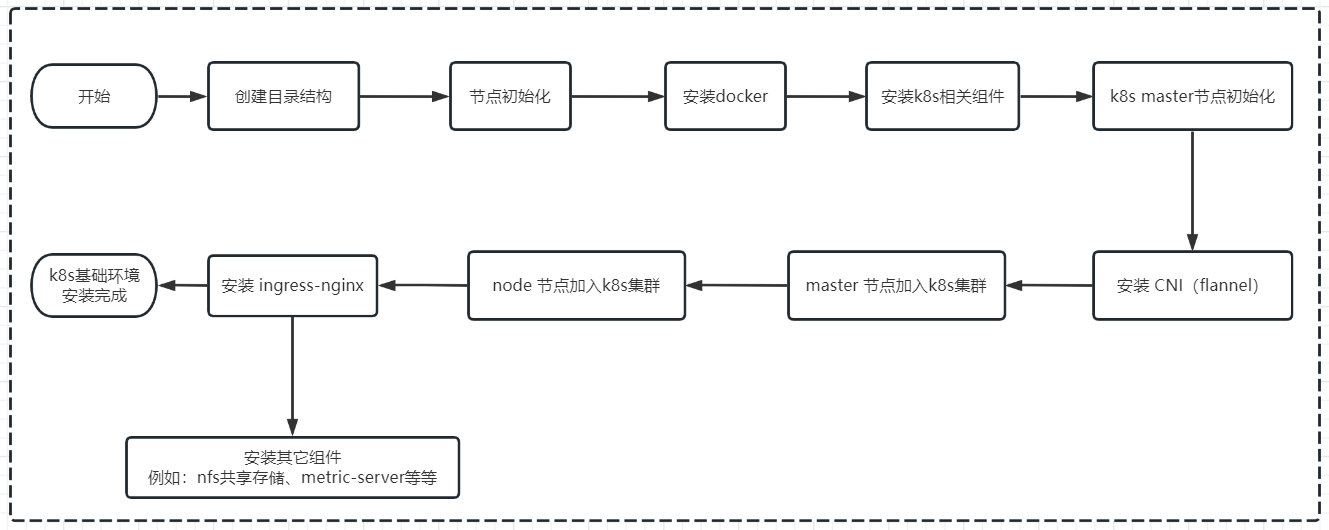

基于ansible部署k8s流程图：

二、Ansible 部署

yum -y install epel-release
yum -y install ansible
ansible --version

1）开启记录日志
配置文件：/etc/ansible/ansible.cfg

vi /etc/ansible/ansible.cfg
# 去掉前面的'#'号
#log_path = /var/log/ansible.log ==> log_path = /var/log/ansible.log

2）去掉第一次连接ssh ask确认

vi /etc/ansible/ansible.cfg
# 其实就是把#去掉
# host_key_checking = False  ==> host_key_checking = False

3）配置hosts
配置文件：/etc/ansible/hosts

[master1]
192.168.182.110

[master2]
192.168.182.111
192.168.182.112

[node]
192.168.182.113

[k8s:children]
master1
master2
node

[k8s:vars]
ansible_ssh_user=root
ansible_ssh_pass=1331301116
ansible_ssh_port=22
# k8s 版本
k8s_version=1.23.6

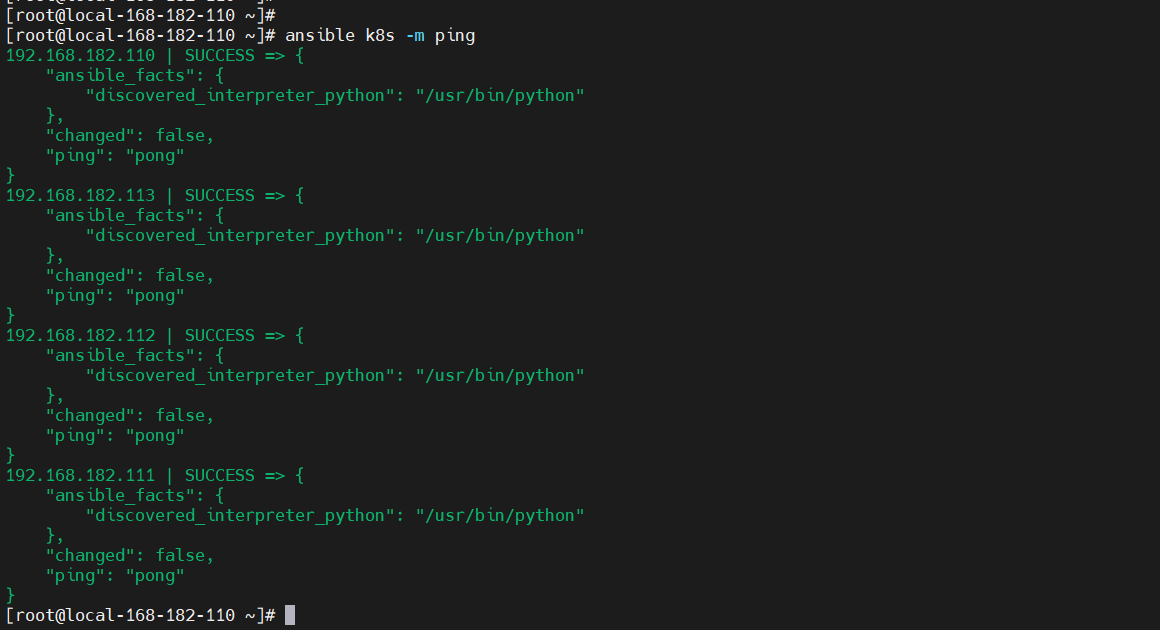

测试连通性

ansible k8s -m ping

三、开始编排 ansible playbook
1）创建目录

mkdir -pv ./install-k8s/{

   init,install-docker,install-k8s,master-init,install-cni,install-ipvs,master-join,node-join,install-ingress-nginx,install-nfs-provisioner,install-harbor,install-metrics-server,uninstall-k8s}/{

   files,templates,vars,tasks,handlers,meta,default}

2）节点初始化
准备install-k8s/init/files/hosts文件

192.168.182.110 local-168-182-110
192.168.182.111 local-168-182-111
192.168.182.112 local-168-182-112
192.168.182.113 local-168-182-113

准备脚本install-k8s/init/templates/init.sh，内容如下：

#!/usr/bin/env bash

### 【第一步】修改主机名
# 获取主机名
hostnamectl set-hostname $(grep `hostname -i` /tmp/hosts|awk '{

   print $2}')


### 【第二步】配置hosts
# 先删除
for line in `cat /tmp/hosts`
do
    sed -i "/$line/d" /etc/hosts
done
# 追加
cat /tmp/hosts >> /etc/hosts


### 【第三步】添加互信
# 先创建秘钥对
ssh-keygen -f ~/.ssh/id_rsa -P '' -q

# 安装expect
yum -y install expect -y

# 批量推送公钥
for line in `cat /tmp/hosts`
do

ip=`echo $line|awk '{

   print $1}'`
password={

   {

    ansible_ssh_pass }}

expect <<-EOF

spawn ssh-copy-id -i /root/.ssh/id_rsa.pub $ip
expect {


    "(yes/no)?"
    {


        send "yes\n"
        expect "*assword:" {

    send "$password\n"}
    }
    "*assword:"
    {


        send "$password\n"
    }
}

expect eof
EOF
done


### 【第四步】时间同步
yum install chrony -y
systemctl start chronyd
systemctl enable chronyd
chronyc sources


### 【第五步】关闭防火墙
systemctl stop firewalld
systemctl disable firewalld


### 【第六步】关闭swap
# 临时关闭；关闭swap主要是为了性能考虑
swapoff -a
# 永久关闭
sed -ri 's/.*swap.*/#&/' /etc/fstab


### 【第七步】禁用SELinux
# 临时关闭
setenforce 0
# 永久禁用
sed -i 's/^SELINUX=enforcing$/SELINUX=disabled/' /etc/selinux/config


### 【第八步】允许 iptables 检查桥接流量
sudo modprobe br_netfilter
lsmod | grep br_netfilter

# 先删
rm -rf /etc/modules-load.d/k8s.conf

cat <<EOF | sudo tee /etc/modules-load.d/k8s.conf
overlay
br_netfilter
EOF

sudo modprobe overlay
sudo modprobe br_netfilter

rm -rf /etc/sysctl.d/k8s.conf
# 设置所需的 sysctl 参数，参数在重新启动后保持不变
cat <<EOF | sudo tee /etc/sysctl.d/k8s.conf
net.bridge.bridge-nf-call-iptables  = 1
net.bridge.bridge-nf-call-ip6tables = 1
net.ipv4.ip_forward                 = 1
EOF

# 应用 sysctl 参数而不重新启动
sudo sysctl --system

任务编排 install-k8s/init/tasks/main.yml

- name: cp hosts
  copy: src=hosts dest=/tmp/hosts
- name: init cp
  template: src=init.sh dest=/tmp/init.sh
- name: init install
  shell: sh /tmp/init.sh

3）安装 docker
install-k8s/install-docker/files/install-docker.sh

#!/usr/bin/env bash

### 安装docker
# 配置yum源
cd /etc/yum.repos.d ; mkdir bak; mv CentOS-Linux-* bak/
# centos7
wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-7.repo
# centos8
# wget -O /etc/yum.repos.d/CentOS-Base.repo http://mirrors.aliyun.com/repo/Centos-8.repo

# 安装yum-config-manager配置工具
yum
