Swagger2简单应用

准备:pom文件中增加Swagger2依赖

<!--引入swagger插件 -->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.9.1</version>
		</dependency>
<!--引入swaggerUI包 -->
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.9.1</version>
		</dependency>

编写配置类:

package *;

import java.util.ArrayList;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.service.Contact;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration //设置该类为配置类
@EnableSwagger2 //启用Swagger2
public class Swagger2Config {
	//配置多个分组
	@Bean
	public Docket newDocket1() {
		return new Docket(DocumentationType.SWAGGER_2).groupName("A");
	}
	/**
	 * 配置swager的Bean实例
	 * @return
	 */
	@Bean
	public Docket newDocket() {
		return new Docket(DocumentationType.SWAGGER_2)
                .apiInfo(apiInfo())
                .enable(true)//是否启用swagger,true表示启用
                .groupName("设置组名")//组名
                .select()
                //RequestHandlerSelectors.basePackage 指定扫描的包
                //RequestHandlerSelectors.withMethodAnnotation 扫描方法上的注解
                //RequestHandlerSelectors.withClassAnnotation 扫描类上的注解
                //any 扫描全部
                //none 不扫描
                .apis(RequestHandlerSelectors.basePackage("指定要扫描的包"))
                //过滤
               // .paths(PathSelectors.any())
                .build();
	}
	 /**
     * 创建该API的基本信息（这些基本信息会展现在文档页面中）
     * 访问地址：http://项目实际地址/swagger-ui.html
     * @return
     */
    private ApiInfo apiInfo() {
    	//作者信息
    	Contact contact = new Contact("作者名称","个人主页", "邮箱");
        return new ApiInfoBuilder()
                .title("自定义标题")//标题
                .description("描述该文档")
                .termsOfServiceUrl("指定具体的url")//服务条件
                .contact(contact)//作者对象
                .version("2.0")//版本号
                .license("Apache 2.0")
                .licenseUrl("http://www.apache.org/licenses/LICENSE-2.0")
                .extensions(new ArrayList<>())
                .build();
    }
}

注:如何增加了拦截器,需在WebMvcConfigurer的实现类中增加以下代码

@Override
    public void addInterceptors(InterceptorRegistry registry) {
        registry.addInterceptor(localInterceptor())
                .addPathPatterns("/**")
                .excludePathPatterns("/user/login")
                .excludePathPatterns("/swagger-resources/**", "/webjars/**", "/v2/**", "/swagger-ui.html/**");
    }
@Override
	public void addResourceHandlers(ResourceHandlerRegistry registry) {
	  registry.addResourceHandler("swagger-ui.html")
	      .addResourceLocations("classpath:/META-INF/resources/swagger-ui.html");
	  registry.addResourceHandler("/webjars/**")
	      .addResourceLocations("classpath:/META-INF/resources/webjars/");

	}

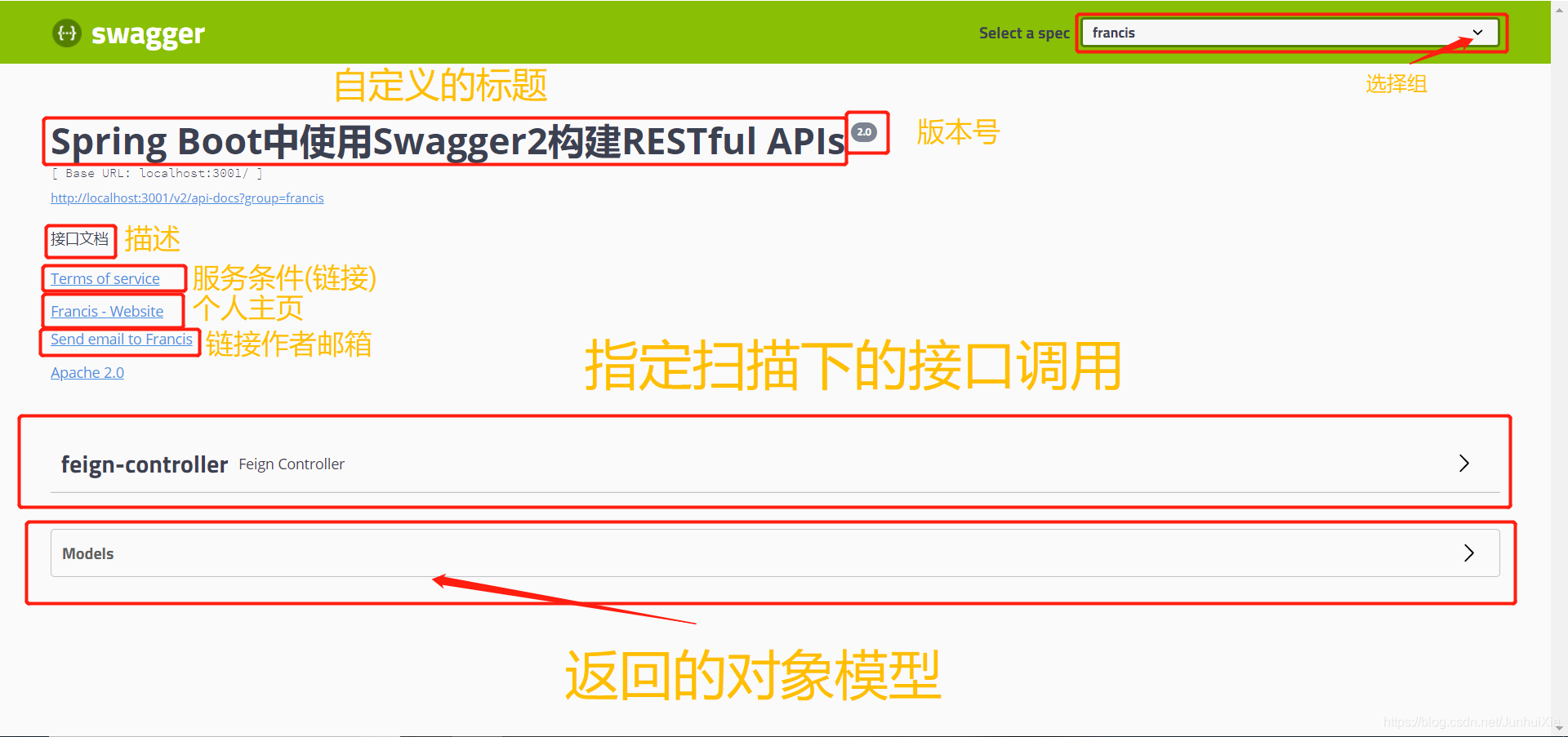

启动项目,访问:http://项目实际地址/swagger-ui.html

页面如下:

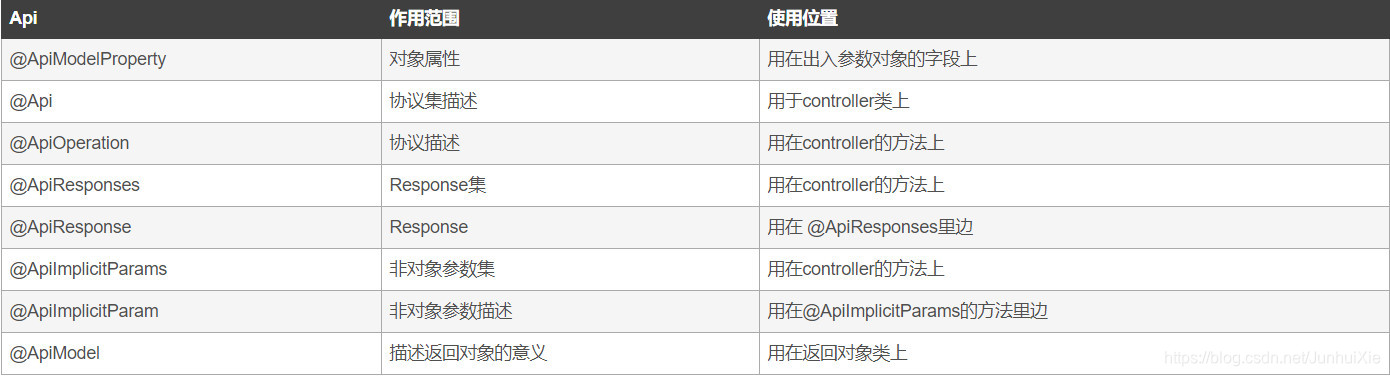

常用注解:
