话不多说上代码

index.jsp

<%@ page language="java" import="java.util.*" pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<%@ include file="/common/core/taglib_omcs.jsp"%>
<script src="${ctx }/common/plugin/echart/echarts.min.js"></script>
<script src="new.js"></script>
<html>
	<head>
	<meta charset="UTF-8">
	<script type="text/javascript">
		$(document).ready(function() {
			initCharts();
		});
	</script>
 </head>
	<body style="background-color:#f7f8fa;">
			<div style="width: 100%; height: 150px;">
				<div style="width: 30%; height: 100%; float: left;">
					<div id="chartA" class="" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 25%; height: 100%; float: left;">
					<div id="chartB" class="" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 20%; height: 100%; float: left;">
					<div id="chartC" class="" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 25%; height: 100%; float: left;">
					<div id="chartD" class="" style="width: 100%; height: 100%"></div>
				</div>
			</div>
			<div style="width: 100%; height: 250px;">
				<div style="width: 33%; height: 100%; float: left;">
					<div id="chartE" class="" style="width: 100%; height: 50%"></div>
					<div id="chartF" class="" style="width: 100%; height: 50%"></div>
				</div>
				<div style="width: 33%; height: 100%; float: left;">
					<div id="chartMap" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 33%; height: 100%; float: left;">
					<div id="chartH" class="" style="width: 100%; height: 50%"></div>
					<div id="chartI" class="" style="width: 100%; height: 50%"></div>
				</div>
			</div>
			<div style="width: 100%; height: 150px;">
				<div style="width: 25%; height: 100%; float: left;">
					<div id="chartJ" class="" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 25%; height: 100%; float: left;">
					<div id="chartK" class="" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 25%; height: 100%; float: left;">
					<div id="chartL" class="" style="width: 100%; height: 100%"></div>
				</div>
				<div style="width: 25%; height: 100%; float: left;">
					<div id="chartM" class="" style="width: 100%; height: 100%"></div>
				</div>
			</div>
	</body>
</html>

new.js

function initWTSYQK(){
	var myChartA = echarts.init(document.getElementById('chartA'));
	myChartA.clear();
	getWTSUQK(myChartA);
}
function initFLZBQK(){
	var myChartA = echarts.init(document.getElementById('chartB'));
	myChartA.clear();
	getFLZBQK(myChartA);
}
function initSYWTLQK(){
	var myChartA = echarts.init(document.getElementById('chartC'));
	myChartA.clear();
	getSYWTLQK(myChartA);
}
function initWTSYHTK(){
	var myChartA = echarts.init(document.getElementById('chartD'));
	myChartA.clear();
	getWTSYHTK(myChartA);
}
function initGSSYWTLQK(){
	var myChartA = echarts.init(document.getElementById('chartE'));
	myChartA.clear();
	getGSSYWTLQK(myChartA);
}
function initGSSYJJLQK(){
	var myChartA = echarts.init(document.getElementById('chartF'));
	myChartA.clear();
	getGSSYJJLQK(myChartA);
}
function initWJJSYWTQK(){
	var myChartA = echarts.init(document.getElementById('chartH'));
	myChartA.clear();
	getWJJSYWTQK(myChartA);
}
function initSYHTKWTLQK(){
	var myChartA = echarts.init(document.getElementById('chartI'));
	myChartA.clear();
	getSYHTKWTLQK(myChartA);
}
function initWTSUXFQQK(){
	var myChartA = echarts.init(document.getElementById('chartJ'));
	myChartA.clear();
	getWTSUXFQQK(myChartA);
}
function initWTSUXFQZB(){
	var myChartA = echarts.init(document.getElementById('chartK'));
	myChartA.clear();
	getWTSUXFQZB(myChartA);
}
function initGSSYWTLXFQQK(){
	var myChartA = echarts.init(document.getElementById('chartL'));
	myChartA.clear();
	getGSSYWTLXFQQK(myChartA);
}
function initWTSUHTKXFQQK(){
	var myChartA = echarts.init(document.getElementById('chartM'));
	myChartA.clear();
	getWTSUHTKXFQQK(myChartA);
}
function initMap(){
	var myChartA = echarts.init(document.getElementById('chartMap'));
	myChartA.clear();
	getMap(myChartA);
}

function initCharts() {
	initWTSYQK();
	initFLZBQK();
	initSYWTLQK();
	initWTSYHTK();
	initGSSYWTLQK();
	initGSSYJJLQK();
	initWJJSYWTQK();
	initSYHTKWTLQK();
	initWTSUXFQQK();
	initWTSUXFQZB();
	initGSSYWTLXFQQK();
	initWTSUHTKXFQQK();
	initMap();
}

function getWTSUQK(myChart){
	var option;
	option = {
		title:{
			text:'2021年1-x月问题溯源情况',
			left:'center',
			textStyle: {
			      fontSize: 12
			    },
			    top: 10,
		},
		color: ['#4f81bd', '#f79646', '#a5a5a5', '#bbbbbb'],
	    tooltip: {},
	    grid: {
	        top: 40,
	        bottom: 30,
	    },
	    legend: {
	    	bottom: 0,
	        itemWidth: 16,
	        itemHeight: 4,
	        itemGap: 6,
	        textStyle: {
	            fontSize: 8
	        },
	        data:['问题量','已解决','未解决','解决率']
	    },
	    xAxis: {
	        data: ["市场类","移动网络质量","家宽网络质量","投标处理质量"],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: [
	        {
	           show:false
	        },
	        {
	            type: 'value',
	            name: '解决率',
	            min: 0,
	            max: 100,
	            interval: 10,
	            show:false
	        }
	    ],
	    series: [{
	    	barGap: 0,
	        name: '问题量',
	        type: 'bar',
	        data: [188, 429, 530, 4],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},

	    },{
	        name: '已解决',
	        type: 'bar',
	        data: [114, 336, 441, 1],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},
	    },{
	        name: '未解决',
	        type: 'bar',
	        data: [7, 20, 30, 20],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},
	    },
	    {
	        name: '解决率',
	        type: 'line',
	        yAxisIndex: 1,
	        data: [60.6, 78.3, 83.2, 25],
	        itemStyle: {
                normal: {
                    label: {
                        show: true,
                        position: 'top',
                        formatter: '{c}%',
                        fontSize: 8
                    }
                }
            },

	    }]
	};
	myChart.setOption(option);
}
function getFLZBQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年1-x月溯源问题分类占比情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			color: [ '#ffdc73', '#deebf7', '#5b9bd5','#bfbfbf'],
	    tooltip: {
	        trigger: 'item'
	    },
	    series: [
	        {
	            name: '访问来源',
	            center: ['50%','60%'],
	            type: 'pie',
	            radius: '70%',
	            itemStyle: {
					normal: {
						label: {
							formatter:'{b} : ({d}%)',
							textStyle: {
								fontSize: 8
							}
						}
					}
				},
	            data: [
	                {value: 1048, name: '投诉处理质量'},
	                {value: 735, name: '市场类'},
	                {value: 580, name: '移动网络质量'},
	                {value: 884, name: '家宽网络质量'},
	            ],
	            emphasis: {
	                itemStyle: {
	                    shadowBlur: 10,
	                    shadowOffsetX: 0,
	                    shadowColor: 'rgba(0, 0, 0, 0.5)'
	                }
	            }
	        },


	    ]
	};
	myChart.setOption(option);
}
function getSYWTLQK(myChart){
	var option;
	option = {
			title:{
				text:'超过3个月未解决溯源问题量情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		tooltip: {},
	    xAxis: {
	        type: 'category',
	        data: ['市场类', '移动网络质量'],
			axisLabel: {
		    	margin: 2,
		    	fontSize: 8
		    },
		    axisTick: {
		        show: false
		    }
	    },
	    yAxis: {
	        show:false
	    },
	    series: [{
	        data: [{
	            value: 66,
	            itemStyle: {
	                color: '#deebf7'
	            }
	        },{
	            value: 15,
	            itemStyle: {
	                color: '#5b9bd5'
	            }
	        }],
	        type: 'bar',
	        barWidth: "40%",
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						formatter:'{b}:{c}',
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			}
	    }]
	};
	myChart.setOption(option);
}
function getWTSYHTK(myChart){
	var option;
	option = {
			title:{
				text:'2021年1-x问题溯源回头看',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#4f81bd', '#f79646'],
	    tooltip: {},
	    legend: {
	        data:['发起量','解决量'],
	        bottom: 0,
	        itemWidth: 16,
	        itemHeight: 4,
	        itemGap: 6,
	        textStyle: {
	            fontSize: 8
	        },
	    },
	    xAxis: {
	        data: ["市场类","移动网络质量","家宽网络质量"],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: {
	    	show:false
	    },
	    series: [
	    	{
	    	barGap: 0,
	        name: '发起量',
	        type: 'bar',
	        data: [5, 20, 36],
	    itemStyle: {
			normal: {
				label: {
					show: true, //开启显示
					position: 'top', //在上方显示
					textStyle: { //数值样式
						color: 'black',
						fontSize: 8
					}
				}
			}
		},
	    },{
	    	barGap: 0,
	        name: '解决量',
	        type: 'bar',
	        data: [6, 24, 18],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},
	    }]
	};
	myChart.setOption(option);
}
function getGSSYWTLQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年1-x月各市级溯源问题量情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#5b9bd5', '#7bb355'],
	    tooltip: {},
	    legend: {
	    	bottom: 0,
	        itemWidth: 16,
	        itemHeight: 4,
	        itemGap: 6,
	        textStyle: {
	            fontSize: 8
	        },
	        data:['2021年1-5月溯源问题量','占比']
	    },
	    xAxis: {
	        data: ["沈阳","大连","鞍山","辽阳","丹东","营口","本溪","广州"],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: [
	        {
		           show:false
		        },
		        {
		            type: 'value',
		            name: '占比',
		            min: 0,
		            max: 100,
		            interval: 10,
		            show:false
		        }
		    ],
	    series: [{
	        name: '2021年1-5月溯源问题量',
	        type: 'bar',
	        data: [5, 20, 36, 10, 30, 50, 20, 10],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},

	    },
	    {
	        name: '占比',
	        type: 'line',
	        data: [40, 28, 27, 23, 27, 25, 20, 15],
	        itemStyle: {
                normal: {
                    label: {
                        show: true,
                        position: 'top',
                        formatter: '{c}%',
                        fontSize: 8
                    }
                }
            },
	    }]
	};
	myChart.setOption(option);
}
function getGSSYJJLQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年1-x月各市级溯源解决率情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#5b9bd5'],
	    tooltip: {},
	    xAxis: {
	    	data: ["沈阳","大连","鞍山","辽阳","丹东","营口","本溪","广州"],
	    	axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: {
	    	show:false
	    },
	    series: [
	    {
	        name: '占比',
	        type: 'line',
	        data: [80, 70, 66, 72, 70, 75, 66, 82],
	        itemStyle: {
                normal: {
                    label: {
                        show: true,
                        position: 'top',
                        formatter: '{c}%',
                        fontSize: 8
                    }
                }
            },
	    }]
	};
	myChart.setOption(option);
}
function getWJJSYWTQK(myChart){
	var option;
	option = {
			title:{
				text:'各单位超3个月未解决溯源问题情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#a6a6a6', '#deebf7', '#5b9bd5','#ffc000'],
			legend: {
		    	bottom: 0,
		        itemWidth: 16,
		        itemHeight: 4,
		        itemGap: 6,
		        textStyle: {
		            fontSize: 8
		        },
		        data:['超6个月','超5个月']
		    },
	    tooltip: {
	        trigger: 'axis',
	        axisPointer: {
	            type: 'shadow'
	        }
	    },
	    xAxis: [
	        {
	            type: 'category',
	            data: ["沈阳","大连","鞍山","辽阳","丹东","营口","本溪","广州"],
	            axisLabel: {
		        	margin: 2,
		        	fontSize: 8
		        },
		        axisTick: {
		            show: false
		        }
	        }
	    ],
	    yAxis: [
	        {
	            show:false
	        }
	    ],
	    series: [
	        {
	            name: '超6个月',
	            type: 'bar',
	            stack: '广告',
	            emphasis: {
	                focus: 'series'
	            },
	            data: [6, 3, 2, 4, 6, 1, 5, 3]
	        },
	        {
	            name: '超5个月',
	            type: 'bar',
	            stack: '广告',
	            emphasis: {
	                focus: 'series'
	            },
	            data: [7, 7, 8, 2, 1, 4, 4, 5]
	        },
	        {
	            name: '3',
	            type: 'bar',
	            stack: '广告',
	            emphasis: {
	                focus: 'series'
	            },
	            data: [5, 5, 4, 8, 2, 6, 7, 3]
	        },
	        {
	            name: '4',
	            type: 'bar',
	            stack: '广告',
	            emphasis: {
	                focus: 'series'
	            },
	            data: [3, 6, 4, 8, 2, 5, 6, 8]
	        }
	    ]
	};
	myChart.setOption(option);
}







function getSYHTKWTLQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年1-5月各市溯源回头看问题量情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#5b9bd5', '#7bb355'],
	    tooltip: {},
	    legend: {
	    	bottom: 0,
	        itemWidth: 16,
	        itemHeight: 4,
	        itemGap: 6,
	        textStyle: {
	            fontSize: 8
	        },
	        data:['2021年1-5月溯源回头看问题量','占比']
	    },
	    xAxis: {
	        data: ["沈阳","大连","鞍山","辽阳","丹东","营口","本溪","广州"],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: [
	        {
		           show:false
		        },
		        {
		            type: 'value',
		            name: '占比',
		            min: 0,
		            max: 100,
		            interval: 10,
		            show:false
		        }
		    ],
	    series: [{
	        name: '2021年1-5月溯源回头看问题量',
	        type: 'bar',
	        data: [5, 20, 36, 10, 30, 50, 20, 10],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},

	    },
	    {
	        name: '占比',
	        type: 'line',
	        data: [40, 28, 27, 23, 27, 25, 20, 15],
	        itemStyle: {
                normal: {
                    label: {
                        show: true,
                        position: 'top',
                        formatter: '{c}%',
                        fontSize: 8
                    }
                }
            },
	    }]
	};
	myChart.setOption(option);
}
function getWTSUXFQQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年x+1月问题溯源新发起情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#4f81bd'],
		tooltip: {},
	    xAxis: {
	        type: 'category',
	        data: ['市场类', '移动网络质量','家宽网络质量'],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: {
	        show:false
	    },
	    series: [{
	        data: [3, 39, 144],
	        barWidth: "40%",
	        type: 'bar',
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},
	    }]
	};
	myChart.setOption(option);
}




function getWTSUXFQZB(myChart){
	var option;
	option = {
			title:{
				text:'2021年x+1月问题溯源新发起占比',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#ffdc73', '#deebf7', '#5b9bd5','#bfbfbf'],
	    tooltip: {
	        trigger: 'item'
	    },
	    series: [
	        {
	            name: '访问来源',
	            center: ['50%','60%'],
	            type: 'pie',
	            radius: '70%',
	            itemStyle: {
					normal: {
						label: {
							formatter:'{b} : ({d}%)',
							textStyle: {
								fontSize: 8
							}
						}
					}
				},
	            data: [

	                {value: 220, name: '市场类'},
	                {value: 310, name: '移动网络质量'},
	                {value: 10, name: '投诉处理质量'},
	                {value: 460, name: '家宽网络质量'},

	            ],
	            emphasis: {
	                itemStyle: {
	                    shadowBlur: 10,
	                    shadowOffsetX: 0,
	                    shadowColor: 'rgba(0, 0, 0, 0.5)'
	                }
	            }
	        },


	    ]
	};
	myChart.setOption(option);
}
function getGSSYWTLXFQQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年x+1月各市溯源问题量新发起情况',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#5b9bd5', '#7bb355'],
	    tooltip: {},
	    xAxis: {
	        data: ["沈阳","大连","鞍山","辽阳","丹东","营口","本溪","广州"],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: [
	        {
		           show:false
		        },
		        {
		            type: 'value',
		            name: '占比',
		            min: 0,
		            max: 100,
		            interval: 10,
		            show:false
		        }
		    ],
	    series: [{
	        name: '2021年1-5月溯源回头看问题量',
	        type: 'bar',
	        data: [5, 20, 36, 10, 30, 50, 20, 10],
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},

	    },
	    {
	        name: '占比',
	        type: 'line',
	        data: [40, 28, 27, 23, 27, 25, 20, 15],
	        itemStyle: {
                normal: {
                    label: {
                        show: true,
                        position: 'top',
                        formatter: '{c}%',
                        fontSize: 8
                    }
                }
            },
	    }]
	};
	myChart.setOption(option);
}
function getWTSUHTKXFQQK(myChart){
	var option;
	option = {
			title:{
				text:'2021年x+1月问题溯源回头看新发起占比',
				left:'center',
				textStyle: {
				      fontSize: 12
				    },
				    top: 10,
			},
			grid: {
		        top: 40,
		        bottom: 30,
		    },
		    color: [ '#4f81bd'],
		tooltip: {},
	    xAxis: {
	        type: 'category',
	        data: ['市场类', '移动网络质量','家宽网络质量'],
	        axisLabel: {
	        	margin: 2,
	        	fontSize: 8
	        },
	        axisTick: {
	            show: false
	        }
	    },
	    yAxis: {
	        show:false
	    },
	    series: [{
	        data: [3, 39, 144],
	        barWidth: "40%",
	        type: 'bar',
	        itemStyle: {
				normal: {
					label: {
						show: true, //开启显示
						position: 'top', //在上方显示
						textStyle: { //数值样式
							color: 'black',
							fontSize: 8
						}
					}
				}
			},
	    }]
	};
	myChart.setOption(option);
}
function getMap(myChart){
    var geoJson = 自己找对应的Json,下面有例子+网址
	echarts.registerMap('辽宁省', geoJson);
	 option = {
	     series: [{
	         label: {
	             normal: {
	                 show: true,
	             },
	             emphasis: {
	                 show: true
	             }
	         },
	         itemStyle: {
	             color: '#ddb926'
	         },
	         type: 'map',
	         map: '辽宁省',
	         emphasis: {
	             label: {
	                 show: true
	             }
	         },
	         top:0,
	         bottom:0,
	         left:0,
	         right:0,
	         data: [{
	                 name: '沈阳市',
	                 value: 4822023,
	             },
	             {
	                 name: '大连市',
	                 value: 731449
	             },
	             {
	                 name: '鞍山市',
	                 value: 6553255
	             },
	             {
	                 name: '抚顺市',
	                 value: 949131
	             },
	             {
	                 name: '本溪市',
	                 value: 8041430
	             },
	             {
	                 name: '丹东市',
	                 value: 5187582
	             },
	             {
	                 name: '锦州市',
	                 value: 3590347
	             },
	             {
	                 name: '营口市',
	                 value: 917092
	             },
	             {
	                 name: '阜新市',
	                 value: 632323
	             },
	             {
	                 name: '辽阳市',
	                 value: 9317568
	             },
	             {
	                 name: '盘锦市',
	                 value: 9919945
	             },
	             {
	                 name: '铁岭市',
	                 value: 1392313
	             },
	             {
	                 name: '朝阳市',
	                 value: 1595728
	             },
	             {
	                 name: '葫芦岛市',
	                 value: 12875255
	             }
	         ]
	     }],
	 };
	 myChart.setOption(option);
}

事件

myChart.on('click', function (params) {
    alert(params.name);
});

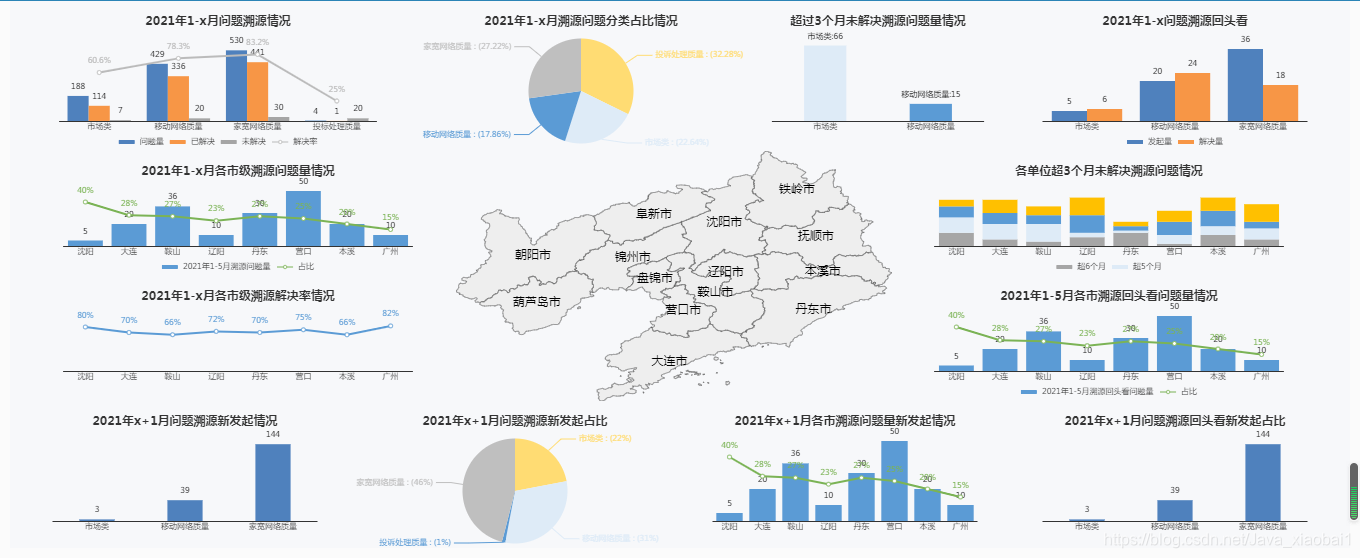

效果图

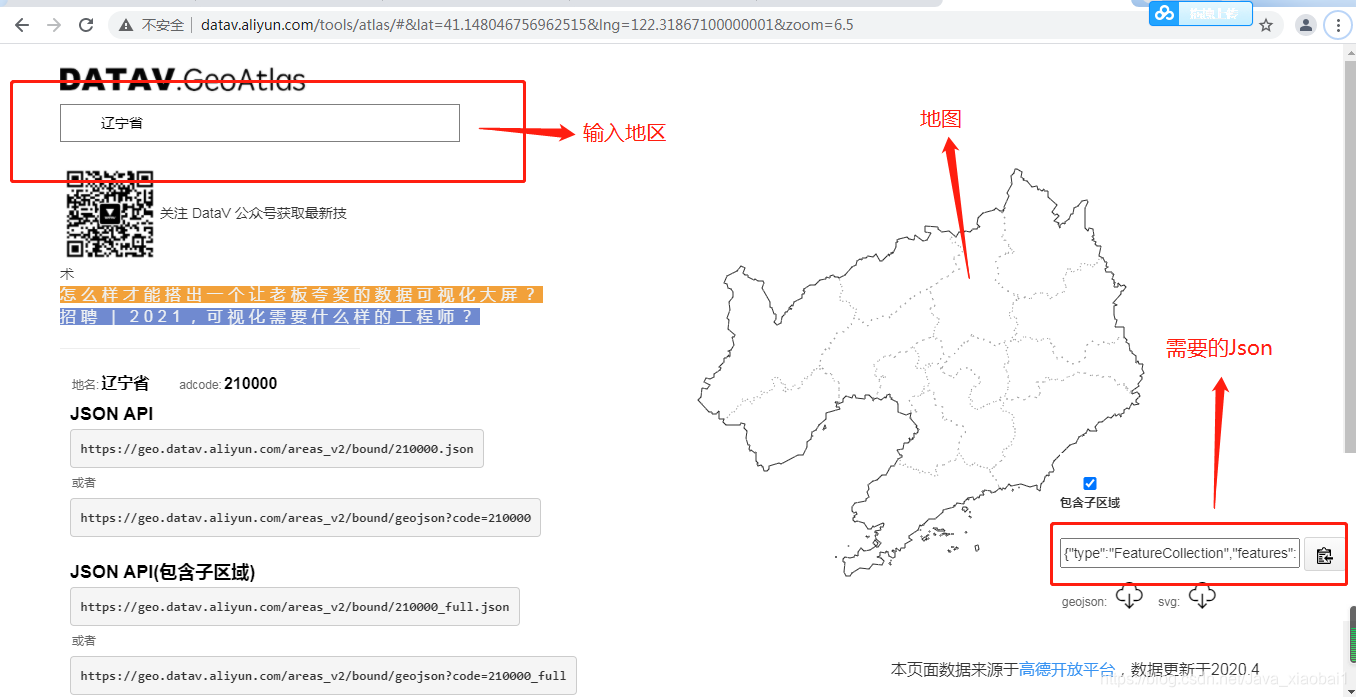

注:地图那块的Json自己下载

geoJson

网址:http://datav.aliyun.com/tools/atlas/#&lat=33.521903996156105&lng=104.29849999999999&zoom=4

echars基本使用

话不多说上代码

index.jsp

new.js

事件

效果图

注:地图那块的Json自己下载

geoJson
