如何实现MQTT的Java代码

本文介绍了如何在Java中实现MQTT协议,包括发送和接收消息。首先,通过在RabbitMQ中开启MQTT服务进行测试,然后详细讲解了在SpringBoot项目中整合MQTT的步骤,包括添加依赖、创建配置类、定义接口和Controller,以及配置消息处理。最后,阐述了收消息的方法。

摘要生成于 C知道 ,由 DeepSeek-R1 满血版支持, 前往体验 >

MQTT(消息队列遥测传输)是ISO 标准(ISO/IEC PRF 20922)下基于发布/订阅]范式的消息协议。它工作在 TCP/IP协议族上,是为硬件性能低下的远程设备以及网络状况糟糕的情况下而设计的发布/订阅型消息协议,为此,它需要一个消息中间件 。

为rabbit开启mqtt

1.在yml文件中添加一个mqtt的端口映射1883:1883

<pre class="prettyprint hljs less" style="padding: 0.5em; font-family: Menlo, Monaco, Consolas, &quot;Courier New&quot;, monospace; color: rgb(68, 68, 68); border-radius: 4px; display: block; margin: 0px 0px 1.5em; font-size: 14px; line-height: 1.5em; word-break: break-all; overflow-wrap: break-word; white-space: pre; background-color: rgb(246, 246, 246); border: none; overflow-x: auto; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial;">restart: always
container_name: rabbitmq
ports:
  - 5672:5672
  - 15672:15672
  - 1883:1883 #mqtt
volumes:
  - ./data:/var/lib/rabbitmq</pre>

2.进入rabbit的docker容器内部

<pre class="hljs nginx" style="padding: 0.5em; font-family: Menlo, Monaco, Consolas, &quot;Courier New&quot;, monospace; color: rgb(68, 68, 68); border-radius: 4px; display: block; margin: 0px 0px 0.75em; font-size: 14px; line-height: 1.5em; word-break: break-all; overflow-wrap: break-word; white-space: pre; background-color: rgb(246, 246, 246); border: none; overflow-x: auto; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial;">docker exec -it rabbitmq bash</pre>

3.rabbit内运行

<pre class="hljs bash" style="padding: 0.5em; font-family: Menlo, Monaco, Consolas, &quot;Courier New&quot;, monospace; color: rgb(68, 68, 68); border-radius: 4px; display: block; margin: 0px 0px 0.75em; font-size: 14px; line-height: 1.5em; word-break: break-all; overflow-wrap: break-word; white-space: pre; background-color: rgb(246, 246, 246); border: none; overflow-x: auto; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial;">rabbitmq-plugins enable rabbitmq_mqtt</pre>

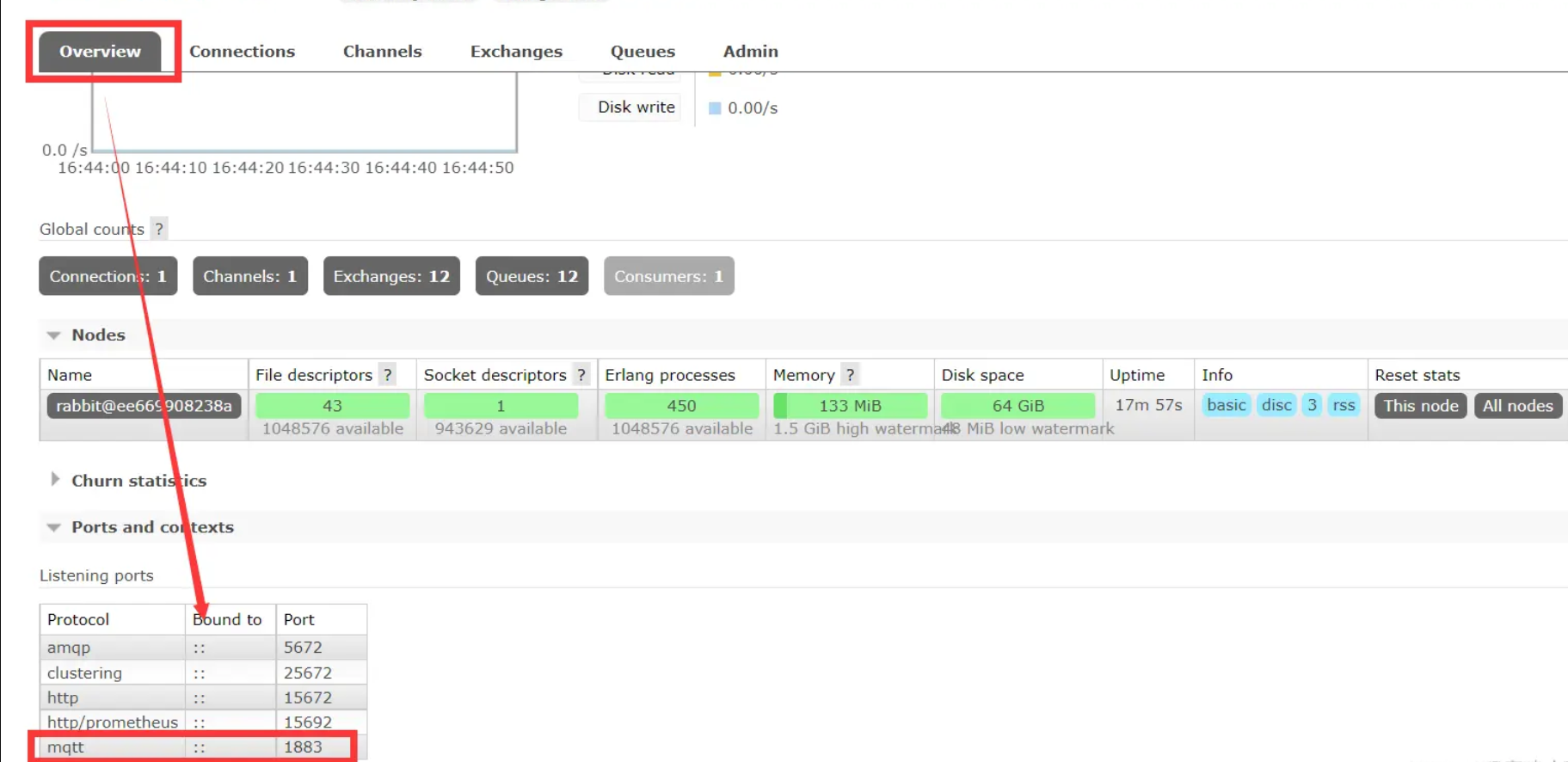

4.在网页视图中查看mqtt

使用MQTT软件测试mqtt

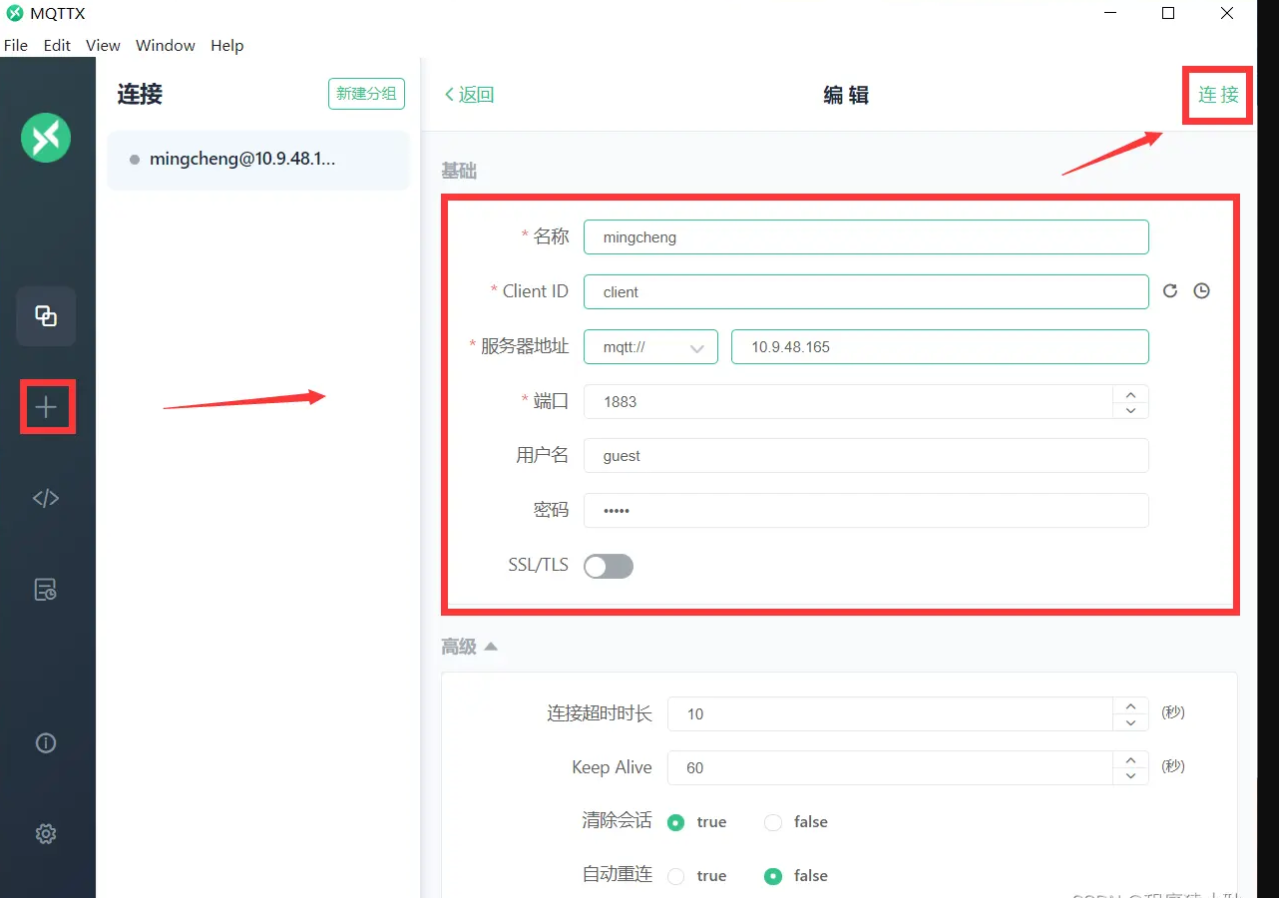

1.连接mqtt

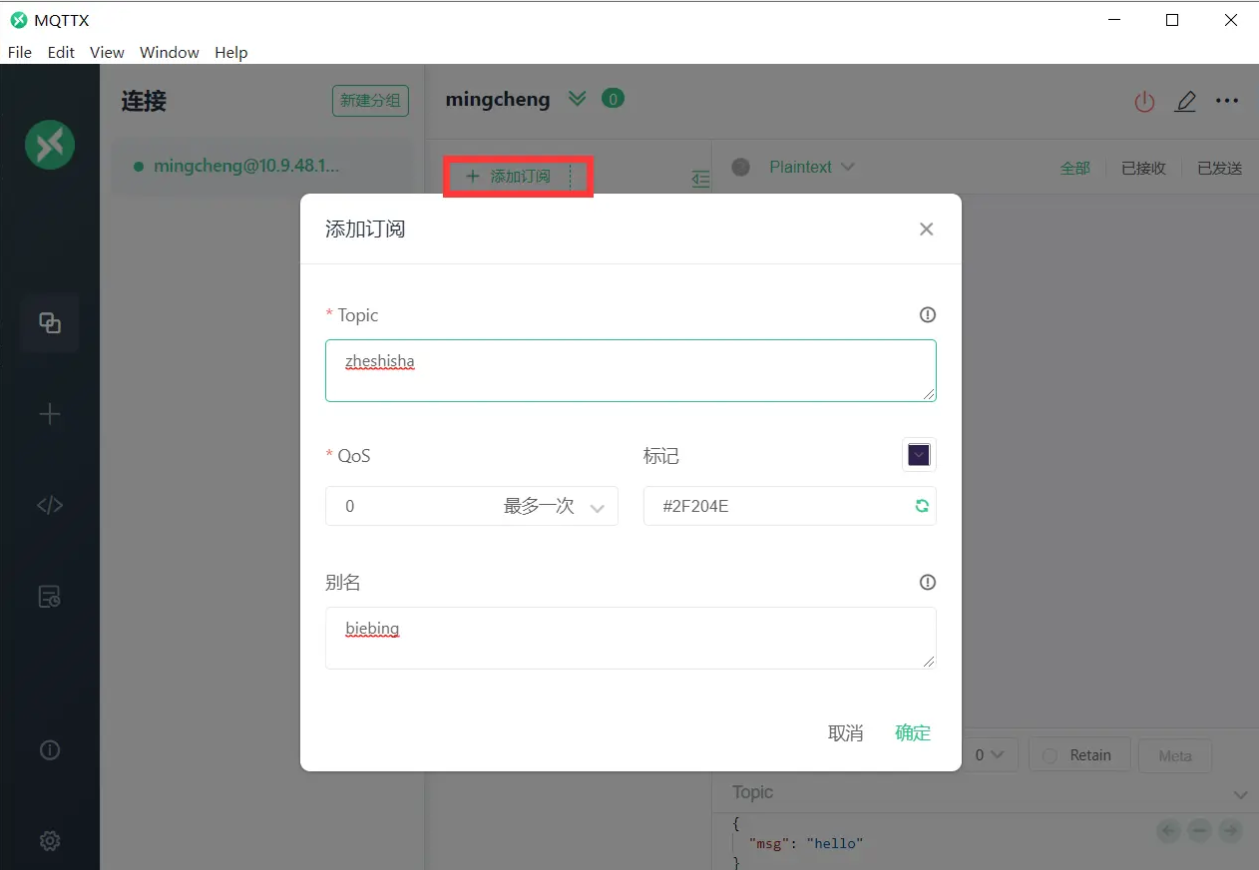

2.在MQTT软中添加订阅

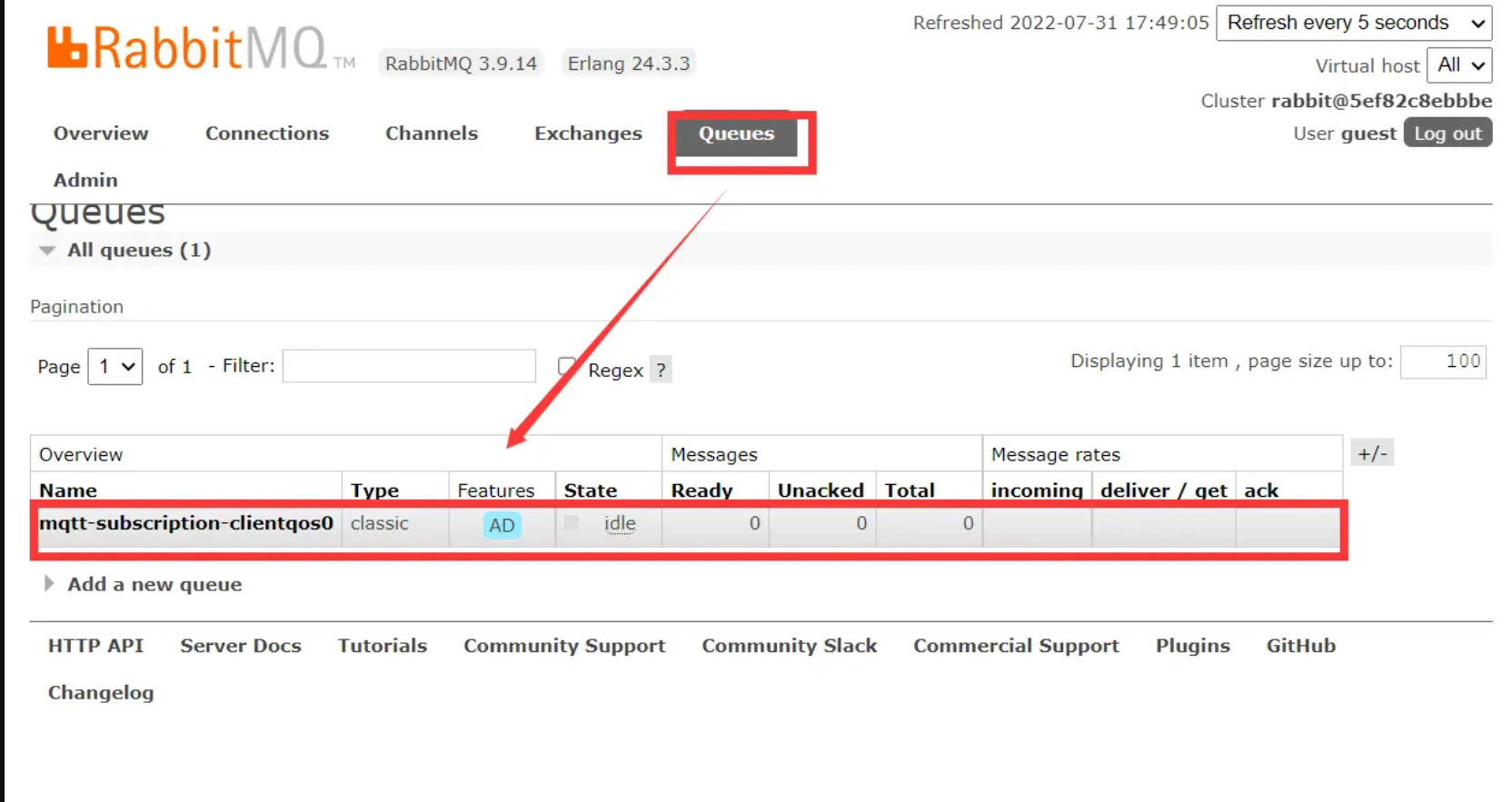

在RabbitMQ的队列中查看

3.测试

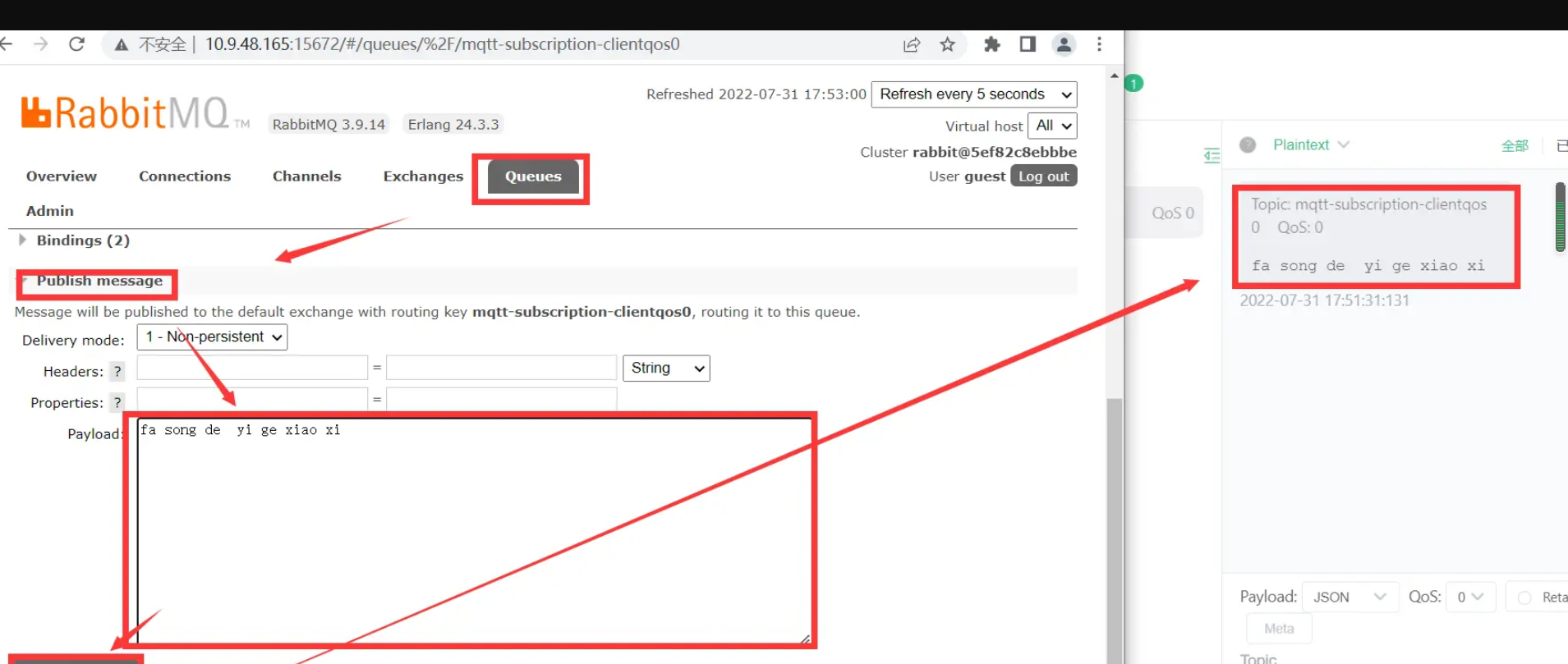

方法一、在Rabbitmq网页发送消息

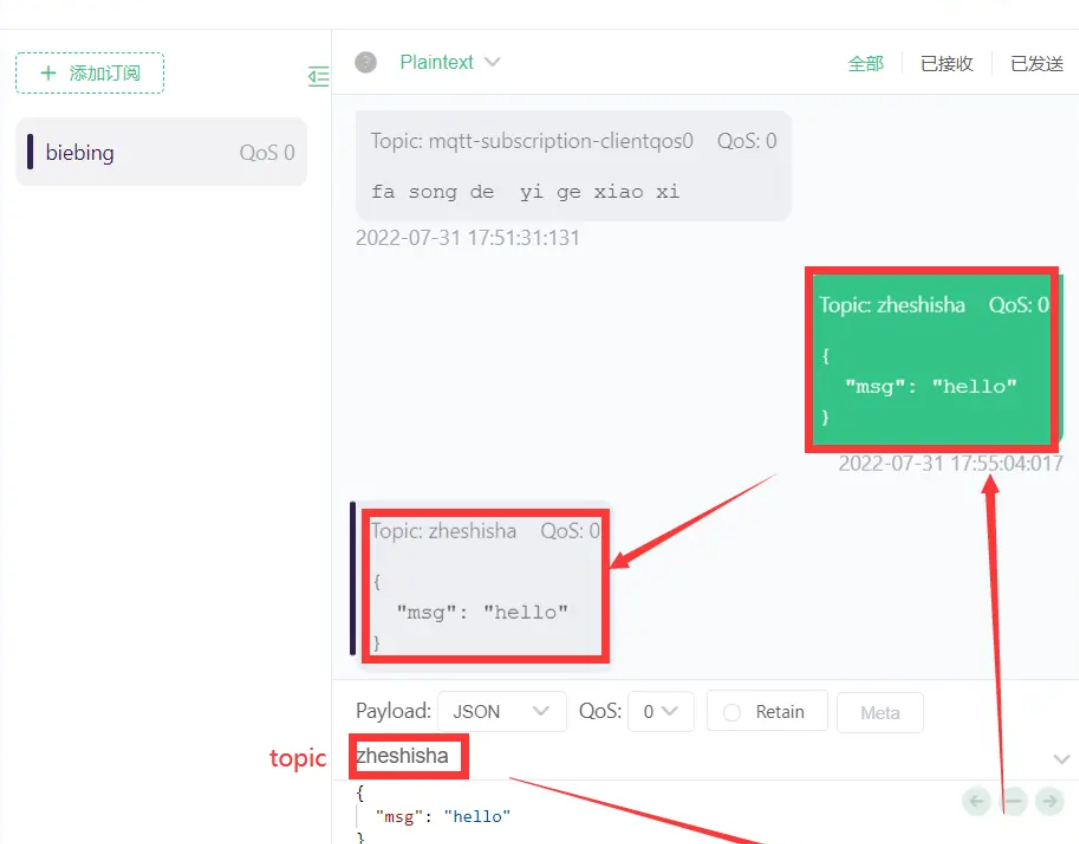

方法二、自己给自己发

一、发送消息

  1. 创建springBoot项目,在xml中导入springBoot项目所需要配置以及相关依赖包
<pre class="prettyprint hljs xml" style="padding: 0.5em; font-family: Menlo, Monaco, Consolas, &quot;Courier New&quot;, monospace; color: rgb(68, 68, 68); border-radius: 4px; display: block; margin: 0px 0px 1.5em; font-size: 14px; line-height: 1.5em; word-break: break-all; overflow-wrap: break-word; white-space: pre; background-color: rgb(246, 246, 246); border: none; overflow-x: auto; font-style: normal; font-variant-ligatures: normal; font-variant-caps: normal; font-weight: 400; letter-spacing: normal; orphans: 2; text-align: start; text-indent: 0px; text-transform: none; widows: 2; word-spacing: 0px; -webkit-text-stroke-width: 0px; text-decoration-style: initial; text-decoration-color: initial;"><pa
