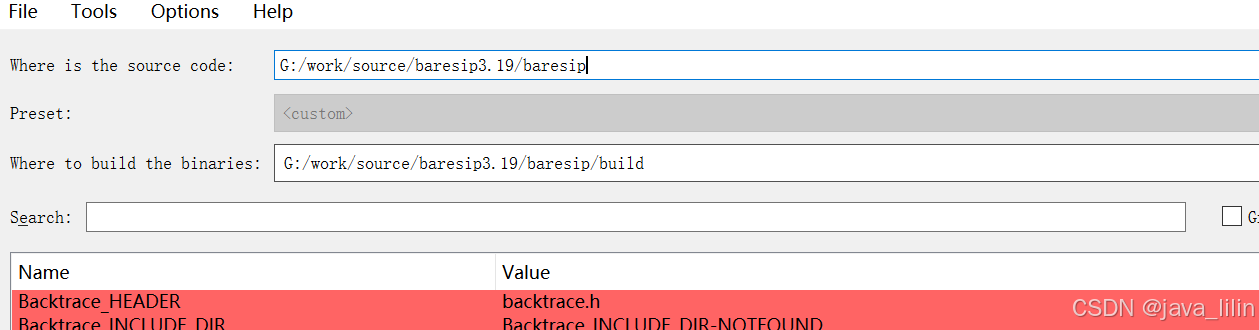

1、编译libbaresp https://github.com/baresip

win 安装cmake gui 、win openssl 即可

使用gui 的生成即可

创建项目导入lib 可以参考baresip wiki 的 lib的使用初始化

https://github.com/baresip/baresip/wiki/Using-baresip-as-a-library

#pragma comment(lib, "Ws2_32.lib")
#pragma comment(lib, "winmm.lib")
#pragma comment(lib, "re-static.lib")
#pragma comment(lib, "libbaresip.lib")
#pragma comment(lib, "Qwave.lib")
#pragma comment(lib, "DbgHelp.lib")
#pragma comment(lib, "iphlpapi.lib")
#pragma comment(lib, "libssl64MDd.lib")
#pragma comment(lib, "libcrypto64MDd.lib")

#pragma comment(lib, "bcg729.lib")
#pragma comment(lib, "blibwebrtc.lib")

2、实现本地的vad 加asr 选用VAD — sherpa 1.3 documentation 和它的asr 初始化和baresip一起

#pragma comment(lib, "sherpa-onnx-c-api.lib")

   int err = 0; //struct tmr tmr_quit;
   const char* language = "auto";
   const char* provider = "cpu";
   const char* model_filename =
       "G:/ai/sherpa-onnx/sherpa-onnx-sense-voice-zh-en-ja-ko-yue-2024-07-17/model.int8.onnx";
   const char* tokens_filename =
       "G:/ai/sherpa-onnx/sherpa-onnx-sense-voice-zh-en-ja-ko-yue-2024-07-17/tokens.txt";
   int32_t use_inverse_text_normalization = 1;
   SherpaOnnxOfflineSenseVoiceModelConfig sense_voice_config;
   memset(&sense_voice_config, 0, sizeof(sense_voice_config));
   sense_voice_config.model = model_filename;
   sense_voice_config.language = language;
   sense_voice_config.use_itn = use_inverse_text_normalization;

   // Offline model config
   SherpaOnnxOfflineModelConfig offline_model_config;
   memset(&offline_model_config, 0, sizeof(offline_model_config));
   offline_model_config.debug = 0;
   offline_model_config.num_threads = 1;
   offline_model_config.provider = provider;
   offline_model_config.tokens = tokens_filename;
   offline_model_config.sense_voice = sense_voice_config;

   // Recognizer config
   SherpaOnnxOfflineRecognizerConfig recognizer_config;
   memset(&recognizer_config, 0, sizeof(recognizer_config));
   recognizer_config.decoding_method = "greedy_search";
   recognizer_config.model_config = offline_model_config;

   recognizer = SherpaOnnxCreateOfflineRecognizer(&recognizer_config);

   if (recognizer == NULL) {
       fprintf(stderr, "Please check your recognizer config!\n");
       goto out;
   }

   printf("asr model load ok\n");
   SherpaOnnxOfflineTtsConfig config;
   memset(&config, 0, sizeof(config));
   config.model.vits.model = "G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/vits-zh-hf-fanchen-C.onnx";
   config.model.vits.lexicon = "G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/lexicon.txt";
   config.model.vits.tokens = "G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/tokens.txt";
   config.model.vits.dict_dir = "G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/dict";
   config.model.num_threads = 1;
   config.model.debug = false;
   config.rule_fsts = "G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/phone.fst,G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/date.fst,G:/ai/sherpa-onnx/vits-zh-hf-fanchen-C/number.fst";

   tts = SherpaOnnxCreateOfflineTts(&config);
   if (tts == NULL) {
       fprintf(stderr, "Please check your tts config!\n");
       goto out;
   }
   printf("tts model load ok\n");

err = libre_init();

3、将aufile模块代码复制过来将他的wsapi代码放入改初始化里面创建一个线程实现本地的vad +语音识别

while (re_atomic_rlx(&st->run) ) {

if (aubuf_cur_size(st->aubuf) != 0) { continue; }

       hr = IAudioCaptureClient_GetNextPacketSize(service,
           &packet_sz);
       CHECK_HR(hr, "wasapi/src: GetNextPacketSize failed");

       if (packet_sz == 0) {
           sys_msleep(5);
           continue;
       }
       //num_frames 这个值会变化具体输出看
       hr = IAudioCaptureClient_GetBuffer(service, (BYTE**)&af.sampv,
           &num_frames, &flags, NULL,
           NULL);
       CHECK_HR(hr, "wasapi/src: GetBuffer failed");

af.timestamp = tmr_jiffies_usec();
af.sampc = num_frames * format->nChannels;

       //16k的大小稳定后160
       if (num_frames != 160) { hr = IAudioCaptureClient_ReleaseBuffer(service, num_frames); continue; }
       int16_t* int16_buffer = reinterpret_cast<int16_t*>(af.sampv);
       size_t available_space = 640 - buffer_size;
       size_t samples_to_copy = (num_frames < available_space) ? num_frames : available_space;
       memcpy(buffer + buffer_size, int16_buffer, samples_to_copy * sizeof(int16_t));
       buffer_size += samples_to_copy;
       if (buffer_size == 640) {
           ConvertToFloatSamples(buffer, float_samples, 640, 1);
           SherpaOnnxVoiceActivityDetectorAcceptWaveform(vad, float_samples, vadConfig.silero_vad.window_size);
           //if (SherpaOnnxVoiceActivityDetectorDetected(vad)) {
           //printf("检测dao说话\n");
           //}
           while (!SherpaOnnxVoiceActivityDetectorEmpty(vad)) {
               const SherpaOnnxSpeechSegment* segment = SherpaOnnxVoiceActivityDetectorFront(vad);
               const SherpaOnnxOfflineStream* stream = SherpaOnnxCreateOfflineStream(mythread->recognizer);

SherpaOnnxAcceptWaveformOffline(stream, 16000, segment->samples, segment->n);

SherpaOnnxDecodeOfflineStream(mythread->recognizer, stream);

               const SherpaOnnxOfflineRecognizerResult* result = SherpaOnnxGetOfflineStreamResult(stream);
               if(result&& result->text && strlen(result->text) > 0){
                   float start = segment->start / 16000.0f;
                   float duration = segment->n / 16000.0f;
                   float stop = start + duration;
                   printf("%.3f -- %.3f: %s\n", start, stop, result->text);
                   st->asrtext = result->text ;
               }
               SherpaOnnxDestroyOfflineRecognizerResult(result);
               SherpaOnnxDestroyOfflineStream(stream);

               SherpaOnnxDestroySpeechSegment(segment);
               SherpaOnnxVoiceActivityDetectorPop(vad);
           }
           buffer_size = 0;
       }

4、这里拿到tts文本在翻译成英文转成tts 还是用的sherpa 的tts ，再开个线程处理

这里要baresip的模块的aufile参考将tts的音频推入（aupcm改写的名字4注册的）发送的buf

if(audio){
           std::vector<int16_t> pcm_samples;
           convert_float_to_pcm(audio->samples, audio->n, pcm_samples);
           printf("tts send %s\n", vec.data());
           //SherpaOnnxWriteWave(audio->samples, audio->n, audio->sample_rate, "C:/Users/lilin/Desktop/test.wav");

           struct auframe af;
           auframe_init(&af, AUFMT_S16LE, NULL, 0, audio->sample_rate , 1);
           struct mbuf* mb = NULL;
           mem_deref(mb);
           int lend = pcm_samples.size() * sizeof(int16_t);
           mb = mbuf_alloc(lend);
           if (!mb){
               st->asrtext = "";
               continue;
           }
           memcpy(mb->buf, pcm_samples.data(), lend);

mb->end = lend;

uint16_t* sampv = (uint16_t*)mb->buf;

           for (size_t i = 0; i < mb->end / 2; i++) {
               sampv[i] = sys_ltohs(sampv[i]); // 小端转本地字节序
           }

           aubuf_append_auframe(st->aubuf, mb, &af);
           mem_deref(mb);
       }
       SherpaOnnxDestroyOfflineTtsGeneratedAudio(audio);

5、最后在注册url加入自己的模块;audio_source=aupcm,16000

aupcm是注入的名字ausrc_register(&ausrc, baresip_ausrcl(), "aupcm", aufile_src_alloc);

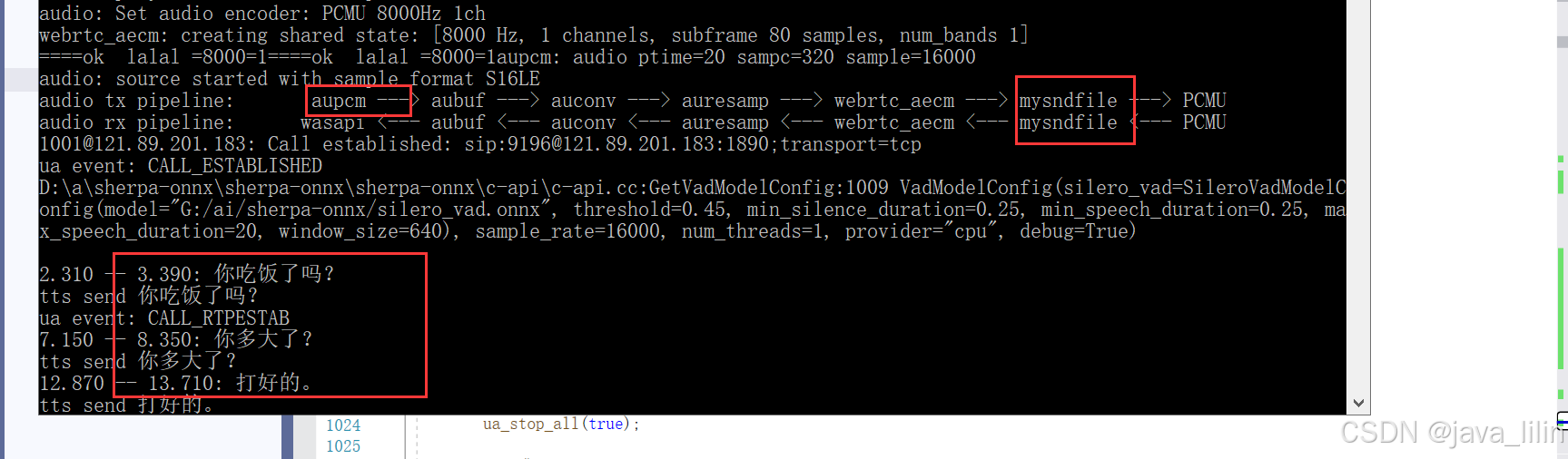

拨打顺利的就显示
