Android使用popueWindow自定义Spinner

其实就是很简单的控件自定义，只不过这两天项目用到，还是到处搜改了下，现简单记录。方便有需要的时候修改为自己使用：

需求

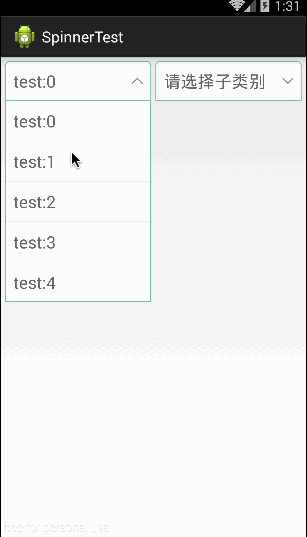

一个TextView或者Button点击的时候要弹出一些下拉选择框，可能TextView/Button还要变色或者图标变化：

实现思路

点击Textview的时候弹出一个popupWindow（后文简写），popWind布局是一个RelativeLayout或者LinearLayout，里面一个ListView/Recyclerview，它的item自己根据需要定义。

简单代码

1，MainActivity.java 程序入口，初始化数据，初始化自定义popWind，TextView点击之后显示popWind，处理ListView的点击事件：

/**
 * 主Activity  用来实现popupwindow
 * @author ansen
 */
public class MainActivity extends Activity {
    private SpinerPopWindow<String> mSpinerPopWindow;
    private List<String> list;
    private TextView tvValue;

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);

        initData();

        tvValue = (TextView) findViewById(R.id.tv_value);
        tvValue.setOnClickListener(clickListener);
        mSpinerPopWindow = new SpinerPopWindow<String>(this, list);
        mSpinerPopWindow.setOnItemListener(dismissListener);
        mSpinerPopWindow.setOnDismissListener(dismissListener);
    }

    /**
     * 监听popupwindow取消
     */
    private OnDismissListener  dismissListener=new OnDismissListener() {
        @Override
        public void onDismiss() {
            setTextImage(R.drawable.icon_down);
        }
    };

    /**
     * popupwindow显示的ListView的item点击事件
     */
    private OnItemClickListener itemClickListener = new OnItemClickListener() {
        @Override
        public void onItemClick(AdapterView<?> parent, View view, int position,long id) {
            mSpinerPopWindow.dismiss();
            tvValue.setText(list.get(position));
            Toast.makeText(MainActivity.this, "点击了:" + list.get(position),Toast.LENGTH_LONG).show();
        }
    };

    /**
     * 显示PopupWindow
     */
    private OnClickListener clickListener = new OnClickListener() {
        @Override
        public void onClick(View v) {
            switch (v.getId()) {
            case R.id.tv_value:
                mSpinerPopWindow.setWidth(tvValue.getWidth());
                mSpinerPopWindow.showAsDropDown(tvValue);
                setTextImage(R.drawable.icon_up);
                break;
            }
        }
    };

    /**
     * 初始化数据
     */
    private void initData() {
        list = new ArrayList<String>();
        for (int i = 0; i < 5; i++) {
            list.add("test:" + i);
        }
    }

    /**
     * 给TextView右边设置图片
     * @param resId
     */
    private void setTextImage(int resId) {
        Drawable drawable = getResources().getDrawable(resId);
        drawable.setBounds(0, 0, drawable.getMinimumWidth(),drawable.getMinimumHeight());// 必须设置图片大小，否则不显示
        tvValue.setCompoundDrawables(null, null, drawable, null);
    }
}

2，activity_main.xml  这个文件也没啥好说的，就是两个TextView：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical" >
    <LinearLayout
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:layout_margin="5dp"
        android:orientation="horizontal">

        <TextView
            android:id="@+id/tv_value"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:background="@drawable/shape_help_category_tv_bg"
            android:drawableRight="@drawable/icon_down"
            android:padding="10dp"
            android:textColor="@color/content_color"
            android:text="请选择父类别"
            android:textSize="20sp"/>

        <TextView
            android:layout_marginLeft="5dp"
            android:layout_width="0dp"
            android:layout_height="wrap_content"
            android:layout_weight="1"
            android:background="@drawable/shape_help_category_tv_bg"
            android:drawableRight="@drawable/icon_down"
            android:textColor="@color/content_color"
            android:padding="10dp"
            android:text="请选择子类别"
            android:textSize="20sp" />
    </LinearLayout>
</LinearLayout>

3，SpinerPopWindow.java 自定义Popupwindow类，初始化popWind显示的布局，以及一些参数，并且给listView设置适配器：

* 自定义PopupWindow  主要用来显示ListView
 * @author Jason
 * @create time 2022-3
 */
public class SpinerPopWindow<T> extends PopupWindow {
    private LayoutInflater inflater;
    private ListView mListView;
    private List<T> list;
    private MyAdapter  mAdapter;

    public SpinerPopWindow(Context context,List<T> list) {
        super(context);
        inflater=LayoutInflater.from(context);
        this.list=list;
        View view = inflater.inflate(R.layout.spiner_window_layout, null);
        setContentView(view);
        //大小怎么设置，或者不设置，根据自己需要
        setWidth(LayoutParams.WRAP_CONTENT);
        setHeight(LayoutParams.WRAP_CONTENT);
        setFocusable(true);
        ColorDrawable dw = new ColorDrawable(0x00);
        setBackgroundDrawable(dw);
        mListView = (ListView) view.findViewById(R.id.listview);
        mAdapter=new MyAdapter()
        mListView.setAdapter(mAdapter);
    }

    private void SetOnItemListener(OnItemClickListener clickListener){
        if(mListView != null){
            mListView.setOnItemClickListener(clickListener);
        }
    }

    private class MyAdapter extends BaseAdapter{
        @Override
        public int getCount() {
            return list.size();
        }

        @Override
        public Object getItem(int position) {
            return list.get(position);
        }

        @Override
        public long getItemId(int position) {
            return position;
        }

        @Override
        public View getView(int position, View convertView, ViewGroup parent) {
            ViewHolder holder=null;
            if(convertView==null){
                holder=new ViewHolder();
                // 这个spiner_item_layout就是根据自己需要定义，比如仅一个textview
                convertView=inflater.inflate(R.layout.spiner_item_layout, null);
                holder.tvName=(TextView) convertView.findViewById(R.id.tv_name);
                convertView.setTag(holder);
            }else{
                holder=(ViewHolder) convertView.getTag();
            }
            holder.tvName.setText(getItem(position).toString());
            return convertView;
        }
    }

    private class ViewHolder{
        private TextView tvName;
    }
}

4，spiner_window_layout.xml，popWind显示的布局文件，里面就一个ListView控件：

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:layout_alignParentRight="true"
    android:orientation="vertical">

    <ListView
        android:id="@+id/listview"
        android:layout_width="match_parent"
        android:layout_height="wrap_content"
        android:background="@drawable/shape_popupwindow_list_bg"
        android:scrollbars="none" >
    </ListView>
</LinearLayout>

各部分代码根据自身需要修改，比如listView-item，或者点击事件等。
