AOP源码笔记

1.refresh()-->registerBeanPostProcessorss(beanFactory) 方法：注册bean的后置处理器

2.springAOP，通过后置处理进行处理的；

3.@Enabel AspectJAutoProxy:  enabel -- 启动的意思

4.查看类关系图表：Ctrl+Shift+Alt+U

5.@EnableAspectJAutoProxy -->@Import(AspectJAutoProxyRegistrar.class){

AopConfigUtils.registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry) --> registerAspectJAnnotationAutoProxyCreatorIfNecessary(registry, (Object)null) --> registerOrEscalateApcAsRequired(AnnotationAwareAspectJAutoProxyCreator.class, registry, source) {

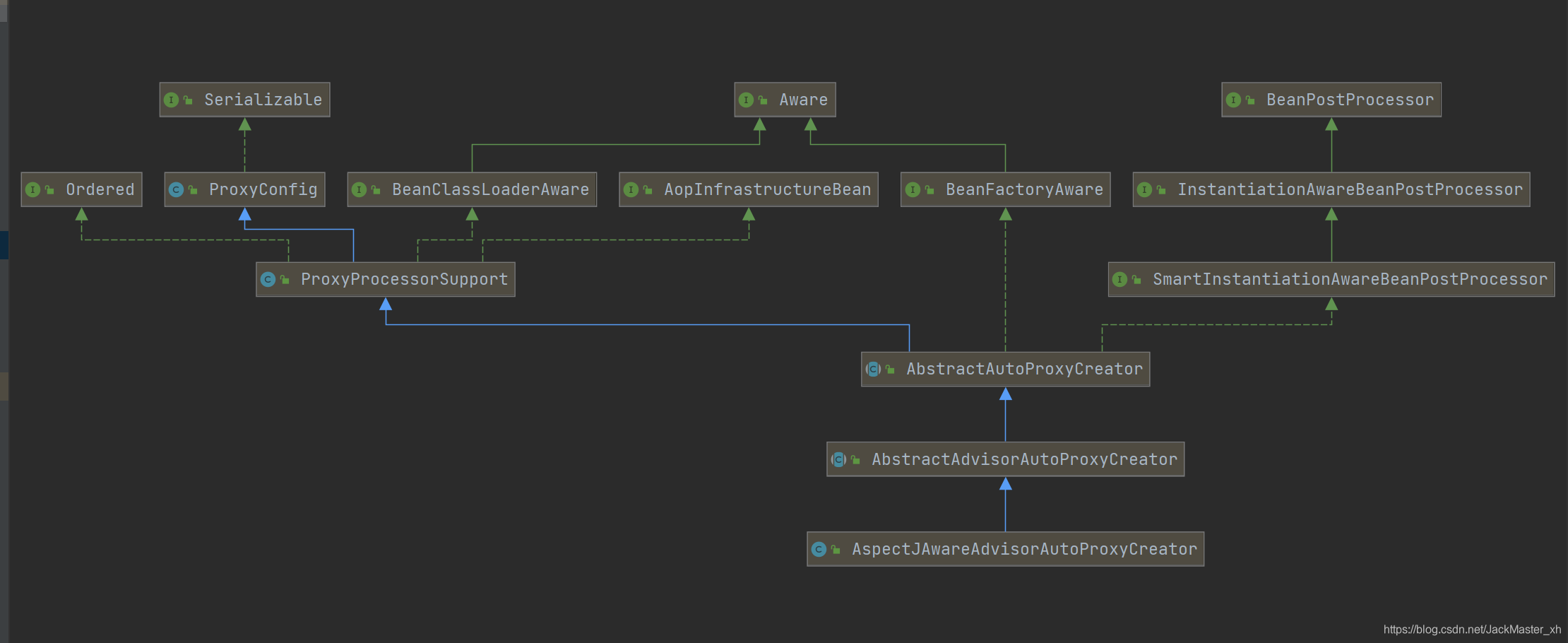

AnnotationAwareAspectJAutoProxyCreator关系图

--> implements ImportBeanDefinitionRegistrar

6.核心类：AbstractAutoProxyCreator

-->  1.setBeanFactory[子类AbstractAdvisorAutoProxyCreator重写]

--> 2.postProcessBeforeInstantition () {

     -->1.shouldSkip[子类AspectJAwareAdvisorAutoProxyCreator重写]  }

--> 3.postProcessAfterInstantition()





Object cacheKey = this.getCacheKey(beanClass, beanName);
        if (beanName == null || !this.targetSourcedBeans.contains(beanName)) {
            if (this.advisedBeans.containsKey(cacheKey)) {
                return null;
            }
//判断是否基础的bean || 或者是否应该跳过
            if (this.isInfrastructureClass(beanClass) || this.shouldSkip(beanClass, beanName)) {
                this.advisedBeans.put(cacheKey, Boolean.FALSE);
                return null;
            }
        }

        if (beanName != null) {
            TargetSource targetSource = this.getCustomTargetSource(beanClass, beanName);
            if (targetSource != null) {
                this.targetSourcedBeans.add(beanName);
                Object[] specificInterceptors = this.getAdvicesAndAdvisorsForBean(beanClass, beanName, targetSource);
                Object proxy = this.createProxy(beanClass, beanName, specificInterceptors, targetSource);
                this.proxyTypes.put(cacheKey, proxy.getClass());
                return proxy;
            }
        }

/******************** shouldSkip ************************/


protected boolean shouldSkip(Class<?> beanClass, String beanName) {
        //查询候选增强器
        List<Advisor> candidateAdvisors = this.findCandidateAdvisors();
        Iterator var4 = candidateAdvisors.iterator();

        Advisor advisor;
        do {
            if (!var4.hasNext()) {
                return super.shouldSkip(beanClass, beanName);
            }

            advisor = (Advisor)var4.next();
        } while(!(advisor instanceof AspectJPointcutAdvisor) || !((AbstractAspectJAdvice)advisor.getAdvice()).getAspectName().equals(beanName));

        return true;
    }

/******************** findCandidateAdvisors one************************/

protected List<Advisor> findCandidateAdvisors() {
//通过切面探索工具查询候选增强(事务切面)
        return this.advisorRetrievalHelper.findAdvisorBeans();
    }

 public List<Advisor> findAdvisorBeans() {
  //先从缓存中获取增强器,cachedAdvisorBeanNames是advisor的名称
        String[] advisorNames = this.cachedAdvisorBeanNames;
        if (advisorNames == null)
//从IOC容器中查询实现Advistor接口组件的名称
            advisorNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Advisor.class, true, false);
//赋值给增强器缓存
            this.cachedAdvisorBeanNames = advisorNames;
        }

        if (advisorNames.length == 0) {
            return new ArrayList();
        } else {
            List<Advisor> advisors = new ArrayList();
            String[] var3 = advisorNames;
            int var4 = advisorNames.length;

            for(int var5 = 0; var5 < var4; ++var5) {
                String name = var3[var5];
                if (this.isEligibleBean(name)) {
                    if (this.beanFactory.isCurrentlyInCreation(name)) {
                        if (logger.isDebugEnabled()) {
                            logger.debug("Skipping currently created advisor '" + name + "'");
                        }
                    } else {
                        try {
                            advisors.add(this.beanFactory.getBean(name, Advisor.class));
                        } catch (BeanCreationException var10) {
                            Throwable rootCause = var10.getMostSpecificCause();
                            if (rootCause instanceof BeanCurrentlyInCreationException) {
                                BeanCreationException bce = (BeanCreationException)rootCause;
                                if (this.beanFactory.isCurrentlyInCreation(bce.getBeanName())) {
                                    if (logger.isDebugEnabled()) {
                                        logger.debug("Skipping advisor '" + name + "' with dependency on currently created bean: " + var10.getMessage());
                                    }
                                    continue;
                                }
                            }

                            throw var10;
                        }
                    }
                }
            }

            return advisors;
        }
    }



/******************** findCandidateAdvisors two************************/
//增强器命名：把方法看成一个对象，对这个对象封装之后叫增强器
advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());

/**
 **buildAspectJAdvisors()
 **/
//解析@Aspject注解
public List<Advisor> buildAspectJAdvisors() {
//从缓存中获取
        List<String> aspectNames = this.aspectBeanNames;
//缓存中没有进入判断进行操作
        if (aspectNames == null) {
            synchronized(this) {
                aspectNames = this.aspectBeanNames;
                if (aspectNames == null) {
                    List<Advisor> advisors = new LinkedList();
                    List<String> aspectNames = new LinkedList();
//从容器中获取所有的bean的name
                    String[] beanNames = BeanFactoryUtils.beanNamesForTypeIncludingAncestors(this.beanFactory, Object.class, true, false);
                    String[] var18 = beanNames;
                    int var19 = beanNames.length;
//遍历所有的beanNames
                    for(int var7 = 0; var7 < var19; ++var7) {
                        String beanName = var18[var7];
                        if (this.isEligibleBean(beanName)) {
//根据beanName获取beanType
                            Class<?> beanType = this.beanFactory.getType(beanName);
                            if (beanType != null && this.advisorFactory.isAspect(beanType)) {
                                aspectNames.add(beanName);
                                AspectMetadata amd = new AspectMetadata(beanType, beanName);
                                if (amd.getAjType().getPerClause().getKind() == PerClauseKind.SINGLETON) {
                                    MetadataAwareAspectInstanceFactory factory = new BeanFactoryAspectInstanceFactory(this.beanFactory, beanName);
//调用getAdvisors方法，获取增强器
                                    List<Advisor> classAdvisors = this.advisorFactory.getAdvisors(factory);
                                    if (this.beanFactory.isSingleton(beanName)) {
//放入缓存里面去
                                        this.advisorsCache.put(beanName, classAdvisors);
                                    } else {
                                        this.aspectFactoryCache.put(beanName, factory);
                                    }

                                    advisors.addAll(classAdvisors);
                                } else {
                                    if (this.beanFactory.isSingleton(beanName)) {
                                        throw new IllegalArgumentException("Bean with name '" + beanName + "' is a singleton, but aspect instantiation model is not singleton");
                                    }

                                    MetadataAwareAspectInstanceFactory factory = new PrototypeAspectInstanceFactory(this.beanFactory, beanName);
                                    this.aspectFactoryCache.put(beanName, factory);
                                    advisors.addAll(this.advisorFactory.getAdvisors(factory));
                                }
                            }
                        }
                    }

                    this.aspectBeanNames = aspectNames;
                    return advisors;
                }
            }
        }

        if (aspectNames.isEmpty()) {
            return Collections.emptyList();
        } else {
            List<Advisor> advisors = new LinkedList();
            Iterator var3 = aspectNames.iterator();

            while(var3.hasNext()) {
                String aspectName = (String)var3.next();
                List<Advisor> cachedAdvisors = (List)this.advisorsCache.get(aspectName);
                if (cachedAdvisors != null) {
                    advisors.addAll(cachedAdvisors);
                } else {
                    MetadataAwareAspectInstanceFactory factory = (MetadataAwareAspectInstanceFactory)this.aspectFactoryCache.get(aspectName);
                    advisors.addAll(this.advisorFactory.getAdvisors(factory));
                }
            }
//map{key--切面名称，value{获取到对应的所有增强器}
            return advisors;
        }
    }


/****************  getAdvisors *************************/


public List<Advisor> getAdvisors(MetadataAwareAspectInstanceFactory aspectInstanceFactory) {
        Class<?> aspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
        String aspectName = aspectInstanceFactory.getAspectMetadata().getAspectName();
        this.validate(aspectClass);
        MetadataAwareAspectInstanceFactory lazySingletonAspectInstanceFactory = new LazySingletonAspectInstanceFactoryDecorator(aspectInstanceFactory);
        List<Advisor> advisors = new ArrayList();
        Iterator var6 = this.getAdvisorMethods(aspectClass).iterator();

        while(var6.hasNext()) {
            Method method = (Method)var6.next();
//获取增强器
            Advisor advisor = this.getAdvisor(method, lazySingletonAspectInstanceFactory, advisors.size(), aspectName);
//获取到之后 转入缓存中
            if (advisor != null) {
                advisors.add(advisor);
            }
        }

        if (!advisors.isEmpty() && lazySingletonAspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
            Advisor instantiationAdvisor = new ReflectiveAspectJAdvisorFactory.SyntheticInstantiationAdvisor(lazySingletonAspectInstanceFactory);
            advisors.add(0, instantiationAdvisor);
        }

        Field[] var12 = aspectClass.getDeclaredFields();
        int var13 = var12.length;

        for(int var14 = 0; var14 < var13; ++var14) {
            Field field = var12[var14];
            Advisor advisor = this.getDeclareParentsAdvisor(field);
            if (advisor != null) {
                advisors.add(advisor);
            }
        }

        return advisors;
    }


/**
 ** 获取所有Advisor方法并排除@Pointcut方法
 **/
    private List<Method> getAdvisorMethods(Class<?> aspectClass) {
        final List<Method> methods = new ArrayList();
        ReflectionUtils.doWithMethods(aspectClass, new MethodCallback() {
            public void doWith(Method method) throws IllegalArgumentException {
                if (AnnotationUtils.getAnnotation(method, Pointcut.class) == null) {
                    methods.add(method);
                }

            }
        });
        Collections.sort(methods, METHOD_COMPARATOR);
        return methods;
    }

/**
 ** 获取增强器
 **/
  public Advisor getAdvisor(Method candidateAdviceMethod, MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrderInAspect, String aspectName) {
        this.validate(aspectInstanceFactory.getAspectMetadata().getAspectClass());
//切点表达式,从方法上获取切点表达式
        AspectJExpressionPointcut expressionPointcut = this.getPointcut(candidateAdviceMethod, aspectInstanceFactory.getAspectMetadata().getAspectClass());

//创建一个切面的实现类
        return expressionPointcut == null ? null : new InstantiationModelAwarePointcutAdvisorImpl(expressionPointcut, candidateAdviceMethod, this, aspectInstanceFactory, declarationOrderInAspect, aspectName);
    }


/***************** InstantiationModelAwarePointcutAdvisorImpl 创建切面实现类********/

public InstantiationModelAwarePointcutAdvisorImpl(AspectJExpressionPointcut declaredPointcut, Method aspectJAdviceMethod, AspectJAdvisorFactory aspectJAdvisorFactory, MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
        this.declaredPointcut = declaredPointcut;
        this.declaringClass = aspectJAdviceMethod.getDeclaringClass();
        this.methodName = aspectJAdviceMethod.getName();
        this.parameterTypes = aspectJAdviceMethod.getParameterTypes();
        this.aspectJAdviceMethod = aspectJAdviceMethod;
        this.aspectJAdvisorFactory = aspectJAdvisorFactory;
        this.aspectInstanceFactory = aspectInstanceFactory;
        this.declarationOrder = declarationOrder;
        this.aspectName = aspectName;
        if (aspectInstanceFactory.getAspectMetadata().isLazilyInstantiated()) {
            Pointcut preInstantiationPointcut = Pointcuts.union(aspectInstanceFactory.getAspectMetadata().getPerClausePointcut(), this.declaredPointcut);
            this.pointcut = new InstantiationModelAwarePointcutAdvisorImpl.PerTargetInstantiationModelPointcut(this.declaredPointcut, preInstantiationPointcut, aspectInstanceFactory);
            this.lazy = true;
        } else {
            this.pointcut = this.declaredPointcut;
            this.lazy = false;
//关键的核心方法所在，实例化切面 ***********************************************
            this.instantiatedAdvice = this.instantiateAdvice(this.declaredPointcut);
        }

    }


/**
 **  instantiateAdvice
 **/
private Advice instantiateAdvice(AspectJExpressionPointcut pcut) {
        return this.aspectJAdvisorFactory.getAdvice(this.aspectJAdviceMethod, pcut, this.aspectInstanceFactory, this.declarationOrder, this.aspectName);
    }

/**
 **  getAdvice，获取通知
 **/
public Advice getAdvice(Method candidateAdviceMethod, AspectJExpressionPointcut expressionPointcut, MetadataAwareAspectInstanceFactory aspectInstanceFactory, int declarationOrder, String aspectName) {
        Class<?> candidateAspectClass = aspectInstanceFactory.getAspectMetadata().getAspectClass();
        this.validate(candidateAspectClass);


//找到@AspectJ注解{new Class[]{Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class}}
        AspectJAnnotation<?> aspectJAnnotation = AbstractAspectJAdvisorFactory.findAspectJAnnotationOnMethod(candidateAdviceMethod);
        if (aspectJAnnotation == null) {
            return null;
//判断是不是切面
        } else if (!this.isAspect(candidateAspectClass)) {
            throw new AopConfigException("Advice must be declared inside an aspect type: Offending method '" + candidateAdviceMethod + "' in class [" + candidateAspectClass.getName() + "]");
        } else {
            if (this.logger.isDebugEnabled()) {
                this.logger.debug("Found AspectJ method: " + candidateAdviceMethod);
            }

            Object springAdvice;
//判断注解类型，并返回对应的增强器{Pointcut.class, Around.class, Before.class, After.class, AfterReturning.class, AfterThrowing.class}
            switch(aspectJAnnotation.getAnnotationType()) {
            case AtPointcut:
                if (this.logger.isDebugEnabled()) {
                    this.logger.debug("Processing pointcut '" + candidateAdviceMethod.getName() + "'");
                }

                return null;
            case AtAround:
                springAdvice = new AspectJAroundAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
                break;
            case AtBefore:
//new 一个切面通知
                springAdvice = new AspectJMethodBeforeAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
                break;
            case AtAfter:
                springAdvice = new AspectJAfterAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
                break;
            case AtAfterReturning:
                springAdvice = new AspectJAfterReturningAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
                AfterReturning afterReturningAnnotation = (AfterReturning)aspectJAnnotation.getAnnotation();
                if (StringUtils.hasText(afterReturningAnnotation.returning())) {
                    ((AbstractAspectJAdvice)springAdvice).setReturningName(afterReturningAnnotation.returning());
                }
                break;
            case AtAfterThrowing:
                springAdvice = new AspectJAfterThrowingAdvice(candidateAdviceMethod, expressionPointcut, aspectInstanceFactory);
                AfterThrowing afterThrowingAnnotation = (AfterThrowing)aspectJAnnotation.getAnnotation();
                if (StringUtils.hasText(afterThrowingAnnotation.throwing())) {
                    ((AbstractAspectJAdvice)springAdvice).setThrowingName(afterThrowingAnnotation.throwing());
                }
                break;
            default:
                throw new UnsupportedOperationException("Unsupported advice type on method: " + candidateAdviceMethod);
            }

            ((AbstractAspectJAdvice)springAdvice).setAspectName(aspectName);
            ((AbstractAspectJAdvice)springAdvice).setDeclarationOrder(declarationOrder);
            String[] argNames = this.parameterNameDiscoverer.getParameterNames(candidateAdviceMethod);
            if (argNames != null) {
                ((AbstractAspectJAdvice)springAdvice).setArgumentNamesFromStringArray(argNames);
            }

            ((AbstractAspectJAdvice)springAdvice).calculateArgumentBindings();
            return (Advice)springAdvice;
        }
    }

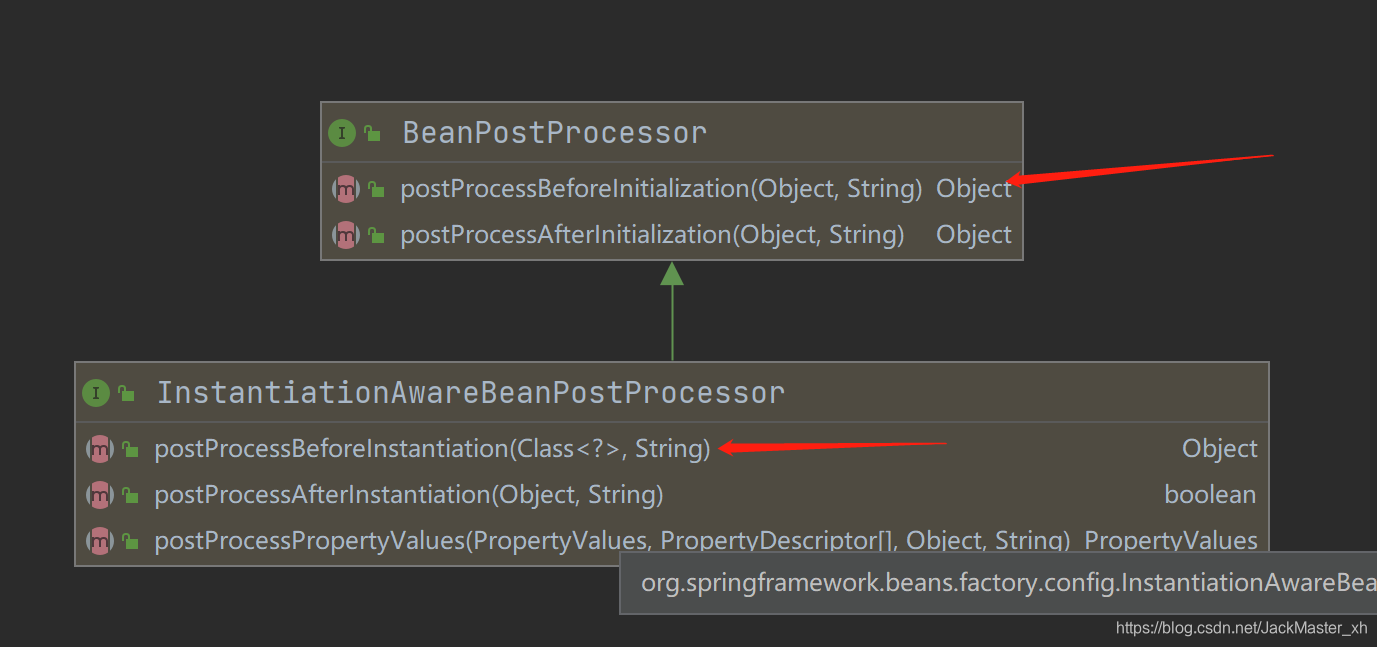

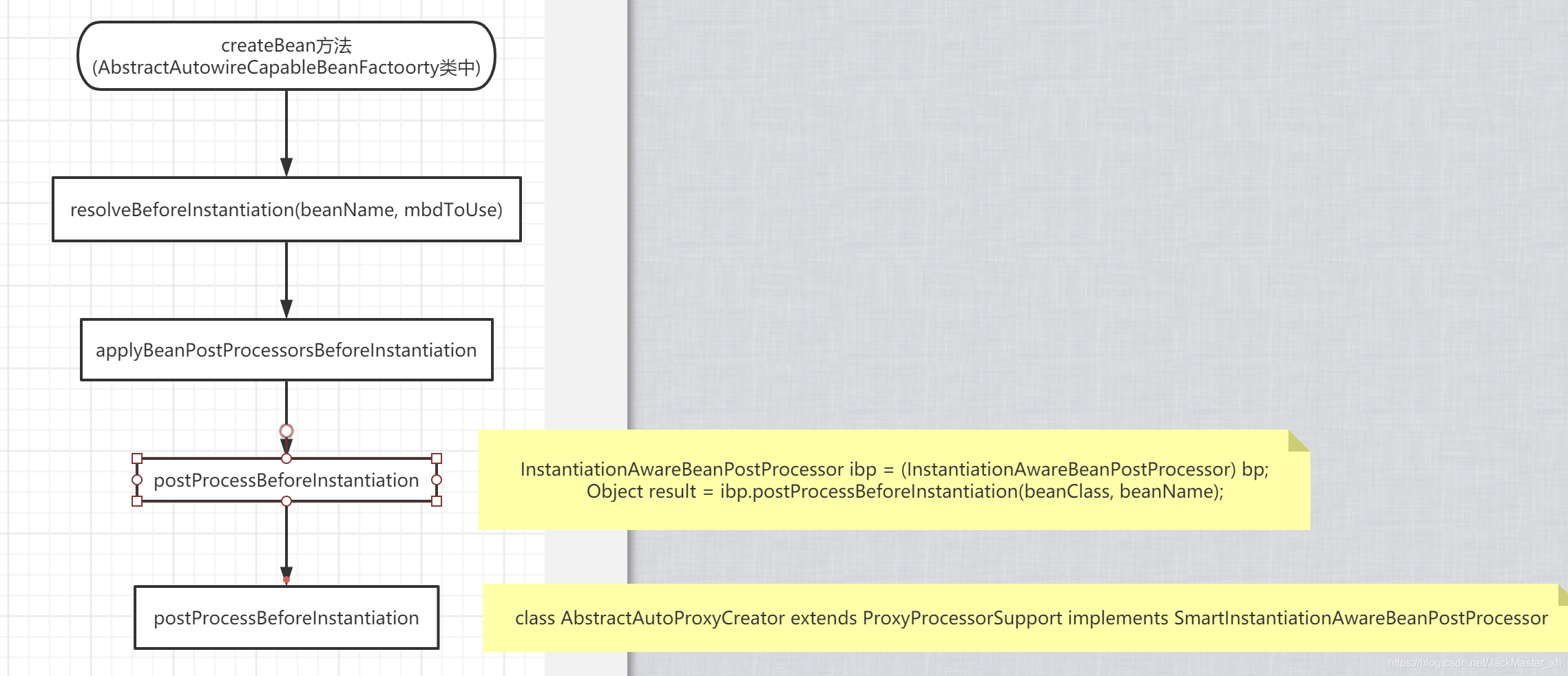

7.postProcessBeforeInstantiation 触发逻辑 和实现继承关系：

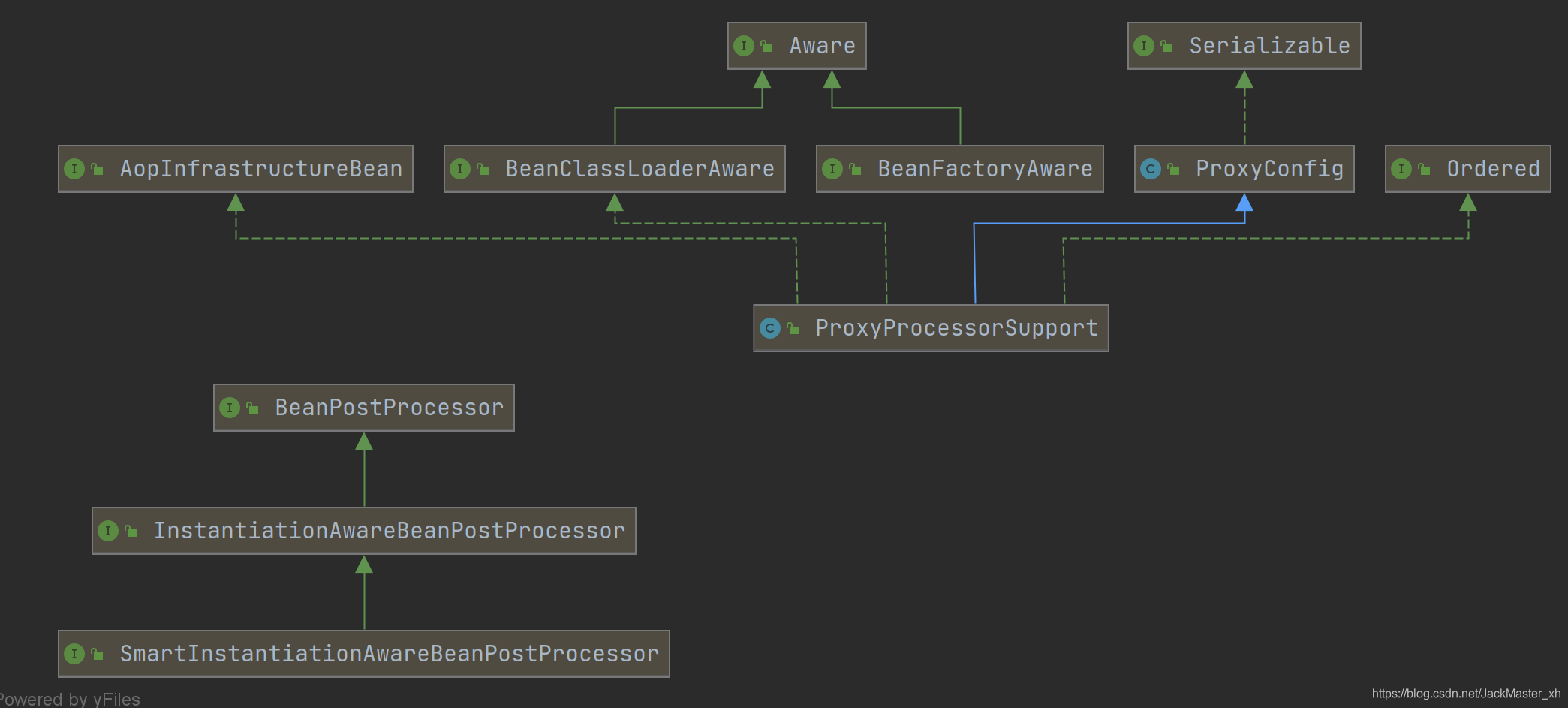

AbstractAutoProxyCreator-->{implements SmartInstantiationAwareBeanPostProcessor -->{SmartInstantiationAwareBeanPostProcessor extends InstantiationAwareBeanPostProcessor







7.wrapIFNecessary逻辑:（--> $Proxy 表示动态代理-->有advisors）

protected Object wrapIfNecessary(Object bean, String beanName, Object cacheKey) {
        if (beanName != null && this.targetSourcedBeans.contains(beanName)) {
            return bean;
        } else if (Boolean.FALSE.equals(this.advisedBeans.get(cacheKey))) {
            return bean;
        } else if (!this.isInfrastructureClass(bean.getClass()) && !this.shouldSkip(bean.getClass(), beanName)) {
//获取通知或者增强
            Object[] specificInterceptors = this.getAdvicesAndAdvisorsForBean(bean.getClass(), beanName, (TargetSource)null);
            if (specificInterceptors != DO_NOT_PROXY) {
                this.advisedBeans.put(cacheKey, Boolean.TRUE);
                Object proxy = this.createProxy(bean.getClass(), beanName, specificInterceptors, new SingletonTargetSource(bean));
                this.proxyTypes.put(cacheKey, proxy.getClass());
                return proxy;
            } else {
                this.advisedBeans.put(cacheKey, Boolean.FALSE);
                return bean;
            }
        } else {
            this.advisedBeans.put(cacheKey, Boolean.FALSE);
            return bean;
        }
    }

/*************************  getAvicesAndAdvisorsForBean *****************/

protected Object[] getAdvicesAndAdvisorsForBean(Class<?> beanClass, String beanName, TargetSource targetSource) {
//查询出来是否为空，为空不需要代理
        List<Advisor> advisors = this.findEligibleAdvisors(beanClass, beanName);
        return advisors.isEmpty() ? DO_NOT_PROXY : advisors.toArray();
    }

/**
 ** findEligibleAdvisors
 **/
//找到合适的增强器
protected List<Advisor> findEligibleAdvisors(Class<?> beanClass, String beanName) {

        List<Advisor> candidateAdvisors = this.findCandidateAdvisors();
//找本类中能用的
        List<Advisor> eligibleAdvisors = this.findAdvisorsThatCanApply(candidateAdvisors, beanClass, beanName);
        this.extendAdvisors(eligibleAdvisors);
        if (!eligibleAdvisors.isEmpty()) {
            eligibleAdvisors = this.sortAdvisors(eligibleAdvisors);
        }

        return eligibleAdvisors;
    }

/**
 ** findCandidateAdvisors
 **/
 protected List<Advisor> findCandidateAdvisors() {
//1.找事务相关的
        List<Advisor> advisors = super.findCandidateAdvisors();
        if (this.aspectJAdvisorsBuilder != null) {
//2.找切面相关的--->直接从缓存中获取
            advisors.addAll(this.aspectJAdvisorsBuilder.buildAspectJAdvisors());
        }

        return advisors;
    }


/********************************** createProxy ****************************/

 protected Object createProxy(Class<?> beanClass, String beanName, Object[] specificInterceptors, TargetSource targetSource) {
        if (this.beanFactory instanceof ConfigurableListableBeanFactory) {
//是否有暴露代理的操作            AutoProxyUtils.exposeTargetClass((ConfigurableListableBeanFactory)this.beanFactory, beanName, beanClass);
        }
//创建代理工厂
        ProxyFactory proxyFactory = new ProxyFactory();
        proxyFactory.copyFrom(this);
        if (!proxyFactory.isProxyTargetClass()) {
            if (this.shouldProxyTargetClass(beanClass, beanName)) {
                proxyFactory.setProxyTargetClass(true);
            } else {
                this.evaluateProxyInterfaces(beanClass, proxyFactory);
            }
        }
//获取容器上的方法增强器
        Advisor[] advisors = this.buildAdvisors(beanName, specificInterceptors);
        proxyFactory.addAdvisors(advisors);
        proxyFactory.setTargetSource(targetSource);
        this.customizeProxyFactory(proxyFactory);
        proxyFactory.setFrozen(this.freezeProxy);
        if (this.advisorsPreFiltered()) {
            proxyFactory.setPreFiltered(true);
        }
//创建代理对象
        return proxyFactory.getProxy(this.getProxyClassLoader());
    }


/**
 ** 获取代理对象   proxyFactory.getProxy(this.getProxyClassLoader());
 **/
public Object getProxy(ClassLoader classLoader) {
        return this.createAopProxy().getProxy(classLoader);
    }

  protected final synchronized AopProxy createAopProxy() {
        if (!this.active) {
            this.activate();
        }

        return this.getAopProxyFactory().createAopProxy(this);
    }

//1.判断是否有使用CGlib代理，没哟特殊指定，并且有实现接口，则都有JDK代理
 public AopProxy createAopProxy(AdvisedSupport config) throws AopConfigException {
        if (!config.isOptimize() && !config.isProxyTargetClass() && !this.hasNoUserSuppliedProxyInterfaces(config)) {
//1.使用JDK代理
            return new JdkDynamicAopProxy(config);
        } else {
            Class<?> targetClass = config.getTargetClass();
            if (targetClass == null) {
                throw new AopConfigException("TargetSource cannot determine target class: Either an interface or a target is required for proxy creation.");
            } else {
//没有实现了接口 并且 没有没有指定使用什么代理，则使用CGlib代理，其他使用JDK代理
                return (AopProxy)(!targetClass.isInterface() && !Proxy.isProxyClass(targetClass) ? new ObjenesisCglibAopProxy(config) : new JdkDynamicAopProxy(config));
            }
        }
    }

8.总结：（看源码 跟着流程图 看下面的内存值）

@1.InstantiationAwareBeanPostProcessors 后的before方法，把我们的切面信息给保存下来

@2.BeanPostProcessor 的 after 去创建代理对象

        @@1.从缓存中查询切面信息(在第一步骤的时候，把我们找到的切面信息放到缓存中)

        @@2.创建代理对象(把我们的增强器集合存放到我们的代理对象中) -map集合

代理对象如何调用我们的增强器
