对Spring容器中Bean的生命周期解析

1. 生命周期简介

Bean 的生命周期：
Bean创建 —》初始化 —》销毁的过程

Spring 容器管理 bean 的生命周期：
我们可以自定义初始化和销毁的方法，容器在 bean 进行到对应生命周期的的时候调用我们自定义的初始化和销毁方法

1、Bean 的构造（对象创建）：
单实例时，在容器启动时创建对象
多实例时，在每次获取 bean 的时候创建对象

2、Bean 的初始化：
对象创建好时，且属性已赋值完成后，调用初始化方法

3、Bean 的销毁
Spring 容器关闭时进行 bean 的销毁

2. @Bean指定初始化和销毁方法

在 @Bean 注解的源码中，存在两个属性：initMethod 、destroyMethod
即可以通过该属性指定被 @Bean 注解标注的组件的初始化方法和销毁方法

源码如下：

@Target({ElementType.METHOD, ElementType.ANNOTATION_TYPE})
@Retention(RetentionPolicy.RUNTIME)
@Documented
public @interface Bean {
	... ...

	/**
	 * The optional name of a method to call on the bean instance during initialization.
	 * Not commonly used, given that the method may be called programmatically directly
	 * within the body of a Bean-annotated method.
	 * <p>The default value is {@code ""}, indicating no init method to be called.
	 */
	String initMethod() default "";

	String destroyMethod() default AbstractBeanDefinition.INFER_METHOD;
}

创建 Bean 实体类：

package com.jiker.bean;

public class BeanDemo1 {

	public BeanDemo1() {
		// TODO Auto-generated constructor stub
		System.out.println("BeanDemo1 constructor...");
	}

	public void init() {
		System.out.println("BeanDemo1 init...");
	}

	public void destroy() {
		System.out.println("BeanDemo1 destroy...");
	}

}

创建配置类，并注入 bean（默认为单实例对象）
使用 @Bean 注解中的两个属性指定初始化和销毁方法

package com.jiker.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import com.jiker.bean.BeanDemo1;

@Configuration
public class MainConfig {

	@Bean(initMethod = "init",destroyMethod = "destroy")
	public BeanDemo1 beanDemo1() {
		return new BeanDemo1();
	}

}

测试

package com.jiker.test;

import org.junit.Test;
import org.springframework.context.annotation.AnnotationConfigApplicationContext;

import com.jiker.config.MainConfig;

public class TestBean {

	@Test
	public void m01() {

		AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(MainConfig.class);
		System.out.println("Spring 容器创建...");

		//关闭容器
		applicationContext.close();
	}
}

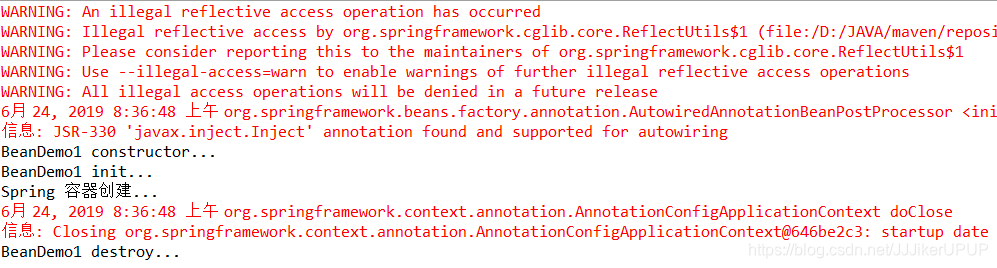

结果：

多实例对象测试

	@Scope("prototype")
	@Bean(initMethod = "init",destroyMethod = "destroy")
	public BeanDemo1 beanDemo1() {

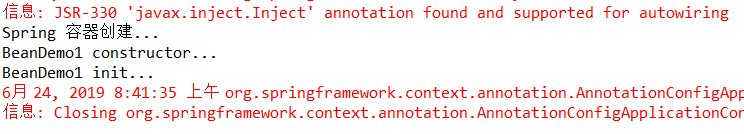

此时，运行时仅创建了 Spring 容器，并没有初始化容器中的对象

若获取 bean 后，容器关闭时不再销毁 bean，即：容器不管理多实例 bean 的生命周期

	AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(MainConfig.class);
	System.out.println("Spring 容器创建...");
	applicationContext.getBean("beanDemo1");

	//关闭容器
	applicationContext.close();

3. InitializingBean和DisposableBean

InitializingBean：由bean实现的接口，当bean工厂设置了所有属性后，需要作出反应：例如，执行自定义初始化，或者只检查是否设置了所有强制属性。

public interface InitializingBean {

	/**
	 * Invoked by a BeanFactory after it has set all bean properties supplied
	 * (and satisfied BeanFactoryAware and ApplicationContextAware).
	 * <p>This method allows the bean instance to perform initialization only
	 * possible when all bean properties have been set and to throw an
	 * exception in the event of misconfiguration.
	 * @throws Exception in the event of misconfiguration (such
	 * as failure to set an essential property) or if initialization fails.
	 */
	void afterPropertiesSet() throws Exception;

}

DisposableBean：接口将由希望在销毁时释放资源的bean实现。如果beanfactory处理缓存的单例，那么它应该调用destroy方法。应用程序上下文应该在关闭时释放它的所有单例

public interface DisposableBean {

	/**
	 * Invoked by a BeanFactory on destruction of a singleton.
	 * @throws Exception in case of shutdown errors.
	 * Exceptions will get logged but not rethrown to allow
	 * other beans to release their resources too.
	 */
	void destroy() throws Exception;

}

即：可以创建一个实体类，分别实现 InitializingBean 和 DisposableBean 接口，这样 Spring 容器就会在对应的时期调用对应的接口方法，完成 bean 的初始化或销毁

BeanDemo2.java ：

package com.jiker.bean;

import org.springframework.beans.factory.DisposableBean;
import org.springframework.beans.factory.InitializingBean;
import org.springframework.stereotype.Component;

//将该实例注入容器中
@Component
public class BeanDemo2 implements InitializingBean,DisposableBean {

	public BeanDemo2() {
		// TODO Auto-generated constructor stub
		System.out.println("BeanDemo2 constructor...");
	}

	//实现DisposableBean中的方法
	public void destroy() throws Exception {
		// TODO Auto-generated method stub
		System.out.println("BeanDemo2 DisposableBean.destroy ...");
	}

	//实现InitializingBean中的方法
	public void afterPropertiesSet() throws Exception {
		// TODO Auto-generated method stub
		System.out.println("BeanDemo2 InitializingBean.afterPropertiesSet ...");
	}

}

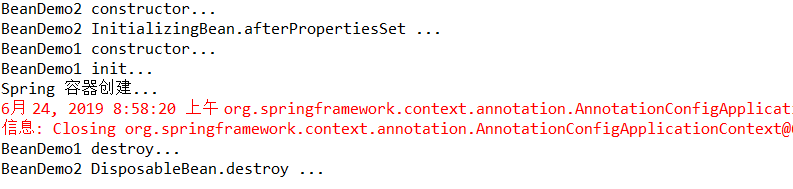

使用 @ComponentScan 包扫描方式将 BeanDemo2 注册入容器

@ComponentScan("com.jiker.bean")
@Configuration
public class MainConfig {

4. @PostConstruct&@PreDestroy

使用 JSR250 中的注解：
@PostConstruct：在 bean 创建完成并且属性赋值完成后，来执行标注该注解的方法
@PreDestroy：在容器销毁 bean 之前通知我们进行清理工作

package com.jiker.bean;

import org.springframework.stereotype.Component;

@Component
public class BeanDemo3 {

	public BeanDemo3() {
		// TODO Auto-generated constructor stub
		System.out.println("BeanDemo3 constructor...");
	}

	@PostConstruct
	public void init() {
		System.out.println("BeanDemo3 init...");
	}

	@PreDestroy
	public void destroy() {
		System.out.println("BeanDemo3 destroy...");
	}

}

5. BeanPostProcessor后置处理器

Spring 为我们提供了一种组件：BeanPostProcessor[interface]；意为 bean 的后置处理器
在 bean 初始化前后进行一些处理工作；
postProcessBeforeInitialization()：在已经创建好了 bean 实例之后，且在任何初始化之前工作
postProcessAfterInitialization()：在初始化之后工作

5.1 后置处理器实现

源码：

public interface BeanPostProcessor {

	/**
	 * Apply this BeanPostProcessor to the given new bean instance <i>before</i> any bean
	 * initialization callbacks (like InitializingBean's {@code afterPropertiesSet}
	 * or a custom init-method). The bean will already be populated with property values.
	 * The returned bean instance may be a wrapper around the original.
	 * @param bean the new bean instance
	 * @param beanName the name of the bean
	 * @return the bean instance to use, either the original or a wrapped one;
	 * if {@code null}, no subsequent BeanPostProcessors will be invoked
	 * @throws org.springframework.beans.BeansException in case of errors
	 * @see org.springframework.beans.factory.InitializingBean#afterPropertiesSet
	 */
	Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException;

	/**
	 * Apply this BeanPostProcessor to the given new bean instance <i>after</i> any bean
	 * initialization callbacks (like InitializingBean's {@code afterPropertiesSet}
	 * or a custom init-method). The bean will already be populated with property values.
	 * The returned bean instance may be a wrapper around the original.
	 * <p>In case of a FactoryBean, this callback will be invoked for both the FactoryBean
	 * instance and the objects created by the FactoryBean (as of Spring 2.0). The
	 * post-processor can decide whether to apply to either the FactoryBean or created
	 * objects or both through corresponding {@code bean instanceof FactoryBean} checks.
	 * <p>This callback will also be invoked after a short-circuiting triggered by a
	 * {@link InstantiationAwareBeanPostProcessor#postProcessBeforeInstantiation} method,
	 * in contrast to all other BeanPostProcessor callbacks.
	 * @param bean the new bean instance
	 * @param beanName the name of the bean
	 * @return the bean instance to use, either the original or a wrapped one;
	 * if {@code null}, no subsequent BeanPostProcessors will be invoked
	 * @throws org.springframework.beans.BeansException in case of errors
	 * @see org.springframework.beans.factory.InitializingBean#afterPropertiesSet
	 * @see org.springframework.beans.factory.FactoryBean
	 */
	Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException;

}

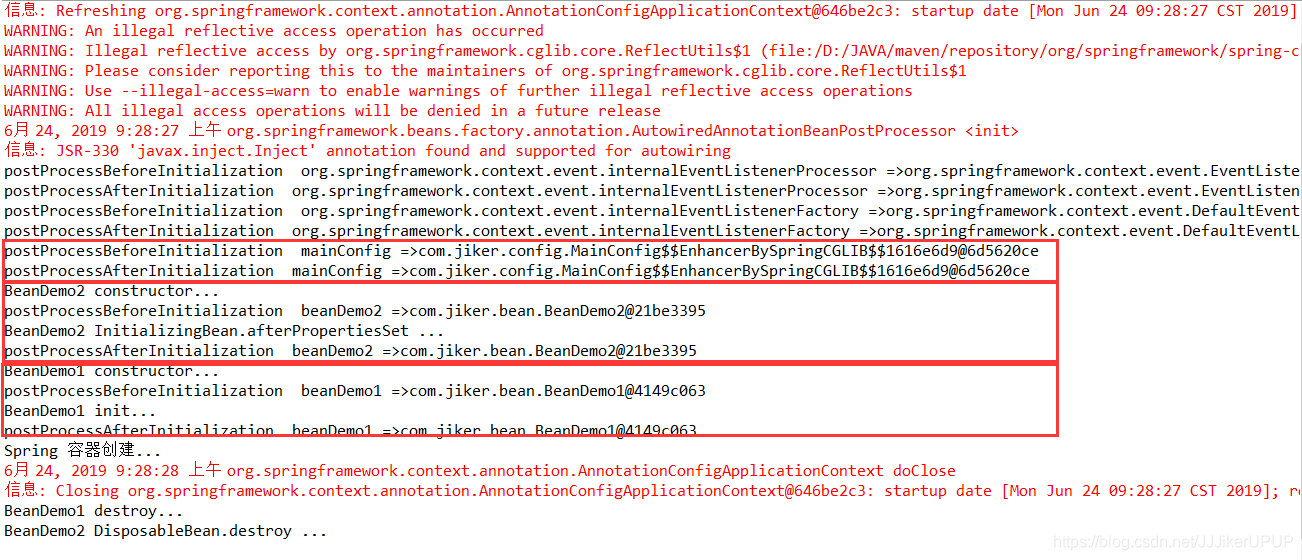

实现后置处理器接口

package com.jiker.bean;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanPostProcessor;
import org.springframework.stereotype.Component;

@Component
public class MyBeanPostProcessor implements BeanPostProcessor {

	public Object postProcessBeforeInitialization(Object bean, String beanName) throws BeansException {
		// TODO Auto-generated method stub
		System.out.println("postProcessBeforeInitialization  " + beanName + " =>" + bean);
		return bean;
	}

	public Object postProcessAfterInitialization(Object bean, String beanName) throws BeansException {
		// TODO Auto-generated method stub
		System.out.println("postProcessAfterInitialization  " + beanName + " =>" + bean);
		return bean;
	}

}

5.2 BeanPostProcessor原理

使用 DEBUG 方式查看方法栈

TestBean.m01() line: 13
AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext(MainConfig.class);
创建 IOC 容器

AnnotationConfigApplicationContext.<init>(Class<?>...) line: 84
public AnnotationConfigApplicationContext(Class<?>... annotatedClasses) {
	this();
	register(annotatedClasses);
	refresh();
}
刷新容器

AnnotationConfigApplicationContext(AbstractApplicationContext).refresh() line: 543
public void refresh() throws BeansException, IllegalStateException {
	... ...
	// Instantiate all remaining (non-lazy-init) singletons.
	finishBeanFactoryInitialization(beanFactory);
	... ...
}
初始化所有剩下的单实例对象

... ...//试着获取 bean，若是第一次获取，则创建 bean

DefaultListableBeanFactory(AbstractAutowireCapableBeanFactory).doCreateBean(String, RootBeanDefinition, Object[]) line: 555
Object exposedObject = bean;
try {
	populateBean(beanName, mbd, instanceWrapper);
	if (exposedObject != null) {
		exposedObject = initializeBean(beanName, exposedObject, mbd);
	}
}
populateBean(beanName, mbd, instanceWrapper) 方法既是通过各种判断为 bean 赋值
initializeBean(beanName, exposedObject, mbd) 即是后置处理器的调用，源码如下：
	... ...
	if (mbd == null || !mbd.isSynthetic()) {
			wrappedBean = applyBeanPostProcessorsBeforeInitialization(wrappedBean, beanName);
		}
	... ...
	try {
			invokeInitMethods(beanName, wrappedBean, mbd);
		}
	... ...
	if (mbd == null || !mbd.isSynthetic()) {
			wrappedBean = applyBeanPostProcessorsAfterInitialization(wrappedBean, beanName);
		}
	... ...
initializeBean方法中存在着 invokeInitMethods，即是初始化 bean，在其之前会调用 applyBeanPostProcessorsBeforeInitialization
在其后会调用 applyBeanPostProcessorsAfterInitialization

DefaultListableBeanFactory(AbstractAutowireCapableBeanFactory).applyBeanPostProcessorsBeforeInitialization(Object, String) line: 409
public Object applyBeanPostProcessorsBeforeInitialization(Object existingBean, String beanName)
			throws BeansException {

		Object result = existingBean;
		for (BeanPostProcessor beanProcessor : getBeanPostProcessors()) {
			result = beanProcessor.postProcessBeforeInitialization(result, beanName);
			if (result == null) {
				return result;
			}
		}
		return result;
	}
后置处理器中 XXXPostProcessBeforeInitialization 方法的原理：遍历得到容器中所有的 BeanPostProcessor，
挨个执行 beforeInitialization 方法，一旦方法返回 NULL 时，跳出循环，不会再执行后面的后者处理器

5.3 BeanPostProcessor在Spring底层的使用

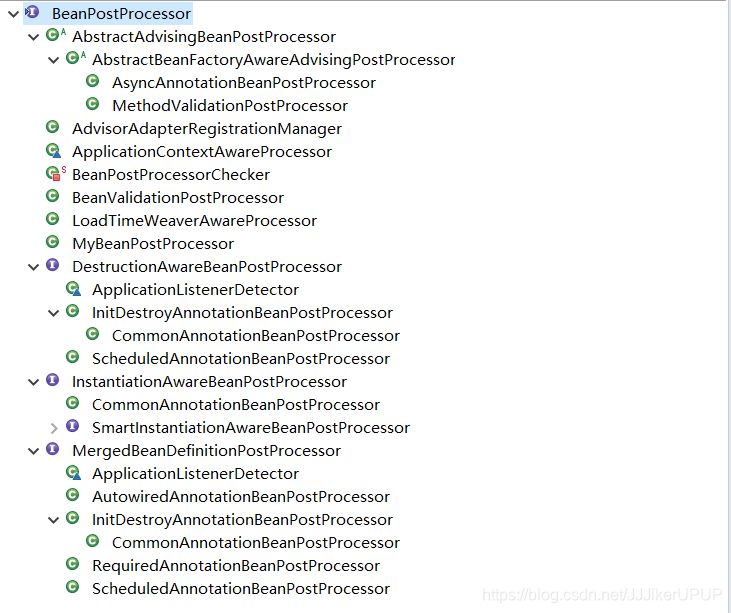

BeanPostProcessor 接口的所有实现类：

示例：ApplicationContextAwareProcessor：给 bean 中注入 IOC容器

class ApplicationContextAwareProcessor implements BeanPostProcessor {
	... ...
	@Override
	public Object postProcessBeforeInitialization(final Object bean, String beanName) throws BeansException {
		AccessControlContext acc = null;

		if (System.getSecurityManager() != null &&
				(bean instanceof EnvironmentAware || bean instanceof EmbeddedValueResolverAware ||
						bean instanceof ResourceLoaderAware || bean instanceof ApplicationEventPublisherAware ||
						bean instanceof MessageSourceAware || bean instanceof ApplicationContextAware)) {
			acc = this.applicationContext.getBeanFactory().getAccessControlContext();
		}
		... ...
	}

	private void invokeAwareInterfaces(Object bean) {
		if (bean instanceof Aware) {
			if (bean instanceof EnvironmentAware) {
				((EnvironmentAware) bean).setEnvironment(this.applicationContext.getEnvironment());
			}
			if (bean instanceof EmbeddedValueResolverAware) {
				((EmbeddedValueResolverAware) bean).setEmbeddedValueResolver(this.embeddedValueResolver);
			}
			if (bean instanceof ResourceLoaderAware) {
				((ResourceLoaderAware) bean).setResourceLoader(this.applicationContext);
			}
			if (bean instanceof ApplicationEventPublisherAware) {
				((ApplicationEventPublisherAware) bean).setApplicationEventPublisher(this.applicationContext);
			}
			if (bean instanceof MessageSourceAware) {
				((MessageSourceAware) bean).setMessageSource(this.applicationContext);
			}
			if (bean instanceof ApplicationContextAware) {
				((ApplicationContextAware) bean).setApplicationContext(this.applicationContext);
			}
		}
	}

	@Override
	public Object postProcessAfterInitialization(Object bean, String beanName) {
		return bean;
	}

}

postProcessBeforeInitialization()：判断传入的 bean 中是否实现了 XXXAware 接口，
如果是的话则执行 invokeAwareInterfaces()

invokeAwareInterfaces()：初始化方法，给 bean 注入值，判断实现的是哪一个 Aware
若当前是 ApplicationContextAware，则调用 setApplicationContext，给 传入的 bean 注入 applicationContext 组件

时间：2019.6.24 10:11
