软件体系结构：工厂模式和抽象工厂模式

简单工厂模式

有一个OEM制造商代理做HP笔记本电脑(Laptop)，后来该制造商得到了更多的品牌笔记本电脑的订单Acer，Lenovo，Dell，该OEM商发现，如果一次同时做很多个牌子的本本，有些不利于管理。利用工厂模式改善设计，用JAVA语言实现 (或C#控制台应用程序实现)该OEM制造商的工厂模式。绘制该模式的UML图。

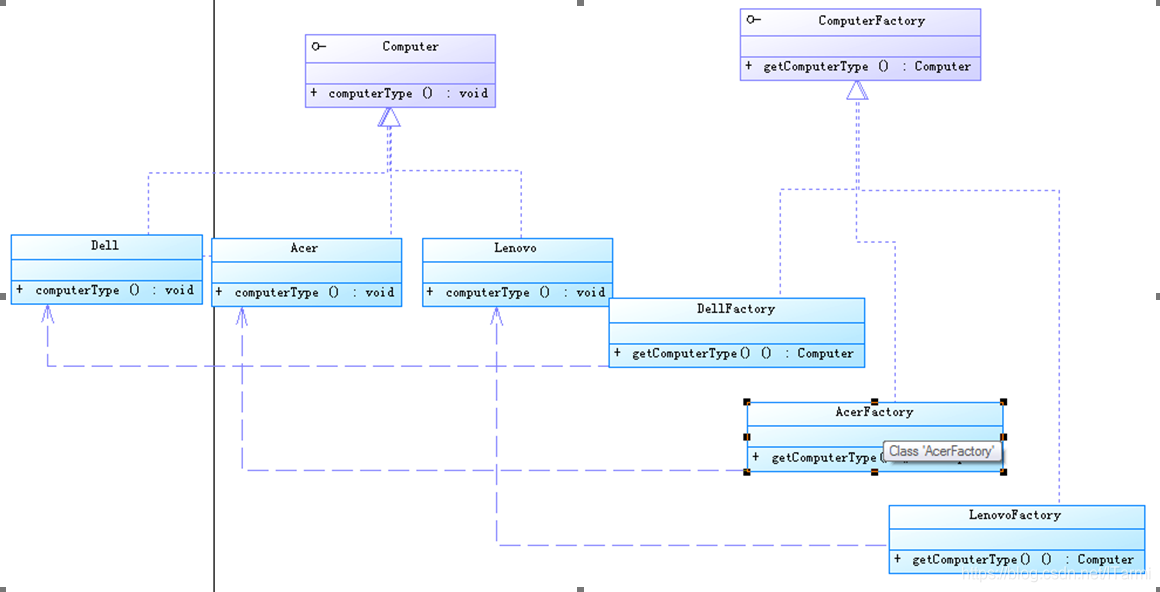

【模式UML图】

【模式代码（JAVA语言实现）】
Computer.java

package ComputerInterface;

public interface Computer {
	public void ComputerType();
}

ComputerFactory.java

package ComputerInterface;

public interface ComputerFactory {
	public Computer getComputerType();
}

Acer.java

package ComputerType;

import ComputerInterface.Computer;

public class Acer implements Computer{

	@Override
	public void ComputerType() {
		System.out.println("ACER");
	}
}

Dell.java

package ComputerType;

import ComputerInterface.Computer;

public class Dell implements Computer{

	@Override
	public void ComputerType() {
		System.out.println("DELL");
	}

}

Lenovo.java

package ComputerType;

import ComputerInterface.Computer;

public class Lenovo implements Computer{

	@Override
	public void ComputerType() {
		System.out.println("LENOVO");
	}

}

AcerFactory.java

package FactoryType;

import ComputerInterface.Computer;
import ComputerInterface.ComputerFactory;
import ComputerType.Acer;

public class AcerFactory implements ComputerFactory{
	@Override
	public Computer getComputerType() {
		return new Acer();
	}
}

DellFactory.java

package FactoryType;

import ComputerInterface.Computer;
import ComputerInterface.ComputerFactory;
import ComputerType.Dell;

public class DellFactory implements ComputerFactory{
	@Override
	public Computer getComputerType() {
		return new Dell();
	}
}

LenovoFactory.java

package FactoryType;

import ComputerInterface.Computer;
import ComputerInterface.ComputerFactory;
import ComputerType.Lenovo;

public class LenovoFactory implements ComputerFactory{
	@Override
	public Computer getComputerType() {
		return new Lenovo();
	}
}

FactoryMain.java

package FactoryMain;

import ComputerInterface.Computer;
import FactoryType.AcerFactory;
import FactoryType.DellFactory;
import FactoryType.LenovoFactory;

public class OEM_factoryMain {
	public static void main(String[] args) {
		System.out.println("OEM生产的电脑种类有：");
		Computer computer;
		//获取Dell电脑对象
		computer = new DellFactory().getComputerType();
		computer.ComputerType();
		//获取Acer电脑对象
		computer = new AcerFactory().getComputerType();
		computer.ComputerType();
		//获取Lenovo电脑对象
		computer = new LenovoFactory().getComputerType();
		computer.ComputerType();
	}
}

【运行截图】

抽象工厂模式

麦当劳（McDonalds）和肯德基（KFC）快餐店都经营汉堡（Hamburg）和可乐（Cole），用JAVA语言实现（C#控制台应用程序实现）这两个快餐店经营产品的抽象工厂模式。绘制该模式的UML图。

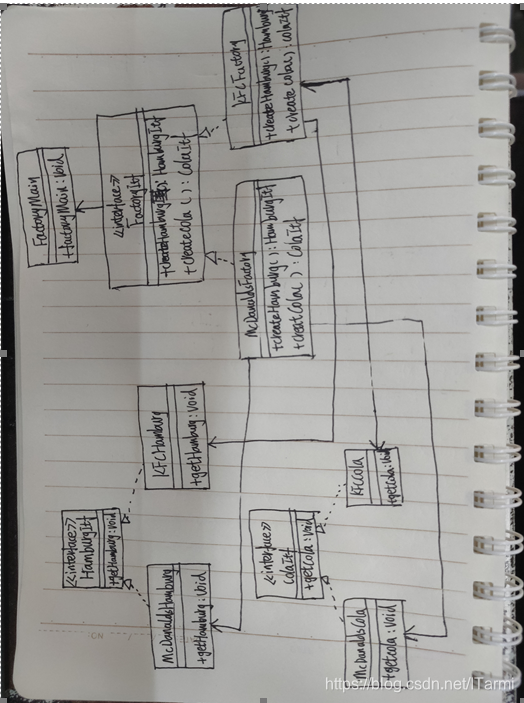

【模式UML图】

【模式代码】
KFCCola.java

package ColaType;

import Interfaces.ColaItf;

public class KFCCola implements ColaItf{
	@Override
	public void getCole() {
		System.out.println("KFC生产的Cola");
	}
}

McDanaldsCola.java

package ColaType;

import Interfaces.ColaItf;

public class McDanaldsCola implements ColaItf{
	@Override
	public void getCole() {
		System.out.println("McDanalds生产的Cola");
	}
}

KFCFactory.java

package FactoryType;

import ColaType.KFCCola;
import HamburgType.KFCHB;
import Interfaces.ColaItf;
import Interfaces.FactoryItf;
import Interfaces.HamburgItf;

public class KFCFactory implements FactoryItf{

	@Override
	public HamburgItf createHamburg() {
		return new KFCHB();
	}

	@Override
	public ColaItf createCole() {
		return new KFCCola();
	}
}

McDanaldsFactory.java

package FactoryType;

import ColaType.McDanaldsCola;
import HamburgType.McDonaldsHB;
import Interfaces.ColaItf;
import Interfaces.FactoryItf;
import Interfaces.HamburgItf;

public class McDanaldsFactory implements FactoryItf{

	@Override
	public HamburgItf createHamburg() {
		return new McDonaldsHB();
	}

	@Override
	public ColaItf createCole() {
		return new McDanaldsCola();
	}
}

KFCHB.java

package HamburgType;

import Interfaces.HamburgItf;

public class KFCHB implements HamburgItf{

	@Override
	public void getHamburg() {
		System.out.println("KFC生产的Hamburg");
	}
}

McDanaldsHB.java

package HamburgType;

import Interfaces.HamburgItf;

public class McDonaldsHB implements HamburgItf{

	@Override
	public void getHamburg() {
		System.out.println("McDonalds生产的Hamburg");
	}

}

Colaitf.java

package Interfaces;

public interface ColaItf {
	public void getCole();
}

FactoryItf.java

package Interfaces;

public interface FactoryItf {
	public HamburgItf createHamburg();
	public ColaItf createCole();
}

HamburgItf.java

package Interfaces;

public interface HamburgItf {
	public void getHamburg();
}

FactoryMain.java

package FactoryMain;

import FactoryType.KFCFactory;
import FactoryType.McDanaldsFactory;

public class factoryMain {
	public static void main(String[] agrs) {
		System.out.println("McDanalds的汉堡和可乐：");
		McDanaldsFactory factory1 = new McDanaldsFactory();
		factory1.createHamburg().getHamburg();
		factory1.createCole().getCole();
		System.out.println("----------------------");
		System.out.println("KFC的汉堡和可乐：");
		KFCFactory factory2 = new KFCFactory();
		factory2.createHamburg().getHamburg();
		factory2.createCole().getCole();
	}
}

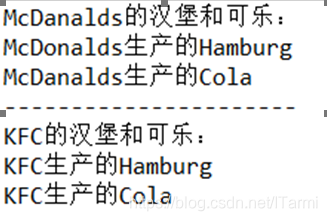

【运行截图】
