今天跟大家分享基于 Kafka + Flink + Redis 的电商大屏实时计算案的知识。

0 前言

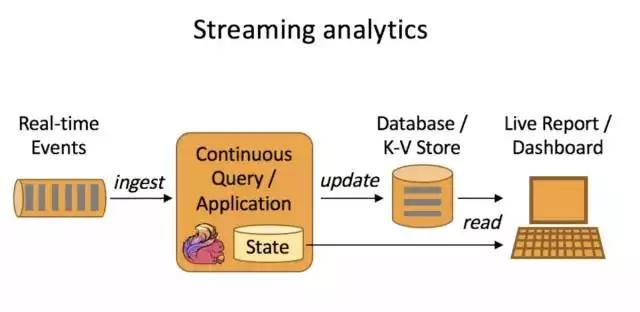

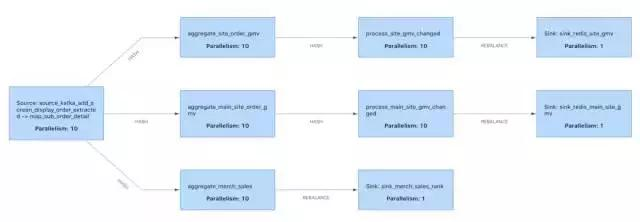

阿里的双11销量大屏可以说是一道特殊的风景线。实时大屏（real-time dashboard）正在被越来越多的企业采用，用来及时呈现关键的数据指标。并且在实际操作中，肯定也不会仅仅计算一两个维度。由于Flink的“真·流式计算”这一特点，它比Spark Streaming要更适合大屏应用。本文从笔者的实际工作经验抽象出简单的模型，并简要叙述计算流程（当然大部分都是源码）。

1 数据格式与接入

简化的子订单消息体如下。

{

"userId": 234567,

"orderId": 2902306918400,

"subOrderId": 2902306918401,

"siteId": 10219,

"siteName": "site_blabla",

"cityId": 101,

"cityName": "北京市",

"warehouseId": 636,

"merchandiseId": 187699,

"price": 299,

"quantity": 2,

"orderStatus": 1,

"isNewOrder": 0,

"timestamp": 1572963672217

}

由于订单可能会包含多种商品，故会被拆分成子订单来表示，每条JSON消息表示一个子订单。现在要按照自然日来统计以下指标，并以1秒的刷新频率呈现在大屏上：

每个站点（站点ID即siteId）的总订单数、子订单数、销量与GMV；

当前销量排名前N的商品（商品ID即merchandiseId）与它们的销量。

由于大屏的最大诉求是实时性，等待迟到数据显然不太现实，因此我们采用处理时间作为时间特征，并以1分钟的频率做checkpointing。

StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();

env.setStreamTimeCharacteristic(TimeCharacteristic.ProcessingTime);

env.enableCheckpointing(60 * 1000, CheckpointingMode.EXACTLY_ONCE);

env.getCheckpointConfig().setCheckpointTimeout(30 * 1000);

然后订阅Kafka的订单消息作为数据源。

Properties consumerProps = ParameterUtil.getFromResourceFile("kafka.properties");

DataStream<String> sourceStream = env

.addSource(new FlinkKafkaConsumer011<>(

ORDER_EXT_TOPIC_NAME, // topic

new SimpleStringSchema(), // deserializer

consumerProps // consumer properties

))

.setParallelism(PARTITION_COUNT)

.name("source_kafka_" + ORDER_EXT_TOPIC_NAME)

.uid("source_kafka_" + ORDER_EXT_TOPIC_NAME);

给带状态的算子设定算子ID（通过调用uid()方法）是个好习惯，能够保证Flink应用从保存点重启时能够正确恢复状态现场。为了尽量稳妥，Flink官方也建议为每个算子都显式地设定ID，参考：
https://ci.apache.org/projects/flink/flink-docs-stable/ops/state/savepoints.html#should-i-assign-ids-to-all-operators-in-my-job

接下来将JSON数据转化为POJO，JSON框架采用FastJSON。

DataStream<SubOrderDetail> orderStream = sourceStream

.map(message -> JSON.parseObject(message, SubOrderDetail.class))

.name("map_sub_order_detail").uid("map_sub_order_detail");

JSON已经是预先处理好的标准化格式，所以POJO类SubOrderDetail的写法可以通过Lombok极大地简化。如果JSON的字段有不规范的，那么就需要手写Getter和Setter，并用@JSONField注解来指明。

@Getter

@Setter

@NoArgsConstructor

@AllArgsConstructor

@ToString

public class SubOrderDetail implements Serializable {

private static final long serialVersionUID = 1L;

private long userId;

private long orderId;

private long subOrderId;

private long siteId;

private String siteName;

private long cityId;

private String cityName;

private long warehouseId;

private long merchandiseId;

private long price;

private long quantity;

private int orderStatus;

private int isNewOrder;

private long timestamp;

}

2 统计站点指标

将子订单流按站点ID分组，开1天的滚动窗口，并同时设定
ContinuousProcessingTimeTrigger触发器，以1秒周期触发计算。注意处理时间的时区问题，这是老生常谈了。

WindowedStream<SubOrderDetail, Tuple, TimeWindow> siteDayWindowStream = orderStream

.keyBy("siteId")

.window(TumblingProcessingTimeWindows.of(Time.days(1), Time.hours(-8)))

.trigger(ContinuousProcessingTimeTrigger.of(Time.seconds(1)));

接下来写个聚合函数。

DataStream<OrderAccumulator> siteAggStream = siteDayWindowStream

.aggregate(new OrderAndGmvAggregateFunc())

.name("aggregate_site_order_gmv").uid("aggregate_site_order_gmv");

public static final class OrderAndGmvAggregateFunc

implements AggregateFunction<SubOrderDetail, OrderAccumulator, OrderAccumulator> {

private static final long serialVersionUID = 1L;

@Override

public OrderAccumulator createAccumulator() {

return new OrderAccumulator();

}

@Override

public OrderAccumulator add(SubOrderDetail record, OrderAccumulator acc) {

if (acc.getSiteId() == 0) {

acc.setSiteId(record.getSiteId());

acc.setSiteName(record.getSiteName());

}

acc.addOrderId(record.getOrderId());

acc.addSubOrderSum(1);

acc.addQuantitySum(record.getQuantity());

acc.addGmv(record.getPrice() * record.getQuantity());

return acc;

}

@Override

public OrderAccumulator getResult(OrderAccumulator acc) {

return acc;

}

@Override

public OrderAccumulator merge(OrderAccumulator acc1, OrderAccumulator acc2) {

if (acc1.getSiteId() == 0) {

acc1.setSiteId(acc2.getSiteId());

acc1.setSiteName(acc2.getSiteName());

}

acc1.addOrderIds(acc2.getOrderIds());

acc1.addSubOrderSum(acc2.getSubOrderSum());

acc1.addQuantitySum(acc2.getQuantitySum());

acc1.addGmv(acc2.getGmv());

return acc1;

}

}

累加器类OrderAccumulator的实现很简单，看源码就大概知道它的结构了，因此不再多废话。唯一需要注意的是订单ID可能重复，所以需要用名为orderIds的HashSet来保存它。HashSet应付我们目前的数据规模还是没太大问题的，如果是海量数据，就考虑换用HyperLogLog吧。

接下来就该输出到Redis供呈现端查询了。这里有个问题：一秒内有数据变化的站点并不多，而
ContinuousProcessingTimeTrigger每次触发都会输出窗口里全部的聚合数据，这样做了很多无用功，并且还会增大Redis的压力。所以，我们在聚合结果后再接一个ProcessFunction，代码如下。

DataStream<Tuple2<Long, String>> siteResultStream = siteAggStream

.keyBy(0)

.process(new OutputOrderGmvProcessFunc(), TypeInformation.of(new TypeHint<Tuple2<Long, String>>() {}))

.name("process_site_gmv_changed").uid("process_site_gmv_changed");

public static final class OutputOrderGmvProcessFunc

extends KeyedProcessFunction<Tuple, OrderAccumulator, Tuple2<Long, String>> {

private static final long serialVersionUID = 1L;

private MapState<Long, OrderAccumulator> state;

@Override

public void open(Configuration parameters) throws Exception {

super.open(parameters);

state = this.getRuntimeContext().getMapState(new MapStateDescriptor<>(

"state_site_order_gmv",

Long.class,

OrderAccumulator.class)

);

}

@Override

public void processElement(OrderAccumulator value, Context ctx, Collector<Tuple2<Long, String>> out) throws Exception {

long key = value.getSiteId();

OrderAccumulator cachedValue = state.get(key);

if (cachedValue == null || value.getSubOrderSum() != cachedValue.getSubOrderSum()) {

JSONObject result = new JSONObject();

result.put("site_id", value.getSiteId());

result.put("site_name", value.getSiteName());

result.put("quantity", value.getQuantitySum());

result.put("orderCount", value.getOrderIds().size());

result.put("subOrderCount", value.getSubOrderSum());

result.put("gmv", value.getGmv());

out.collect(new Tuple2<>(key, result.toJSONString());

state.put(key, value);

}

}

@Override

public void close() throws Exception {

state.clear();

super.close();

}

}

说来也简单，就是用一个MapState状态缓存当前所有站点的聚合数据。由于数据源是以子订单为单位的，因此如果站点ID在MapState中没有缓存，或者缓存的子订单数与当前子订单数不一致，表示结果有更新，这样的数据才允许输出。

最后就可以安心地接上Redis Sink了，结果会被存进一个Hash结构里。

// 看官请自己构造合适的FlinkJedisPoolConfig

FlinkJedisPoolConfig jedisPoolConfig = ParameterUtil.getFlinkJedisPoolConfig(false, true);

siteResultStream

.addSink(new RedisSink<>(jedisPoolConfig, new GmvRedisMapper()))

.name("sink_redis_site_gmv").uid("sink_redis_site_gmv")

.setParallelism(1);

public static final class GmvRedisMapper implements RedisMapper<Tuple2<Long, String>> {

private static final long serialVersionUID = 1L;

private static final String HASH_NAME_PREFIX = "RT:DASHBOARD:GMV:";

@Override

public RedisCommandDescription getCommandDescription() {

return new RedisCommandDescription(RedisCommand.HSET, HASH_NAME_PREFIX);

}

@Override

public String getKeyFromData(Tuple2<Long, String> data) {

return String.valueOf(data.f0);

}

@Override

public String getValueFromData(Tuple2<Long, String> data) {

return data.f1;

}

@Override

public Optional<String> getAdditionalKey(Tuple2<Long, String> data) {

return Optional.of(

HASH_NAME_PREFIX +

new LocalDateTime(System.currentTimeMillis()).toString(Consts.TIME_DAY_FORMAT) +

"SITES"

);

}

}

3 商品Top N

我们可以直接复用前面产生的orderStream，玩法与上面的GMV统计大同小异。这里用1秒滚动窗口就可以了。

WindowedStream<SubOrderDetail, Tuple, TimeWindow> merchandiseWindowStream = orderStream

.keyBy("merchandiseId")

.window(TumblingProcessingTimeWindows.of(Time.seconds(1)));

DataStream<Tuple2<Long, Long>> merchandiseRankStream = merchandiseWindowStream

.aggregate(new MerchandiseSalesAggregateFunc(), new MerchandiseSalesWindowFunc())

.name("aggregate_merch_sales").uid("aggregate_merch_sales")

.returns(TypeInformation.of(new TypeHint<Tuple2<Long, Long>>() { }));

聚合函数与窗口函数的实现更加简单了，最终返回的是商品ID与商品销量的二元组。

public static final class MerchandiseSalesAggregateFunc

implements AggregateFunction<SubOrderDetail, Long, Long> {

private static final long serialVersionUID = 1L;

@Override

public Long createAccumulator() {

return 0L;

}

@Override

public Long add(SubOrderDetail value, Long acc) {

return acc + value.getQuantity();

}

@Override

public Long getResult(Long acc) {

return acc;

}

@Override

public Long merge(Long acc1, Long acc2) {

return acc1 + acc2;

}

}

public static final class MerchandiseSalesWindowFunc

implements WindowFunction<Long, Tuple2<Long, Long>, Tuple, TimeWindow> {

private static final long serialVersionUID = 1L;

@Override

public void apply(

Tuple key,

TimeWindow window,

Iterable<Long> accs,

Collector<Tuple2<Long, Long>> out) throws Exception {

long merchId = ((Tuple1<Long>) key).f0;

long acc = accs.iterator().next();

out.collect(new Tuple2<>(merchId, acc));

}

}

既然数据最终都要落到Redis，那么我们完全没必要在Flink端做Top N的统计，直接利用Redis的有序集合（zset）就行了，商品ID作为field，销量作为分数值，简单方便。不过flink-redis-connector项目中默认没有提供ZINCRBY命令的实现（必须再吐槽一次），我们可以自己加，步骤参照之前写过的那篇加SETEX的命令的文章，不再赘述。RedisMapper的写法如下。

public static final class RankingRedisMapper implements RedisMapper<Tuple2<Long, Long>> {

private static final long serialVersionUID = 1L;

private static final String ZSET_NAME_PREFIX = "RT:DASHBOARD:RANKING:";

@Override

public RedisCommandDescription getCommandDescription() {

return new RedisCommandDescription(RedisCommand.ZINCRBY, ZSET_NAME_PREFIX);

}

@Override

public String getKeyFromData(Tuple2<Long, Long> data) {

return String.valueOf(data.f0);

}

@Override

public String getValueFromData(Tuple2<Long, Long> data) {

return String.valueOf(data.f1);

}

@Override

public Optional<String> getAdditionalKey(Tuple2<Long, Long> data) {

return Optional.of(

ZSET_NAME_PREFIX +

new LocalDateTime(System.currentTimeMillis()).toString(Consts.TIME_DAY_FORMAT) + ":" +

"MERCHANDISE"

);

}

}
