本文详细介绍了Hadoop平台的安装过程，包括实验环境准备、JAVA环境和Hadoop软件的安装。接着阐述了单机版Hadoop系统的配置与测试，以及Hadoop集群的运行配置。还说明了大数据平台集群的运行步骤，最后通过WordCount案例进行运行测试，计算数据文件中各单词的频度。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

一、Hadoop平台安装

1、实验环境

服务器集群	单节点，机器最低配置：双核CPU、8GB内存、100G硬盘
运行环境	CentOS 7.4
服务和组件	服务和组件根据实验需求安装

2、实验过程

1）查看IP地址

[root@localhost ~]# ip add show
1: lo: <LOOPBACK,UP,LOWER_UP> mtu 65536 qdisc noqueue state UNKNOWN
qlen 1
link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
inet 127.0.0.1/8 scope host lo
valid_lft forever preferred_lft forever
inet6 ::1/128 scope host
valid_lft forever preferred_lft forever
2: ens33: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc pfifo_fast
state UP qlen 1000
link/ether 00:0c:29:b7:35:be brd ff:ff:ff:ff:ff:ff18
inet 192.168.47.140/24 brd 192.168.47.255 scope global dynamic ens33
valid_lft 1460sec preferred_lft 1460sec
inet6 fe80::29cc:5498:c98a:af4b/64 scope link
valid_lft forever preferred_lft forever

2）设置服务器主机名

[root@localhost ~]# hostnamectl set-hostname master
[root@localhost ~]# bash
[root@master ~]# hostname
master

3）绑定主机名与IP地址

[root@master ~]# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4
localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.47.140 master

4）查看SSH服务状态

[root@master ~]# systemctl status sshd
● sshd.service - OpenSSH server daemon
 Loaded: loaded (/usr/lib/systemd/system/sshd.service; enabled; vendor
preset: enabled)
 Active: active (running) since 一 2021-12-20 08:22:16 CST; 10 months 21
days ago
 Docs: man:sshd(8)
 man:sshd_config(5)
Main PID: 1048 (sshd)
 CGroup: /system.slice/sshd.service
 └─1048 /usr/sbin/sshd -D

5）关闭防火墙

[root@master ~]# systemctl stop firewalld
关闭防火墙后要查看防火墙的状态，确认一下。
[root@master ~]# systemctl status firewalld
看到 inactive (dead)就表示防火墙已经关闭。不过这样设置后，Linux 系统如
果重启，防火墙仍然会重新启动。执行如下命令可以永久关闭防火墙。
[root@master ~]# systemctl disable firewalld
Removed symlink /etc/systemd/system/multi-user.target.wants/firewalld.service.
Removed symlink /etc/systemd/system/dbus-org.fedoraproject.FirewallD1.service.

6）创建Hadoop用户

[root@master ~]# useradd hadoop
[root@master ~]# echo "1" |passwd --stdin hadoop
更改用户 hadoop 的密码 。
passwd：所有的身份验证令牌已经成功更新。

二、安装JAVA环境

1、下载JDK安装包

JDK 安装包需要在 Oracle 官网下载，下载地址为：https://www.oracle.com/java /technologies /javase-jdk8-downloads.html，本教材采用的 Hadoop 2.7.1 所需要的 JDK 版本为JDK7 以上，这里采用的安装包为 jdk-8u152-linux-x64.tar.gz。

2、卸载自带的Open JDK

[root@master ~]# rpm -qa | grep java
javapackages-tools-3.4.1-11.el7.noarch
java-1.8.0-openjdk-1.8.0.352.b08-2.el7_9.x86_64
tzdata-java-2022e-1.el7.noarch
python-javapackages-3.4.1-11.el7.noarch
java-1.8.0-openjdk-headless-1.8.0.352.b08-2.el7_9.x86_64
卸载相关服务，键入命令
[root@master ~]# rpm -e --nodeps javapackages-tools-3.4.1-11.el7.noarch
[root@master ~]# rpm -e --nodeps java-1.8.0-openjdk-1.8.0.352.b08-
2.el7_9.x86_64
[root@master ~]# rpm -e --nodeps tzdata-java-2022e-1.el7.noarch
[root@master ~]# rpm -e --nodeps python-javapackages-3.4.1-11.el7.noarch
[root@master ~]# rpm -e --nodeps java-1.8.0-openjdk-headless-1.8.0.352.b08-
2.el7_9.x86_64
[root@master ~]# rpm -qa | grep java
查看删除结果再次键入命令 java -version 出现以下结果表示删除功
[root@master ~]# java --version
bash: java: 未找到命令

3、安装JDK

Hadoop 2.7.1 要求 JDK 的版本为 1.7 以上，这里安装的是 JDK1.8 版

（即JAVA 8）。

安装命令如下，将安装包解压到/usr/local/src 目录下，注意/opt/software目录

下的软件包事先准备好。

[root@master ~]# tar -zxvf /opt/software/jdk-8u152-linux-x64.tar.gz -C
/usr/local/src/
[root@master ~]# ls /usr/local/src/
jdk1.8.0_152

4、设置JAVA环境变量

在 Linux 中设置环境变量的方法比较多，较常见的有两种：一是配置 /etc/profile 文件，配置结果对整个系统有效，系统所有用户都可以使用；二是配置~/.bashrc 文件，配置结果仅对当前用户效。这里使用第一种方法。

[root@master ~]# vi /etc/profile
在文件的最后增加如下两行：
export JAVA_HOME=/usr/local/src/jdk1.8.0_152
export PATH=$PATH:$JAVA_HOME/bin
执行 source 使设置生效：
[root@master ~]# source /etc/profile
检查 JAVA 是否可用。
[root@master ~]# echo $JAVA_HOME
/usr/local/src/jdk1.8.0_152
[root@master ~]# java -version
java version "1.8.0_152"
Java(TM) SE Runtime Environment (build 1.8.0_152-b16)
Java HotSpot(TM) 64-Bit Server VM (build 25.152-b16, mixed mode)
能够正常显示 Java 版本则说明 JDK 安装并配置成功。

三、安装Hadoop软件

1、获取Hadoop安装包

Apache Hadoop 各个版本的下载网址：https://archive.apache.org/dist/hadoop /common/。本教材选用的是 Hadoop 2.7.1 版本，安装包为 hadoop-2.7.1.tar.gz。需要先下载 Hadoop 安装包，再上传到 Linux 系统的/opt/software 目录。具体的方法见前一节“实验一 Linux 操作系统环境设置”，这里就不再赘述。

2、安装Hadoop软件

1）安装Hadoop软件

安装命令如下，将安装包解压到/usr/local/src/目录下
 [root@master ~]# tar -zxvf /opt/software/hadoop-2.7.1.tar.gz -C
/usr/local/src/
[root@master ~]# ll /usr/local/src/
总用量 0
drwxr-xr-x. 9 10021 10021 149 6月 29 2015 hadoop-2.7.1
drwxr-xr-x. 8 10 143 255 9月 14 2017 jdk1.8.0_152
查看 Hadoop 目录,得知 Hadoop 目录内容如下:
[root@master ~]# ll /usr/local/src/hadoop-2.7.1/
总用量 28
drwxr-xr-x. 2 10021 10021 194 6月 29 2015 bin
drwxr-xr-x. 3 10021 10021 20 6月 29 2015 etc
drwxr-xr-x. 2 10021 10021 106 6月 29 2015 include
drwxr-xr-x. 3 10021 10021 20 6月 29 2015 lib
drwxr-xr-x. 2 10021 10021 239 6月 29 2015 libexec
-rw-r--r--. 1 10021 10021 15429 6月 29 2015 LICENSE.txt
-rw-r--r--. 1 10021 10021 101 6月 29 2015 NOTICE.txt
-rw-r--r--. 1 10021 10021 1366 6月 29 2015 README.txt
drwxr-xr-x. 2 10021 10021 4096 6月 29 2015 sbin
drwxr-xr-x. 4 10021 10021 31 6月 29 2015 share

解析：
bin：此目录中存放 Hadoop、HDFS、YARN 和 MapReduce 运行程序和管理软件。
etc：存放 Hadoop 配置文件。
include: 类似 C 语言的头文件
lib：本地库文件，支持对数据进行压缩和解压。
libexe：同 lib
sbin：Hadoop 集群启动、停止命令
share：说明文档、案例和依赖 jar 包。

2）配置Hadoop环境变量

和设置 JAVA 环境变量类似，修改/etc/profile 文件。
[root@master ~]# vi /etc/profile
在文件的最后增加如下两行：
export HADOOP_HOME=/usr/local/src/hadoop-2.7.1
export PATH=$PATH:$HADOOP_HOME/bin:$HADOOP_HOME/sbin
执行 source 使用设置生效：
[root@master ~]# source /etc/profile
检查设置是否生效：
[root@master ~]# hadoop
Usage: hadoop [--config confdir] [COMMAND | CLASSNAME]
 CLASSNAME run the class named CLASSNAME
or
 where COMMAND is one of:
 fs run a generic filesystem user client
 version print the version
 jar <jar> run a jar file
 note: please use "yarn jar" to launch
 YARN applications, not this command.
 checknative [-a|-h] check native hadoop and compression libraries
availability
 distcp <srcurl> <desturl> copy file or directories recursively
 archive -archiveName NAME -p <parent path> <src>* <dest> create a hadoop
archive
 classpath prints the class path needed to get the
 credential interact with credential providers
 Hadoop jar and the required libraries
 daemonlog get/set the log level for each daemon
 trace view and modify Hadoop tracing settings
Most commands print help when invoked w/o parameters.
23
24
[root@master ~]#
出现上述 Hadoop 帮助信息就说明 Hadoop 已经安装好了。

3）修改目录所有者和所有者组

上述安装完成的 Hadoop 软件只能让 root 用户使用，要让 hadoop 用户能够

运行 Hadoop 软件，需要将目录/usr/local/src 的所有者改为 hadoop 用户。

[root@master ~]# chown -R hadoop:hadoop /usr/local/src/
[root@master ~]# ll /usr/local/src/
总用量 0
drwxr-xr-x. 9 hadoop hadoop 149 6月 29 2015 hadoop-2.7.1
drwxr-xr-x. 8 hadoop hadoop 255 9月 14 2017 jdk1.8.0_152
/usr/local/src 目录的所有者已经改为 hadoop 了。

四、安装单机版Hadoop系统

1、配置Hadoop配置文件

[root@master ~]# cd /usr/local/src/hadoop-2.7.1/
[root@master hadoop-2.7.1]# ls
bin etc include lib libexec LICENSE.txt NOTICE.txt README.txt sbin share
[root@master hadoop-2.7.1]# vi etc/hadoop/hadoop-env.sh
在文件中查找 export JAVA_HOME 这行，将其改为如下所示内容:
export JAVA_HOME=/usr/local/src/jdk1.8.0_152

2、测试Hadoop本地模式的运行

1）切换到hadoop用户

[root@master hadoop-2.7.1]# su - hadoop
[hadoop@master ~]$ id
uid=1001(hadoop) gid=1001(hadoop) 组=1001(hadoop) 环境
=unconfined_u:unconfined_r:unconfined_t:s0-s0:c0.c1023

2）创建输入数据存放目录

将输入数据存放在~/input 目录（hadoop 用户主目录下的 input 目录中）。
[hadoop@master ~]$ mkdir ~/input
[hadoop@master ~]$ ls
Input

3）创建数据输入文件

创建数据文件 data.txt，将要测试的数据内容输入到 data.txt 文件中。
[hadoop@master ~]$ vi input/data.txt
输入如下内容，保存退出。
Hello World
Hello Hadoop
Hello Husan

4）测试Map Reduce运行

[hadoop@master ~]$ hadoop jar /usr/local/src/hadoop-
2.7.1/share/hadoop/mapreduce/hadoop-mapreduce-examples-2.7.1.jar
wordcount ~/input/data.txt ~/output
运行结果保存在~/output 目录中(注：结果输出目录不能事先存在)，命令执
行后查看结果：
[hadoop@master ~]$ ll output/
总用量 4
-rw-r--r--. 1 hadoop hadoop 33 11月 10 23:50 part-r-00000
-rw-r--r--. 1 hadoop hadoop 0 11月 10 23:50 _SUCCESS
文件_SUCCESS 表示处理成功，处理的结果存放在 part-r-00000 文件中，查看该
文件。
[hadoop@master ~]$ cat output/part-r-00000
Hadoop1
Hello 3
Husan 1
World 1

3、Hadoop平台环境设置

1）实验环境下集群网络配置

修改 slave1 机器主机名
[root@localhost ~]# hostnamectl set-hostname slave1
[root@localhost ~]# bash
[root@slave1 ~]#
修改 slave2 机器主机名
[root@localhost ~]# hostnamectl set-hostname slave2
[root@localhost ~]# bash
[root@slave2 ~]#
根据实验环境下集群网络 IP 地址规划（根据自己主机的ip即可）：
master 设置 IP 地址是“192.168.47.140”，掩码是“255.255.255.0”；
slave1 设置 IP 地址“192.168.47.141”，掩码是“255.255.255.0”；
slave2 设置 IP 地址是“192.168.47.142”，掩码是“255.255.255.0”。
根据我们为 Hadoop 设置的主机名为“master、slave1、slave2”，映地址是
“192.168.47.140、192.168.47.141、192.168.47.142”，分别修改主机配置文件“/etc/hosts”，
在命令终端输入如下命令：
[root@master ~]# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.47.140 master
192.168.47.141 slave1
192.168.47.142 slave2
[root@slave1 ~]# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.47.140 master
192.168.47.141 slave1
192.168.47.142 slave2
[root@slave2 ~]# vi /etc/hosts
127.0.0.1 localhost localhost.localdomain localhost4 localhost4.localdomain4
28
::1 localhost localhost.localdomain localhost6 localhost6.localdomain6
192.168.47.140 master
192.168.47.141 slave1
192.168.47.142 slave2

4、SSH无密码验证配置

1）生成SSH密钥

每个节点安装和启动SSH协议

[root@master ~]# rpm -qa | grep openssh
openssh-server-7.4p1-11.el7.x86_64
openssh-7.4p1-11.el7.x86_64
openssh-clients-7.4p1-11.el7.x86_64
[root@master ~]# rpm -qa | grep rsync
rsync-3.1.2-11.el7_9.x86_64

切换到hadoop用户

[root@master ~]# su - hadoop
[hadoop@master ~]$
[root@slave1 ~]# useradd hadoop
[root@slave1 ~]# su - hadoop
[hadoop@slave1 ~]$
[root@slave2 ~]# useradd hadoop
[root@slave2 ~]# su - hadoop
[hadoop@slave2 ~]$

每个节点生成密钥对

#在 master 上生成密钥
[hadoop@master ~]$ ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/hadoop/.ssh/id_rsa):
Created directory '/home/hadoop/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/hadoop/.ssh/id_rsa.
Your public key has been saved in /home/hadoop/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:LOwqw+EjBHJRh9U1GdRHfbhV5+5BX+/hOHTEatwIKdU hadoop@master
The key's randomart image is:
+---[RSA 2048]----+
| ..oo. o==...o+|
| . .. . o.oE+.=|
| . . o . *+|
|o . . . . o B.+|
|o. o S * =+|
| .. . . o +oo|
|.o . . o .o|
|. * . . |
| . +. |
+----[SHA256]-----+

#slave1 生成密钥
[hadoop@slave1 ~]$ ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/hadoop/.ssh/id_rsa):
Created directory '/home/hadoop/.ssh'.
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/hadoop/.ssh/id_rsa.
Your public key has been saved in /home/hadoop/.ssh/id_rsa.pub.
29
The key fingerprint is:
SHA256:RhgNGuoa3uSrRMjhPtWA5NucyhbLr9NsEZ13i01LBaA
hadoop@slave1
The key's randomart image is:
+---[RSA 2048]----+
| . . o+... |
|o .. o.o. . |
| +..oEo . . |
|+.=.+o o + |
|o*.*... S o |
|*oO. o + |
|.@oo. |
|o.o+. |
| o=o |
+----[SHA256]-----+

#slave2 生成密钥
[hadoop@slave2 ~]$ ssh-keygen -t rsa
Generating public/private rsa key pair.
Enter file in which to save the key (/home/hadoop/.ssh/id_rsa):
Enter passphrase (empty for no passphrase):
Enter same passphrase again:
Your identification has been saved in /home/hadoop/.ssh/id_rsa.
Your public key has been saved in /home/hadoop/.ssh/id_rsa.pub.
The key fingerprint is:
SHA256:yjp6AQEu2RN81Uv6y40MI/1p5WKWbVeGfB8/KK6iPUA
hadoop@slave2
The key's randomart image is:
+---[RSA 2048]----+
|.o. ... |
|.oo.. o |
|o.oo o . |
|. .. E. . |
| ... .S . . |
| oo+.. . o +. |
| o+* X +..o|
| o..o& =... .o|
| .o.o.=o+oo. .|
+----[SHA256]-----+

查看“/home/hadoop/”下是否有“.ssh”文件夹，且“.ssh”文件下是否有两个刚生产的无密码密钥对

[hadoop@master ~]$ ls ~/.ssh/
id_rsa id_rsa.pub

将id_rsa.pud追加到授权key文件中

#master
[hadoop@master ~]$ cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
[hadoop@master ~]$ ls ~/.ssh/
authorized_keys id_rsa id_rsa.pub
#slave1
[hadoop@slave1 ~]$ cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
[hadoop@slave1 ~]$ ls ~/.ssh/
authorized_keys id_rsa id_rsa.pub
#slave2
[hadoop@slave2 ~]$ cat ~/.ssh/id_rsa.pub >> ~/.ssh/authorized_keys
[hadoop@slave2 ~]$ ls ~/.ssh/
authorized_keys id_rsa id_rsa.pub

修改文件“authorized_keys”权限

#master
[hadoop@master ~]$ chmod 600 ~/.ssh/authorized_keys
[hadoop@master ~]$ ll ~/.ssh/
总用量 12
-rw-------. 1 hadoop hadoop 395 11月 14 16:18 authorized_keys
-rw-------. 1 hadoop hadoop 1679 11月 14 16:14 id_rsa
-rw-r--r--. 1 hadoop hadoop 395 11月 14 16:14 id_rsa.pub
#slave1
[hadoop@slave1 ~]$ chmod 600 ~/.ssh/authorized_keys
[hadoop@slave1 ~]$ ll ~/.ssh/
总用量 12
-rw-------. 1 hadoop hadoop 395 11月 14 16:18 authorized_keys
-rw-------. 1 hadoop hadoop 1675 11月 14 16:14 id_rsa
-rw-r--r--. 1 hadoop hadoop 395 11月 14 16:14 id_rsa.pub
#slave2
[hadoop@slave2 ~]$ chmod 600 ~/.ssh/authorized_keys
[hadoop@slave2 ~]$ ll ~/.ssh/
总用量 12
-rw-------. 1 hadoop hadoop 395 11月 14 16:19 authorized_keys
-rw-------. 1 hadoop hadoop 1679 11月 14 16:15 id_rsa
-rw-r--r--. 1 hadoop hadoop 395 11月 14 16:15 id_rsa.pub

配置SSH服务

[root@master ~]# systemctl restart sshd

切换到hadoop用户

[root@master ~]# su - hadoop
上一次登录：一 11月 14 16:11:14 CST 2022pts/1 上
[hadoop@master ~]$

验证SSH登录本机

[hadoop@master ~]$ ssh localhost
The authenticity of host 'localhost (::1)' can't be established.
ECDSA key fingerprint is
SHA256:KvO9HlwdCTJLStOxZWN7qrfRr8FJvcEw2hzWAF9b3bQ.
ECDSA key fingerprint is MD5:07:91:56:9e:0b:55:05:05:58:02:15:5e:68:db:be:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'localhost' (ECDSA) to the list of known hosts.
Last login: Mon Nov 14 16:28:30 2022
[hadoop@master ~]$

2）交换SSH密钥

将master节点的公钥id_rsa.pud复制到每个slave点

hadoop 用户登录，通过 scp 命令实现密钥拷贝。
[hadoop@master ~]$ scp ~/.ssh/id_rsa.pub hadoop@slave1:~/
hadoop@slave1's password:
id_rsa.pub 100% 395 303.6KB/s 00:00
[hadoop@master ~]$ scp ~/.ssh/id_rsa.pub hadoop@slave2:~/
The authenticity of host 'slave2 (192.168.47.142)' can't be established.
ECDSA key fingerprint is
SHA256:KvO9HlwdCTJLStOxZWN7qrfRr8FJvcEw2hzWAF9b3bQ.
ECDSA key fingerprint is MD5:07:91:56:9e:0b:55:05:05:58:02:15:5e:68:db:be:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'slave2,192.168.47.142' (ECDSA) to the list of known
hosts.
hadoop@slave2's password:
id_rsa.pub 100% 395 131.6KB/s 00:00

首次远程连接时系统会询问用户是否要继续连接。需要输入“yes”，表示继续。因为目

前尚未完成密钥认证的配置，所以使用 scp 命令拷贝文件需要输入slave1 节点 hadoop

用户的密码。

在每个 Slave 节点把 Master 节点复制的公钥复制到authorized_keys 文件

hadoop 用户登录 slave1 和 slave2 节点，执行命令。
[hadoop@slave1 ~]$ cat ~/id_rsa.pub >>~/.ssh/authorized_keys
[hadoop@slave2 ~]$ cat ~/id_rsa.pub >>~/.ssh/authorized_keys

在每个 Slave 节点删除 id_rsa.pub 文件

[hadoop@slave1 ~]$ rm -rf ~/id_rsa.pub
[hadoop@slave2 ~]$ rm -rf ~/id_rsa.pub

将每个 Slave 节点的公钥保存到 Master

（1）将 Slave1 节点的公钥复制到 Master
[hadoop@slave1 ~]$ scp ~/.ssh/id_rsa.pub hadoop@master:~/
The authenticity of host 'master (192.168.47.140)' can't be established.
ECDSA key fingerprint is
SHA256:KvO9HlwdCTJLStOxZWN7qrfRr8FJvcEw2hzWAF9b3bQ.
ECDSA key fingerprint is
MD5:07:91:56:9e:0b:55:05:05:58:02:15:5e:68:db:be:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'master,192.168.47.140' (ECDSA) to the list of
known hosts.
hadoop@master's password:
id_rsa.pub 100% 395 317.8KB/s 00:00
[hadoop@slave1 ~]$

（2）在 Master 节点把从 Slave 节点复制的公钥复制到 authorized_keys 文件
[hadoop@master ~]$ cat ~/id_rsa.pub >>~/.ssh/authorized_keys

（3）在 Master 节点删除 id_rsa.pub 文件
[hadoop@master ~]$ rm -rf ~/id_rsa.pub

（4）将 Slave2 节点的公钥复制到 Master
[hadoop@slave2 ~]$ scp ~/.ssh/id_rsa.pub hadoop@master:~/
The authenticity of host 'master (192.168.47.140)' can't be established.
ECDSA key fingerprint is
SHA256:KvO9HlwdCTJLStOxZWN7qrfRr8FJvcEw2hzWAF9b3bQ.
ECDSA key fingerprint is MD5:07:91:56:9e:0b:55:05:05:58:02:15:5e:68:db:be:73.
Are you sure you want to continue connecting (yes/no)? yes
Warning: Permanently added 'master,192.168.47.140' (ECDSA) to the list of known
hosts.
hadoop@master's password:
id_rsa.pub 100% 395 326.6KB/s 00:00
[hadoop@slave2 ~]$

（5）在 Master 节点把从 Slave 节点复制的公钥复制到 authorized_keys 文件
[hadoop@master ~]$ cat ~/id_rsa.pub >>~/.ssh/authorized_keys

（6）在 Master 节点删除 id_rsa.pub 文件
[hadoop@master ~]$ rm -rf ~/id_rsa.pub

3）验证SSH无密码登录

查看 Master 节点 authorized_keys 文件

[hadoop@master ~]$ cat ~/.ssh/authorized_keys
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDzHmpOfy7nwV1X453YY0UOZNTppiPA
9DI/vZWgWsK6hhw0pupzyxmG5LnNh7IhBlDCAKKmohOMUq9cKM3XMBq8R1f8
ys8VOPlWSKYndGxu6mbTY8wdcPWvINlAvCf2GN6rE1QJXwBAYdvZ8n5UGWqbQ
0zdqQG1uhix9FN327dCmUGozmCuCR/lY4utU3ltS3faAz7GHUCchpPTE6OopaAk9
yH5ynl+Y7BCwAWblcwf4pYoGWvQ8kMJIIr+k6cZXabsdwa3Y29OODsOsh4EfTmQ
iQbjMKpLahVrJIiL8C/6vuDX8Fh3wvgkvFgrppfzsAYNpKro27JvVgRzdKg7+/BD
hadoop@master
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDKUKduFzGYN41c0gFXdt3nALXhSqfgH
gmZuSjJnIlpvtQQH1IYm2S50ticwk8fr2TL/lMC/THJbuP6xoT0ZlJBPkbcEBZwkTEd
eb+0uvzUItx7viWb3oDs5s0UGtrQnrP70GszuNnitb+L+f6PRtUVVEYMKagyIpntfIC
AIP8kMRKL3qrwOJ1smtEjwURKbOMDOJHV/EiHP4l+VeVtrPnH6MG3tZbrTTCgFQ
ijSo8Hb4RGFO4NxtSHPH74YMwZBREZ7DPeZMNjqpAttQUH0leM4Ji93RQkcFoy2n
lZljhmKVKzdqazhjJ4DAgT3/FcRvF7YrULKxOHHYj/Jk0rrWwB hadoop@slave1
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDjlopSpw5GUvoOSiEMQG15MRUrNqsAf
NlnB/TcwDh7Xu7R1qND+StCb7rFScYI+NcDD0JkMBeXZVbQA5T21LSZlmet/38xeJ
Jy53Jx6X1bmf/XnYYf2nnUPRkAUtJeKNPDDA4TN1qnhvAdoSUZgr3uW0oV01jW5
Ai7YFYu1aSHsocmDRKFW2P8kpJZ3ASC7r7+dWFzMjT5Lu3/bjhluAPJESwV48aU2
+wftlT4oJSGTc9vb0HnBpLoZ/yfuAC1TKsccI9p2MnItUUbqI1/uVH2dgmeHwRVpq
qc1Em9hcVh0Gs0vebIGPRNx5eHTf3aIrxR4eRFSwMgF0QkcFr/+yzp
hadoop@slave2
[hadoop@master ~]$
可以看到 Master 节点 authorized_keys 文件中包括 master、slave1、slave2 三个节点
的公钥

查看 Slave 节点 authorized_keys 文件

[hadoop@slave1 ~]$ cat ~/.ssh/authorized_keys
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDKUKduFzGYN41c0gFXdt3nALXhS
qfgHgmZuSjJnIlpvtQQH1IYm2S50ticwk8fr2TL/lMC/THJbuP6xoT0ZlJBPkbcE
BZwkTEdeb+0uvzUItx7viWb3oDs5s0UGtrQnrP70GszuNnitb+L+f6PRtUVVEY
MKagyIpntfICAIP8kMRKL3qrwOJ1smtEjwURKbOMDOJHV/EiHP4l+VeVtrPnH
6MG3tZbrTTCgFQijSo8Hb4RGFO4NxtSHPH74YMwZBREZ7DPeZMNjqpAttQU
H0leM4Ji93RQkcFoy2nlZljhmKVKzdqazhjJ4DAgT3/FcRvF7YrULKxOHHYj/Jk
0rrWwB hadoop@slave1
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDzHmpOfy7nwV1X453YY0UOZNTp
piPA9DI/vZWgWsK6hhw0pupzyxmG5LnNh7IhBlDCAKKmohOMUq9cKM3XM
Bq8R1f8ys8VOPlWSKYndGxu6mbTY8wdcPWvINlAvCf2GN6rE1QJXwBAYdvZ
8n5UGWqbQ0zdqQG1uhix9FN327dCmUGozmCuCR/lY4utU3ltS3faAz7GHUCc
hpPTE6OopaAk9yH5ynl+Y7BCwAWblcwf4pYoGWvQ8kMJIIr+k6cZXabsdwa3
Y29OODsOsh4EfTmQiQbjMKpLahVrJIiL8C/6vuDX8Fh3wvgkvFgrppfzsAYNpK
ro27JvVgRzdKg7+/BD hadoop@master
[hadoop@slave2 ~]$ cat ~/.ssh/authorized_keys
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDjlopSpw5GUvoOSiEMQG15MRUrN
qsAfNlnB/TcwDh7Xu7R1qND+StCb7rFScYI+NcDD0JkMBeXZVbQA5T21LSZl
met/38xeJJy53Jx6X1bmf/XnYYf2nnUPRkAUtJeKNPDDA4TN1qnhvAdoSUZgr3
uW0oV01jW5Ai7YFYu1aSHsocmDRKFW2P8kpJZ3ASC7r7+dWFzMjT5Lu3/bj
hluAPJESwV48aU2+wftlT4oJSGTc9vb0HnBpLoZ/yfuAC1TKsccI9p2MnItUUbq
I1/uVH2dgmeHwRVpqqc1Em9hcVh0Gs0vebIGPRNx5eHTf3aIrxR4eRFSwMg
F0QkcFr/+yzp hadoop@slave2
ssh-rsa
AAAAB3NzaC1yc2EAAAADAQABAAABAQDzHmpOfy7nwV1X453YY0UOZNTp
piPA9DI/vZWgWsK6hhw0pupzyxmG5LnNh7IhBlDCAKKmohOMUq9cKM3XM
Bq8R1f8ys8VOPlWSKYndGxu6mbTY8wdcPWvINlAvCf2GN6rE1QJXwBAYdvZ
8n5UGWqbQ0zdqQG1uhix9FN327dCmUGozmCuCR/lY4utU3ltS3faAz7GHUCc
hpPTE6OopaAk9yH5ynl+Y7BCwAWblcwf4pYoGWvQ8kMJIIr+k6cZXabsdwa3
Y29OODsOsh4EfTmQiQbjMKpLahVrJIiL8C/6vuDX8Fh3wvgkvFgrppfzsAYNpK
ro27JvVgRzdKg7+/BD hadoop@master
可以看到 Slave 节点 authorized_keys 文件中包括 Master、当前 Slave 两个节点
的公钥

验证 Master 到每个 Slave 节点无密码登录

hadoop 用户登录 master 节点，执行 SSH 命令登录 slave1 和 slave2 节点。可以观察
到不需要输入密码即可实现 SSH 登录。
[hadoop@master ~]$ ssh slave1
Last login: Mon Nov 14 16:34:56 2022
[hadoop@slave1 ~]$
[hadoop@master ~]$ ssh slave2
Last login: Mon Nov 14 16:49:34 2022 from 192.168.47.140
[hadoop@slave2 ~]$

验证两个 Slave 节点到 Master 节点无密码登录

[hadoop@slave1 ~]$ ssh master
Last login: Mon Nov 14 16:30:45 2022 from ::1
[hadoop@master ~]$
[hadoop@slave2 ~]$ ssh master
Last login: Mon Nov 14 16:50:49 2022 from 192.168.47.141
[hadoop@master ~]$

配置两个子节点slave1、slave2的JDK环境。

[root@master ~]# cd /usr/local/src/
[root@master src]# ls
hadoop-2.7.1 jdk1.8.0_152
[root@master src]# scp -r jdk1.8.0_152 root@slave1:/usr/local/src/
[root@master src]# scp -r jdk1.8.0_152 root@slave2:/usr/local/src/
#slave1
[root@slave1 ~]# ls /usr/local/src/
jdk1.8.0_152
[root@slave1 ~]# vi /etc/profile #此文件最后添加下面两行
export JAVA_HOME=/usr/local/src/jdk1.8.0_152
export PATH=$PATH:$JAVA_HOME/bin
[root@slave1 ~]# source /etc/profile
[root@slave1 ~]# java -version
java version "1.8.0_152"
Java(TM) SE Runtime Environment (build 1.8.0_152-b16)
Java HotSpot(TM) 64-Bit Server VM (build 25.152-b16, mixed mode)
#slave2
[root@slave2 ~]# ls /usr/local/src/
jdk1.8.0_152
[root@slave2 ~]# vi /etc/profile #此文件最后添加下面两行
export JAVA_HOME=/usr/local/src/jdk1.8.0_152
export PATH=$PATH:$JAVA_HOME/bin
[root@slave2 ~]# source /etc/profile、
[root@slave2 ~]# java -version
java version "1.8.0_152"
Java(TM) SE Runtime Environment (build 1.8.0_152-b16)
Java HotSpot(TM) 64-Bit Server VM (build 25.152-b16, mixed mode)

五、Hadoop集群运行

1、在master节点上安装Hadoop

1. 将 hadoop-2.7.1 文件夹重命名为 Hadoop
[root@master ~]# cd /usr/local/src/
[root@master src]# mv hadoop-2.7.1 hadoop
[root@master src]# ls
hadoop jdk1.8.0_152

2. 配置 Hadoop 环境变量
[root@master src]# yum install -y vim
[root@master src]# vim /etc/profile
[root@master src]# tail -n 4 /etc/profile
export JAVA_HOME=/usr/local/src/jdk1.8.0_152
export PATH=$PATH:$JAVA_HOME/bin
export HADOOP_HOME=/usr/local/src/hadoop
export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH

3. 使配置的 Hadoop 的环境变量生效
[root@master src]# su - hadoop
上一次登录：一 2 月 28 15:55:37 CST 2022 从 192.168.41.143pts/1 上
[hadoop@master ~]$ source /etc/profile
[hadoop@master ~]$ exit
登出

4. 执行以下命令修改 hadoop-env.sh 配置文件
[root@master src]# cd /usr/local/src/hadoop/etc/hadoop/
[root@master hadoop]# vim hadoop-env.sh #修改以下配置
export JAVA_HOME=/usr/local/src/jdk1.8.0_152

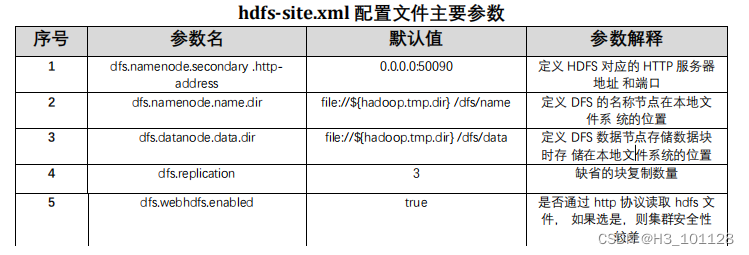

2、配置hdfs-site.xml文件参数

[root@master hadoop]# vim hdfs-site.xml #编辑以下内容
[root@master hadoop]# tail -n 14 hdfs-site.xml
<configuration>
<property>
<name>dfs.namenode.name.dir</name>
<value>file:/usr/local/src/hadoop/dfs/name</value>
</property>
<property>
<name>dfs.datanode.data.dir</name>
<value>file:/usr/local/src/hadoop/dfs/data</value>
</property>
<property>
<name>dfs.replication</name>
<value>3</value>
</property>
</configuration>

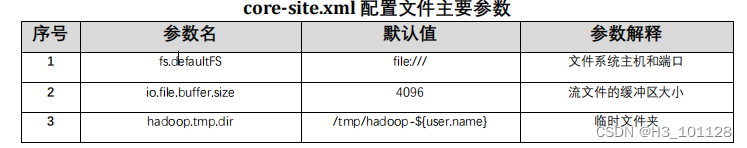

3、配置 core-site.xml 文件参数

[root@master hadoop]# vim core-site.xml #编辑以下内容
[root@master hadoop]# tail -n 14 core-site.xml
<configuration>
<property>
<name>fs.defaultFS</name>
<value>hdfs://192.168.47.140:9000</value>
</property>
<property>
<name>io.file.buffer.size</name>
<value>131072</value>
</property>
<property>
<name>hadoop.tmp.dir</name>
<value>file:/usr/local/src/hadoop/tmp</value>
</property>
</configuration>

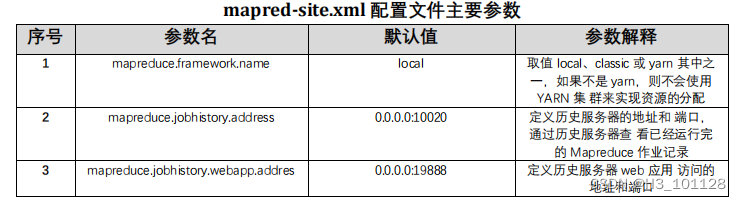

4、配置 mapred-site.xml

[root@master hadoop]# pwd
/usr/local/src/hadoop/etc/hadoop
[root@master hadoop]# cp mapred-site.xml.template mapred-site.xml
[root@master hadoop]# vim mapred-site.xml #添加以下配置
[root@master hadoop]# tail -n 14 mapred-site.xml
<configuration>
<property>
<name>mapreduce.framework.name</name>
<value>yarn</value>
</property>
<property>
<name>mapreduce.jobhistory.address</name>
<value>master:10020</value>
</property>
<property>
<name>mapreduce.jobhistory.webapp.address</name>
<value>master:19888</value>
</property>
</configuration>

5、配置 yarn-site.xml

[root@master hadoop]# vim yarn-site.xml #添加以下配置
[root@master hadoop]# tail -n 32 yarn-site.xml
<configuration>
<!-- Site specific YARN configuration properties -->
<property>
<name>yarn.resourcemanager.address</name>
<value>master:8032</value>
</property>
<property>
<name>yarn.resourcemanager.scheduler.address</name>
<value>master:8030</value>
</property>
<property>
<name>yarn.resourcemanager.resource-tracker.address</name>
<value>master:8031</value>
</property>
<property>
<name>yarn.resourcemanager.admin.address</name>
<value>master:8033</value>
</property>
<property>
<name>yarn.resourcemanager.webapp.address</name>
<value>master:8088</value>
</property>
<property>
<name>yarn.nodemanager.aux-services</name>
<value>mapreduce_shuffle</value>
</property>
<property>
<name>yarn.nodemanager.auxservices.mapreduce.shuffle.class</name>
<value>org.apache.hadoop.mapred.ShuffleHandler</value>
</property>
</configuration>

6、Hadoop 其他相关配置

1. 配置 masters 文件
[root@master hadoop]# vim masters
[root@master hadoop]# cat masters
192.168.47.140

2. 配置 slaves 文件
[root@master hadoop]# vim slaves
[root@master hadoop]# cat slaves
192.168.47.141
192.168.47.142

3. 新建目录
[root@master hadoop]# mkdir /usr/local/src/hadoop/tmp
[root@master hadoop]# mkdir /usr/local/src/hadoop/dfs/name -p
[root@master hadoop]# mkdir /usr/local/src/hadoop/dfs/data -p

4. 修改目录权限
[root@master hadoop]# chown -R hadoop:hadoop /usr/local/src/hadoop/

5. 同步配置文件到 Slave 节点
[root@master ~]# scp -r /usr/local/src/hadoop/ root@slave1:/usr/local/src/
The authenticity of host 'slave1 (192.168.47.141)' can't be established.
ECDSA key fingerprint is SHA256:vnHclJTJVtDbeULN8jdOLhTCmqxJNqUQshH9g9LfJ3k.
ECDSA key fingerprint is MD5:31:03:3d:83:46:aa:c4:d0:c9:fc:5f:f1:cf:2d:fd:e2.
Are you sure you want to continue connecting (yes/no)? yes
* * * * * * *
[root@master ~]# scp -r /usr/local/src/hadoop/ root@slave2:/usr/local/src/
The authenticity of host 'slave1 (192.168.47.142)' can't be established.
ECDSA key fingerprint is SHA256:vnHclJTJVtDbeULN8jdOLhTCmqxJNqUQshH9g9LfJ3k.
ECDSA key fingerprint is MD5:31:03:3d:83:46:aa:c4:d0:c9:fc:5f:f1:cf:2d:fd:e2.
Are you sure you want to continue connecting (yes/no)? yes
* * * * * * *

#slave1 配置
[root@slave1 ~]# yum install -y vim
[root@slave1 ~]# vim /etc/profile
[root@slave1 ~]# tail -n 4 /etc/profile
export JAVA_HOME=/usr/local/src/jdk1.8.0_152
export PATH=$PATH:$JAVA_HOME/bin
export HADOOP_HOME=/usr/local/src/hadoop
export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH
[root@slave1 ~]# chown -R hadoop:hadoop /usr/local/src/hadoop/
[root@slave1 ~]# su - hadoop
上一次登录：四 2 月 24 11:29:00 CST 2022 从 192.168.41.148pts/1 上
[hadoop@slave1 ~]$ source /etc/profile

#slave2 配置
[root@slave2 ~]# yum install -y vim
[root@slave2 ~]# vim /etc/profile
[root@slave2 ~]# tail -n 4 /etc/profile
export JAVA_HOME=/usr/local/src/jdk1.8.0_152
export PATH=$PATH:$JAVA_HOME/bin
export HADOOP_HOME=/usr/local/src/hadoop
export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH
[root@slave2 ~]# chown -R hadoop:hadoop /usr/local/src/hadoop/
[root@slave2 ~]# su - hadoop
上一次登录：四 2 月 24 11:29:19 CST 2022 从 192.168.41.148pts/1 上
[hadoop@slave2 ~]$ source /etc/profile

六、大数据平台集群运行

1、配置Hadoop格式化

1）NameNode格式化

[root@master ~]# su – hadoop
[hadoop@master ~]# cd /usr/local/src/hadoop/
[hadoop@master hadoop]$ bin/hdfs namenode –format
结果：
20/05/02 16:21:50 INFO namenode.NameNode: SHUTDOWN_MSG:
/************************************************************ SHUTDOWN_MSG:
Shutting down NameNode at master/192.168.1.6
************************************************************/

注：将 NameNode 上的数据清零，第一次启动 HDFS 时要进行格式化，以后启动无需再格式化，否则会缺失 DataNode 进程。另外，只要运行过 HDFS，Hadoop 的工作目录（本书设置为/usr/local/src/hadoop/tmp）就会有数据，如果需要重新格式化，则在格式化之前一定要先删除工作目录下的数据，否则格式化时会出问题。

2）启动NameNode

[hadoop@master hadoop]$ hadoop-daemon.sh start namenode
starting namenode, logging to /opt/module/hadoop-
2.7.1/logs/hadoop-hadoop-namenode-master.out

2、查看JAVA进程

启动完成后，可以使用 JPS 命令查看是否成功。JPS 命令是 Java 提供的一个显示当前所有
Java 进程 pid 的命令。
[hadoop@master hadoop]$ jps
3557 NameNode
3624 Jps

1）slave节点启动 DataNode

[hadoop@slave1 hadoop]$ hadoop-daemon.sh start datanode
starting datanode, logging to /opt/module/hadoop-
2.7.1/logs/hadoop-hadoop-datanode-master.out
[hadoop@slave2 hadoop]$ hadoop-daemon.sh start datanode
starting datanode, logging to /opt/module/hadoop-
2.7.1/logs/hadoop-hadoop-datanode-master.out
[hadoop@slave1 hadoop]$ jps
3557 DataNode
3725 Jps
[hadoop@slave2 hadoop]$ jps
3557 DataNode
3725 Jps

2）启动 SecondaryNameNode

[hadoop@master hadoop]$ hadoop-daemon.sh start secondarynamenode
starting secondarynamenode, logging to /opt/module/hadoop-
2.7.1/logs/hadoop-hadoop-secondarynamenode-master.out
[hadoop@master hadoop]$ jps
34257 NameNode
34449 SecondaryNameNode
34494 Jps

3）查看 HDFS 数据存放位置

[hadoop@master hadoop]$ ll dfs/
总用量 0
drwx------ 3 hadoop hadoop 21 8 月 14 15:26 data
drwxr-xr-x 3 hadoop hadoop 40 8 月 14 14:57 name
[hadoop@master hadoop]$ ll ./tmp/dfs
总用量 0
drwxrwxr-x. 3 hadoop hadoop 21 5 月 2 16:34 namesecondary
可以看出 HDFS 的数据保存在/usr/local/src/hadoop/dfs 目录下，NameNode、
DataNode和/usr/local/src/hadoop/tmp/目录下,SecondaryNameNode 各有一个目
录存放数据。

3、查看HDFS的报告

[hadoop@master sbin]$ hdfs dfsadmin -report
Configured Capacity: 8202977280 (7.64 GB)
Present Capacity: 4421812224 (4.12 GB)
DFS Remaining: 4046110720 (3.77 GB)
DFS Used: 375701504 (358.30 MB)
DFS Used%: 8.50%
Under replicated blocks: 88
Blocks with corrupt replicas: 0
Missing blocks: 0
-------------------------------------------------
Live datanodes (2):
Name: 192.168.47.141:50010 (slave1)
Hostname: slave1
Decommission Status : Normal
Configured Capacity: 4101488640 (3.82 GB)
DFS Used: 187850752 (179.15 MB)
Non DFS Used: 2109939712 (1.97 GB)
DFS Remaining: 1803698176 (1.68 GB)
DFS Used%: 4.58%
DFS Remaining%: 43.98%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Mon May 04 18:32:32 CST 2020
Name: 192.168.47.142:50010 (slave2)
Hostname: slave2
Decommission Status : Normal
Configured Capacity: 4101488640 (3.82 GB)
DFS Used: 187850752 (179.15 MB)
Non DFS Used: 1671225344 (1.56 GB)
DFS Remaining: 2242412544 (2.09 GB)
DFS Used%: 4.58%
DFS Remaining%: 54.67%
Configured Cache Capacity: 0 (0 B)
Cache Used: 0 (0 B)
Cache Remaining: 0 (0 B)
Cache Used%: 100.00%
Cache Remaining%: 0.00%
Xceivers: 1
Last contact: Mon May 04 18:32:32 CST 2020

4、使用浏览器查看节点状态

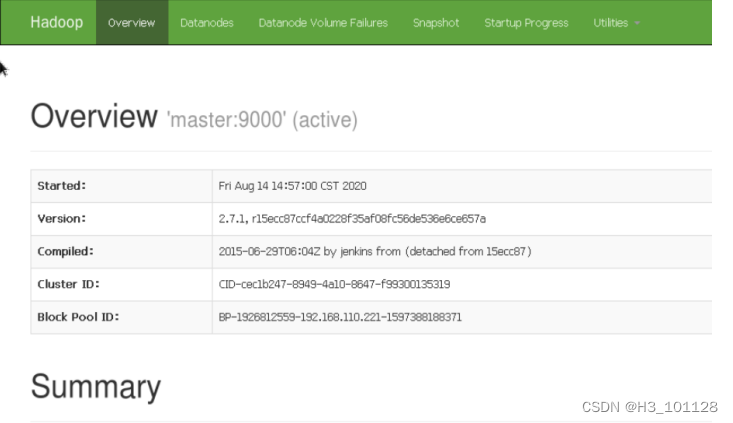

在浏览器的地址栏输入 http://master:50070 ，进入页面可以查看 NameNode 和 DataNode

信息

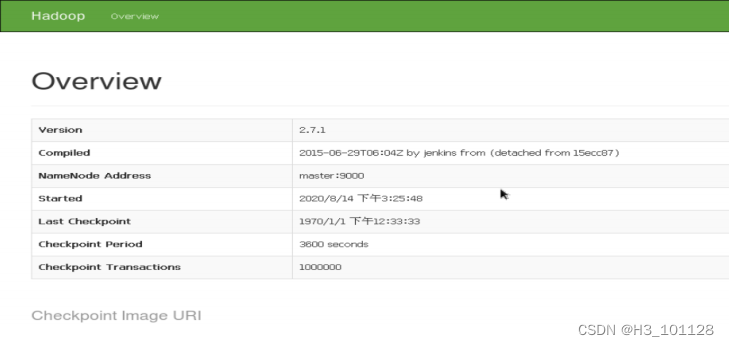

在浏览器的地址栏输入 http://master:50090 ，进入页面可以查看

SecondaryNameNode 信息

可以使用 start-dfs.sh 命令启动 HDFS 。这时需要配置 SSH 免密码登录，否则在

启动过程中系统将多次要求确认连接和输入 Hadoop 用户密码。

[hadoop@master hadoop]$ stop-dfs.sh
[hadoop@master hadoop]$ start-dfs.sh

七、运行测试

1、在 HDFS 文件系统中创建数据输入目录

[hadoop@master hadoop]$ start-yarn.sh
[hadoop@master hadoop]$ jps
34257 NameNode
34449 SecondaryNameNode
34494 Jps
32847 ResourceManager

如果是第一次运行 MapReduce 程序，需要先在 HDFS 文件系统中创建数据输入目

录，存放输入数据。这里指定/input 目录为输入数据的存放目录。执行如下命

令，在 HDFS 文件系统中创建/input 目录

[hadoop@master hadoop]$ hdfs dfs -mkdir /input
[hadoop@master hadoop]$ hdfs dfs -ls /
Found 1 items
drwxr-xr-x - hadoop supergroup 0 2020-05-02 22:26
/input
此处创建的/input 目录是在 HDFS 文件系统中，只能用 HDFS 命令查看和操作。

2、将输入数据文件复制到 HDFS 的/input 目录中

[hadoop@master hadoop]$ cat ~/input/data.txt
Hello World
Hello Hadoop
Hello Huasan
执行如下命令，将输入数据文件复制到 HDFS 的/input 目录中：
[hadoop@master hadoop]$ hdfs dfs -put ~/input/data.txt /input
确认文件已复制到 HDFS 的/input 目录：
[hadoop@master hadoop]$ hdfs dfs -ls /input
Found 1 items
-rw-r--r-- 1 hadoop supergroup 38 2020-05-02 22:32
/input/data.txt

3、运行 WordCount 案例，计算数据文件中各单词的频度

自动创建的/output 目录在 HDFS 文件
系统中，使用 HDFS 命令查看和操作。
[hadoop@master hadoop]$ hdfs dfs -mkdir /output

先执行如下命令查看 HDFS 中的文件：
[hadoop@master hadoop]$ hdfs dfs -ls /
Found 3 items
drwxr-xr-x - hadoop supergroup 0 2020-05-02 22:32
/input
drwxr-xr-x - hadoop supergroup 0 2020-05-02 22:49
/output

上述目录中/input 目录是输入数据存放的目录，/output 目录是输出数据存放的目录。执
行如下命令，删除/output 目录。
[hadoop@master hadoop]$ hdfs dfs -rm -r -f /output
20/05/03 09:43:43 INFO fs.TrashPolicyDefault: Namenode trash
configuration: Deletion interval = 0 minutes, Emptier interval = 0 minutes. Deleted
/output

执行如下命令运行 WordCount 案例：
[hadoop@master hadoop]$ hadoop jar share/hadoop/mapreduce/hado
op-- mapreduce-examples-2.7.1.jar wordcount /input/data.txt /output

MapReduce 程序运行过程中的输出信息如下所示：
20/05/02 22:39:41 INFO client.RMProxy: Connecting to
ResourceManager at localhost/127.0.0.1:8032
20/05/02 22:39:43 INFO input.FileInputFormat: Total input paths
to process : 1
20/05/02 22:39:43 INFO mapreduce.JobSubmitter: number of
splits:1
 20/05/02 22:39:44 INFO mapreduce.JobSubmitter: Submitting tokens
for job: job_1588469277215_0001
…… 省略 ……
20/05/02 22:40:32 INFO mapreduce.Job: map 0% reduce 0%
20/05/02 22:41:07 INFO mapreduce.Job: map 100% reduce 0% 20/05/02
22:41:25 INFO mapreduce.Job: map 100% reduce 100% 20/05/02 22:41:27 INFO
mapreduce.Job: Job job_1588469277215_0001
completed successfully
…… 省略 ……

由上述信息可知 MapReduce 程序提交了一个作业，作业先进行 Map，再进行

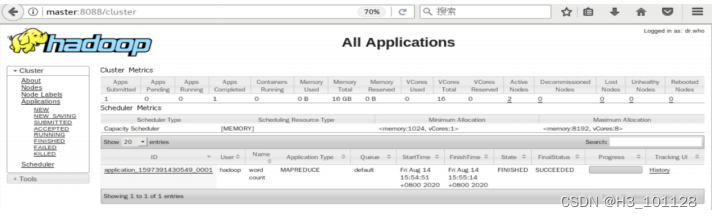

Reduce 操作。 MapReduce 作业运行过程也可以在 YARN 集群网页中查看。在浏
览器的地址栏输入：http://master:8088

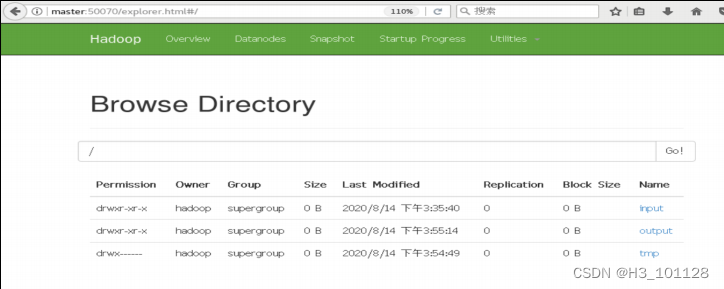

在浏览器的地址栏输入 http://master:50070 ，进入页面，在 Utilities 菜单中

选择 Browse the file system ，可以查看 HDFS 文件系统内容。

可以使用 HDFS 命令直接查看 part-r-00000 文件内容，结果如下所示：
[hadoop@master hadoop]$ hdfs dfs -cat /output/part-r-00000
Hadoop 1
Hello 3
Huasan 1
World 1
可以看出统计结果正确，说明 Hadoop 运行正常
