Vue管理

element-ui 中的steps使用，给每个步骤条添加自定义功能

需求：上传数据文件功能分步骤操作

备注：此文章是针对VUE环境以及搭建好，直接从功能开始介绍

步骤介绍：

1. 创建对应的步骤条名称并在每一个步骤条中写入插件，在每个插件中编写自定义样式
2. 在每个自定义样式中实现每个步骤想实现的效果

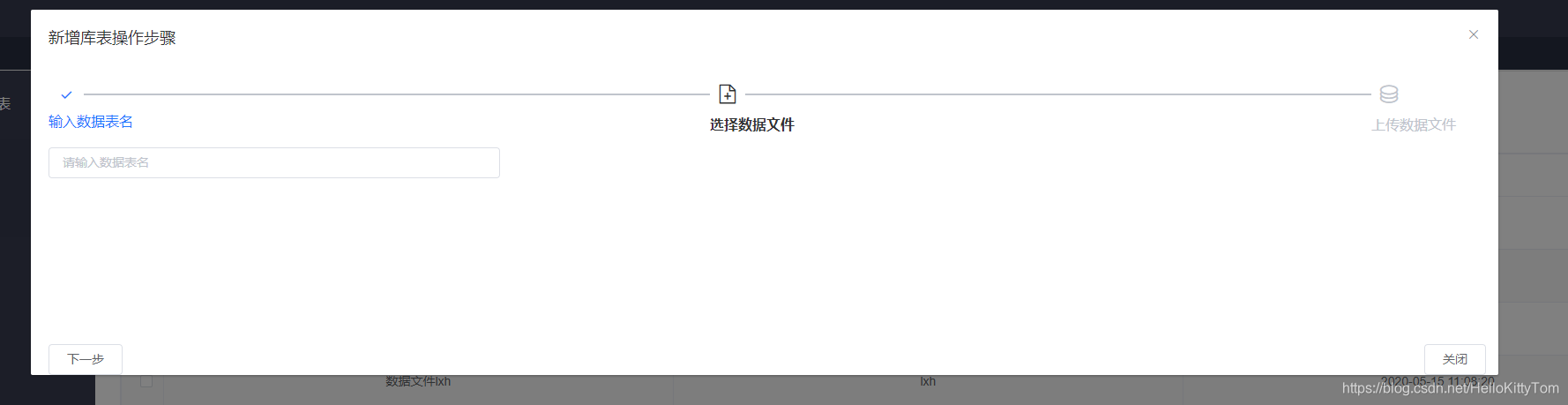

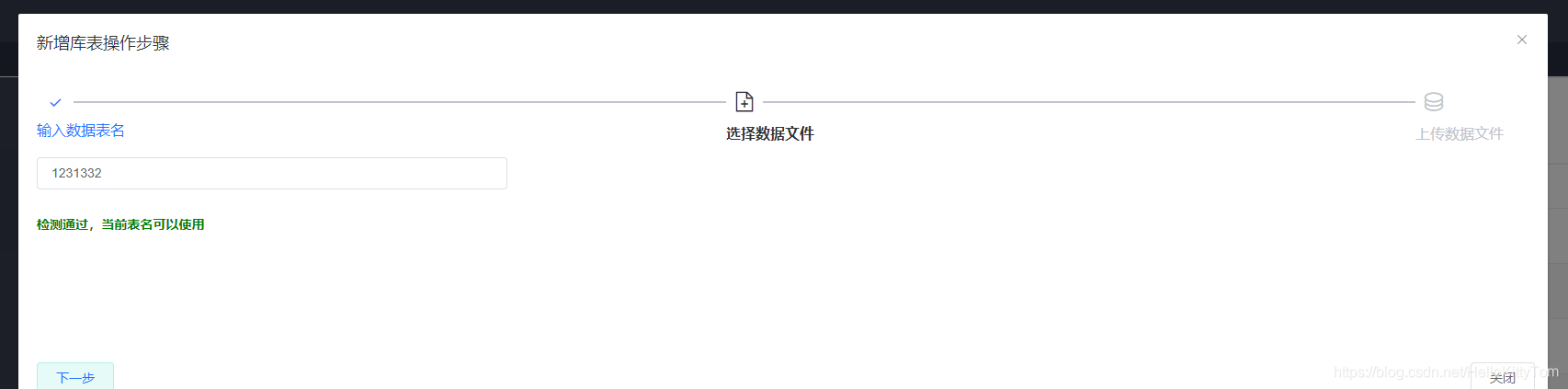

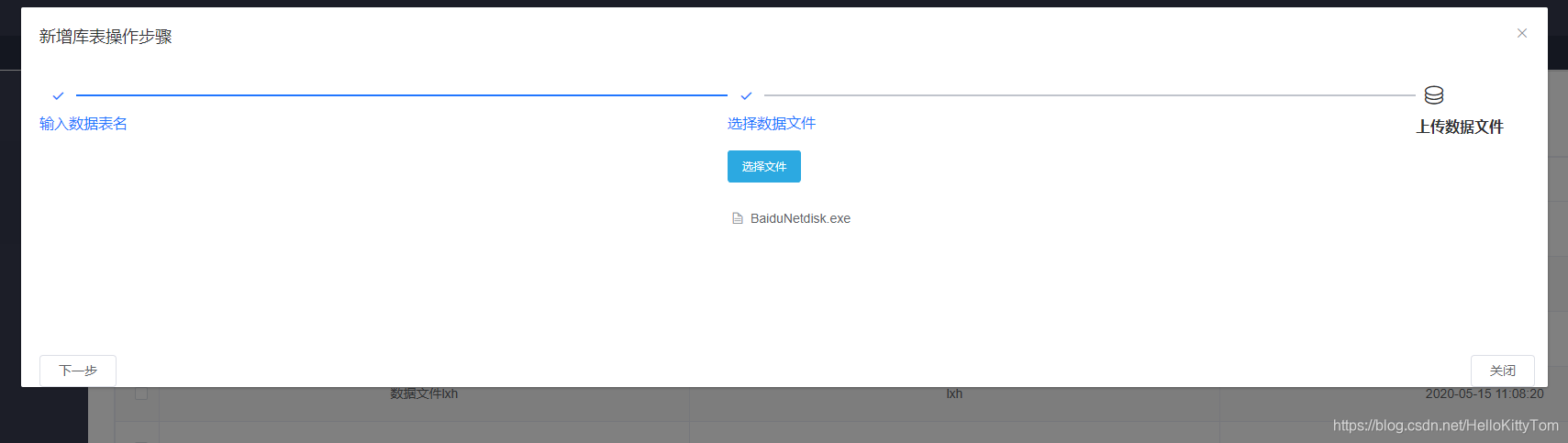

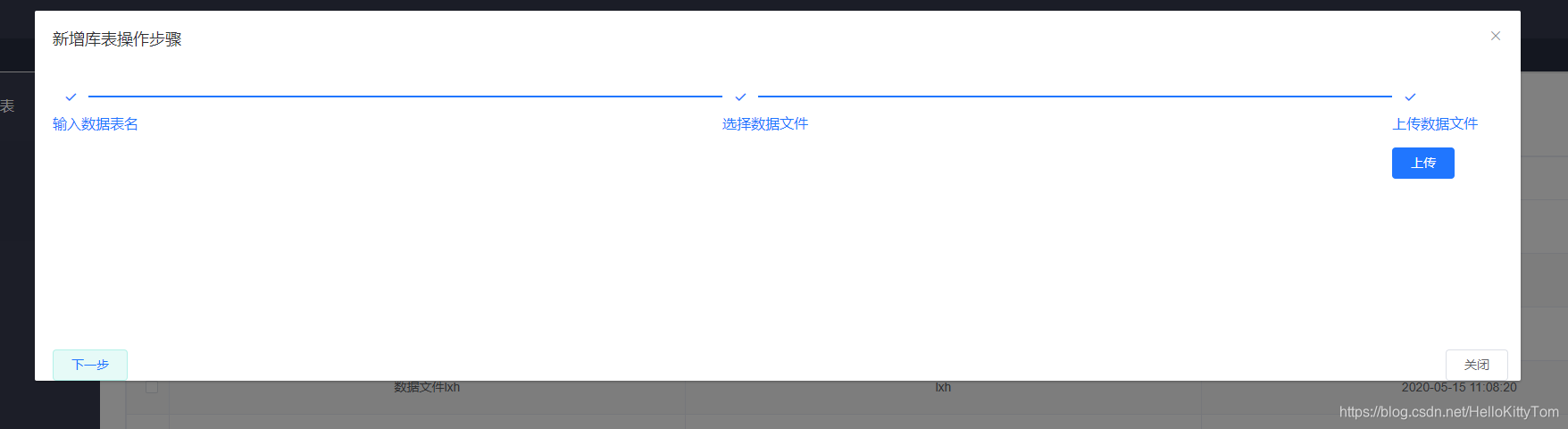

   效果展示：





代码介绍：
制定好步骤，对每一个步骤进行处理就好了，附上完整代码

<template>
  <div>
    <el-dialog
      title="新增库表操作步骤"
      :visible.sync="showUpFile"
      width="65vw"
      :before-close="handleClose"
      customClass="customClass"
      align-center
    >
      <el-form
        :inline="true"
        :label-position="labelPosition"
        label-width="50px"
        :model="formInline"
        ref="dictForm"
      >
        <div style="height:300px;">
          <div style="width:2000px">
            <el-steps :active="active" direction="horizontal" finish-status="success">
              <el-step title="输入数据表名" icon="el-icon-edit">
                <!--第一步插槽-->
                <template slot="description">
                  <div class="step-row" v-show="this.Onefalg">
                    <el-form-item>
                      <el-input
                        v-model="formInline.fileName"
                        placeholder="请输入数据表名"
                        @blur="designationBlur"
                        class="inputSmall"
                      ></el-input>
                    </el-form-item>
                    <!--表名称判断-->
                    <div v-show="this.switch">
                      <h3 style="color:red">该表名已存在,请选择处理方式：追加、覆盖</h3>
                    </div>
                    <!--检测通过-->
                    <div v-show="Flag">
                      <h3 style="color:green">检测通过，当前表名可以使用</h3>
                    </div>
                    <el-form-item style="width:50px;" :label="addLable" v-show="this.switch">
                      <el-switch
                        v-show="this.switch"
                        v-model="formInline.addLable"
                        @change="switchChange"
                      ></el-switch>
                    </el-form-item>
                  </div>
                </template>
              </el-step>
              <el-step title="选择数据文件" icon="el-icon-document-add">
                <!--第二步插槽-->
                <template slot="description">
                  <div class="step-row" v-show="this.Twofalg">
                    <el-form-item>
                      <!--数据文件上传-->
                      <el-upload
                        ref="upload"
                        :auto-upload="false"
                        class="upload-demo"
                        action="/api/outTable/doImportExcel"
                        :before-remove="beforeRemove"
                        :on-success="handleAvatarSuccess"
                        :on-error="onerror"
                        multiple
                        :limit="1"
                        :on-exceed="handleExceed"
                        :data="formInline"
                      >
                        <el-button size="small" type="primary">选择文件</el-button>
                      </el-upload>
                    </el-form-item>
                  </div>
                </template>
              </el-step>
              <el-step title="上传数据文件" icon="el-icon-coin">
                <!--第三步插槽-->
                <template slot="description">
                  <div class="step-row">
                    <div v-show="this.Threefalg">
                      <el-button type="primary" @click="UpLoadFile()">上传</el-button>
                    </div>
                  </div>
                </template>
              </el-step>
            </el-steps>
          </div>
          <div style="position:absolute; left:20px; bottom:0;">
            <el-button @click="next()">下一步</el-button>
          </div>
          <div style="position:absolute; left:1580px; bottom:0;">
            <el-button type="color:#e6faf7" @click="colseOutFile()">关闭</el-button>
          </div>
        </div>
      </el-form>
    </el-dialog>
  </div>
</template>

<script>
import Qs from 'qs' //引入qs  axios的自带模块
export default {
  data() {
    return {
      active: 1,
      //插槽1状态控制
      Onefalg: true,
      //插槽2状态控制
      Twofalg: false,
      //插槽3状态控制
      Threefalg: false,
      formInline: {
        fileName: '',
        addLable: false,
        dealType: '0'
      },
      addLable: '',
      switch: false,
      labelPosition: 'right',
      dealTypeShow: false,
      //第一步状态计数器
      count: 0,
      //检测通过状态标志
      Flag: false
    }
  },
  props: {
    showUpFile: {
      type: Boolean,
      default: false
    },
    templates: {
      type: String
    }
  },
  methods: {
    //上传文件
    UpLoadFile() {
      //确定上传
      var bj = this.addLable
      if (bj == '覆盖') {
        this.formInline.dealType = '2'
      } else if (bj == '追加') {
        this.formInline.dealType = '1'
      } else {
        this.formInline.dealType = '0'
      }
      this.formInline.tableName = this.formInline.Template
      this.formInline.topicName = this.formInline.fileName
      if (
        this.formInline.tableName == null ||
        this.formInline.topicName == null
      ) {
        this.$message({
          showClose: true,
          message: '上传数据文件不满足条件，请检查后上传',
          type: 'error'
        })
        return
      }
      this.$refs.upload.submit()
    },
    childClick() {
      this.$refs['dictForm'].resetFields()
      this.$emit('reloadPage')
    },
    //文件删除方法
    beforeRemove(file) {
      return this.$confirm(`确定移除 ${file.name}？`)
    },
    //校验文件是否存在
    designationBlur() {
      //校验上传文件是否存在
      var name = this.formInline.fileName
      this.$ajax({
        method: 'get',
        url: '/api/outTable/list',
        params: {
          mpptablename: this.formInline.Template,
          mppTableDes: name
        }
      })
        .then(res => {
          if (res.data.code == 0) {
            if (res.data.data.total == 0) {
              this.switch = false
              this.Flag = true
            } else {
              this.switch = true
              this.Flag = false
            }
          } else {
            this.$message({
              showClose: true,
              message: '上传模板检查异常',
              type: 'error'
            })
          }
        })
        .catch(err => {
          this.$message({
            showClose: true,
            message: '上传模板不符合要求请重新上传',
            type: 'error'
          })
        })
    },
    //获取成功返回数据
    handleAvatarSuccess(res, file) {
      this.imageUrl = URL.createObjectURL(file.raw)
      if (res.code == 0) {
        this.$message({
          showClose: true,
          message: '上传成功',
          type: 'success'
        })
      } else if (res.code == 200001) {
        this.$message({
          showClose: true,
          message: '数据文件、数据文件名字为空，请检查后上传',
          type: 'error'
        })
      }
      this.colseOutFile()
    },
    //获取失败返回数据
    onerror(res, file) {
      this.$message({
        showClose: true,
        message: '上传外部表出错',
        type: 'error'
      })
      this.colseOutFile()
    },
    //上传出错捕获异常方法
    handleExceed(res, file) {
      this.$message({
        showClose: true,
        message: '上传外部表出错',
        type: 'error'
      })
    },
    //数据处理方式方法
    switchChange(val) {
      if (val == true) {
        this.addLable = '覆盖'
      } else if (val == false) {
        this.addLable = '追加'
      }
    },
    //下一步方法
    next() {
      //第一步检测表名称是否填写
      if (
        this.formInline.fileName == null ||
        this.formInline.fileName == '' ||
        this.formInline.fileName == undefined
      ) {
        this.$message({
          showClose: true,
          message: '当前数据表名字未填写，请填写以后进行下一步',
          type: 'error'
        })
        return
      }
      if (this.active == 1 && this.count == 0) {
        this.count++
      } else {
        if (this.active++ > 2) this.active = 0
        if (this.active == 1 || this.active == 0) {
          this.count = 0
          this.Onefalg = true
          this.Twofalg = false
          this.Threefalg = false
        } else if (this.active == 2) {
          this.count = 0
          this.Onefalg = false
          this.Twofalg = true
          this.Threefalg = false
        } else if (this.active == 3) {
          //第二步检测文件是否存在
          if (this.$refs.upload.uploadFiles.length == 0) {
            this.$message({
              showClose: true,
              message: '当前数据文件未检测到，请检查后进行下一步',
              type: 'error'
            })
            return
          }
          this.count = 0
          this.Onefalg = false
          this.Twofalg = false
          this.Threefalg = true
        }
      }
    },
    //右上角X关闭
    handleClose() {
      this.colseOutFile()
    },
    //页面关闭方法
    colseOutFile() {
      this.formInline.dealType = ''
      this.formInline.Template = ''
      this.formInline.fileName = ''
      this.$refs['upload'].clearFiles()
      this.$emit('uploadFile_close', false)
      //重置进度条状态
      this.count = 0
      this.active = 0
      this.Twofalg = false
      this.Threefalg = false
      this.switch = false
    }
  },
  created() {},
  watch: {
    templates(val) {
      this.formInline.Template = this.templates
    },
    showUpFile() {}
  }
}
</script>
<style lang="scss">
.customClass {
  margin-top: 3vh !important;
}
.text {
  color: red;
  margin-left: 100px;
}
.step-row {
  min-width: 500px;
  margin-bottom: 12px;
  margin-top: 12px;
}
@import '../../../../static/css/theme-green/common/input.scss';
</style>
