《A Two-Step Disentanglement Method》keras 实践

Notes

文章是关于解耦特征表示的，网络主体基于 auto encoder，但将 encoder 拆成两个：$En{c}_s$ 和 $En{c}_z$，意图将 latent code 分成两部分：z’=(s, z)，其中 s 编码同 label 相关的信息，z 编码其它信息。

实现解耦的思路是靠两个分类器：

• $Cl{f}_s$：对 s 分类，约束 s 捕捉 label 信息；
• $Cl{f}_z$：同 $En{c}_z$ 做对抗学习，$Cl{f}_z$ 希望对 z 分类正确，而 $En{c}_z$ 希望编码出的 z 使 $Cl{f}_z$ 分类错误（单标签下输出的概率向量全是 $\frac{1}{N_{class}}$，多标签下则全是 0.5），以此约束 z 中不含 label 信息；

同时对 decoder 用重构损失，约束 z’ = (s, z) 能编码原始数据的全部信息，而没有信息丢失。

Practice

Model

小改了一下模型，加了一个分类器 $Cl{f}_x$，对 x 和 $\hat{x}$ 进行分类：

Objectives

整幅计算图分三个子模块迭代训练：

1. $En{c}_s,Cl{f}_s,Cl{f}_x$
   对 $l_s=Cl{f}_s(En{c}_s(x))$ 和 $l_x^{sup}=Cl{f}_x(x)$ 用分类损失；
2. $Cl{f}_z$
   定住 $En{c}_z$，对 $l_z=Cl{f}_z(En{c}_z(x))$ 用分类损失；
3. $En{c}_z,Dec$
   定住 $En{c}_s$，对 $\hat{x}=Dec(En{c}_s(x),En{c}_z(x))$ 用重构损失；
   另外抽样图像和标签 $x^{\prime },l^{\prime }$，对 $l_x^{uns}=Cl{f}_x(Dec(En{c}_s(x^{\prime }),En{c}_z(x)))$ 用分类损失，target label 是新抽样的 $l^{\prime }$；
   定住 $Cl{f}_z$，对 $l_z=Cl{f}_z(En{c}_z(x))$ 用分类损失，但此时 target label 是 $\tilde{l}=(\frac{1}{N_{class}},\dots ,\frac{1}{N_{class}})$；

详见代码。

Code

• 用预设参数运行

from time import time
import argparse
import numpy as np
from sklearn import manifold
import matplotlib.pyplot as plt

import keras
import keras.backend as K
from keras.optimizers import adam, sgd
from keras.datasets import mnist
from keras.utils import to_categorical
from keras.models import Model
from keras.layers import Dense, Dropout, Activation, Input, Concatenate, LeakyReLU

np.random.seed(int(time()))

parser = argparse.ArgumentParser()
parser.add_argument('--EPOCH', type=int, default=30)
parser.add_argument('--BATCH', type=int, default=128)
parser.add_argument('--DIM_Z', type=int, default=16)
parser.add_argument('--DIM_H', type=int, default=256)
parser.add_argument('--DIM_FEA', type=int, default=16)
opt = parser.parse_args()
print(opt)

(I_train, L_train), (I_test, L_test) = mnist.load_data()
N_PIX = I_train.shape[1]
I_train = I_train.reshape(I_train.shape[0], -1) / 255.
I_test = I_test.reshape(I_test.shape[0], -1) / 255.
L_train = to_categorical(L_train, 10)
L_test = to_categorical(L_test, 10)
print(I_train.shape, L_test.shape)

N_CLASS = L_train.shape[-1]
DIM_IMG = I_train.shape[-1]
DIM_FEA = opt.DIM_FEA
DIM_Z = opt.DIM_Z
DIM_H = opt.DIM_H
EPOCH = opt.EPOCH
BATCH = opt.BATCH


def Encoder(dim_in=DIM_IMG, dim_z=DIM_Z, name='encoder'):
    inputs = Input([dim_in])
    x = inputs
    x = Dense(DIM_H, activation='relu')(x)
    x = Dropout(0.2)(x)
    x = Dense(DIM_H, activation='relu')(x)
    x = Dropout(0.2)(x)
    z = Dense(dim_z)(x)
    return Model(inputs, z, name=name)


def Decoder(dim_z=DIM_Z, dim_a=DIM_FEA, dim_out=DIM_IMG, name='decoder'):
    z = Input([dim_z])
    a = Input([dim_a])
    inputs = [z, a]
    x = Concatenate()([z, a])
    for _ in range(2):
        x = Dense(DIM_H, activation='relu')(x)
        # x = LeakyReLU(alpha=0.2)(x)
        x = Dropout(0.3)(x)
    x = Dense(dim_out)(x)
    x = Activation("sigmoid")(x)
    output = x
    return Model(inputs, output, name=name)


def Classifier(dim_in=DIM_Z, n_class=N_CLASS, name='classifier'):
    inputs = Input([dim_in])
    x = inputs
    # x = Dense(DIM_H, activation='relu')(x)
    # x = Dropout(0.2)(x)
    x = Dense(n_class, activation='softmax')(x)
    output = x
    return Model(inputs, output, name=name)


def _set_train(m, is_train=True):
    m.trainable = is_train
    for ly in m.layers:
        ly.trainable = is_train


# network
in_lab = Input([N_CLASS])
in_img = Input([DIM_IMG])
other_i = Input([DIM_IMG])

enc_z = Encoder(DIM_IMG, DIM_Z, 'enc_z')
enc_s = Encoder(DIM_IMG, DIM_FEA, 'enc_s')
dec = Decoder(DIM_Z, DIM_FEA, DIM_IMG, 'dec')
clf_z = Classifier(DIM_Z, N_CLASS, 'clf_z')
clf_s = Classifier(DIM_FEA, N_CLASS, 'clf_s')
clf_x = Classifier(DIM_IMG, N_CLASS, 'clf_x')

z = enc_z(in_img)
s = enc_s(in_img)
x_hat = dec([z, s])
l_z = clf_z(z)
l_s = clf_s(s)
l_x_sup = clf_x(in_img)
other_s = enc_s(other_i)
other_x_hat = dec([z, other_s])
l_x_uns = clf_x(other_x_hat)


# enc_s & clf_s & clf_x
m_sup = Model([in_img, in_lab], [l_s, l_x_sup],
              name='train_EncF_ClfF_ClfI')
m_sup.compile('adam',
              loss=['categorical_crossentropy',
                    'categorical_crossentropy'],
              loss_weights=[1, 1],
              metrics=['categorical_accuracy'])


# adv: clf_z
m_adv = Model(in_img, l_z, name='train_EncZ')
_set_train(enc_z, False)
m_adv.compile(sgd(0.001),
              loss='categorical_crossentropy',
              metrics=['categorical_accuracy'])


# AE: enc_z & dec
m_ae = Model([in_img, other_i], [x_hat, l_z, l_x_uns], name='train_ae')
_set_train(enc_z, True)
_set_train(dec, True)
_set_train(enc_s, False)
_set_train(clf_z, False)
_set_train(clf_x, False)
# _set_train(clf_s, False)
# _set_train(model_lab, False)
m_ae.compile('adam',
             loss=['binary_crossentropy', 'categorical_crossentropy',
                   'categorical_crossentropy'],
             loss_weights=[10, 10, 1],
             metrics=['categorical_accuracy'])


def TSNE(X, label, title="", save_f=None):
    n_points = len(X)
    n_components = 2
    color = np.argmax(label, axis=-1)
    fig = plt.figure(figsize=(15, 8))
    if title == "":
        plt.suptitle("%s Manifold Learning with %i points"
                     % (title, n_points), fontsize=14)
    else:
        plt.suptitle(title)

    if X[0].size == 3:
        ax = fig.add_subplot(251, projection='3d')
        ax.scatter(X[:, 0], X[:, 1], X[:, 2], c=color,
                   cmap=plt.get_cmap("rainbow"))
        ax.view_init(4, -72)

    t0 = time()
    tsne = manifold.TSNE(n_components=n_components, init='pca', random_state=0)
    Y = tsne.fit_transform(X)
    t1 = time()
    print("t-SNE: %.2g sec" % (t1 - t0))
    plt.scatter(Y[:, 0], Y[:, 1], c=color, cmap=plt.get_cmap("rainbow"))
    plt.colorbar()
    plt.title("t-SNE (%.2g sec)" % (t1 - t0))
    plt.axis('tight')
    if save_f is not None:
        assert isinstance(save_f, str)
        fig.savefig(f'./picture/{save_f}.png')
    plt.show()


def test():
    idx = np.random.choice(L_test.shape[0], 10)
    other_idx = np.random.choice(L_test.shape[0], 10)

    print('original')
    x = I_test[idx].reshape(-1, N_PIX, N_PIX)
    x = np.hstack(x)
    plt.imshow(x, cmap='Greys')
    plt.show()

    print('reconstruct')
    x_gen = dec.predict([enc_z.predict(I_test[idx]),
                         enc_s.predict(I_test[idx])])
    x = x_gen.reshape(-1, N_PIX, N_PIX)
    x = np.hstack(x)
    plt.imshow(x, cmap='Greys')
    plt.show()

    print('change s:', np.argmax(L_test[other_idx], axis=-1))
    x_gen = dec.predict([enc_z.predict(I_test[idx]),
                         enc_s.predict(I_test[other_idx])])  # changed
    x = x_gen.reshape(-1, N_PIX, N_PIX)
    x = np.hstack(x)
    plt.imshow(x, cmap='Greys')
    plt.show()

    print('change z:', np.argmax(L_test[idx], axis=-1))
    x_gen = dec.predict([enc_z.predict(I_test[other_idx]),  # changed
                         enc_s.predict(I_test[idx])])
    x = x_gen.reshape(-1, N_PIX, N_PIX)
    x = np.hstack(x)
    plt.imshow(x, cmap='Greys')
    plt.show()

    print('real label:', np.argmax(L_test[idx[0]], axis=-1))
    print('clf_z:', clf_z.predict(enc_z.predict(I_test[idx[0:1]]))[0])
    print('clf_s:', clf_s.predict(enc_s.predict(I_test[idx[0:1]]))[0])


def gen_data(dataset, batch_size):
	"""数据生成器"""
    if dataset == "train":
        I, L = I_train, L_train
    elif dataset == "test":
        I, L = I_test, L_test
    size = I.shape[0]
    while True:
        idx = np.random.choice(size, batch_size)
        yield I[idx], L[idx]


xjb_label = np.ones((BATCH, N_CLASS)) / N_CLASS  # 假 label
gen_train = gen_data('train', BATCH)
for epoch in range(EPOCH):
    print(f'--- {epoch} ---')
    for b in range(I_train.shape[0] // BATCH):
        for _ in range(1):
            i, l = next(gen_train)
            loss_sup = m_sup.train_on_batch([i, l], [l, l])
        for _ in range(3):
            i, l = next(gen_train)
            loss_adv = m_adv.train_on_batch(i, l)
        for _ in range(1):
            i, l = next(gen_train)
            i2, l2 = next(gen_train)
            loss_ae = m_ae.train_on_batch([i, i2], [i, xjb_label, l2])

    print(loss_sup)
    print(loss_adv)
    print(loss_ae)
    if epoch % 10 == 0:
        test()


print('\n--- after ---')
test()
TSNE(enc_z.predict(I_test), L_test, 'z distribution')
TSNE(enc_s.predict(I_test), L_test, 's distribution')

Renderings

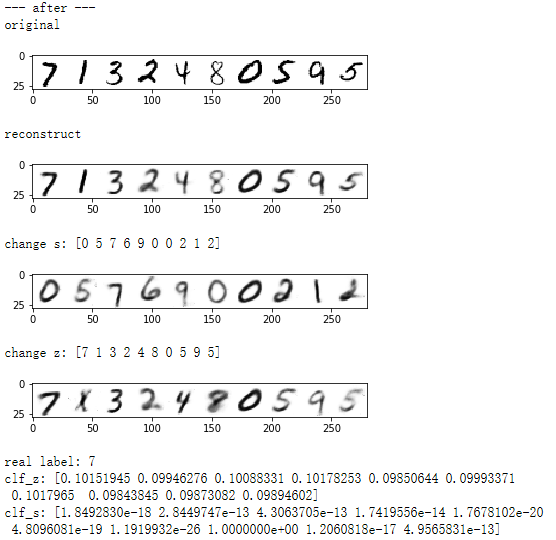

原图、重构图、换 s 不换 z、换 z 不换 s

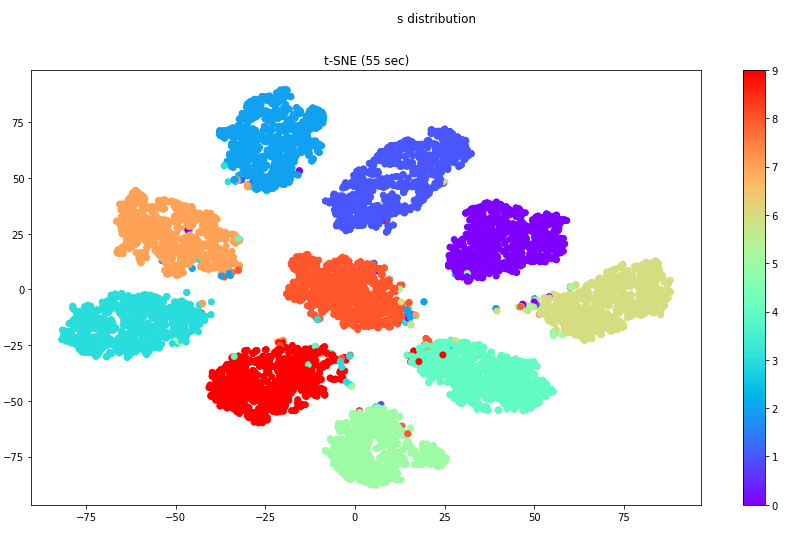

s 的分布

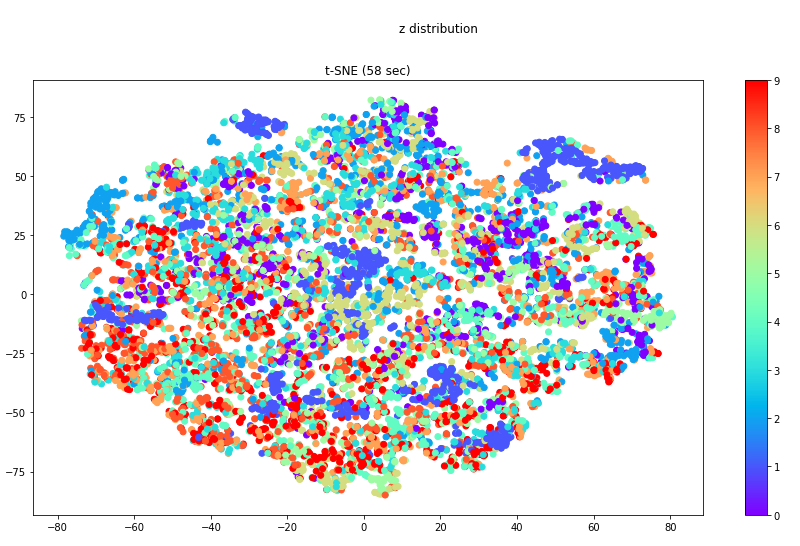

z 的分布

References

1. paper：A Two-Step Disentanglement Method
2. code：naamahadad/A-Two-Step-Disentanglement-Method
