编译环境

  • 系统环境:Ubuntu 16.04.7 xenial LTS Desktop
  • CPU:Intel® Core™ i7-6700 CPU @ 3.40GHz

安装Intel GPU OpenCL驱动

[Github - intel/compute-runtime]上下载支持Ubuntu16.04版本的驱动,我这里下载的版本是18.45.11804,可点击[此处]直接下载对应版本。
此版本支持的CPU架构详情如下:

PlatformOCLQuality
Broadwell2.1Production
Skylake2.1Production
Kaby Lake2.1Production
Coffee Lake2.1Production
Cannon Lake2.1Experimental
Apollo Lake1.2Production
Gemini Lake1.2Production

创建neo目录

mkdir neo # 在磁盘上找个位置,创建一个空的neo文件夹

下载deb安装包

cd neo
wget https://github.com/intel/compute-runtime/releases/download/18.45.11804/intel-gmmlib_18.4.0.348_amd64.deb
wget https://github.com/intel/compute-runtime/releases/download/18.45.11804/intel-igc-core_18.44.1060_amd64.deb
wget https://github.com/intel/compute-runtime/releases/download/18.45.11804/intel-igc-opencl_18.44.1060_amd64.deb
wget https://github.com/intel/compute-runtime/releases/download/18.45.11804/intel-opencl_18.45.11804_amd64.deb

以root权限安装deb包

sudo dpkg -i *.deb

安装clinfo

sudo apt-get install clinfo

查看Intel GPU OpenCL驱动信息

Number of platforms                               1
  Platform Name                                   Intel(R) OpenCL HD Graphics # 成功识别到Intel(R) OpenCL HD Graphics
  Platform Vendor                                 Intel(R) Corporation
  Platform Version                                OpenCL 2.1
  Platform Profile                                FULL_PROFILE
  Platform Extensions                             cl_khr_3d_image_writes cl_khr_byte_addressable_store cl_khr_fp16 cl_khr_depth_images cl_khr_global_int32_base_atomics cl_khr_global_int32_extended_atomics cl_khr_icd cl_khr_image2d_from_buffer cl_khr_local_int32_base_atomics cl_khr_local_int32_extended_atomics cl_intel_subgroups cl_intel_required_subgroup_size cl_intel_subgroups_short cl_khr_spir cl_intel_accelerator cl_intel_media_block_io cl_intel_driver_diagnostics cl_intel_device_side_avc_motion_estimation cl_khr_priority_hints cl_khr_throttle_hints cl_khr_create_command_queue cl_khr_fp64 cl_khr_subgroups cl_khr_il_program cl_khr_mipmap_image cl_khr_mipmap_image_writes cl_intel_planar_yuv cl_intel_packed_yuv cl_intel_motion_estimation cl_intel_advanced_motion_estimation
  Platform Host timer resolution                  1ns
  Platform Extensions function suffix             INTEL

  Platform Name                                   Intel(R) OpenCL HD Graphics
Number of devices                                 1
  Device Name                                     Intel(R) Gen9 HD Graphics NEO
  Device Vendor                                   Intel(R) Corporation
  Device Vendor ID                                0x8086
  Device Version                                  OpenCL 2.1 NEO
  Driver Version                                  18.45.11804 # 驱动版本与下载的版本一致
  Device OpenCL C Version                         OpenCL C 2.0
  Device Type                                     GPU
  Device Profile                                  FULL_PROFILE
  Max compute units                               24
  Max clock frequency                             1150MHz
  Device Partition                                (core)
    Max number of sub-devices                     0
    Supported partition types                     None
  Max work item dimensions                        3
  Max work item sizes                             256x256x256
  Max work group size                             256
  Preferred work group size multiple              32
  Max sub-groups per work group                   32
  Preferred / native vector sizes
    char                                                16 / 16
    short                                                8 / 8
    int                                                  4 / 4
    long                                                 1 / 1
    half                                                 8 / 8        (cl_khr_fp16)
    float                                                1 / 1
    double                                               1 / 1        (cl_khr_fp64)
  Half-precision Floating-point support           (cl_khr_fp16)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
    Correctly-rounded divide and sqrt operations  No
  Single-precision Floating-point support         (core)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
    Correctly-rounded divide and sqrt operations  Yes
  Double-precision Floating-point support         (cl_khr_fp64)
    Denormals                                     Yes
    Infinity and NANs                             Yes
    Round to nearest                              Yes
    Round to zero                                 Yes
    Round to infinity                             Yes
    IEEE754-2008 fused multiply-add               Yes
    Support is emulated in software               No
    Correctly-rounded divide and sqrt operations  No
  Address bits                                    64, Little-Endian
  Global memory size                              13346914304 (12.43GiB)
  Error Correction support                        No
  Max memory allocation                           4294959104 (4GiB)
  Unified memory for Host and Device              Yes
  Shared Virtual Memory (SVM) capabilities        (core)
    Coarse-grained buffer sharing                 Yes
    Fine-grained buffer sharing                   No
    Fine-grained system sharing                   No
    Atomics                                       No
  Minimum alignment for any data type             128 bytes
  Alignment of base address                       1024 bits (128 bytes)
  Preferred alignment for atomics
    SVM                                           64 bytes
    Global                                        64 bytes
    Local                                         64 bytes
  Max size for global variable                    65536 (64KiB)
  Preferred total size of global vars             4294959104 (4GiB)
  Global Memory cache type                        Read/Write
  Global Memory cache size                        524288
  Global Memory cache line                        64 bytes
  Image support                                   Yes
    Max number of samplers per kernel             16
    Max size for 1D images from buffer            268434944 pixels
    Max 1D or 2D image array size                 2048 images
    Base address alignment for 2D image buffers   4 bytes
    Pitch alignment for 2D image buffers          4 bytes
    Max 2D image size                             16384x16384 pixels
    Max 3D image size                             16384x16384x2048 pixels
    Max number of read image args                 128
    Max number of write image args                128
    Max number of read/write image args           128
  Max number of pipe args                         16
  Max active pipe reservations                    1
  Max pipe packet size                            1024
  Local memory type                               Local
  Local memory size                               65536 (64KiB)
  Max constant buffer size                        4294959104 (4GiB)
  Max number of constant args                     8
  Max size of kernel argument                     1024
  Queue properties (on host)
    Out-of-order execution                        Yes
    Profiling                                     Yes
  Queue properties (on device)
    Out-of-order execution                        Yes
    Profiling                                     Yes
    Preferred size                                131072 (128KiB)
    Max size                                      67108864 (64MiB)
  Max queues on device                            1
  Max events on device                            1024
  Prefer user sync for interop                    Yes
  Profiling timer resolution                      83ns
  Execution capabilities
    Run OpenCL kernels                            Yes
    Run native kernels                            No
    Sub-group independent forward progress        Yes
    IL version                                    SPIR-V_1.0
    SPIR versions                                 1.2
  printf() buffer size                            4194304 (4MiB)
  Built-in kernels                                block_motion_estimate_intel;block_advanced_motion_estimate_check_intel;block_advanced_motion_estimate_bidirectional_check_intel;
  Motion Estimation accelerator version	(Intel)   2
  Device Available                                Yes
  Compiler Available                              Yes
  Linker Available                                Yes
  Device Extensions                               cl_khr_3d_image_writes cl_khr_byte_addressable_store cl_khr_fp16 cl_khr_depth_images cl_khr_global_int32_base_atomics cl_khr_global_int32_extended_atomics cl_khr_icd cl_khr_image2d_from_buffer cl_khr_local_int32_base_atomics cl_khr_local_int32_extended_atomics cl_intel_subgroups cl_intel_required_subgroup_size cl_intel_subgroups_short cl_khr_spir cl_intel_accelerator cl_intel_media_block_io cl_intel_driver_diagnostics cl_intel_device_side_avc_motion_estimation cl_khr_priority_hints cl_khr_throttle_hints cl_khr_create_command_queue cl_khr_fp64 cl_khr_subgroups cl_khr_il_program cl_khr_mipmap_image cl_khr_mipmap_image_writes cl_intel_planar_yuv cl_intel_packed_yuv cl_intel_motion_estimation cl_intel_advanced_motion_estimation

NULL platform behavior
  clGetPlatformInfo(NULL, CL_PLATFORM_NAME, ...)  Intel(R) OpenCL HD Graphics
  clGetDeviceIDs(NULL, CL_DEVICE_TYPE_ALL, ...)   Success [INTEL]
  clCreateContext(NULL, ...) [default]            Success [INTEL]
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_CPU)  No devices found in platform
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_GPU)  Success (1)
    Platform Name                                 Intel(R) OpenCL HD Graphics
    Device Name                                   Intel(R) Gen9 HD Graphics NEO
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_ACCELERATOR)  No devices found in platform
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_CUSTOM)  No devices found in platform
  clCreateContextFromType(NULL, CL_DEVICE_TYPE_ALL)  Success (1)
    Platform Name                                 Intel(R) OpenCL HD Graphics
    Device Name                                   Intel(R) Gen9 HD Graphics NEO

ICD loader properties
  ICD loader Name                                 OpenCL ICD Loader
  ICD loader Vendor                               OCL Icd free software
  ICD loader Version                              2.2.8
  ICD loader Profile                              OpenCL 1.2
	NOTE:	your OpenCL library declares to support OpenCL 1.2,
		but it seems to support up to OpenCL 2.1 too.

编译OpenCV

配置编译环境

sudo apt install  build-essential
sudo apt install cmake git libgtk2.0-dev pkg-config libavcodec-dev libavformat-dev libswscale-dev
sudo apt install python-dev python-numpy libtbb2 libtbb-dev libjasper1 libjpeg-dev libpng-dev libtiff-dev libjasper-dev libdc1394-22-dev

下载OpenCV 3.4.14源码

wget https://github.com/opencv/opencv/archive/refs/tags/3.4.14.tar.gz -O OpenCV-3.4.14.tar.gz # 下载源码包并重命名
tar -xzvf OpenCV-3.4.14.tar.gz # 解压源码压缩包

配置编译选项

cd opencv-3.4.14 # 进入源码目录
mkdir build && cd build # 创建build目录并进入
cmake -D CMAKE_BUILD_TYPE=RELEASE \
-D CMAKE_INSTALL_PREFIX=/data/opencv-3.4.14-opencl \ # 配置安装路径
-D BUILD_SHARED_LIBS=OFF \
-D BUILD_SHARED_LIBS=NO \
-D BUILD_PNG=ON \
-D BUILD_JASPER=ON \
-D BUILD_JPEG=ON \
-D BUILD_TIFF=ON \
-D BUILD_ZLIB=ON \
-D WITH_JPEG=ON \
-D WITH_PNG=ON \
-D WITH_JASPER=ON \
-D WITH_TIFF=ON \
-D WITH_TBB=ON \ # 启用TBB并行化
-D WITH_ZLIB=ON \
-D WITH_OPENCL=ON .. # 记得这里有两个点

开始编译OpenCV

make -j8 # 并发线程设置为8

安装

make install # 这里安装的目录是上面配置的安装路径/data/opencv-3.4.14-opencl,根据需要自己修改安装路径

测试Demo

testopencv.cpp源代码

#include <iostream>
#include "opencv2/opencv.hpp"
#include "opencv2/core/ocl.hpp"

int main()
{
    cv::ocl::setUseOpenCL(true);

    if (!cv::ocl::haveOpenCL())
    {
        std::cout << "OpenCL is not available..." << std::endl;
        return 0;
    }

    cv::ocl::Context context;
    if (!context.create(cv::ocl::Device::TYPE_GPU))
    {
        std::cout << "Failed creating the context..." << std::endl;
        return 0;
    }

    std::cout << context.ndevices() << " GPU devices are detected." << std::endl; //This bit provides an overview of the OpenCL devices you have in your computer
    for (int i = 0; i < context.ndevices(); i++)
    {
        cv::ocl::Device device = context.device(i);
        std::cout << "name:              " << device.name() << std::endl;
        std::cout << "available:         " << device.available() << std::endl;
        std::cout << "imageSupport:      " << device.imageSupport() << std::endl;
        std::cout << "OpenCL_C_Version:  " << device.OpenCL_C_Version() << std::endl;
        std::cout << std::endl;
    }
    return 1;
}

编译Demo

export PKG_CONFIG_PATH=/data/opencv-3.4.14-opencl/lib/pkgconfig/:$PKG_CONFIG_PATH
g++ testopencv.cpp `pkg-config --cflags --libs opencv` -pthread

运行Demo

./a.out

结果如下:

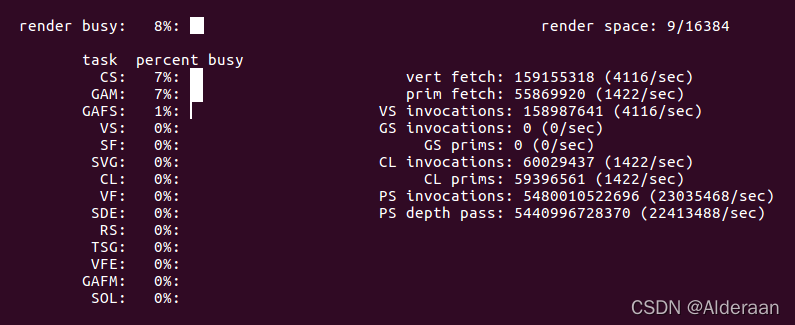

testopencv运行截图
以上运行结果说明,已成功通过OpenCV中的OpenCL模块检测到Intel的集成显卡(HD Graphics)!

特别说明:在OpenCV3中,已经嵌入了OpenCL运行的方式,通过使用UMat对象,OpenCV会自动在支持OpenCL的设备上使用GPU运算,在不支持OpenCL的设备仍然使用CPU运算。

可通过命令查看Intel GPU使用率:

sudo intel_gpu_top

Intel GPU使用率截图

评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
