本文深入分析Flink的RedisSink和FlinkKafkaProducer的实现，包括RedisSink的open()方法，以及Flink到Kafka的两阶段提交协议。重点探讨了RedisCommandsContainerBuilder、FlinkJedisPoolConfig和FlinkKafkaProducer的构造与功能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

flink sink 2 mysql demo

我们先看一个自定义sink 的demo，将 nc 的数据写入到mysql 中。


import myflink.learn.model.Student;
import myflink.learn.sink.SinkToMySQL;
import org.apache.flink.streaming.api.TimeCharacteristic;
import org.apache.flink.streaming.api.datastream.DataStream;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;

import java.util.concurrent.atomic.AtomicInteger;

/**
 * @Author wtx
 * @Date 2019/1/23
 */
public class Flink2MysqlDemo {
    public static void main(String[] args) throws Exception {
        AtomicInteger atomicInteger = new AtomicInteger(0);
        final StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setStreamTimeCharacteristic(TimeCharacteristic.EventTime);
        env.setParallelism(1);
        // 设置数据源
        DataStream<String> text = env.socketTextStream("localhost", 9000, "\n");

//        DataStream<Student> studentDataStream = text.map(new MapFunction<String, Student>() {
//            @Override
//            public Student map(String s) throws Exception {
//                Student student = new Student();
//                student.setName(s);
//                student.setId(atomicInteger.addAndGet(1));
//                return student;
//            }
//        });

        DataStream<Student> studentDataStream = text.map((str) -> {
            Student student = new Student();
            student.setName(str);
            student.setId(atomicInteger.addAndGet(1));
            return student;
        });

        studentDataStream.addSink(new SinkToMySQL());
        env.execute();
    }
}

@Slf4j
public class SinkToMySQL extends RichSinkFunction<Student> {
    PreparedStatement ps;
    private Connection connection;

    @Override
    public void open(Configuration parameters) throws Exception {
        super.open(parameters);
        connection = getConnection();
        String sql = "insert into student(id, name) values(?, ?);";
        ps = this.connection.prepareStatement(sql);
    }

    @Override
    public void close() throws Exception {
        super.close();
        //关闭连接和释放资源
        if (connection != null) {
            connection.close();
        }
        if (ps != null) {
            ps.close();
        }
    }

    @Override
    public void invoke(Student value, Context context) throws Exception {
        //组装数据，执行插入操作
        ps.setInt(1, value.getId());
        ps.setString(2, value.getName());
        ps.executeUpdate();
    }

    private static Connection getConnection() {
        Connection con = null;
        try {
            Class.forName("com.mysql.jdbc.Driver");
            con = DriverManager.getConnection("jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=UTF-8", "root", "");
        } catch (Exception e) {
            log.error("exception e:", e);
        }
        return con;
    }
}

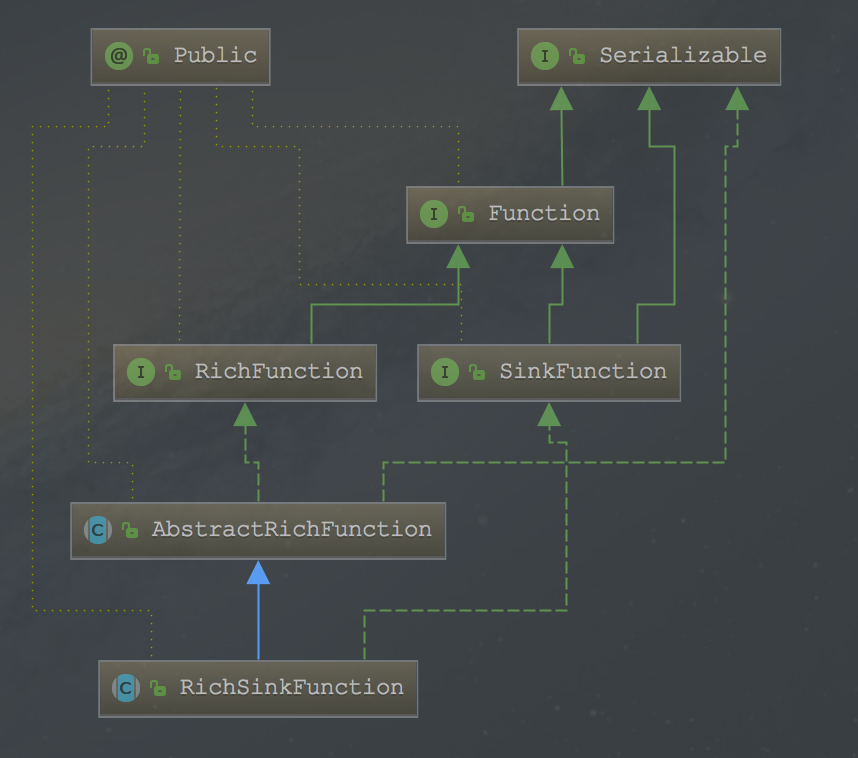

RichSinkFunction 的类结构

可以看到自定义的sink 继承自RichSinkFunction. 来看 RichSinkFunction 的类结构



/**
 * The base interface for all user-defined functions.
 *
 * <p>This interface is empty in order to allow extending interfaces to
 * be SAM (single abstract method) interfaces that can be implemented via Java 8 lambdas.</p>
 */
@Public
public interface Function extends java.io.Serializable {
}

public interface SinkFunction<IN> extends Function, Serializable{
  default void invoke(IN value, Context context) throws Exception {
        invoke(value);
    }
  @Public
    interface Context<T> {
        long currentProcessingTime();
        long currentWatermark();
        Long timestamp();
    }
}

在上面的 SinkFunction 接口中实际只有一个方法,invoke()，将类型为IN 的value 写入到sink 中。Context: 写入value 时的上下文

@Public
public abstract class AbstractRichFunction implements RichFunction, Serializable {
  private transient RuntimeContext runtimeContext;
  @Override
    public void open(Configuration parameters) throws Exception {}

    @Override
    public void close() throws Exception {}
}

而在AbstractRichFunction 只有默认的生命周期方法 open() 和 close() 的空实现。留给我们自己的比如上面的 SinkToMySQL那样实现对于mysql 的 open() close() 另外可以类似的实现对于redis 的sink 类。查看flink-connector-redis 发现已经有了RedisSink 类。
我们先来看看简单的使用:只需要将 new SinkToMySQL() -> new RedisSink

studentDataStream.addSink(new SinkToMySQL());

               ==>

FlinkJedisPoolConfig conf = new FlinkJedisPoolConfig.Builder().setHost("127.0.0.1").build();
studentDataStream.addSink(new RedisSink<Tuple2<String, Integer&g
