Python实现Labelme的Json标注文件与YOLO格式的TXT标注文件相互转换

本文围绕Python、YOLO和目标检测展开。介绍了Python、PyTorch、YOLOv5、YOLO格式标签及Labelme图像标注工具。强调实现Labelme的Json标注文件与YOLO格式的TXT标注文件相互转换的必要性,并给出了转换的代码实现和输出结果示例。
部署运行你感兴趣的模型镜像

在这里插入图片描述

前言

前提条件

相关介绍

  • Python是一种跨平台的计算机程序设计语言。是一个高层次的结合了解释性、编译性、互动性和面向对象的脚本语言。最初被设计用于编写自动化脚本(shell),随着版本的不断更新和语言新功能的添加,越多被用于独立的、大型项目的开发。
  • PyTorch 是一个深度学习框架,封装好了很多网络和深度学习相关的工具方便我们调用,而不用我们一个个去单独写了。它分为 CPU 和 GPU 版本,其他框架还有 TensorFlow、Caffe 等。PyTorch 是由 Facebook 人工智能研究院(FAIR)基于 Torch 推出的,它是一个基于 Python 的可续计算包,提供两个高级功能:1、具有强大的 GPU 加速的张量计算(如 NumPy);2、构建深度神经网络时的自动微分机制。
  • YOLOv5是一种单阶段目标检测算法,该算法在YOLOv4的基础上添加了一些新的改进思路,使其速度与精度都得到了极大的性能提升。它是一个在COCO数据集上预训练的物体检测架构和模型系列,代表了Ultralytics对未来视觉AI方法的开源研究,其中包含了经过数千小时的研究和开发而形成的经验教训和最佳实践。
  • YOLO格式标签是目标检测任务中常用的标注格式之一。YOLO格式标注文件由目标框的中心点坐标、宽度和高度组成。具体来说,YOLO格式标注文件的每一行都包含了一个目标的标注信息,其中第一个数字表示目标的类别,后面四个数字分别表示目标框的中心点坐标(x_center, y_center)和宽度w以及高度h,这些值都是相对于图像宽度和高度的比例
  • 例如,下面是一个YOLO格式标注文件的示例:
    在这里插入图片描述
  • 其中,第一行表示一个类别为45的目标,其中心点坐标为图像宽度的0.749891和0.255612,宽度和高度分别为图像宽度和高度的0.477249和0.511224;第二行表示一个类别为50的目标,其中心点坐标为图像宽度的0.64458和0.722577,宽度和高度分别为图像宽度和高度的0.492199和0.513077。
  • Labelme是一款图像标注工具,由麻省理工(MIT)的计算机科学和人工智能实验室(CSAIL)研发。它是用Python和PyQT编写的,开源且免费。Labelme支持Windows、Linux和Mac等操作系统。
  • 这款工具提供了直观的图形界面,允许用户在图像上标注多种类型的目标,例如矩形框、多边形、线条等,甚至包括更复杂的形状。标注结果以JSON格式保存,便于后续处理和分析。这些标注信息可以用于目标检测、图像分割、图像分类等任务。
  • 总的来说,Labelme是一款强大且易用的图像标注工具,可以满足不同的图像处理需求。

实验环境

  • Python 3.x (面向对象的高级语言)

Labelme的Json标注文件与YOLO格式的TXT标注文件相互转换

  • 背景:Labelme仍市面上是一款主流的免费图像标注工具,比如可以用其来进行目标检测、图像分割等的标注,目前,还是有很多数据集标注文件是Labelme格式,因此,实现Labelme的Json标注文件与YOLO格式的TXT标注文件相互转换,是非常有必要的。

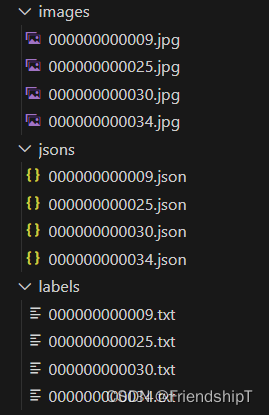

  • 目录结构
    在这里插入图片描述

convert_labelme_json_to_txt

在这里插入图片描述

jsons/000000000009.json

{
    "version": "4.5.7",
    "flags": {},
    "shapes": [
        {
            "label": "45",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    1.0799999999999699,
                    187.69008
                ],
                [
                    612.66976,
                    473.53008
                ]
            ]
        },
        {
            "label": "45",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    311.73024,
                    4.310160000000001
                ],
                [
                    631.01024,
                    232.99032
                ]
            ]
        },
        {
            "label": "50",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    249.60032000000007,
                    229.27032
                ],
                [
                    565.84032,
                    474.35016
                ]
            ]
        },
        {
            "label": "45",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    0.0003200000000092018,
                    13.510080000000002
                ],
                [
                    434.48032,
                    388.63007999999996
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    376.2,
                    40.35996
                ],
                [
                    451.75007999999997,
                    86.88996
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    465.7797119999999,
                    38.969952
                ],
                [
                    523.849728,
                    85.63996800000001
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    385.70016000000004,
                    73.65983999999999
                ],
                [
                    469.72,
                    144.16992
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    364.04959999999994,
                    2.4900960000000016
                ],
                [
                    458.80992,
                    73.559856
                ]
            ]
        }
    ],
    "imagePath": "000000000009.jpg",
    "imageData": null,
    "imageHeight": 480,
    "imageWidth": 640
}

代码实现

import json
import os
import glob
from tqdm import tqdm


def convert_poly_to_rect(coordinateList):
    X = [int(coordinateList[2 * i]) for i in range(int(len(coordinateList) / 2))]
    Y = [int(coordinateList[2 * i + 1]) for i in range(int(len(coordinateList) / 2))]

    Xmax = max(X)
    Xmin = min(X)
    Ymax = max(Y)
    Ymin = min(Y)
    flag = False
    if (Xmax - Xmin) == 0 or (Ymax - Ymin) == 0:
        flag = True
    return [Xmin, Ymin, Xmax - Xmin, Ymax - Ymin], flag

def convert_labelme_json_to_txt(json_path,img_path,out_txt_path):
    json_list = glob.glob(json_path + '/*.json')
    num = len(json_list)
    for json_path in tqdm(json_list):
        with open(json_path, "r")as f_json:
            json_data = json.loads(f_json.read())
        infos = json_data['shapes']
        if len(infos) ==0:
            continue
        img_w = json_data['imageWidth']
        img_h = json_data['imageHeight']
        image_name = json_data['imagePath']
        image_path = os.path.join(img_path, image_name)
        if not os.path.exists(img_path):
            print(img_path, 'is None!')
            continue
        txt_name = os.path.basename(json_path).split('.')[0] + '.txt'
        txt_path = os.path.join(out_txt_path, txt_name)
        f = open(txt_path, 'w')
        for label in infos:
            points = label['points']
            if len(points) < 2:
                continue

            if len(points) == 2:
                x1 = points[0][0]
                y1 = points[0][1]
                x2 = points[1][0]
                y2 = points[1][1]
                points = [[x1, y1], [x2, y1], [x2, y2], [x1, y2]]
            else:
                if len(points) < 4:
                    continue

            segmentation = []
            for p in points:
                segmentation.append(int(p[0]))
                segmentation.append(int(p[1]))

            bbox, flag = convert_poly_to_rect(list(segmentation))
            x1, y1, w, h = bbox

            if flag:
                continue

            x_center = x1 + w/2
            y_center = y1 + h/2
            norm_x = x_center / img_w
            norm_y = y_center / img_h
            norm_w = w / img_w
            norm_h = h / img_h
            obj_cls = label['label']
            line = [obj_cls, norm_x, norm_y, norm_w, norm_h]
            line = [str(ll) for ll in line]
            line = ' '.join(line) + '\n'
            f.write(line)
        f.close()

if __name__ == "__main__":
    img_path = 'images'
    json_path = 'jsons'
    out_txt_path = 'labels'

    if not os.path.exists(out_txt_path):
        os.makedirs(out_txt_path)

    convert_labelme_json_to_txt(json_path,img_path,out_txt_path)

输出结果

在这里插入图片描述

labels/000000000009.txt

45 0.47890625 0.6875 0.9546875 0.5958333333333333
45 0.7359375 0.24583333333333332 0.5 0.475
50 0.6359375 0.7322916666666667 0.49375 0.5104166666666666
45 0.3390625 0.41770833333333335 0.678125 0.78125
49 0.64609375 0.13125 0.1171875 0.09583333333333334
49 0.771875 0.128125 0.090625 0.09791666666666667
49 0.6671875 0.22604166666666667 0.13125 0.14791666666666667
49 0.6421875 0.078125 0.146875 0.14791666666666667

convert_txt_to_labelme_json

在这里插入图片描述

labels/000000000009.txt

45 0.47890625 0.6875 0.9546875 0.595833
45 0.7359375 0.24583333333333332 0.5 0.475
50 0.6359375 0.7322916666666667 0.49375 0.5104166
45 0.3390625 0.41770833333333335 0.678125 0.78125
49 0.64609375 0.13125 0.1171875 0.095833
49 0.771875 0.128125 0.090625 0.0979166
49 0.6671875 0.22604166666666667 0.13125 0.1479166
49 0.6421875 0.078125 0.146875 0.1479166

代码实现

import os
import cv2
import json
import glob
import numpy as np

def convert_txt_to_labelme_json(txt_path, image_path, output_dir, image_fmt='.jpg'):
    # txt 转labelme json
    # 将yolo的txt转labelme json
    txts = glob.glob(os.path.join(txt_path, "*.txt"))
    for txt in txts:
        labelme_json = {
            'version': '4.5.7',
            'flags': {},
            'shapes': [],
            'imagePath': None,
            'imageData': None,
            'imageHeight': None,
            'imageWidth': None,
        }
        txt_name = os.path.basename(txt)
        image_name = txt_name.split(".")[0] + image_fmt
        labelme_json['imagePath'] = image_name
        image_name = os.path.join(image_path, image_name)
        if not os.path.exists(image_name):
            raise Exception('txt 文件={},找不到对应的图像={}'.format(txt, image_name))
        image = cv2.imdecode(np.fromfile(image_name, dtype=np.uint8), cv2.IMREAD_COLOR)
        h, w = image.shape[:2]
        labelme_json['imageHeight'] = h
        labelme_json['imageWidth'] = w
        with open(txt, 'r') as t:
            lines = t.readlines()
            for line in lines:
                content = line.split(' ')
                label = content[0]
                object_width = float(content[3])
                object_height = float(content[4])
                top_left_x = (float(content[1]) - object_width / 2) * w
                top_left_y = (float(content[2]) - object_height / 2) * h
                bottom_right_x = (float(content[1]) + object_width / 2) * w
                bottom_right_y = (float(content[2]) + object_height / 2) * h
                try:
                    shape = {
                        'label': str(label),
                        'score':float(content[5]),
                        'group_id': None,
                        'shape_type': 'rectangle',
                        'flags': {},
                        'points': [
                            [float(top_left_x), float(top_left_y)],
                            [float(bottom_right_x), float(bottom_right_y)]
                        ]
                    }
                except Exception as e:
                    # print(e)
                    shape = {
                        'label': str(label),
                        'score':float(0.99),
                        'group_id': None,
                        'shape_type': 'rectangle',
                        'flags': {},
                        'points': [
                            [float(top_left_x), float(top_left_y)],
                            [float(bottom_right_x), float(bottom_right_y)]
                        ]
                    }
                labelme_json['shapes'].append(shape)
            json_name = txt_name.split('.')[0] + '.json'
            json_name_path = os.path.join(output_dir, json_name)
            fd = open(json_name_path, 'w')
            json.dump(labelme_json, fd, indent=4)
            fd.close()
            print("save json={}".format(json_name_path))


if __name__=="__main__":
    in_imgs_dir = 'images'
    in_label_txt_dir = 'labels'
    out_labelme_json_dir = 'jsons'

    if not os.path.exists(out_labelme_json_dir):
        os.mkdir(out_labelme_json_dir)
    convert_txt_to_labelme_json(in_label_txt_dir,in_imgs_dir,out_labelme_json_dir,image_fmt='.jpg')

输出结果

在这里插入图片描述

jsons/000000000009.json

{
    "version": "4.5.7",
    "flags": {},
    "shapes": [
        {
            "label": "45",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    1.0799999999999699,
                    187.69008
                ],
                [
                    612.66976,
                    473.53008
                ]
            ]
        },
        {
            "label": "45",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    311.73024,
                    4.310160000000001
                ],
                [
                    631.01024,
                    232.99032
                ]
            ]
        },
        {
            "label": "50",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    249.60032000000007,
                    229.27032
                ],
                [
                    565.84032,
                    474.35016
                ]
            ]
        },
        {
            "label": "45",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    0.0003200000000092018,
                    13.510080000000002
                ],
                [
                    434.48032,
                    388.63007999999996
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    376.2,
                    40.35996
                ],
                [
                    451.75007999999997,
                    86.88996
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    465.7797119999999,
                    38.969952
                ],
                [
                    523.849728,
                    85.63996800000001
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    385.70016000000004,
                    73.65983999999999
                ],
                [
                    469.72,
                    144.16992
                ]
            ]
        },
        {
            "label": "49",
            "score": 0.99,
            "group_id": null,
            "shape_type": "rectangle",
            "flags": {},
            "points": [
                [
                    364.04959999999994,
                    2.4900960000000016
                ],
                [
                    458.80992,
                    73.559856
                ]
            ]
        }
    ],
    "imagePath": "000000000009.jpg",
    "imageData": null,
    "imageHeight": 480,
    "imageWidth": 640
}

参考

[1] https://blog.youkuaiyun.com/lucky404/article/details/132156805
[2] https://blog.youkuaiyun.com/h609232722/article/details/130710032
