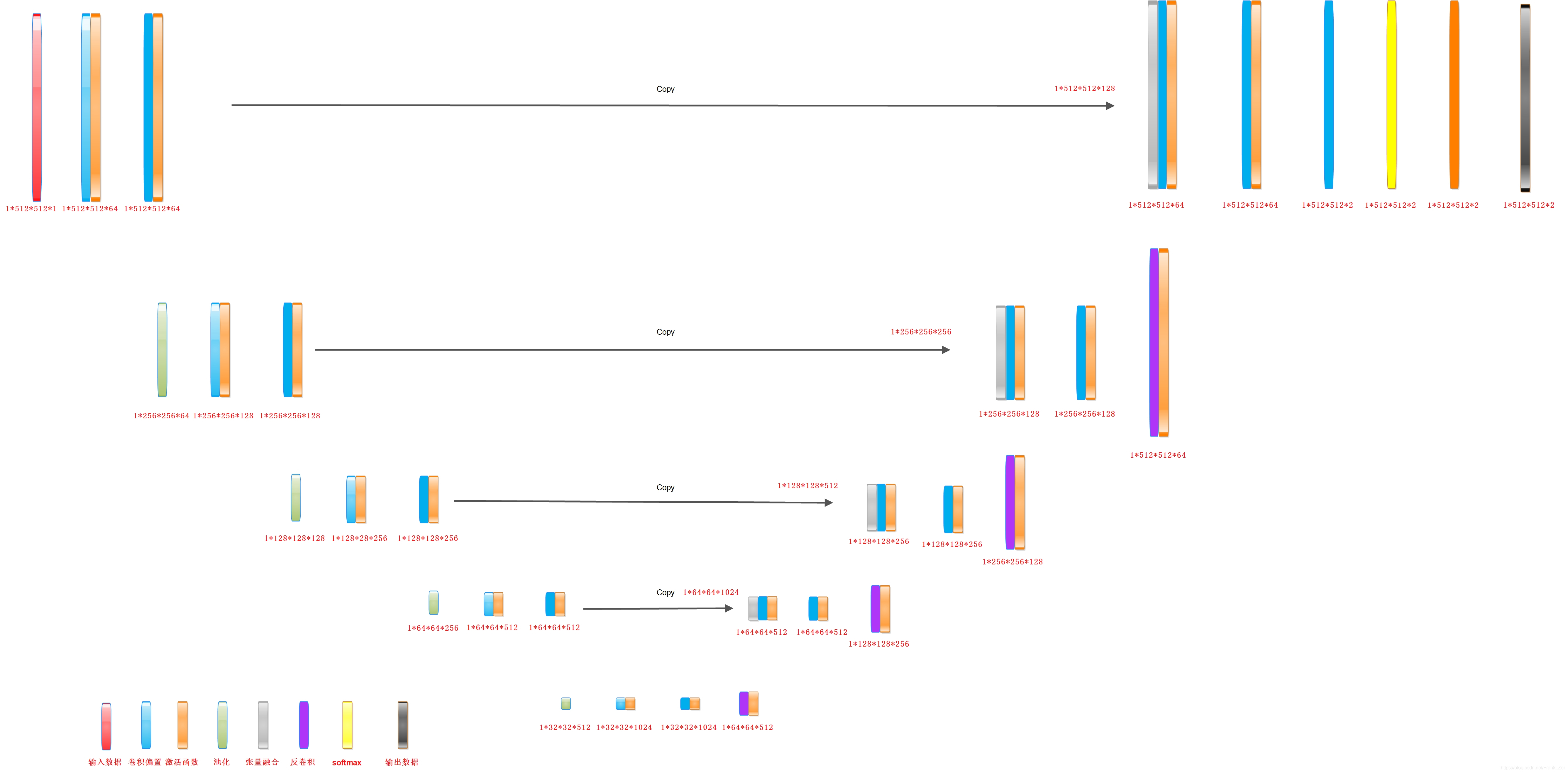

U-Net 的网络设计如上图所示，
或者参考文章Automatic Metallic Surface Defect Detection and Recognition with Convolutional Neural Networks来设计你的网络。
现模型输入 input_image 1 x 512 x 512 x 1 input_label 1 x 512 x 512
现模型输出 prediction 1 x 512 x 512 x 2

In general, a captured image of the metallic surface has more background pixels than defective pixels.
通常，金属表面的捕获图像具有比缺陷像素更多的背景像素。
样本均衡 postive:negative ≈ 1 : 3，缺陷检测往往面临样本不均衡问题 postive:negative != 1 : 3

针对样本不均衡问题
solution-1 focal loss

    def focal_loss(labels, logits, gamma=2, alpha=0.25):

        labels = tf.one_hot(labels, depth=2, on_value=None, off_value=None, axis=None, dtype=None, name=None)

        # 防止为0
        epsilon = 1.e-3
        logits = tf.clip_by_value(logits, epsilon, 1. - epsilon)

        # 交叉熵
        cross_entropy = -labels * tf.log(logits)

        # focal loss 权重交叉熵模型
        focal_loss = tf.pow(1 - logits, gamma) * cross_entropy

        # loss
        loss = tf.reduce_mean(tf.reduce_sum(focal_loss, axis=-1))

        return loss

solution-2 re-weight the imbalanced classes
参考文章 Automatic Metallic Surface Defect Detection and Recognition with Convolutional Neural Networks的思路

    def imbalance_cross_entropy(labels, logits):

        labels_one_hot = tf.one_hot(labels, depth=2, on_value=None, off_value=None, axis=None, dtype=None, name=None)

        # 防止为0
        epsilon = 1.e-3
        logits = tf.clip_by_value(logits, epsilon, 1. - epsilon)

        # 交叉熵
        cross_entropy = -labels_one_hot * tf.log(logits)

        cross_entropy_sum = tf.reduce_sum(cross_entropy, axis=-1)

        # imbalance weight
        labels_reshape = tf.reshape(labels, [-1])
        weight_BG = tf.constant(0.1, dtype=tf.float32, shape=labels_reshape.shape)
        weight_FG = tf.constant(0.9, dtype=tf.float32, shape=labels_reshape.shape)

        labels_weight = tf.where(tf.equal(labels_reshape, 1), weight_BG, weight_FG)
        labels_imbalance = tf.reshape(labels_weight, (1, 512, 512))

        # imbalance_cross_entropy
        loss = cross_entropy_sum*labels_imbalance

        imbalance_cross_entropy_loss = tf.reduce_mean(loss)

        return imbalance_cross_entropy_loss

这里设置的 re-weight 参数是0.1，0.9

weight_BG 对背景像素的权重设置
weight_FG 对前景像素即目标像素的权重设置

注意设置 weight_BG + weight_FG = 1
经过测试，做如下总结：（这是经验总结，针对你的问题需多做测试）
若权重设置更偏向于FG 则 decrease FN increase Recall 宁可多prediction，不错过label
若权重设置更偏向于BG 则 decrease FP increase Precision 宁可少prediction，不出错prediction

solution-3 lovasz loss

solution-4

    def stop_and_imbalance(labels, logits):

        # H W 数值
        H = labels.shape[1]
        W = labels.shape[2]

        # one_hot处理标签, 格式对应 B×H×W×C
        labels_one_hot = tf.one_hot(labels, depth=2, on_value=None, off_value=None, axis=None, dtype=None, name='one_hot')

        # 防止为0
        epsilon = 1.e-3
        logits = tf.clip_by_value(logits, epsilon, 1. - epsilon)

        # 交叉熵
        cross_entropy = -tf.multiply(labels_one_hot, tf.log(logits, name='log_logits'), name='cross_entropy')
        # 交叉熵在最后的一个维度计算sum, 格式对应 B×H×W
        cross_entropy_sum = tf.reduce_sum(cross_entropy, axis=-1, name='cross_entropy_sum')

        # 交叉熵格式对应 [262144,]
        cross_entropy_sum_flatten = tf.reshape(cross_entropy_sum, [-1], name='cross_entropy_sum_flatten')

        # 标签格式对应 [262144,]
        labels_flatten = tf.reshape(labels, [-1], name='reshape_label')
        # 标签样本个数 H*W
        labels_num = tf.multiply(H, W, name='label_num')

        # 统计BG样本个数, 背景 负样本 Demo 中 BG数值为1   直接reduce_sum求和就是pixel为1的和,就是BG的个数
        imbalance_BG_NUM = tf.reduce_sum(labels_flatten, name='imbalance_BG_NUM')
        # 统计FG样本个数, 前景 正样本 Demo 中 FG数值为0   直接labels_num - imbalance_BG_NUM = imbalance_FG_NUM
        imbalance_FG_NUM = tf.subtract(labels_num, imbalance_BG_NUM, name='imbalance_FG_NUM')

        # gather 定位 FG
        label_0 = tf.equal(labels_flatten, 0, name='label_0')
        label_0_cross_entropy_sum_flatten = tf.boolean_mask(cross_entropy_sum_flatten, label_0, name='pos_label_FG')
        # 全部损失回传, 梯度回传
        FG_Loss = tf.reduce_sum(label_0_cross_entropy_sum_flatten)
        FG_Loss = tf.cast(FG_Loss,dtype=tf.float32)
        # gather 定位 BG
        label_1 = tf.not_equal(labels_flatten, 0, name='label_1')
        label_1_cross_entropy_sum_flatten = tf.boolean_mask(cross_entropy_sum_flatten, label_1, name='pos_label_BG')
        # 对label_1_cross_entropy_sum_flatten进行排序
        value, index = tf.nn.top_k(label_1_cross_entropy_sum_flatten, tf.shape(label_1_cross_entropy_sum_flatten)[0], name='sort_BG')
        # value前imbalance_FG_NUM*N部分计算损失
        value_BG_Loss_Top_K = tf.slice(value,[0],[tf.cast(imbalance_FG_NUM*3,dtype=tf.int32)])
        BG_Loss = tf.reduce_sum(value_BG_Loss_Top_K)
        BG_Loss = tf.cast(BG_Loss, dtype=tf.float32)

        # value后imbalance_FG_NUM*N部分stop梯度传播
        value_BG_Loss_Stop = tf.slice(value,[tf.cast(imbalance_FG_NUM*3,dtype=tf.int32)],[tf.cast(tf.shape(value)[0]-imbalance_FG_NUM*3,dtype=tf.int32)])
        index_BG_Loss_Stop = tf.slice(index,[tf.cast(imbalance_FG_NUM*3,dtype=tf.int32)],[tf.cast(tf.shape(value)[0]-imbalance_FG_NUM*3,dtype=tf.int32)])
        tf.stop_gradient(value_BG_Loss_Stop, name='stop_gradient_value_BG_Loss_Stop')
        tf.stop_gradient(index_BG_Loss_Stop, name='stop_gradient_index_BG_Loss_Stop')

        # sum_mean
        stop_and_imbalance_cross_entropy_loss = FG_Loss/(tf.cast(labels_num,dtype=tf.float32))+BG_Loss/(tf.cast(labels_num,dtype=tf.float32))

        return stop_and_imbalance_cross_entropy_loss
