meanshift跟踪算法和camshift跟踪算法比较，源码分析

一、meanshift原理

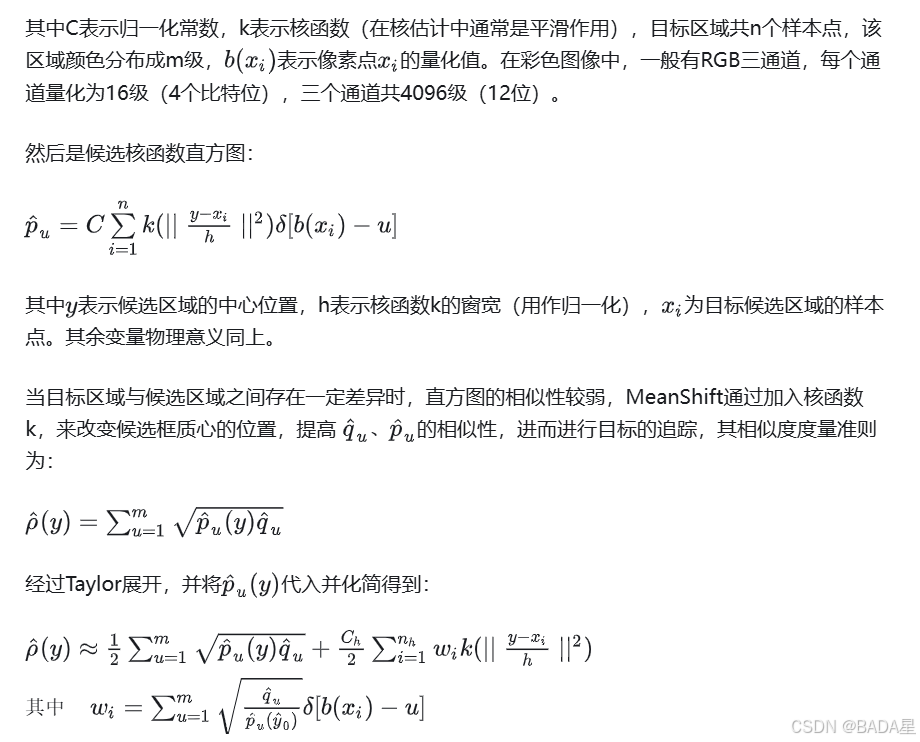

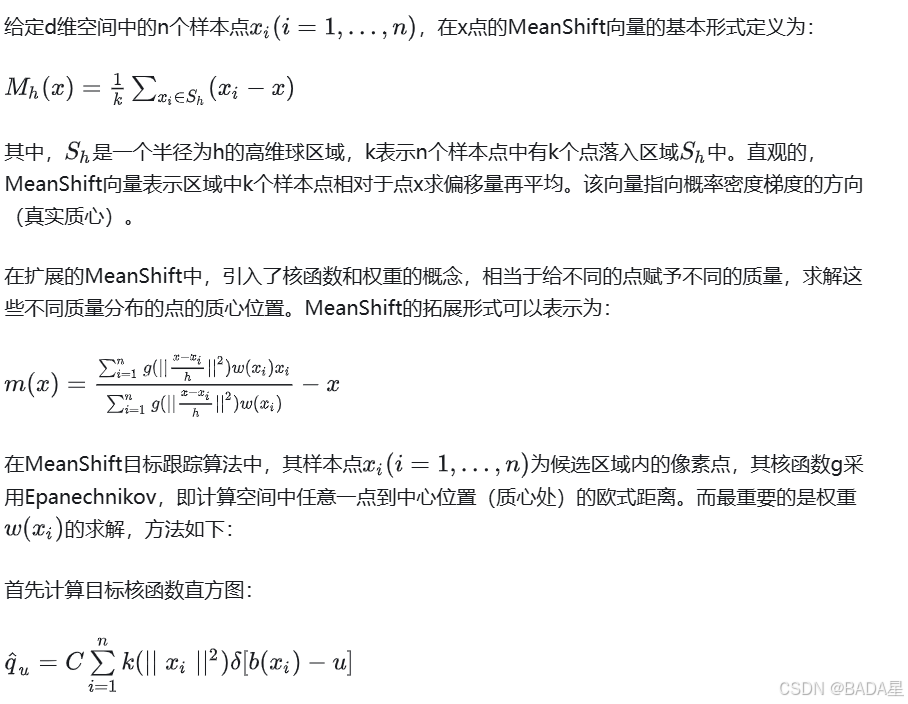

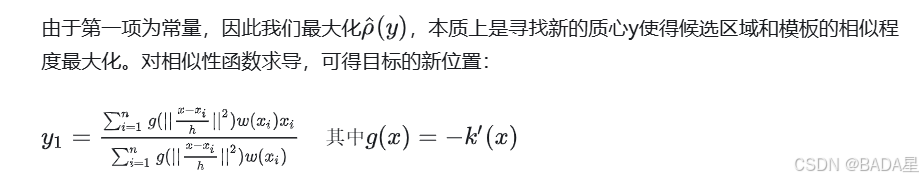

meanshift是个迭代的算法，每次迭代会往概率密度大的方向移动，所以MeanShift算法得用在概率密度图上，而反向投影图就是一个典型的颜色概率密度图。把meanshift用来进行目标跟踪，其过程如下：

（1）初始化：我们检测到图像中目标区域后，统计得到该区域HSV颜色空间H分量的直方图。得到的直方图横坐标为0-255的灰度值（H分量的值），纵坐标为目标图像区域中某个H分量的值的像素个数。

（2）反向投影：利用（1）的直方图计算整幅图像的概率分布。实际计算中不必计算整幅图像，只需计算比搜索窗口大一些的范围，这样可以缩小计算量。

（3）利用meanshift算法迭代找到当前颜色概率分布图的重心。也就是的当前帧目标的位置了。

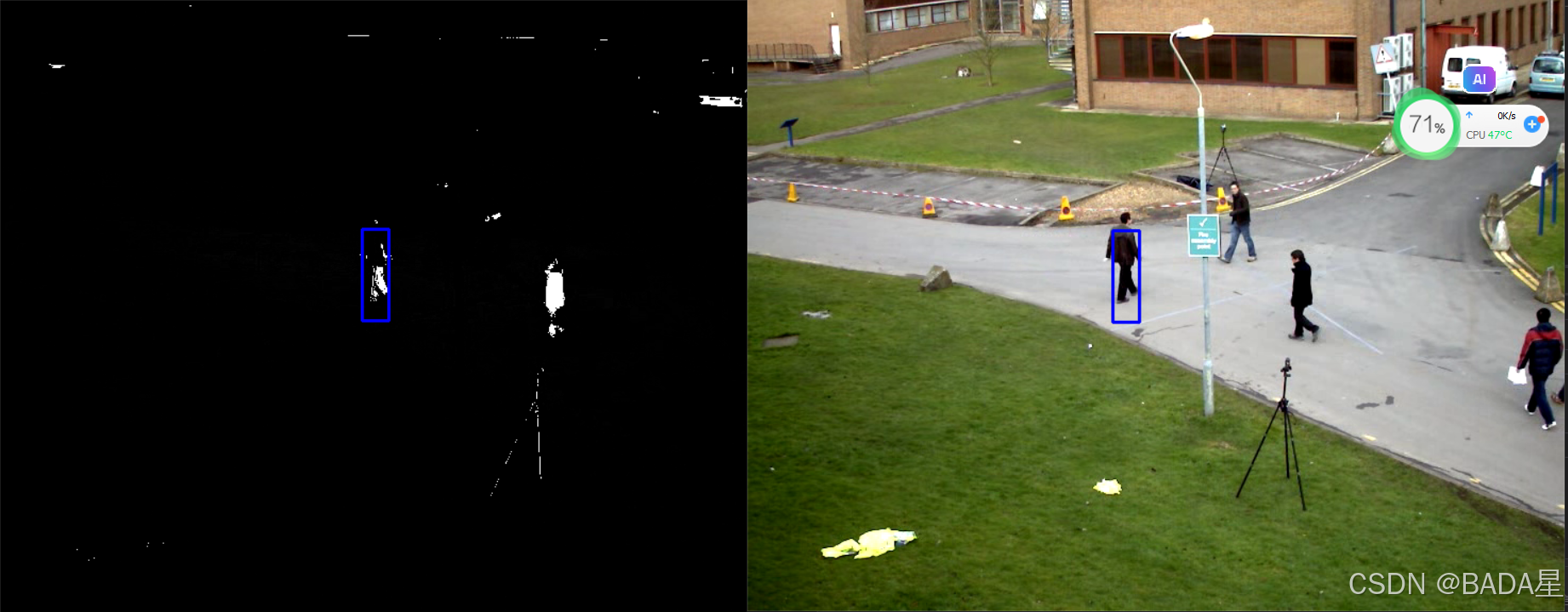

跟踪过程的动态图如下：

opencv中meanshift源码如下：

int cv::meanShift( InputArray _probImage, Rect& window, TermCriteria criteria )
{
    CV_INSTRUMENT_REGION();

    Size size;
    int cn;
    Mat mat;
    UMat umat;
    bool isUMat = _probImage.isUMat();

    if (isUMat)
        umat = _probImage.getUMat(), cn = umat.channels(), size = umat.size();
    else
        mat = _probImage.getMat(), cn = mat.channels(), size = mat.size();

    Rect cur_rect = window;

    CV_Assert( cn == 1 );

    if( window.height <= 0 || window.width <= 0 )
        CV_Error( Error::StsBadArg, "Input window has non-positive sizes" );

    window = window & Rect(0, 0, size.width, size.height);

    double eps = (criteria.type & TermCriteria::EPS) ? std::max(criteria.epsilon, 0.) : 1.;
    eps = cvRound(eps*eps);
    int i, niters = (criteria.type & TermCriteria::MAX_ITER) ? std::max(criteria.maxCount, 1) : 100;

    for( i = 0; i < niters; i++ )
    {
        cur_rect = cur_rect & Rect(0, 0, size.width, size.height);
        if( cur_rect == Rect() )
        {
            cur_rect.x = size.width/2;
            cur_rect.y = size.height/2;
        }
        cur_rect.width = std::max(cur_rect.width, 1);
        cur_rect.height = std::max(cur_rect.height, 1);

        //计算框选区域的质心
        Moments m = isUMat ? moments(umat(cur_rect)) : moments(mat(cur_rect));

        // Calculating center of mass
        if( fabs(m.m00) < DBL_EPSILON )
            break;

        int dx = cvRound( m.m10/m.m00 - window.width*0.5 );
        int dy = cvRound( m.m01/m.m00 - window.height*0.5 );

        int nx = std::min(std::max(cur_rect.x + dx, 0), size.width - cur_rect.width);
        int ny = std::min(std::max(cur_rect.y + dy, 0), size.height - cur_rect.height);

        dx = nx - cur_rect.x;
        dy = ny - cur_rect.y;
        cur_rect.x = nx;
        cur_rect.y = ny;

        // Check for coverage centers mass & window
        if( dx*dx + dy*dy < eps )
            break;
    }

    window = cur_rect;
    return i;
}

二、camshift原理

camshift跟踪算法里采用的也是meanshift，只不过多了目标跟踪框的估计部分。camshift的步骤如下：

1. 采用meanshift算法进行计算，得到跟踪框；

2.对跟踪框进行扩大，上下左右各扩大TOLERANCE=10个像素，得到一个扩大的跟踪区域；

3.对这个扩大的跟踪区域采用中心矩，二阶矩来计算目标框的旋转方向和长宽。这里面的计算公式可以参考camshift的论文《Computer Vision Face Tracking for Use in a Perceptual User Interface》。

跟踪过程的动态过程如下图：

opencv中camshift的源码如下：

cv::RotatedRect cv::CamShift( InputArray _probImage, Rect& window,
                              TermCriteria criteria )
{
    CV_INSTRUMENT_REGION();

    const int TOLERANCE = 10;
    Size size;
    Mat mat;
    UMat umat;
    bool isUMat = _probImage.isUMat();

    if (isUMat)
        umat = _probImage.getUMat(), size = umat.size();
    else
        mat = _probImage.getMat(), size = mat.size();

    meanShift( _probImage, window, criteria );

    window.x -= TOLERANCE;
    if( window.x < 0 )
        window.x = 0;

    window.y -= TOLERANCE;
    if( window.y < 0 )
        window.y = 0;

    window.width += 2 * TOLERANCE;
    if( window.x + window.width > size.width )
        window.width = size.width - window.x;

    window.height += 2 * TOLERANCE;
    if( window.y + window.height > size.height )
        window.height = size.height - window.y;

    // Calculating moments in new center mass
    Moments m = isUMat ? moments(umat(window)) : moments(mat(window));

    double m00 = m.m00, m10 = m.m10, m01 = m.m01;
    double mu11 = m.mu11, mu20 = m.mu20, mu02 = m.mu02;

    if( fabs(m00) < DBL_EPSILON )
        return RotatedRect();

    double inv_m00 = 1. / m00;
    int xc = cvRound( m10 * inv_m00 + window.x );
    int yc = cvRound( m01 * inv_m00 + window.y );
    double a = mu20 * inv_m00, b = mu11 * inv_m00, c = mu02 * inv_m00;

    // Calculating width & height
    double square = std::sqrt( 4 * b * b + (a - c) * (a - c) );

    // Calculating orientation
    double theta = atan2( 2 * b, a - c + square );

    // Calculating width & length of figure
    double cs = cos( theta );
    double sn = sin( theta );

    double rotate_a = cs * cs * mu20 + 2 * cs * sn * mu11 + sn * sn * mu02;
    double rotate_c = sn * sn * mu20 - 2 * cs * sn * mu11 + cs * cs * mu02;
    rotate_a = std::max(0.0, rotate_a);  // avoid negative result due calculation numeric errors
    rotate_c = std::max(0.0, rotate_c);  // avoid negative result due calculation numeric errors
    double length = std::sqrt( rotate_a * inv_m00 ) * 4;
    double width = std::sqrt( rotate_c * inv_m00 ) * 4;

    // In case, when tetta is 0 or 1.57... the Length & Width may be exchanged
    if( length < width )
    {
        std::swap( length, width );
        std::swap( cs, sn );
        theta = CV_PI*0.5 - theta;
    }

    // Saving results
    int _xc = cvRound( xc );
    int _yc = cvRound( yc );

    int t0 = cvRound( fabs( length * cs ));
    int t1 = cvRound( fabs( width * sn ));

    t0 = MAX( t0, t1 ) + 2;
    window.width = MIN( t0, (size.width - _xc) * 2 );

    t0 = cvRound( fabs( length * sn ));
    t1 = cvRound( fabs( width * cs ));

    t0 = MAX( t0, t1 ) + 2;
    window.height = MIN( t0, (size.height - _yc) * 2 );

    window.x = MAX( 0, _xc - window.width / 2 );
    window.y = MAX( 0, _yc - window.height / 2 );

    window.width = MIN( size.width - window.x, window.width );
    window.height = MIN( size.height - window.y, window.height );

    RotatedRect box;
    box.size.height = (float)length;
    box.size.width = (float)width;
    box.angle = (float)((CV_PI*0.5+theta)*180./CV_PI);
    while(box.angle < 0)
        box.angle += 360;
    while(box.angle >= 360)
        box.angle -= 360;
    if(box.angle >= 180)
        box.angle -= 180;
    box.center = Point2f( window.x + window.width*0.5f, window.y + window.height*0.5f);

    return box;
}

三、跟踪效果

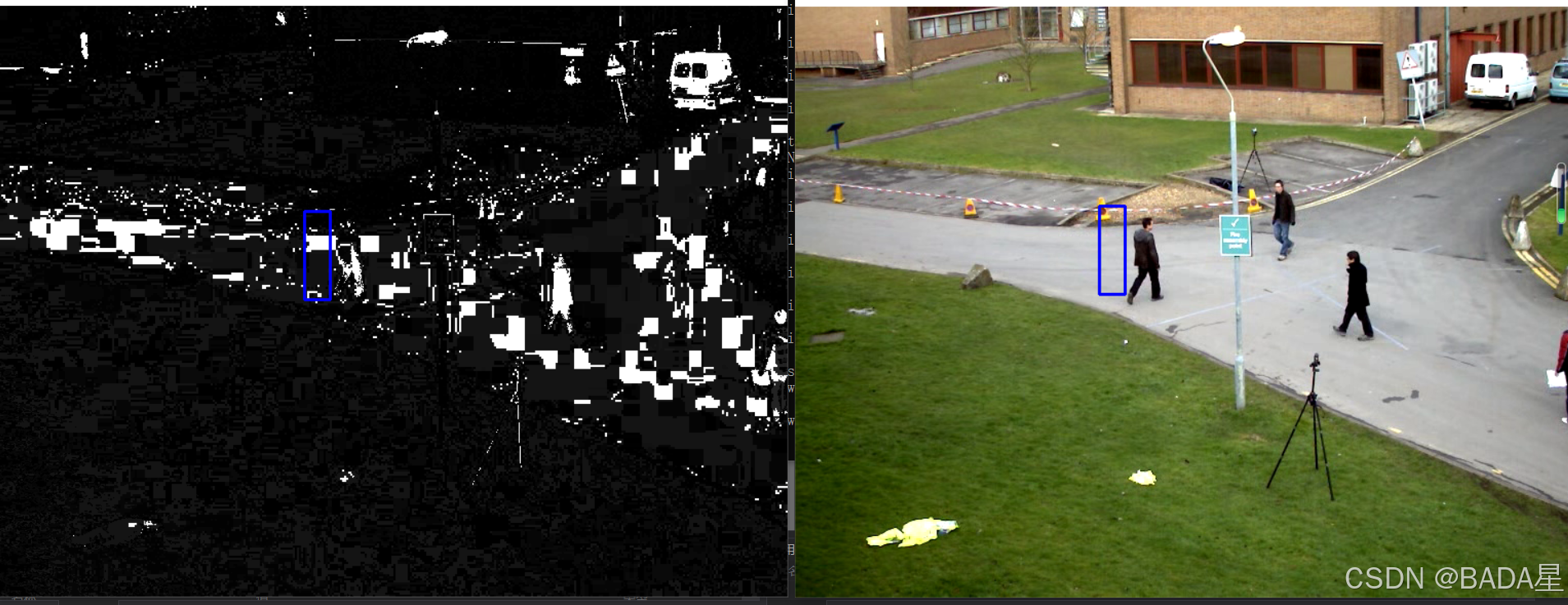

1.只采用H分量的跟踪效果，由于H分量的区分度不高，背景里有很多一样的，导致跟丢。

2.采用HSV三个分量的颜色特征的跟踪效果，跟踪效果比单个h颜色的要好，但遇到相同颜色的目标会跟丢。需要加入其他方法辅助。

四、算法优缺点和改进思路

1.缺乏必要的模板更新，可以尝试加入模板更新策略。

2.依赖于颜色信息，直方图特征在目标颜色特征描述方面略显匮乏，缺少空间信息，跟踪特点单一，可以尝试用其他特征图来跟踪，比如LBP特征直方图或者hog特征直方图，还可以加入运动估计来避免跟到其他相似目标。

3.尺度估计不准确，由于采用的颜色直方图反向投影不能完整的描述目标的信息导致camshift算法计算出的目标大小不准确。

4.需要加入目标被遮挡或者跟丢的判断决策。

五、跟踪测试源码demo

#include <iostream>
#include <opencv2/imgcodecs.hpp>
#include <opencv2/imgproc.hpp>
#include <opencv2/videoio.hpp>
#include <opencv2/highgui.hpp>
#include <opencv2/video.hpp>

using namespace cv;
using namespace std;

enum featureType
{
    GRAY,BGR,HSV
};

int main(int argc, char** argv)
{
    string filename = "D:\\opencv\\opencv\\sources\\samples\\data\\vtest.avi";

    //设置跟踪选择的特征
    featureType type = BGR;

    VideoCapture capture(filename);
    if (!capture.isOpened()) {
        //error in opening the video input
        cerr << "Unable to open file!" << endl;
        return 0;
    }

    Mat frame, roi, h_roi, mask;
    //采用第一张图像进行初始化
    capture >> frame;

    //设置跟踪框
    Rect track_window(255, 219, 26, 87);

    //提取跟踪目标
    roi = frame(track_window);

    //根据选择特征类别进行类型转换
    if (type == GRAY || type == HSV)
        cvtColor(roi, h_roi, COLOR_BGR2HSV);
    else
        h_roi = roi;

    float range_[] = { 0, 180 };
    float range_1[] = { 0, 255 };
    const float* range[] = { range_ ,range_1,range_1 };
    Mat roi_hist;
    int histSize[] = { 180, 255, 255};//每个维度直方图的bin的数目，这里第一维有180个bin，第二维有255个bin,第三维有255个bin
    int channels[] = { 0, 1, 2};//选择1张图像的0，1，2通道的图像
    //计算图像直方图，如果是bgr和hsv则计算三个通道的直方图，如果是gray就只计算h通道的直方图
    int dims = 3;
    if (type == GRAY)
        dims = 1;

    calcHist(&h_roi, 1, channels, cv::Mat(), roi_hist, dims, histSize, range);
    normalize(roi_hist, roi_hist, 0, 255, NORM_MINMAX);

    // 设置meanshif算法迭代的终止条件，条件为迭代了10次就终止，或者计算出来的位置前后相差1个像素就终止迭代，表示已经找到目标位置。
    TermCriteria term_crit(TermCriteria::EPS | TermCriteria::COUNT, 10, 1);
    cv::Mat showBack;

    while (true) {
        Mat hsv, dst;
        capture >> frame;
        if (frame.empty())
            break;
        cvtColor(frame, hsv, COLOR_BGR2HSV);
        calcBackProject(&hsv, 1, channels, roi_hist, dst, range);

        cvtColor(dst, showBack, COLOR_GRAY2BGR);
        rectangle(showBack, track_window, 255, 2);
        imshow("backProject", showBack);

#if 1
        // 采用camshift算法
        RotatedRect rot_rect = CamShift(dst, track_window, term_crit);

        // 把跟踪框画在图像上
        Point2f points[4];
        rot_rect.points(points);
        for (int i = 0; i < 4; i++)
            line(frame, points[i], points[(i + 1) % 4], 255, 2);
        imshow("img2", frame);
#else
         //采用meanshif算法跟踪
        meanShift(dst, track_window, term_crit);
        // 把跟踪框画在图像上
        rectangle(frame, track_window, 255, 2);
        imshow("img2", frame);
#endif

        int keyboard = waitKey(10);
        if (keyboard == 's')
        {
            //按下s键重新选择跟踪目标
            track_window =  selectROI(frame, true);

            roi = frame(track_window);
            if (type == GRAY || type == HSV)
                cvtColor(roi, h_roi, COLOR_BGR2HSV);
            else
                h_roi = roi;

            calcHist(&h_roi, 1, channels, mask, roi_hist, dims, histSize, range);
            normalize(roi_hist, roi_hist, 0, 255, NORM_MINMAX);
        }
        if (keyboard == 'q' || keyboard == 27)
            break;
    }
}
