SpringMVC分发器DispatcherServlet初始化

内容参考自https://my.oschina.net/lichhao/blog/102315

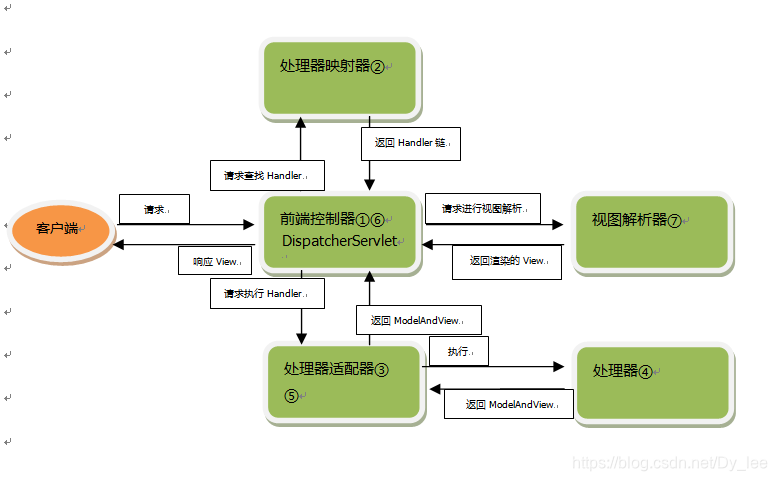

DispatcherServlet处理请求的流程图

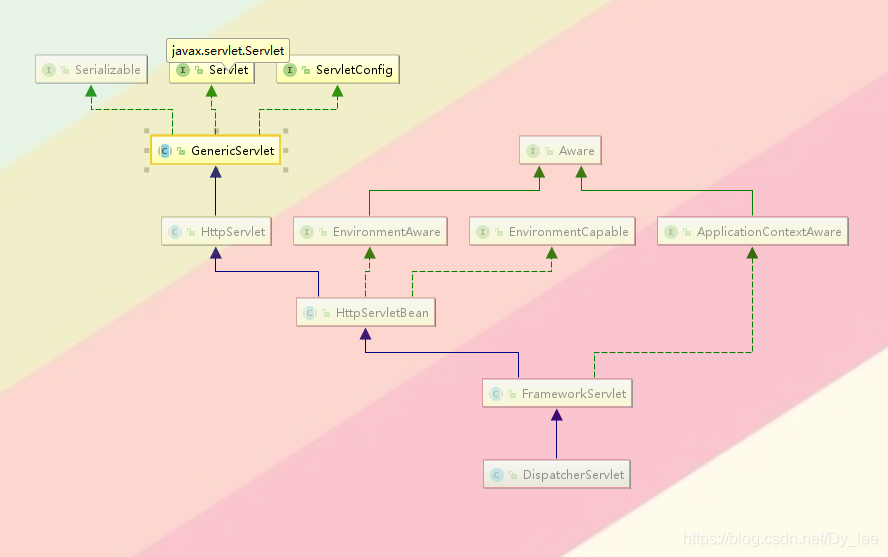

DispatcherServlet继承关系图

1、HttpServlet及其父类

隶属于org.apache.tomcat开发的jar包，定义了init()、service(ServletRequest，ServletResponse)等核心方法

2、HttpServletBean

HttpServlet的SpringMVC的实现。通过实现init()方法，解析配置文件(web.xml)，从而对BeanWrapper（DispatcherServlet）进行属性的设置

    public final void init() throws ServletException {
        //1、解析配置文件，读取属性
        PropertyValues pvs = new HttpServletBean.ServletConfigPropertyValues(this.getServletConfig(), this.requiredProperties);
        if (!pvs.isEmpty()) {
            try {
                //2、为Bean设置配置文件中的属性
                BeanWrapper bw = PropertyAccessorFactory.forBeanPropertyAccess(this);
                ResourceLoader resourceLoader = new ServletContextResourceLoader(this.getServletContext());
                bw.registerCustomEditor(Resource.class, new ResourceEditor(resourceLoader, this.getEnvironment()));
                this.initBeanWrapper(bw);
                bw.setPropertyValues(pvs, true);
            } catch (BeansException var4) {
                if (this.logger.isErrorEnabled()) {
                    this.logger.error("Failed to set bean properties on servlet '" + this.getServletName() + "'", var4);
                }

                throw var4;
            }
        }
        //3、初始化Bean，交给子类FrameworkServlet实现
        this.initServletBean();
    }



3、FrameworkServlet

实现了HttpServletBean的initServlet（）方法。调用initWebApplicationContext()负责初始化webIOC。

protected final void initServletBean() throws ServletException {
        this.getServletContext().log("Initializing Spring " + this.getClass().getSimpleName() + " '" + this.getServletName() + "'");
        if (this.logger.isInfoEnabled()) {
            this.logger.info("Initializing Servlet '" + this.getServletName() + "'");
        }

        long startTime = System.currentTimeMillis();

        try {
            //初始化IOC，包括DispatcherServlet
            this.webApplicationContext = this.initWebApplicationContext();

            //没有子类实现
            this.initFrameworkServlet();
        } catch (RuntimeException | ServletException var4) {
            this.logger.error("Context initialization failed", var4);
            throw var4;
        }

        if (this.logger.isDebugEnabled()) {
            String value = this.enableLoggingRequestDetails ? "shown which may lead to unsafe logging of potentially sensitive data" : "masked to prevent unsafe logging of potentially sensitive data";
            this.logger.debug("enableLoggingRequestDetails='" + this.enableLoggingRequestDetails + "': request parameters and headers will be " + value);
        }

        if (this.logger.isInfoEnabled()) {
            this.logger.info("Completed initialization in " + (System.currentTimeMillis() - startTime) + " ms");
        }

    }

    protected WebApplicationContext initWebApplicationContext() {
        WebApplicationContext rootContext = WebApplicationContextUtils.getWebApplicationContext(this.getServletContext());
        WebApplicationContext wac = null;
        //如果找到已存在的web容器，直接使用此容器并重新初始化
        if (this.webApplicationContext != null) {
            wac = this.webApplicationContext;
            if (wac instanceof ConfigurableWebApplicationContext) {
                ConfigurableWebApplicationContext cwac = (ConfigurableWebApplicationContext)wac;
                if (!cwac.isActive()) {
                    if (cwac.getParent() == null) {
                        cwac.setParent(rootContext);
                    }
                    //设置一些新的配置，最终调用了refresh()方法，进行了IOC初始化
                    this.configureAndRefreshWebApplicationContext(cwac);
                }
            }
        }

        if (wac == null) {
            wac = this.findWebApplicationContext();
        }
        //容器==null时，创建新的容器并最终调用refresh()方法，进行了IOC初始化
        if (wac == null) {
            wac = this.createWebApplicationContext(rootContext);
        }
        //IOC初始化之后，调用onRefresh(wac)方法，进行MVC的初始化
        //这一步在子类DispatcherServlet中进行了实现
        if (!this.refreshEventReceived) {
            Object var6 = this.onRefreshMonitor;
            synchronized(this.onRefreshMonitor) {
                this.onRefresh(wac);
            }
        }
        //将ioc设置到Servlet上下文中，以便能通过servletContext调用SpringContext
        if (this.publishContext) {
            String attrName = this.getServletContextAttributeName();
            this.getServletContext().setAttribute(attrName, wac);
        }

        return wac;
    }

4、 DispatcherServlet

    protected void onRefresh(ApplicationContext context) {
        this.initStrategies(context);
    }
    //SpringMVC 初始化过程。初始化视图解析器、异常处理器、处理器映射器、处理器适配器等
    protected void initStrategies(ApplicationContext context) {
        this.initMultipartResolver(context);
        this.initLocaleResolver(context);
        this.initThemeResolver(context);
        this.initHandlerMappings(context);
        this.initHandlerAdapters(context);
        this.initHandlerExceptionResolvers(context);
        this.initRequestToViewNameTranslator(context);
        this.initViewResolvers(context);
        this.initFlashMapManager(context);
    }

4.1、 initHandlerMappings(context)初始化处理器映射器

策略的初始化大同小异，以处理器映射器的初始化为例。

    private void initHandlerMappings(ApplicationContext context) {
        this.handlerMappings = null;
        //如果从SpringIOC中能获取到handlerMapping，也就是手动指定了handlerMapping
        if (this.detectAllHandlerMappings) {
            Map<String, HandlerMapping> matchingBeans = BeanFactoryUtils.beansOfTypeIncludingAncestors(context, HandlerMapping.class, true, false);
            if (!matchingBeans.isEmpty()) {
                this.handlerMappings = new ArrayList(matchingBeans.values());
                AnnotationAwareOrderComparator.sort(this.handlerMappings);
            }
        } else {
            try {
                HandlerMapping hm = (HandlerMapping)context.getBean("handlerMapping", HandlerMapping.class);
                this.handlerMappings = Collections.singletonList(hm);
            } catch (NoSuchBeanDefinitionException var3) {
                ;
            }
        }

        //如果handlerMapping==null,使用默认策略。调用getDefaultStrategies
        if (this.handlerMappings == null) {
            this.handlerMappings = this.getDefaultStrategies(context, HandlerMapping.class);
            if (this.logger.isTraceEnabled()) {
                this.logger.trace("No HandlerMappings declared for servlet '" + this.getServletName() + "': using default strategies from DispatcherServlet.properties");
            }
        }

    }

//几乎所有的初始化策略都调用此方法，除了initMultipartResolver（）
//具体步骤就是 先进行类加载，再调用createDefaultStrategy()方法创建bean，最后加入到集合中
protected <T> List<T> getDefaultStrategies(ApplicationContext context, Class<T> strategyInterface) {
        String key = strategyInterface.getName();
        // defaultStrategies 在静态代码块中实例化的，
        // 取自DispatcherServlet.properties配置文件
        String value = defaultStrategies.getProperty(key);
        if (value == null) {
            return new LinkedList();
        } else {
            String[] classNames = StringUtils.commaDelimitedListToStringArray(value);
            List<T> strategies = new ArrayList(classNames.length);
            String[] var7 = classNames;
            int var8 = classNames.length;

            for(int var9 = 0; var9 < var8; ++var9) {
                String className = var7[var9];

                try {
                    Class<?> clazz = ClassUtils.forName(className, DispatcherServlet.class.getClassLoader());
                    //通过IOC先生成BeanDefinition，再生成BeanWrapper，最后生成一个bean
                    Object strategy = this.createDefaultStrategy(context, clazz);
                    strategies.add(strategy);
                } catch (ClassNotFoundException var13) {
                    throw new BeanInitializationException("Could not find DispatcherServlet's default strategy class [" + className + "] for interface [" + key + "]", var13);
                } catch (LinkageError var14) {
                    throw new BeanInitializationException("Unresolvable class definition for DispatcherServlet's default strategy class [" + className + "] for interface [" + key + "]", var14);
                }
            }

            return strategies;
        }
    }

 DispatcherServlet.properties文件内容：key=value形式。

# Default implementation classes for DispatcherServlet's strategy interfaces.
# Used as fallback when no matching beans are found in the DispatcherServlet context.
# Not meant to be customized by application developers.

org.springframework.web.servlet.LocaleResolver=org.springframework.web.servlet.i18n.AcceptHeaderLocaleResolver

org.springframework.web.servlet.ThemeResolver=org.springframework.web.servlet.theme.FixedThemeResolver

org.springframework.web.servlet.HandlerMapping=org.springframework.web.servlet.handler.BeanNameUrlHandlerMapping,\
	org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping,\
	org.springframework.web.servlet.function.support.RouterFunctionMapping

org.springframework.web.servlet.HandlerAdapter=org.springframework.web.servlet.mvc.HttpRequestHandlerAdapter,\
	org.springframework.web.servlet.mvc.SimpleControllerHandlerAdapter,\
	org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerAdapter,\
	org.springframework.web.servlet.function.support.HandlerFunctionAdapter


org.springframework.web.servlet.HandlerExceptionResolver=org.springframework.web.servlet.mvc.method.annotation.ExceptionHandlerExceptionResolver,\
	org.springframework.web.servlet.mvc.annotation.ResponseStatusExceptionResolver,\
	org.springframework.web.servlet.mvc.support.DefaultHandlerExceptionResolver

org.springframework.web.servlet.RequestToViewNameTranslator=org.springframework.web.servlet.view.DefaultRequestToViewNameTranslator

org.springframework.web.servlet.ViewResolver=org.springframework.web.servlet.view.InternalResourceViewResolver

org.springframework.web.servlet.FlashMapManager=org.springframework.web.servlet.support.SessionFlashMapManager

5、总结

回顾整个SpringMVC的初始化流程，我们看到，通过HttpServletBean、FrameworkServlet、DispatcherServlet三个不同的类层次，SpringMVC的设计者将三种不同的职责分别抽象，运用模版方法设计模式分别固定在三个类层次中。其中HttpServletBean完成的是<init-param>配置元素的依赖注入，FrameworkServlet完成的是容器上下文的建立，DispatcherServlet完成的是SpringMVC具体编程元素的初始化策略。
