Spring+SpringMVC+Mybatis JAVA配置

前言

近来公司项目进入测试阶段，得以空闲，于是学习了一下spring。虽然我一直从事前端工作，但是学习一下后端的知识总是不错的。

搭建环境

• 开发环境：IntelliJ IDEA
• JDK版本：1.8
• 依赖包管理工具：gradle
• 数据库：MYSQL

正文

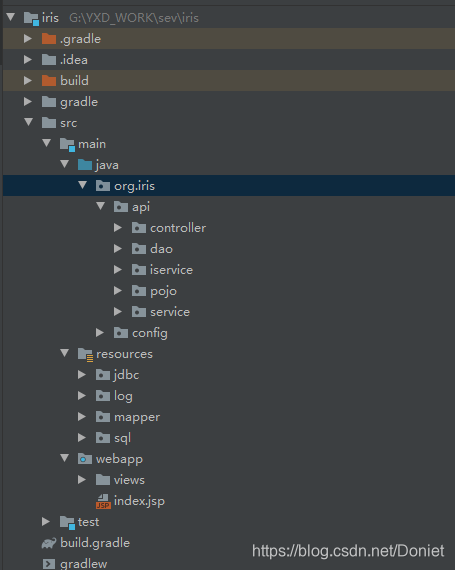

工程目录

依赖配置

在工程目录下的build.gradle文件里配置：

dependencies {
    compile(group: 'org.springframework',name: 'spring-core',version: '5.2.2.RELEASE')
    compile(group: 'org.springframework',name: 'spring-context',version: '5.2.2.RELEASE')
    compile(group: 'org.springframework',name: 'spring-beans',version: '5.2.2.RELEASE')
    compile(group: 'org.springframework',name: 'spring-aop',version: '5.2.1.RELEASE')
    compile(group: 'org.springframework',name: 'spring-web',version: '5.2.2.RELEASE')
    compile(group: 'org.springframework',name: 'spring-webmvc',version: '5.2.2.RELEASE')
    compile(group: 'org.springframework',name: 'spring-orm',version: '5.2.2.RELEASE')
    runtime(group: 'org.springframework',name: 'spring-jdbc',version: '5.2.2.RELEASE')
    testCompile(group: 'org.springframework',name: 'spring-test',version: '5.2.2.RELEASE')
    compile group: 'org.mybatis', name: 'mybatis', version: '3.5.3'
    compile group: 'org.mybatis', name: 'mybatis-spring', version: '2.0.3'
    compile group: 'mysql', name: 'mysql-connector-java', version: '8.0.18'
    compile group: 'com.alibaba', name: 'druid', version: '1.1.21'
    providedCompile group: 'javax.servlet', name: 'javax.servlet-api', version: '4.0.1'
    compile(group: 'org.slf4j',name: 'slf4j-api',version: '2.0.0-alpha1')
    compile(group: 'ch.qos.logback',name: 'logback-core',version: '1.3.0-alpha5')
    compile(group: 'ch.qos.logback',name: 'logback-classic',version: '1.3.0-alpha5')
    testCompile group: 'org.junit.jupiter', name: 'junit-jupiter-api', version: '5.6.0-M1'
}

配置servlet

• 创建WebAppInitializer类，代码如下：

public class WebAppInitializer extends AbstractAnnotationConfigDispatcherServletInitializer {
    @Override
    protected Class<?>[] getRootConfigClasses() {
        return new Class[]{RootContextConfig.class,DruidDataSourceConfig.class};
    }

    @Override
    protected Class<?>[] getServletConfigClasses() {
        return new Class[]{WebMvcConfig.class};
    }

    @Override
    protected String[] getServletMappings() {
        return new String[]{"/"};
    }
}

类WebAppInitializer相当于web.xml，可以继承AbstractAnnotationConfigDispatcherServletInitializer类，也可以实现WebApplicationInitializer接口详情。
RootContextConfig类是与spring相关的配置；DruidDataSourceConfig类是数据库连接配置，这里使用的数据源是阿里的druid;WebMvcConfig类是与试图相关的配置。

• RootContextConfig类

@Configuration
@ComponentScan(basePackages = "org.iris.api",excludeFilters = {@ComponentScan.Filter(type = FilterType.ANNOTATION,value = {EnableWebMvc.class, RestController.class})})
public class RootContextConfig {
}

• DruidDataSourceConfig类

@Configuration
@PropertySource(value = "classpath:/jdbc/druid.properties",ignoreResourceNotFound = true,encoding = "UTF-8")
@MapperScan(basePackages = "org.iris.api.dao")
public class DruidDataSourceConfig {
      @Value("${jdbc.driver}")
      private String driverClass;

      @Value("${jdbc.url}")
      private String jdbcUrl;

      @Value("${jdbc.user}")
      private String userName;

      @Value("${jdbc.password}")
      private String password;

      @Value("${jdbc.filters}")
      private  String staticFilter;

      @Value("${jdbc.maxActive}")
      private int maxActive;

      @Value("${jdbc.initialSize}")
      private int initialSize;

      @Value("${jdbc.maxWait}")
      private int maxWait;

      @Value("${jdbc.minIdle}")
      private int minIdle;

      @Value("${jdbc.timeBetweenEvictionRunsMillis}")
      private int timeBetweenEvictionRunsMillis;

      @Value("${jdbc.minEvictableIdleTimeMillis}")
      private int minEvictableIdleTimeMillis;

      @Value("${jdbc.maxOpenPreparedStatements}")
      private int maxOpenPreparedStatements;

      @Value("${jdbc.testWhileIdle}")
      private  boolean testWhileIdle;

      @Value("${jdbc.testOnBorrow}")
      private boolean testOnBorrow;

      @Value("${jdbc.testOnReturn}")
      private boolean testOnReturn;

      @Value("${jdbc.poolPreparedStatements}")
      private boolean poolPreparedStatements;

      @Value("${jdbc.asyncInit}")
      private boolean asyncInit;

      @Bean
      public DataSource druidDataSource(){
            DruidDataSource dataSource = new DruidDataSource();
            dataSource.setDbType("MYSQL");
            dataSource.setDriverClassName(this.driverClass);
            dataSource.setUrl(this.jdbcUrl);
            dataSource.setUsername(this.userName);
            dataSource.setPassword(this.password);
            dataSource.setMaxActive(this.maxActive);
            dataSource.setInitialSize(this.initialSize);
            dataSource.setMaxWait(this.maxWait);
            dataSource.setMinIdle(this.minIdle);
            dataSource.setTimeBetweenEvictionRunsMillis(this.timeBetweenEvictionRunsMillis);
            dataSource.setMinEvictableIdleTimeMillis(this.minEvictableIdleTimeMillis);
            dataSource.setMaxOpenPreparedStatements(this.maxOpenPreparedStatements);
            dataSource.setTestWhileIdle(this.testWhileIdle);
            dataSource.setTestOnBorrow(this.testOnBorrow);
            dataSource.setTestOnReturn(this.testOnReturn);
            dataSource.setPoolPreparedStatements(this.poolPreparedStatements);
            dataSource.setAsyncInit(this.asyncInit);
            try {
               dataSource.setFilters(this.staticFilter);
            } catch (Exception e) {
                  e.printStackTrace();
            }
            return  dataSource;
      }
      @Bean
      public  SqlSessionFactoryBean sqlSessionFactoryBean(DataSource druidDataSource) throws IOException {
           SqlSessionFactoryBean sqlSessionFactory= new SqlSessionFactoryBean();
           PathMatchingResourcePatternResolver patternResolver = new PathMatchingResourcePatternResolver();
           sqlSessionFactory.setMapperLocations(patternResolver.getResources("classpath*:mapper/*.xml"));
           sqlSessionFactory.setDataSource(druidDataSource);
           sqlSessionFactory.setTypeAliasesPackage("org.iris.api.pojo");
           return sqlSessionFactory;
      }

      @Bean(name = "transactionManager")
      public DataSourceTransactionManager dataSourceTransactionManager(DataSource druidDataSource){
           DataSourceTransactionManager manager = new DataSourceTransactionManager();
           manager.setDataSource(druidDataSource);
           return  manager;
      }

      @Bean
      public TransactionInterceptor transactionInterceptor(DataSourceTransactionManager transactionManager){
            TransactionInterceptor interceptor = new TransactionInterceptor();
            interceptor.setTransactionManager(transactionManager);
            Properties porps = new Properties();
            porps.setProperty("save*", "PROPAGATION_REQUIRED");
            porps.setProperty("del*", "PROPAGATION_REQUIRED");
            porps.setProperty("update*", "PROPAGATION_REQUIRED");
            porps.setProperty("get*", "PROPAGATION_REQUIRED,readOnly");
            porps.setProperty("find*", "PROPAGATION_REQUIRED,readOnly");
            porps.setProperty("*", "PROPAGATION_REQUIRED");
            interceptor.setTransactionAttributes(porps);
            return interceptor;
      }

}

• druid.properties

jdbc.driver=com.mysql.cj.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/iris?useSSL=false&useUnicode=true&characterEncoding=UTF8&serverTimezone=GMT&allowPublicKeyRetrieval=true
jdbc.user=root
jdbc.password=123456
jdbc.filters=stat
jdbc.maxActive=20
jdbc.initialSize=1
jdbc.maxWait=60000
jdbc.minIdle=1
jdbc.timeBetweenEvictionRunsMillis=60000
jdbc.minEvictableIdleTimeMillis=300000
jdbc.testWhileIdle=true
jdbc.testOnBorrow=false
jdbc.testOnReturn=false
jdbc.poolPreparedStatements=true
jdbc.maxOpenPreparedStatements=20
jdbc.asyncInit=true

• WebMvcConfig

@Configuration
@EnableWebMvc
@ComponentScan(basePackages = "org.iris.api.controller")
public class WebMvcConfig implements WebMvcConfigurer {
    @Override
    public void configureDefaultServletHandling(DefaultServletHandlerConfigurer configurer) {
        configurer.enable();
    }

    @Override
    public void configureViewResolvers(ViewResolverRegistry registry) {
        registry.jsp("/views/",".jsp");
    }

    @Override
    public void addViewControllers(ViewControllerRegistry registry) {
        registry.addViewController("/").setViewName("home");
    }
}
