结论：窗口的关闭需要带 watermarker 的时间我想使用 kafkaUI 界面发送 json 数据给 kafka,json 数据长这个样子：

{"money":47,"orderId":"6ce94dcefaac4106bb7b66302bb9e785","timeStamp":176430

3530000,"uid":0}

这个数据我是编写了一个代码生成的

package com.bigdata.day04;

import com.alibaba.fastjson.JSON;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.windowing.assigners.TumblingProcessingTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;

public class CreateOrderInfoJson {

public static void main(String[] args) throws Exception {

//1. env-准备环境
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setParallelism(1);

DataStreamSource<OrderInfo> streamSource = env.addSource(new MySource(), "自动创建订单");

streamSource.map(new MapFunction<OrderInfo, String>() {

@Override
public String map(OrderInfo orderInfo) throws Exception {
return JSON.toJSONString(orderInfo);
}
}).print();

env.execute();
}
}

编写一个 flink 读取 kafka 数据的代码

这个代码中可以读取 kafka 数据，并且必须使用 evenetTime 时间语义，并且还需要有watermarker+allowedLateness

package com.bigdata.day04;

import com.alibaba.fastjson.JSON;
import org.apache.commons.lang3.time.DateFormatUtils;
import org.apache.flink.api.common.eventtime.SerializableTimestampAssigner;
import org.apache.flink.api.common.eventtime.WatermarkStrategy;
import org.apache.flink.api.common.functions.MapFunction;
import org.apache.flink.api.common.serialization.SimpleStringSchema;
import org.apache.flink.connector.kafka.source.KafkaSource;
import org.apache.flink.connector.kafka.source.enumerator.initializer.OffsetsInitializer;
import org.apache.flink.streaming.api.datastream.DataStreamSource;
import org.apache.flink.streaming.api.datastream.SideOutputDataStream;
import org.apache.flink.streaming.api.datastream.SingleOutputStreamOperator;
import org.apache.flink.streaming.api.environment.StreamExecutionEnvironment;
import org.apache.flink.streaming.api.functions.windowing.WindowFunction;
import org.apache.flink.streaming.api.windowing.assigners.TumblingEventTimeWindows;
import org.apache.flink.streaming.api.windowing.time.Time;
import org.apache.flink.streaming.api.windowing.windows.TimeWindow;
import org.apache.flink.util.Collector;
import org.apache.flink.util.OutputTag;

import java.time.Duration;

public class TestAllowedLateness {

public static void main(String[] args) throws Exception {

//1. env-准备环境
StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
env.setParallelism(1);

KafkaSource<String> streamSource = KafkaSource.<String>builder().setBootstrapServers("bigdata01:9092").setTopics("first").setStartingOffsets(OffsetsInitializer.latest()).setValueOnlyDeserializer(new SimpleStringSchema()).build();

DataStreamSource<String> dataStreamSource = env.fromSource(streamSource, WatermarkStrategy.noWatermarks(), "kafkaSource");
//dataStreamSource.print();

SingleOutputStreamOperator<OrderInfo> streamOperator = dataStreamSource.map(new MapFunction<String, OrderInfo>() {
@Override
public OrderInfo map(String json) throws Exception {
return JSON.parseObject(json, OrderInfo.class);
}
});

// 此处添加水印
SingleOutputStreamOperator<String> result = streamOperator.assignTimestampsAndWatermarks(WatermarkStrategy.<OrderInfo>forBoundedOutOfOrderness(Duration.ofSeconds(3)).withTimestampAssigner(
new SerializableTimestampAssigner<OrderInfo>() {
// long 是时间戳吗？是秒值还是毫秒呢？年月日时分秒的的字段怎么办呢？
@Override
public long extractTimestamp(OrderInfo orderInfo, long recordTimestamp) {
// 这个方法的返回值是毫秒，所有的数据只要不是这个毫秒值，都需要转换为毫秒
return orderInfo.getTimeStamp();
}
}
)).keyBy(order -> order.getUid()).window(TumblingEventTimeWindows.of(Time.seconds(5)))

.allowedLateness(Time.seconds(10))

.apply(new WindowFunction<OrderInfo, String, Integer, TimeWindow>() {
@Override
public void apply(Integer key, TimeWindow window, Iterable<OrderInfo> input, Collector<String> out) throws Exception {
// 返回时间开始--> 时间结束用户id 金额
long start = window.getStart();
long end = window.getEnd();
String startTime = DateFormatUtils.format(start, "yyyy-MM-dd HH:mm:ss");
String endTime = DateFormatUtils.format(end, "yyyy-MM-dd HH:mm:ss");
int sumMoney = 0;
for (OrderInfo orderInfo : input) {

sumMoney += orderInfo.getMoney();
}

out.collect(startTime + "->" + endTime + "->" + key + "-->" + sumMoney);

}
});

result.print();

env.execute();
}
}

开始测试：

使用 kafkaUI 界面发送第一条数据：

{"money":47,"orderId":"6ce94dcefaac4106bb7b66302bb9e785","timeStamp":1764303530000,"uid":0}

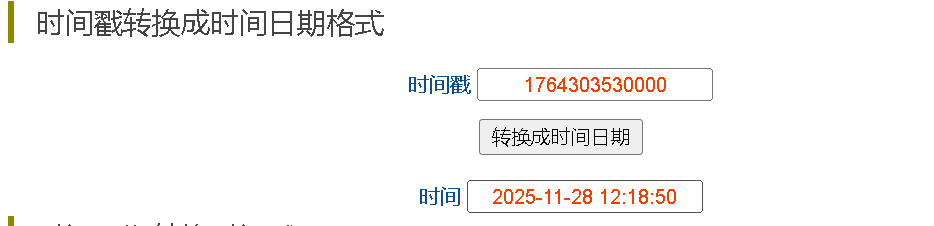

我使用时间戳转换器看一下是什么时候：

https://www.beijing-time.org/shijianchuo/

1764303530000 = 12:18:50 也就意味着第一个区间是 [12:18:50,12:18:55)

控制台不会有输出，因为没有触发。

输入以下数据可以触发：12:18:58

{"money":47,"orderId":"6ce94dcefaac4106bb7b66302bb9e785","timeStamp":1764303538000,"uid":0}

得到了一个结论：水印时间（12:18:58）>= 区间结束时间就会触发该区间的计算【2025-11-28 12:18:50->2025-11-28 12:18:55）

此时这个【2025-11-28 12:18:50->2025-11-28 12:18:55）区间触发了，没有关闭

接着在这个区间【2025-11-28 12:18:50->2025-11-28 12:18:55）继续放入数据：

{"money":47,"orderId":"6ce94dcefaac4106bb7b66302bb9e785","timeStamp":1764303533000,"uid":0}
{"money":47,"orderId":"6ce94dcefaac4106bb7b66302bb9e785","timeStamp":1764303534000,"uid":0}

说明添加了allowedLateness 之后，窗口的结束时间不是

事件时间>= 窗口的结束时间+ allowedLateness

那关闭时间到底是多少？

事件时间 >= 窗口结束12:18:55 + watermarker(3s) + allowedLateness(10s)
