SpringBoot整合Flowable

下载依赖

<parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.7.5</version>
        <relativePath/> <!-- lookup parent from repository -->
</parent>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- 工作流flowable架包 -->
        <dependency>
            <groupId>org.flowable</groupId>
            <artifactId>flowable-spring-boot-starter</artifactId>
            <version>6.4.0</version>
        </dependency>
        <!-- mysql数据库连接架包 -->
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>8.0.11</version>
        </dependency>
        <!-- mybatis ORM 架包 -->
        <dependency>
            <groupId>org.mybatis.spring.boot</groupId>
            <artifactId>mybatis-spring-boot-starter</artifactId>
            <version>2.2.2</version>
        </dependency>
        <!-- thymeleaf架包 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-thymeleaf</artifactId>
        </dependency>
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
        </dependency>

        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

配置文件

server.port=8081
#数据库配置
spring.datasource.url=jdbc:mysql://ip:port/db?autoReconnect=true&useUnicode=true&characterEncoding=utf8&useSSL=false&serverTimezone=GMT%2B8&nullCatalogMeansCurrent=true
spring.datasource.username=
spring.datasource.password=
spring.datasource.driver-class-name=com.mysql.cj.jdbc.Driver
#开启调试信息
logging.level.org.flowable=DEBUG
#业务流程涉及的表自动生成
flowable.database-schema-update=true
flowable.async-executor-activate=false
flowable.cfg.autodeployment-resource-pattern=classpath*:processes/**/*.bpmn20.xml

实体类

@Data
public class ResponseBean {

    private Integer status;

    private String msg;

    private Object data;

    public static ResponseBean ok(String msg, Object data) {
        return new ResponseBean(200, msg, data);
    }


    public static ResponseBean ok(String msg) {
        return new ResponseBean(200, msg, null);
    }


    public static ResponseBean error(String msg, Object data) {
        return new ResponseBean(500, msg, data);
    }


    public static ResponseBean error(String msg) {
        return new ResponseBean(500, msg, null);
    }

    private ResponseBean() {
    }

    private ResponseBean(Integer status, String msg, Object data) {
        this.status = status;
        this.msg = msg;
        this.data = data;
    }

}



@Data
public class VacationApproveVo {

    private String taskId;

    private Boolean approve;

    private String name;
}


@Data
public class VacationInfo {

 private String name;

 private Date startTime;

 private Date endTime;

 private String reason;

 private Integer days;

 private Boolean status;
}



@Data
public class VacationRequestVo {

    private String name;

    private Integer days;

    private String reason;
}

业务代码

@RequestMapping("/vacation")
@RestController
public class VacationController {

    @Autowired
    private VacationServerImpl vacationServer;

    /**

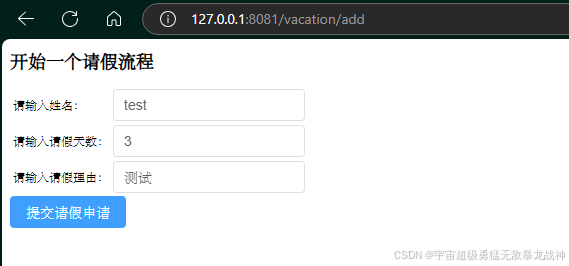

     * 请假条新增页面
     * @return
     */
    @GetMapping("/add")
    public ModelAndView add(){
        return new ModelAndView("vacation");
    }

    /
