来说一下我们的IM发送文件的实现方法吧:
先来看一下代码:

                 File file = new File("/sdcard/");
                if (null == file || !file.exists()) {
                    return;
                }
                Intent intent = new Intent(Intent.ACTION_GET_CONTENT);
                intent.addCategory(Intent.CATEGORY_DEFAULT);
                intent.addFlags(Intent.FLAG_ACTIVITY_NEW_TASK);
                intent.setDataAndType(Uri.fromFile(file), "file/*");
                startActivity(intent);
                EMMessage message = EMMessage.createFileSendMessage(Environment.getExternalStorageDirectory().getAbsolutePath() + "/laoduan.jpg", toChatUsername);
                sendMessage(message);

看着代码其实很简单 我们只需要去实现在聊天界面中功能栏中的一个点击事件就可以去成功实现一个发送文件的方法;

撤回消息 说起撤回消息 我们在玩通讯软件中几乎都会有着一个功能,而我们做的IM也是可以实现这功能的 具体实现如下:

        首先,我们先设置聊天气泡的点击事件

      messageList = (EaseChatMessageList) getView().findViewById(R.id.message_list);
      //初始化messagelist
      messageList.init(toChatUsername, chatType, null);
     //设置item里的控件的点击事件
     messageList.setItemClickListener(new       EaseChatMessageList.MessageListItemClickListener() {

@Override
public void onUserAvatarClick(String username) {
	//头像点击事件
}

@Override
public void onResendClick(final EMMessage message) {
	//重发消息按钮点击事件
}

@Override
public void onBubbleLongClick(EMMessage message) {
	//气泡框长按事件
}

@Override
public boolean onBubbleClick(EMMessage message) {
	//气泡框点击事件,EaseUI有默认实现这个事件,如果需要覆盖,return值要返回true
	return false;
}
  });
    //获取下拉刷新控件
     swipeRefreshLayout = messageList.getSwipeRefreshLayout();
  //刷新消息列表
  messageList.refresh();
  messageList.refreshSeekTo(position);
  messageList.refreshSelectLast();

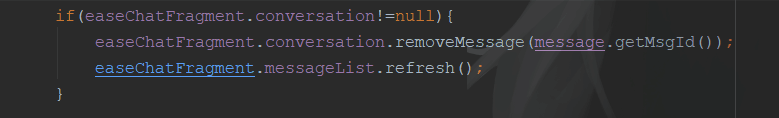

再在点击事件里面添加:
在这里插入图片描述
来进行撤回消息 但是我们必须在 EaseChatFragment 里面 把下面两个方法改成公共的方法:
在这里插入图片描述
在这里插入图片描述
完成消息撤回。

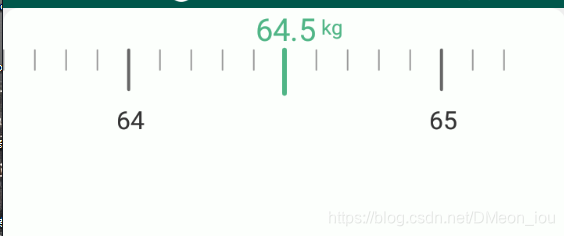

今天实现了一个刻度尺的自定义VIew
在这里插入图片描述
可进行左右的滑动

例:

              public class MyviiewKe extends View {

private static final String TAG = "RulerView";
/**
 * 2个大刻度之间间距,默认为1
 */
private int scaleLimit = 1;
/**
 * 尺子高度
 */
private int rulerHeight = 50;

/**
 * 尺子和屏幕顶部以及结果之间的高度
 */
private int rulerToResultgap = rulerHeight / 4;
/**
 * 刻度平分多少份
 */
private int scaleCount = 10;  //刻度评分多少份
/**
 * 刻度间距
 */
private int scaleGap = 20;
/**
 * 刻度最小值
 */
private int minScale = 0;
/**
 * 第一次显示的刻度
 */
private float firstScale = 50f;
/**
 * 刻度最大值
 */
private int maxScale = 100;

/**
 * 背景颜色
 */
private int bgColor = 0xfffcfffc;
/**
 * 小刻度的颜色
 */
private int smallScaleColor = 0xff999999;
/**
 * 中刻度的颜色
 */
private int midScaleColor = 0xff666666;
/**
 * 大刻度的颜色
 */
private int largeScaleColor = 0xff50b586;
/**
 * 刻度颜色
 */
private int scaleNumColor = 0xff333333;
/**
 * 结果值颜色
 */
private int resultNumColor = 0xff50b586;
/**
 * kg颜色
 */
private String unit = "kg";
/**
 * kg颜色
 */
private int unitColor = 0xff50b586;
/**
 * 小刻度粗细大小
 */
private int smallScaleStroke = 1;
/**
 * 中刻度粗细大小
 */
private int midScaleStroke = 2;
/**
 * 大刻度粗细大小
 */
private int largeScaleStroke = 3;
/**
 * 结果字体大小
 */
private int resultNumTextSize = 20;
/**
 * 刻度字体大小
 */
private int scaleNumTextSize = 16;
/**
 * 单位字体大小
 */
private int unitTextSize = 13;
/**
 * 是否显示刻度结果
 */
private boolean showScaleResult = true;
/**
 * 是否背景显示圆角
 */
private boolean isBgRoundRect = true;

/**
 * 结果回调
 */
private OnChooseResulterListener onChooseResulterListener;
/**
 * 滑动选择刻度
 */
private float computeScale = -1;
/**
 * 当前刻度
 */
public float currentScale = firstScale;

private ValueAnimator valueAnimator;
private VelocityTracker velocityTracker = VelocityTracker.obtain();
private String resultText = String.valueOf(firstScale);
private Paint bgPaint;
private Paint smallScalePaint;
private Paint midScalePaint;
private Paint lagScalePaint;
private Paint scaleNumPaint;
private Paint resultNumPaint;
private Paint kgPaint;
private Rect scaleNumRect;
private Rect resultNumRect;
private Rect kgRect;
private RectF bgRect;
private int height, width;
private int smallScaleHeight;
private int midScaleHeight;
private int lagScaleHeight;
private int rulerRight = 0;
private int resultNumRight;
private float downX;
private float moveX = 0;
private float currentX;
private float lastMoveX = 0;
private boolean isUp = false;
private int leftScroll;
private int rightScroll;
private int xVelocity;

public MyviiewKe(Context context) {
    this(context, null);
}

public MyviiewKe(Context context, @Nullable AttributeSet attrs) {
    this(context, attrs, 0);
}

public MyviiewKe(Context context, @Nullable AttributeSet attrs, int defStyleAttr) {
    super(context, attrs, defStyleAttr);
    setAttr(attrs, defStyleAttr);
    init();
}

public void setOnChooseResulterListener(OnChooseResulterListener onChooseResulterListener) {
    this.onChooseResulterListener = onChooseResulterListener;
}

private void setAttr(AttributeSet attrs, int defStyleAttr) {

    TypedArray a = getContext().getTheme().obtainStyledAttributes(attrs, R.styleable.RulerView, defStyleAttr, 0);

    scaleLimit =  a.getInt(R.styleable.RulerView_scaleLimit, scaleLimit);

    rulerHeight = a.getDimensionPixelSize(R.styleable.RulerView_rulerHeight, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, rulerHeight, getResources().getDisplayMetrics()));

    rulerToResultgap = a.getDimensionPixelSize(R.styleable.RulerView_rulerToResultgap, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, rulerToResultgap, getResources().getDisplayMetrics()));

    scaleCount = a.getInt(R.styleable.RulerView_scaleCount, scaleCount);

    scaleGap = a.getDimensionPixelSize(R.styleable.RulerView_scaleGap, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, scaleGap, getResources().getDisplayMetrics()));

    minScale = a.getInt(R.styleable.RulerView_minScale, minScale)/scaleLimit;

    firstScale = a.getFloat(R.styleable.RulerView_firstScale, firstScale)/scaleLimit;

    maxScale = a.getInt(R.styleable.RulerView_maxScale, maxScale)/scaleLimit;

    bgColor = a.getColor(R.styleable.RulerView_bgColor, bgColor);

    smallScaleColor = a.getColor(R.styleable.RulerView_smallScaleColor, smallScaleColor);

    midScaleColor = a.getColor(R.styleable.RulerView_midScaleColor, midScaleColor);

    largeScaleColor = a.getColor(R.styleable.RulerView_largeScaleColor, largeScaleColor);

    scaleNumColor = a.getColor(R.styleable.RulerView_scaleNumColor, scaleNumColor);

    resultNumColor = a.getColor(R.styleable.RulerView_resultNumColor, resultNumColor);

    unitColor = a.getColor(R.styleable.RulerView_unitColor, unitColor);

    String tempUnit = unit;
    unit = a.getString(R.styleable.RulerView_unit);
    if (TextUtils.isEmpty(unit)) {
        unit = tempUnit;
    }

    smallScaleStroke = a.getDimensionPixelSize(R.styleable.RulerView_smallScaleStroke, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, smallScaleStroke, getResources().getDisplayMetrics()));

    midScaleStroke = a.getDimensionPixelSize(R.styleable.RulerView_midScaleStroke, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, midScaleStroke, getResources().getDisplayMetrics()));
    largeScaleStroke = a.getDimensionPixelSize(R.styleable.RulerView_largeScaleStroke, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_DIP, largeScaleStroke, getResources().getDisplayMetrics()));
    resultNumTextSize = a.getDimensionPixelSize(R.styleable.RulerView_resultNumTextSize, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_SP, resultNumTextSize, getResources().getDisplayMetrics()));

    scaleNumTextSize = a.getDimensionPixelSize(R.styleable.RulerView_scaleNumTextSize, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_SP, scaleNumTextSize, getResources().getDisplayMetrics()));

    unitTextSize = a.getDimensionPixelSize(R.styleable.RulerView_unitTextSize, (int) TypedValue.applyDimension(
            TypedValue.COMPLEX_UNIT_SP, unitTextSize, getResources().getDisplayMetrics()));


    showScaleResult = a.getBoolean(R.styleable.RulerView_showScaleResult, showScaleResult);
    isBgRoundRect = a.getBoolean(R.styleable.RulerView_isBgRoundRect, isBgRoundRect);

    a.recycle();
}


private void init() {
    bgPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
    smallScalePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
    midScalePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
    lagScalePaint = new Paint(Paint.ANTI_ALIAS_FLAG);
    scaleNumPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
    resultNumPaint = new Paint(Paint.ANTI_ALIAS_FLAG);
    kgPaint = new Paint(Paint.ANTI_ALIAS_FLAG);

    bgPaint.setColor(bgColor);
    smallScalePaint.setColor(smallScaleColor);
    midScalePaint.setColor(midScaleColor);
    lagScalePaint.setColor(largeScaleColor);
    scaleNumPaint.setColor(scaleNumColor);
    resultNumPaint.setColor(resultNumColor);
    kgPaint.setColor(unitColor);

    resultNumPaint.setStyle(Paint.Style.FILL);
    kgPaint.setStyle(Paint.Style.FILL);
    bgPaint.setStyle(Paint.Style.FILL);
    smallScalePaint.setStyle(Paint.Style.FILL);
    midScalePaint.setStyle(Paint.Style.FILL);
    lagScalePaint.setStyle(Paint.Style.FILL);

    lagScalePaint.setStrokeCap(Paint.Cap.ROUND);
    midScalePaint.setStrokeCap(Paint.Cap.ROUND);
    smallScalePaint.setStrokeCap(Paint.Cap.ROUND);

    smallScalePaint.setStrokeWidth(smallScaleStroke);
    midScalePaint.setStrokeWidth(midScaleStroke);
    lagScalePaint.setStrokeWidth(largeScaleStroke);

    resultNumPaint.setTextSize(resultNumTextSize);
    kgPaint.setTextSize(unitTextSize);
    scaleNumPaint.setTextSize(scaleNumTextSize);

    bgRect = new RectF();
    resultNumRect = new Rect();
    scaleNumRect = new Rect();
    kgRect = new Rect();

    resultNumPaint.getTextBounds(resultText, 0, resultText.length(), resultNumRect);
    kgPaint.getTextBounds(resultText, 0, 1, kgRect);

    smallScaleHeight = rulerHeight / 4;
    midScaleHeight = rulerHeight / 2;
    lagScaleHeight = rulerHeight / 2 + 5;
    valueAnimator = new ValueAnimator();

}

@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
    super.onMeasure(widthMeasureSpec, heightMeasureSpec);
    int heightModule = MeasureSpec.getMode(heightMeasureSpec);
    int heightSize = MeasureSpec.getSize(heightMeasureSpec);
    int widthSize = MeasureSpec.getSize(widthMeasureSpec);

    switch (heightModule) {
        case MeasureSpec.AT_MOST:
        case MeasureSpec.UNSPECIFIED:
            height = rulerHeight + (showScaleResult ? resultNumRect.height() : 0) + rulerToResultgap * 2 + getPaddingTop() + getPaddingBottom();
            break;
        case MeasureSpec.EXACTLY:
            height = heightSize + getPaddingTop() + getPaddingBottom();
            break;
    }

    width = widthSize + getPaddingLeft() + getPaddingRight();

    setMeasuredDimension(width, height);

}

@Override
protected void onDraw(Canvas canvas) {
    drawBg(canvas);
    drawScaleAndNum(canvas);
    drawResultText(canvas, resultText);
}

@Override
public boolean onTouchEvent(MotionEvent event) {
    currentX = event.getX();
    isUp = false;
    velocityTracker.computeCurrentVelocity(500);
    velocityTracker.addMovement(event);
    switch (event.getAction()) {
        case MotionEvent.ACTION_DOWN:
            //按下时如果属性动画还没执行完,就终止,记录下当前按下点的位置
            if (valueAnimator != null && valueAnimator.isRunning()) {
                valueAnimator.end();
                valueAnimator.cancel();
            }
            downX = event.getX();
            break;
        case MotionEvent.ACTION_MOVE:
            //滑动时候,通过假设的滑动距离,做超出左边界以及右边界的限制。
            moveX = currentX - downX + lastMoveX;
            if (moveX >= width / 2) {
                moveX = width / 2;
            } else if (moveX <= getWhichScalMovex(maxScale)) {
                moveX = getWhichScalMovex(maxScale);
            }
            break;
        case MotionEvent.ACTION_UP:
            //手指抬起时候制造惯性滑动
            lastMoveX = moveX;
            xVelocity = (int) velocityTracker.getXVelocity();
            autoVelocityScroll(xVelocity);
            velocityTracker.clear();
            break;
    }
    invalidate();
    return true;
}

private void autoVelocityScroll(int xVelocity) {
    //惯性滑动的代码,速率和滑动距离,以及滑动时间需要控制的很好,应该网上已经有关于这方面的算法了吧。。这里是经过N次测试调节出来的惯性滑动
    if (Math.abs(xVelocity) < 50) {
        isUp = true;
        return;
    }
    if (valueAnimator.isRunning()) {
        return;
    }
    valueAnimator = ValueAnimator.ofInt(0, xVelocity / 20).setDuration(Math.abs(xVelocity / 10));
    valueAnimator.setInterpolator(new DecelerateInterpolator());
    valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
        @Override
        public void onAnimationUpdate(ValueAnimator animation) {
            moveX += (int) animation.getAnimatedValue();
            if (moveX >= width / 2) {
                moveX = width / 2;
            } else if (moveX <= getWhichScalMovex(maxScale)) {
                moveX = getWhichScalMovex(maxScale);
            }
            lastMoveX = moveX;
            invalidate();
        }

    });
    valueAnimator.addListener(new AnimatorListenerAdapter() {
        @Override
        public void onAnimationEnd(Animator animation) {
            isUp = true;
            invalidate();
        }
    });

    valueAnimator.start();
}

private float getWhichScalMovex(float scale) {
    return width / 2 - scaleGap * scaleCount * (scale - minScale);
}

private void drawScaleAndNum(Canvas canvas) {
    canvas.translate(0, (showScaleResult ? resultNumRect.height() : 0) + rulerToResultgap);//移动画布到结果值的下面

    int num1;//确定刻度位置
    float num2;

    if (firstScale != -1) {   //第一次进来的时候计算出默认刻度对应的假设滑动的距离moveX
        moveX = getWhichScalMovex(firstScale);          //如果设置了默认滑动位置,计算出需要滑动的距离
        lastMoveX = moveX;
        firstScale = -1;                                //将结果置为-1,下次不再计算初始位置
    }

    if (computeScale != -1) {//弹性滑动到目标刻度
        lastMoveX = moveX;
        if (valueAnimator != null && !valueAnimator.isRunning()) {
            valueAnimator = ValueAnimator.ofFloat(getWhichScalMovex(currentScale), getWhichScalMovex(computeScale));
            valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator animation) {
                    moveX = (float) animation.getAnimatedValue();
                    lastMoveX = moveX;
                    invalidate();
                }
            });
            valueAnimator.addListener(new AnimatorListenerAdapter() {
                @Override
                public void onAnimationEnd(Animator animation) {
                    super.onAnimationEnd(animation);
                    //这里是滑动结束时候回调给使用者的结果值
                    computeScale = -1;
                }
            });
            valueAnimator.setDuration(Math.abs((long) ((getWhichScalMovex(computeScale) - getWhichScalMovex(currentScale)) / 100)));
            valueAnimator.start();
        }
    }

    num1 = -(int) (moveX / scaleGap);                   //滑动刻度的整数部分
    num2 = (moveX % scaleGap);                         //滑动刻度的小数部分

    canvas.save();                                      //保存当前画布

    rulerRight = 0;                                    //准备开始绘制当前屏幕,从最左面开始

    if (isUp) {   //这部分代码主要是计算手指抬起时,惯性滑动结束时,刻度需要停留的位置
        num2 = ((moveX - width / 2 % scaleGap) % scaleGap);     //计算滑动位置距离整点刻度的小数部分距离
        if (num2 <= 0) {
            num2 = scaleGap - Math.abs(num2);
        }
        leftScroll = (int) Math.abs(num2);                        //当前滑动位置距离左边整点刻度的距离
        rightScroll = (int) (scaleGap - Math.abs(num2));         //当前滑动位置距离右边整点刻度的距离

        float moveX2 = num2 <= scaleGap / 2 ? moveX - leftScroll : moveX + rightScroll; //最终计算出当前位置到整点刻度位置需要滑动的距离

        if (valueAnimator != null && !valueAnimator.isRunning()) {      //手指抬起,并且当前没有惯性滑动在进行,创建一个惯性滑动
            valueAnimator = ValueAnimator.ofFloat(moveX, moveX2);
            valueAnimator.addUpdateListener(new ValueAnimator.AnimatorUpdateListener() {
                @Override
                public void onAnimationUpdate(ValueAnimator animation) {
                    moveX = (float) animation.getAnimatedValue();            //不断滑动去更新新的位置
                    lastMoveX = moveX;
                    invalidate();
                }
            });
            valueAnimator.addListener(new AnimatorListenerAdapter() {       //增加一个监听,用来返回给使用者滑动结束后的最终结果刻度值
                @Override
                public void onAnimationEnd(Animator animation) {
                    super.onAnimationEnd(animation);
                    //这里是滑动结束时候回调给使用者的结果值
                    if (onChooseResulterListener != null) {
                        onChooseResulterListener.onEndResult(resultText);
                    }
                }
            });
            valueAnimator.setDuration(300);
            valueAnimator.start();
            isUp = false;
        }

        num1 = (int) -(moveX / scaleGap);                //重新计算当前滑动位置的整数以及小数位置
        num2 = (moveX % scaleGap);
    }


    canvas.translate(num2, 0);    //不加该偏移的话,滑动时刻度不会落在0~1之间只会落在整数上面,其实这个都能设置一种模式了,毕竟初衷就是指针不会落在小数上面

    //这里是滑动时候不断回调给使用者的结果值
    currentScale = new WeakReference<>(new BigDecimal(((width / 2 - moveX) / (scaleGap * scaleCount)+minScale)*scaleLimit)).get().setScale(1, BigDecimal.ROUND_HALF_UP).floatValue() ;

    resultText = String.valueOf(currentScale);


    if (onChooseResulterListener != null) {
        onChooseResulterListener.onScrollResult(resultText); //接口不断回调给使用者结果值
    }
    //绘制当前屏幕可见刻度,不需要裁剪屏幕,while循环只会执行·屏幕宽度/刻度宽度·次,大部分的绘制都是if(curDis<width)这样子内存暂用相对来说会比较高。。
    while (rulerRight < width) {
        if (num1 % scaleCount == 0) {    //绘制整点刻度以及文字
            if ((moveX >= 0 && rulerRight < moveX - scaleGap) || width / 2 - rulerRight <= getWhichScalMovex(maxScale + 1) - moveX) {
                //当滑动出范围的话,不绘制,去除左右边界
            } else {
                //绘制刻度,绘制刻度数字
                canvas.drawLine(0, 0, 0, midScaleHeight, midScalePaint);
                scaleNumPaint.getTextBounds(num1 / scaleGap + minScale + "", 0, (num1 / scaleGap + minScale + "").length(), scaleNumRect);
                canvas.drawText((num1 / scaleCount + minScale)*scaleLimit + "", -scaleNumRect.width() / 2, lagScaleHeight +
                        (rulerHeight - lagScaleHeight) / 2 + scaleNumRect.height(), scaleNumPaint);

            }

        } else {   //绘制小数刻度
            if ((moveX >= 0 && rulerRight < moveX) || width / 2 - rulerRight < getWhichScalMovex(maxScale) - moveX) {
                //当滑动出范围的话,不绘制,去除左右边界
            } else {
                //绘制小数刻度
                canvas.drawLine(0, 0, 0, smallScaleHeight, smallScalePaint);
            }
        }
        ++num1;  //刻度加1
        rulerRight += scaleGap;  //绘制屏幕的距离在原有基础上+1个刻度间距
        canvas.translate(scaleGap, 0); //移动画布到下一个刻度
    }

    canvas.restore();
    //绘制屏幕中间用来选中刻度的最大刻度
    canvas.drawLine(width / 2, 0, width / 2, lagScaleHeight, lagScalePaint);

}

//绘制上面的结果 结果值+单位
private void drawResultText(Canvas canvas, String resultText) {
    if (!showScaleResult) {   //判断用户是否设置需要显示当前刻度值,如果否则取消绘制
        return;
    }
    canvas.translate(0, -resultNumRect.height() - rulerToResultgap / 2);  //移动画布到正确的位置来绘制结果值
    resultNumPaint.getTextBounds(resultText, 0, resultText.length(), resultNumRect);
    canvas.drawText(resultText, width / 2 - resultNumRect.width() / 2, resultNumRect.height(), //绘制当前刻度结果值
            resultNumPaint);
    resultNumRight = width / 2 + resultNumRect.width() / 2 + 10;
    canvas.drawText(unit, resultNumRight, kgRect.height() + 2, kgPaint);            //在当前刻度结果值的又面10px的位置绘制单位
}

private void drawBg(Canvas canvas) {
    bgRect.set(0, 0, width, height);
    if (isBgRoundRect) {
        canvas.drawRoundRect(bgRect, 20, 20, bgPaint); //20->椭圆的用于圆形角x-radius
    } else {
        canvas.drawRect(bgRect, bgPaint);
    }
}

public void computeScrollTo(float scale) {
    scale = scale/scaleLimit;
    if (scale < minScale || scale > maxScale) {
        return;
    }

    computeScale = scale;
    invalidate();

}

public interface OnChooseResulterListener {
    void onEndResult(String result);

    void onScrollResult(String result);
}

public void setRulerHeight(int rulerHeight) {
    this.rulerHeight = rulerHeight;
    invalidate();
}

public void setRulerToResultgap(int rulerToResultgap) {
    this.rulerToResultgap = rulerToResultgap;
    invalidate();
}

public void setScaleCount(int scaleCount) {
    this.scaleCount = scaleCount;
    invalidate();
}

public void setScaleGap(int scaleGap) {
    this.scaleGap = scaleGap;
    invalidate();
}

public void setMinScale(int minScale) {
    this.minScale = minScale;
    invalidate();
}

public void setFirstScale(float firstScale) {
    this.firstScale = firstScale;
    invalidate();
}

public void setMaxScale(int maxScale) {
    this.maxScale = maxScale;
    invalidate();
}

public void setBgColor(int bgColor) {
    this.bgColor = bgColor;
    invalidate();
}

public void setSmallScaleColor(int smallScaleColor) {
    this.smallScaleColor = smallScaleColor;
    invalidate();
}

public void setMidScaleColor(int midScaleColor) {
    this.midScaleColor = midScaleColor;
    invalidate();
}

public void setLargeScaleColor(int largeScaleColor) {
    this.largeScaleColor = largeScaleColor;
}

public void setScaleNumColor(int scaleNumColor) {
    this.scaleNumColor = scaleNumColor;
    invalidate();
}

public void setResultNumColor(int resultNumColor) {
    this.resultNumColor = resultNumColor;
    invalidate();
}

public void setUnit(String unit) {
    this.unit = unit;
    invalidate();
}

public void setUnitColor(int unitColor) {
    this.unitColor = unitColor;
    invalidate();
}

public void setSmallScaleStroke(int smallScaleStroke) {
    this.smallScaleStroke = smallScaleStroke;
    invalidate();
}

public void setMidScaleStroke(int midScaleStroke) {
    this.midScaleStroke = midScaleStroke;
    invalidate();
}

public void setLargeScaleStroke(int largeScaleStroke) {
    this.largeScaleStroke = largeScaleStroke;
    invalidate();
}

public void setResultNumTextSize(int resultNumTextSize) {
    this.resultNumTextSize = resultNumTextSize;
    invalidate();
}

public void setScaleNumTextSize(int scaleNumTextSize) {
    this.scaleNumTextSize = scaleNumTextSize;
    invalidate();
}

public void setUnitTextSize(int unitTextSize) {
    this.unitTextSize = unitTextSize;
    invalidate();
}

public void setShowScaleResult(boolean showScaleResult) {
    this.showScaleResult = showScaleResult;
    invalidate();
}

public void setIsBgRoundRect(boolean bgRoundRect) {
    isBgRoundRect = bgRoundRect;
    invalidate();
}

public void setScaleLimit(int scaleLimit) {
    this.scaleLimit = scaleLimit;
    invalidate();
}

  }

最后在写入自定义View的自定义属性就ok:

         <resources>

<declare-styleable name="RulerView">
    <attr name="rulerHeight" format="dimension" />               <!--尺子的高度-->
    <attr name="rulerToResultgap" format="dimension" />          <!--尺子距离结果的高度-->
    <attr name="scaleGap" format="dimension" />                  <!--刻度间距-->
    <attr name="scaleCount" format="integer" />                  <!--刻度数-->
    <attr name="firstScale" format="float" />                    <!--默认选中的刻度-->
    <attr name="maxScale" format="integer" />                    <!--最大刻度-->
    <attr name="minScale" format="integer" />                    <!--最小刻度-->
    <attr name="bgColor" format="color" />                       <!--背景色-->
    <attr name="smallScaleColor" format="color" />               <!--小刻度的颜色-->
    <attr name="midScaleColor" format="color" />                 <!--中刻度的颜色-->
    <attr name="largeScaleColor" format="color" />               <!--大刻度的颜色-->
    <attr name="scaleNumColor" format="color" />                 <!--刻度数的颜色-->
    <attr name="resultNumColor" format="color" />                <!--结果字体的颜色-->
    <attr name="unit" format="string" />                         <!--单位-->
    <attr name="unitColor" format="color" />                     <!--单位颜色-->
    <attr name="smallScaleStroke" format="dimension" />          <!--小刻度的宽度-->
    <attr name="midScaleStroke" format="dimension" />            <!--中刻度的宽度-->
    <attr name="largeScaleStroke" format="dimension" />          <!--大刻度的宽度-->
    <attr name="resultNumTextSize" format="dimension" />         <!--结果字体大小-->
    <attr name="scaleNumTextSize" format="dimension" />          <!--刻度字体大小-->
    <attr name="unitTextSize" format="dimension" />              <!--单位字体大小-->
    <attr name="showScaleResult" format="boolean" />             <!--是否显示结果值-->
    <attr name="isBgRoundRect" format="boolean" />               <!--背景是否圆角-->
    <attr name="scaleLimit" format="integer" />                <!--相邻2个刻度之间的数量-->

</declare-styleable>
评论
添加红包

请填写红包祝福语或标题

红包个数最小为10个

红包金额最低5元

当前余额3.43前往充值 >
需支付:10.00
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、付费专栏及课程。

余额充值
